Neuf

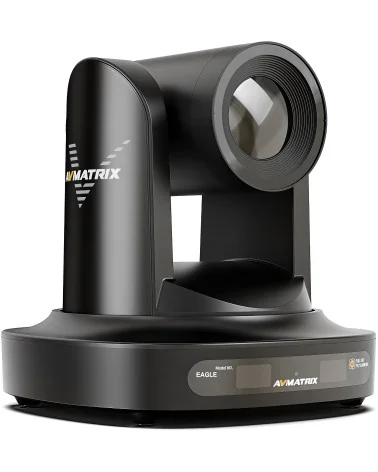

AVMATRIX EAGLE P12A Caméra PTZ

Name: AVMATRIX EAGLE P12A Caméra PTZ
Brand: AVMATRIX
SKU: EAGLE P12A
Price: 699.00 EUR
Availability: InStock

MPN: EAGLE P12A

Prix : 699,00 €

Ventes à l'échelle de l'UE, facturation pour livraisons intracommunautaires exonérée de TVA.

Disponible chez le fournisseur (délai de livraison à confirmer)

AVMATRIX EAGLE P12A est une caméra PTZ Full HD avec suivi IA pour filmer automatiquement un intervenant, un panel ou un sujet en mouvement. Le capteur CMOS 2,07 MP au format 1/2,8" délivre du 1080p jusqu’à 60 i/s, avec exposition manuelle/auto, compensation de contre-jour et réduction de bruit 2D/3D pour une image plus stable sous éclairages scéniques. La balance des blancs couvre 2400–7100 K et les réglages (luminosité, couleur, saturation, contraste, netteté, gamma) sont accessibles en menu, avec une sensibilité mini de 0,5 lux à f/1,8 (AGC activé).

L’optique combine un zoom optique 12× (4,1–49,2 mm) et un zoom numérique 16×, avec un angle de champ horizontal jusqu’à 70,28°. La mécanique couvre ±170° en pan et -30° à +90° en tilt, avec vitesses variables et jusqu’à 255 préréglages pour les rappels instantanés en régie. Le tracking propose les modes Temps réel, Scène, Zone et Cadrage intelligent, avec sélection rapide de la position (gauche/centre/droite) et de la taille de plan (gros/mi-corps/plein cadre/personnalisé), jusqu’à 18 m de distance de suivi.

Côté intégration, HDMI, 3G-SDI, USB 3.0 UVC et LAN fonctionnent en sorties parallèles, ce qui facilite un flux vers un mélangeur et une capture ordinateur en même temps. L’USB accepte YUY2/NV12 ainsi que MJPG, H.264 et H.265 ; le réseau utilise H.264/H.265. La diffusion IP prend en charge RTSP, RTMP/RTMPS et SRT, avec double flux, contrôle CBR/VBR et un débit vidéo de 64 à 40 960 kb/s, audio inclus sur toutes les sorties.

Le pilotage s’intègre via ONVIF, VISCA, VISCA over IP, Pelco-D/P et RS-232/RS-485, avec télécommande IR, interface web ou contrôleur joystick, et fonctions de mise à jour/redémarrage/réinitialisation à distance. L’audio est embarqué sur HDMI/SDI/IP/USB ; l’entrée ligne 3,5 mm double canal accepte AAC ou G.711A. Alimentation par entrée DC verrouillable ou PoE+ (IEEE 802.3at) ; FreeD ouvre la voie aux plateaux virtuels/AR-VR, pour l’enseignement, la formation, les lieux de culte et l’esport.

Expédition vers l'UE

Nous livrons dans toute l'Union Européenne pour 20 €, livraison gratuite pour les commandes supérieures à 1 000 €.

Boutique B2B

Notre offre s'adresse uniquement aux clients B to B, tous les prix sont hors taxes.

Paiement sécurisé

Paiements en ligne sécurisés via Stripe.

Devis individuel

Envoyez votre demande via le formulaire ou par mail: avgear@avgear.shop

Al Auto Tracking
Supports four intelligent tracking modes: Real-time, Stage Tracking, Area Tracking, and Intelligent View. Automatically follows subjects and adapts to different scenes, ensuring smooth, professional-level framing for live events, lectures, or presentations.

Quick Subject Framing
Quickly choose the subject position (Left / Middle / Right) and frame size (Close / Half / Full / Custom), perfect for dynamic shooting and Al tracking scenarios. In Real-Time Tracking mode, both position and frame size can be adjusted, while Stage Tracking mode allows adjustment of frame size.

Zoom Lens Optional
Provides 12×/20×/30x optical zoom lens for effective close-up and wide-angle shooting. Quick pan and tilt speeds and picture controls like brightness, color, saturation, contrast, sharpness provide precision control of your images.

Easily Control The PTZ camera can be easily controlled by IR remote control, Web Ul as well as the joystick camera controller via IP or serial port. Multiple control protocols are supported including ONVIF, VISCA over IP, VISCA, PELCO-D, PELCO-P.

Threaded DC & PoE Power
Lockable threaded power and POE dual power supply ensure stable and reliable power delivery. Even in dynamic scenarios or frequent movement, the screw-lock DC connector prevents accidental disconnection, guaranteeing continuous power for uninterrupted shooting and live streaming.

A Variety of Installation
Support image flip function, the bottom thread of the camera can be used for mounting suitable for tripod mounting wall mounting, ceiling mounting. Widely used in many applications in broadcasting, education, church and other fields.

Application Fields
The PTZ camera can be widely used in various field events, such as conference, church, concert, education, interviews, sport live and other live broadcast activities.

HDMI & SDI Dual Outputs
Equipped with dual HDMI and SDI outputs, it supports simultaneous output of signals up to FHD 1080p resolution. Audio signals can be embedded into the SDI/HDMI channels to deliver high-quality video to monitors, switchers, and broadcast systems. This makes it ideal for live streaming, professional production, and multi-screen display applications.

USB Capture & LAN Streaming
Equipped with USB and LAN ports, this PTZ camera supports direct USB capture for video conferencing and computer recording, as well as LAN streaming to platforms via ONVIF/ RTSP/ RTMP/ SRT. Flexible, professional, and easy to deploy for any live production.

PARAMETERS
Image Sensor: 1/2.8 inch high quality HD CMOS sensor
Effective Pixel: 2.07M, 16:9
Optical Lens: 12X f=4.1~49.2mm
Viewing Angle: D: 78.36° - 7.50°, H: 70.28° - 6.57°, V: 42.06° - 3.76°
Digital Zoom: 16 X
Minimum Illumination: 0.5Lux (F1.8, AGC ON)
DNR: 2D&3D
White Balance: Auto/Manual/One Touch White Balance/Specified Color Temperature (2400K-7100K, adjustable in 100K steps)
Focus: Auto/Manual/One-push
Iris: Auto/Manual
Electronic Shutter: Auto/Manual
BLC(Backlight Compensation): On/Off
Dynamic Range: Off/ Dynamic level adjustment
Video Adjustment: Brightness, Color, Saturation, Contrast, Sharpness, B/W Mode, Gamma curve
SNR: ≥50dB

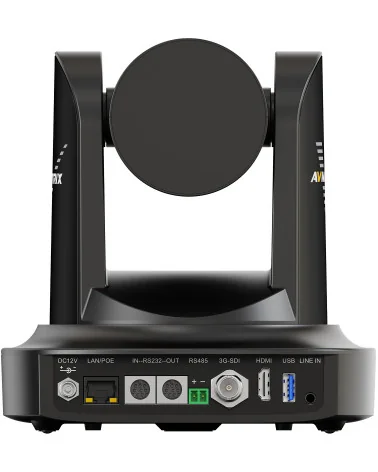

INTERFACE
Video output: HDMI, SDI, LAN, USB3.0
Video Format:
HDMI/SDI interface video format: 1080P60/59.94/50/30/29.97/25, 1080|60/50/59.94, 720P60/59.94/ 50
USB3.0: YUY2/NV12: 1920*1080/1280*720/1024*576/800*600/800*448/640*480/640*360/480*270/320*180@60/30/25/20/15/10/5fps;
MJPG/H264/H265: 1920*1080/1280*720/640*360/640*480/320*240/320*180@60/30/25/20/15/10/5fps
LAN: Main Stream: H264/H265/MJPEG: 1920*1080/1280*720/640*480@60/30/25/20/15/10/5fps
Sub-stream: H.264/H.265/MJPEG: 1280*720/640*360/640*480/320*240/320*180@60/30/25/20/15/10/5fps;
Video compression formats: LAN: H.265, H.264 USB 3.0: MJPG, H264, H.265, YUY2, NV12
Video Bitrate: 64-40960
Bitrate Control: Fixed Bitrate, Variable Bitrate
Frequency: 50Hz:1fps ~ 50fps 60Hz:1fps ~ 60fps
Audio In Interface: Dual audio channel 3.5mm linear input
Audio Output Interface: HDMI, LAN, USB 3.0, SDI
Audio Bitrate: 96Kbps, 128Kbps
Audio Compression Format: AAC, G.711A
Network Interface: 100M Ethernet port, optional POE+ IEEE 802.3at power supply, supports audio and video output
Network Protocol: RTSP, RTMP, ONVIF, GB/T28181, SRT, FreeD, IP VISCA, supports remote upgrade, remote reboot, and remote reset
Control Interfaces: RS232-IN, RS232-OUT, RS485
Serial Communication Protocol: VISCA/Pelco-D/Pelco-P; Supports baud rates of 115200/38400/9600/4800/2400
USB Communication Protocol: UVC (Video Communication Protocol) UAC (Audio Communication Protocol)
Power Interface: HEC3800 power socket (DC12V)
Power Adapter: Input:AC110V-AC220V Output:DC12V/1.5A
Input Voltage: DC12V+10%
Input Currency: ≤1.2A
Power Consumption: ≤13 W

PTZ
Pan: -170°~+170°
Tilt: -30°~+90°
Pan Speed: 0.1~100%s
Tilt Speed: 0.1~45/s
Preset Speed: Pan: 100%s, Tilt: 45%
Preset Quantity: User can set 255 presets (10 via IR remote control)

MONOCULAR TRACKING
Tracking Modes: Off, Real-time Tracking, Stage Tracking, Area Tracking, and Intelligent Framing
Tracking Distance: Maximum tracking distance up to 18 meters

OTHERS
Storage Temperature: -10°C~ +70°C
Storage Humidity: 20% ~ 95%
Working Temperature: -10°C~+50°C
Working Humidity: 20% ~80%
Dimension: 170×170×180mm
Weight: 1.26kg
Environment: Indoors
