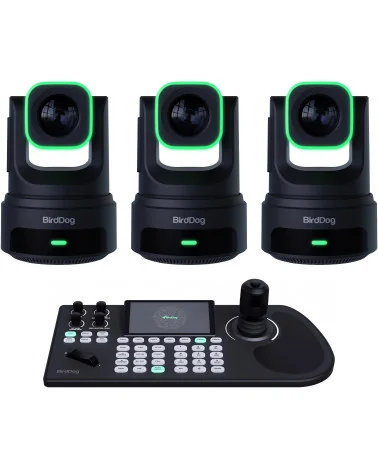

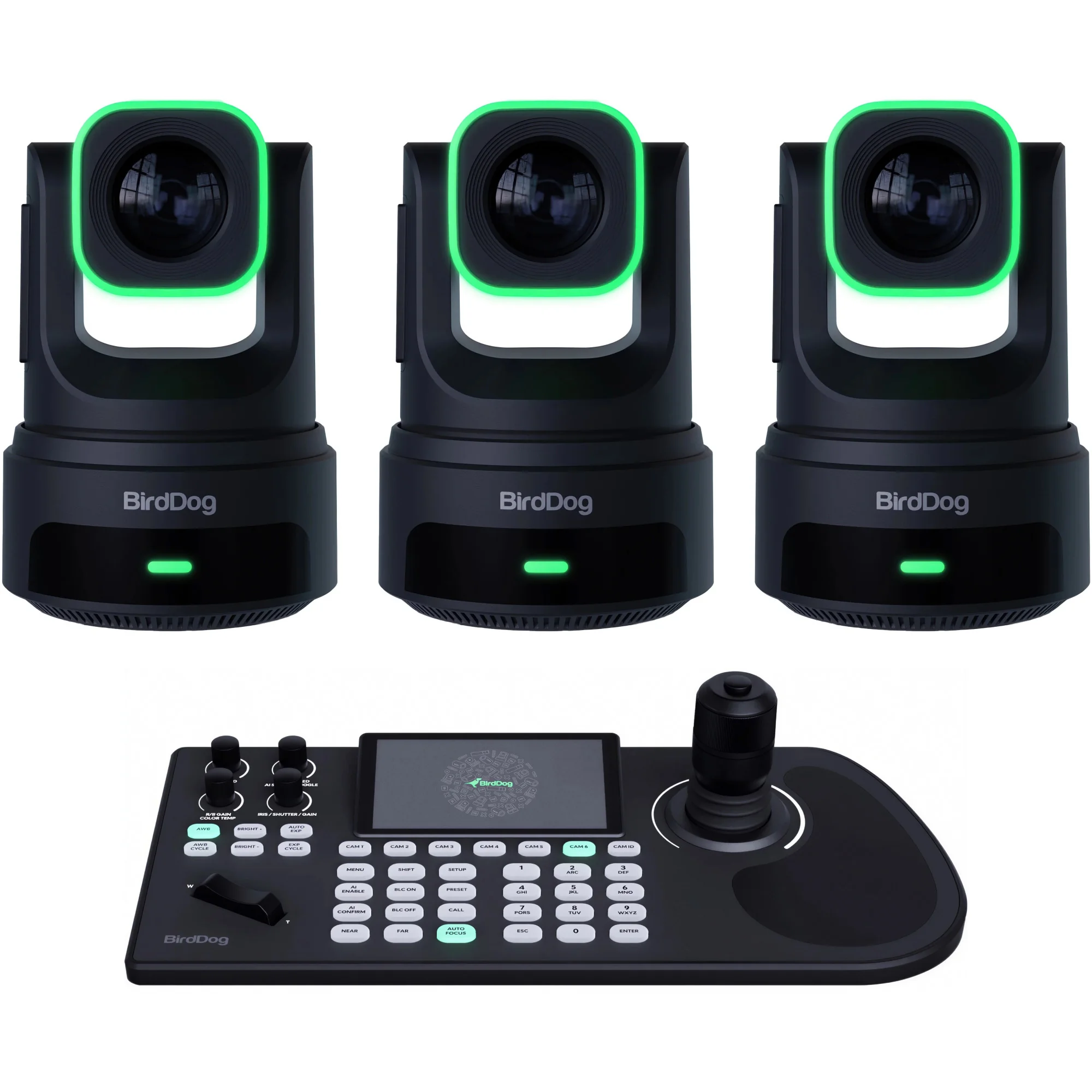

BirdDog X4E Ultra
With the new X4E Ultra PTZ camera, BirdDog has launched a wired version of the X4 Ultra. It has been specially designed for studios, event venues, places of worship, and large installations where maximum reliability and value are paramount.

To this end, the X4E Ultra draws on the powerful DNA of the X4 Ultra. It features the same Sony sensor, the same image pipeline, and, last but not least, the same precision technology from BirdDog. However, all components are optimized for wired workflows. This is because the X4E was developed for fixed installations and controlled network environments where consistency is the decisive factor.

By eliminating Wi-Fi and an internal battery, the X4E Ultra is easier for system installers to integrate. Its lower price makes it easier to decide to use multiple cameras. At the same time, it offers the same professional flexibility for SDI, HDMI, USB-C, SRT, NDI, RTMP, and RTSP.

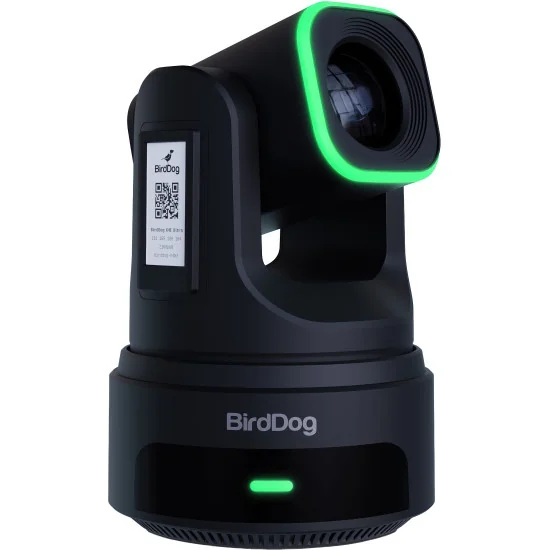

As a professional tool, the X4E Ultra features what is probably the most visible and effective tally system on the market today. It surrounds the lens with a large frame that is visible even in daylight and ensures that the actors look directly into the camera. At the same time, both the actors and the production team always know where to look in order to captivate the audience.

The X4E Ultra's AI control is user-friendly and ensures reliable and consistent performance with every shot. As demands increase, the AI functions expand and adapt to enable precise, automated control of your PTZ camera movements.

Thanks to the implementation of NDI|HX3, the X4E Ultra offers excellent network performance. The impact on the network is significantly reduced while maintaining excellent image quality, allowing the camera to be used in even more network environments.

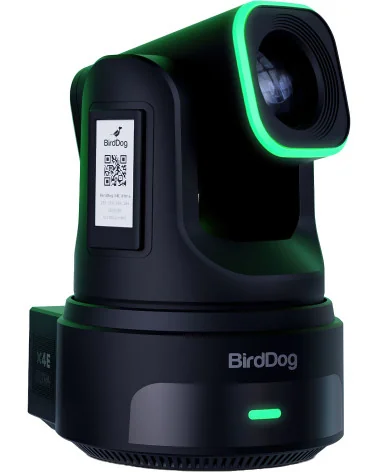

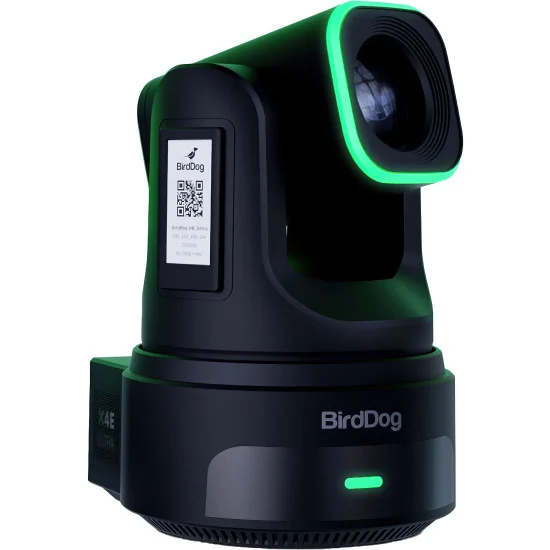

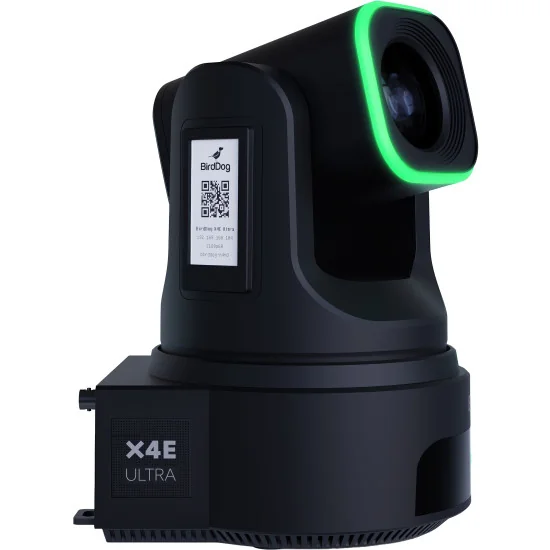

The X4E Ultra's always-on E-Ink label is an important innovation. On the one hand, it allows each camera to be easily identified even when switched off. On the other hand, network addresses can be displayed for easy access to controls or even customizable logos (available soon) that complement your brand image.

BirdUI gives users full access to all X4E Ultra features via an intuitive user interface - from anywhere, as long as they are on the same network as the X4E Ultra. BirdUI also offers additional features such as a camera monitoring dashboard and light/dark modes that can be adapted to your production environment.

The BirdDog X4E Ultra is available in black or white.

Features:
X4E Ultra - an X4 without WiFi and internal battery, but with all the great features of the X4!
Ideal for productions that require maximum reliability
The DNA of the X4 Ultra has been optimized for wired workflows
User-friendly AI control
Best network performance thanks to NDI | HX3
Always-on E-Ink label
Full access (including remote) to all functions thanks to BirdUI

Tech Specs:

Imaging:
Image sensor: Sony 1/1.8-inch CMOS: ULTRA HD
Lens: f= 6.25 - 125 mm
20x optical zoom
Video format: 2160p @ 60/59.94/50/30/29.97/25fps, 1080p @ 60/59.94/50/30/29.97/25fps, 1080i @ 59.94/50fps, 720p @ 60/59.94
Horizontal viewing angle: 60 degrees (W) to 3.5 degrees (T)
Vertical viewing angle: 35 degrees (W) to 2.0 degrees (T)
Diagonal viewing angle: 66.6 degrees (W) to 4.0 degrees (T)
Focus: Automatic, Manual
Exposure: Auto, Shutter priority, Aperture priority, Manual
Shutter speed: 1/1 to 1/10000 s
Backlight compensation: Yes
3D noise reduction
SNR: less than or equal to 45dB
Effective pixels: 8.42 MP
AI tracking: Presenter tracking, Zone

Mechanical:
Pan/tilt rotation: ±170 degrees, -30 to +90 degrees
Pan control speed: 1.7 to 80 degrees/sec
Tilt control speed: 1.7 to 60 degrees/sec
255 presets
Integrated tally light
HALO counting system and rear number counting system
Display: e-Ink: 2.13 inches with custom logo

I/O interface:
Video output: 3G-SDI, HDMI, USB-C UVC, network
Video compression: H.264, H.265
Network interfaces: 1 Gbit/s adaptive Ethernet port; PoE IEEE 802.3at
NDI|HX2, NDI|HX3, RTSP, RTMP, SRT
Control interfaces: 1 Gbit/s Ethernet, USB-C, RS-232
Control protocols: VISCA baud rate: 38400/9600/4800/2400, VISCA-IP, NDI, ONVIF
Analog audio: 3.5 mm TRS line input/microphone input

General:
Operating environment: indoors
Input voltage: DC 12 V, POE IEEE 802.3at
Input current:     5.0 A max.
Operating temperature: 0 to +40 degrees Celsius
Operating humidity: 20 to 80 percent
Dimensions: approx. 14 x 18.9 x 20 cm
Weight: approx. 2.19 kg

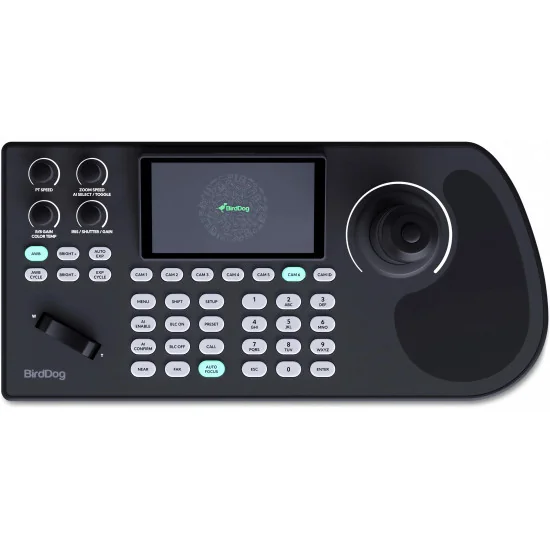

BirdDog KBD PTZ Controller

Crafted from Feedback. Built for Brilliance.
BirdDog KBD Controller offers PTZ camera operators a rugged, ergonomic design, a large multi-camera display, and direct access to essential functions. With a built-in tally display and physical feedback for camera switching, it’s intuitive and eco-friendly, made with Ocean-Bound Plastics and recyclable Aircraft-grade Aluminum. NDI, VISCA, ONVIF, RS-232, and RS-422 connectivity ensure versatility no matter what language you speak.

Built for Seamless Control and Comfort.
KBD is crafted for those who rely on precision and ease in their workflow. With a rugged, ergonomic design, it’s built for comfort, featuring a hand-rest area and tactile controls for all-day use.

Super-fine Control Mode.
When it’s time to fine-tune, you can easily shift the camera joystick into ‘fine-tune’ mode, increasing the sensitivity of the joystick by 10x, making reframing shots on air more artistic flair than nail-biting scare.

Expanded Screen. Instant Camera Control.
The big screen allows you to monitor up to four cameras at once or focus on one full screen. Pairing and switching between cameras is just a single press away, with a tactile button that gives instant feedback under your finger, making transitions smooth and intuitive.

The KBD’s screen offers live previews for NDI-HX2/HX3 cameras and key text-based details for others, ensuring seamless compatibility and clarity across your workflow.

Built-in Tally Borders.
Pairing and switching between cameras is just a single press away, with tactile buttons providing instant feedback under your finger for smooth, intuitive transitions. When integrated with mixers like TriCaster or vMix, KBD’s built-in tally border shows the live camera directly on the keyboard, so you can stay focused without looking at other screens.

Camera Setting Sync.
An industry-first feature, you can tune one camera to look exactly how you like, and then simply copy those settings directly to another camera of the same model (BirdDog X series function). Making it easy to dial your cameras in and take your production quality to the next level.

Direct Access to Key Functions.
No more endless menu diving! KBD brings you straight to the essentials. With its streamlined layout, operators can access camera pairing, switching, and configuration in seconds. It’s all there, clear and accessible, thanks to user feedback that’s shaped a truly friendly experience.

Ultimate Connectivity in an Eco-Friendly Design.
BirdDog KBD connects seamlessly through NDI, VISCA, ONVIF, RS-232, and RS-422, making it versatile for any setup. And with a commitment to sustainability, it’s made using ocean-bound plastics, reducing environmental impact.

Affordable Innovation.
With enhanced features and a lower price than its predecessor, KBD is refined through user insight, offering unmatched comfort, control, and eco-consciousness for the modern PTZ camera operator.

*The KBD’s screen offers live previews for NDI-HX2/HX3 cameras and key text-based details for others, ensuring seamless compatibility and clarity across your workflow.

Tech Spec:

Camera Control
PTZ Control: VISCA-IP, NDI, ONVIF, PELCO-P, PELCO-D
Fine PTZ Control: VISCA-IP, NDI
Focus Control: Auto Focus, Manual Focus buttons
Auto Exposure: Direct Button
Manual Exposure: Toggle Dial adjustment Brightness/Shutter/Gain/Iris
Auto White Balance: Direct Button
Manual White Balance: Toggle Dial adjustment R-Gain, B-Gain, Color Temperature
Auto Focus: Direct Button
Manual Focus: Direct Button (Near/Far)
BLC (Backlight Compensation): Direct Button
Zoom Ring on Joystick: Yes (enable/Disable)
Programmable Trigger on Joystick: Adjustable, One-Push Focus, AI Tracking, One-Push AWB
AI Camera Mode Control: Camera Dependent, supported
Copy/Paste Camera Settings: Supported on selected BirdDog Cameras (VISCA-IP, NDI)

Camera Access
Max. Cameras support: 255
Direct Camera access keys: 6
Direct Preset access keys: 10
Max Preset support: 255 per camera
OSD Camera Menu: Menu Button / Interaction with Joystick

Display
Display Diagonal Dimension: 5"
Display Resolution: 1280x720
Multiview IP Video: Supported, NDI HX (Proxy), RTSP (max. 30 fps)
Full Screen IP Video: Supported, NDI HX (Proxy), RTSP (max. 30 fps)
IP Video CODEC support: h.264, h.265
Tally Borders: Selectable, Multiview and Full Screen mode
On Screen Menu: Fully configurable
Light/Dark Mode: YES

NDI Support
NDI Control: NDI HX2, NDI HX3, High Bandwidth NDI
NDI Multiview: NDI HX2, NDI HX3
NDI Router: Yes, follows current active camera
NDI Discovery: Supported
NDI Access Manager: Supported
NDI PTZ Sensitivity: Standard (NDI); Superfine (BirdDog Specific)

Setup/Configuration
WebUI: BirdUI for setup and firmware updates
Light/Dark Mode: YES
API-based Camera Selection: YES

Serial Connections
RS-232: D-Sub connector (9-pin)
RS-422: Phoenix connector

Mechanical
Joystick Type: 4D (Integrated Trigger button)
Keys: 37 Keys; Backlit, Individual Contact, Silicon Pad
Toggle Dials: 4 knobs; Press Button, Graduated, 360° adjustment
Zoom Rocket: Spring loaded, adjustable
Dimensions: 377mm x 177mmx 118mm ; 14.84in x 6.96 x 4.64in (LxWxH including Joystick)
ConstructionMaterial: Aluminium; OBP Ocean-Bound Plastic
Integrated Carry Handle: YES
Operating Temperature: -10°C - +55°C; 14°F - 130°F
Storage Temperature: -10°C - +55°C; 14°F - 130°F
Operating Humidity: 20% - 80% (Non-condensing)
Storage Humidity: 0% - 90% (Non-condensing)
Power Supply: PoE (802.3af), DC12V
Power Consumption: ≤5W
Packaging Dimensions: 390x215x165mm; 15.35x8.46x6.49 in
