With the XL Ultra, BirdDog have launched a cinema-quality PTZ camera designed for high-end broadcast, XR stages, virtual productions, and premium studio installations. At its heart is a large-format 4/3-inch CMOS sensor, paired with a 20x optical zoom (40x in HD) and HLD, OLFPF, and ND filters. The camera delivers cinema-quality depth of field and outstanding clarity even in low-light conditions.

In addition to the main PTZ camera, XL Ultra offers an integrated 100-degree panoramic camera with a 1/1.8-inch sensor – larger than the main sensor of most PTZ cameras. Both XL cameras record in 4K60; both can be controlled independently and output their data simultaneously as separate sources.

Thanks to its advanced AI tracking engine, XL Ultra can be adapted to any situation – from a CEO on a podium to a dynamic band guitarist in full action. The camera not only tracks the subject, it acts like a human cameraman. Its high-quality motors and advanced thermal design make XL Ultra both ultra-precise and very quiet. No buzzing. No distractions.

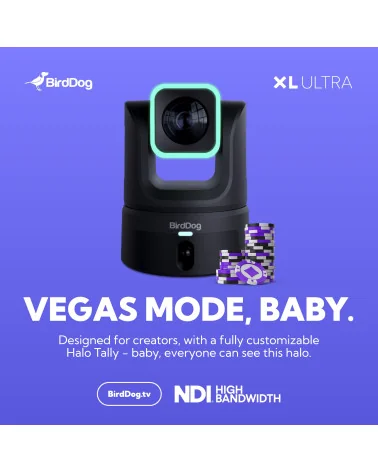

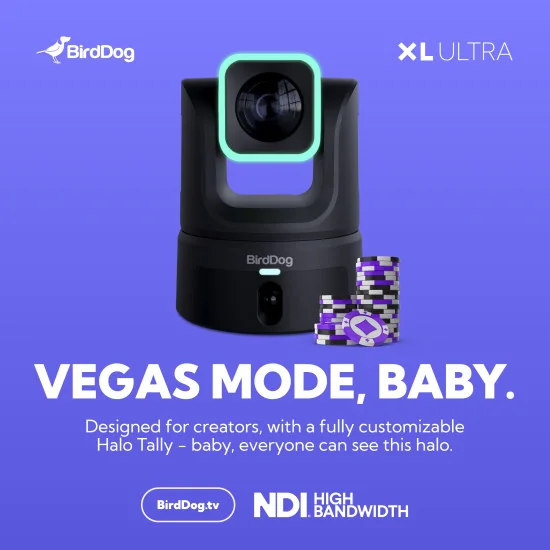

The RGB halo tally is fully customizable. Side-mounted e-ink displays show IP, logo, or camera ID even when the camera is turned off. The tally on the back of the housing makes it easy to identify in multi-camera setups. This guarantees clarity and control.

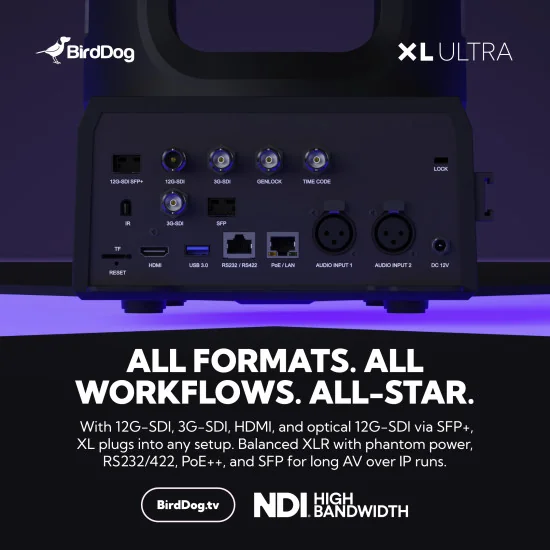

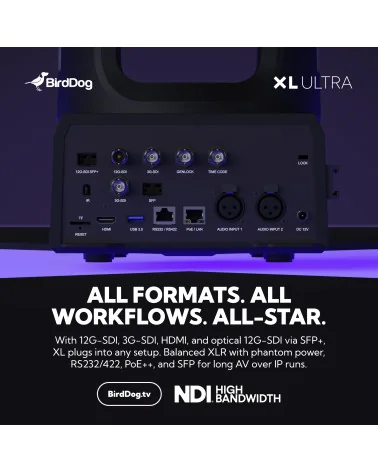

With 12G-SDI, 3G-SDI, HDMI, and optical 12G-SDI via SFP+ interfaces, XL Ultra can be integrated into any configuration. The balanced XLR connector with phantom power, PoE++, and SFP is ideal for long runs. Thanks to its advanced processor, future firmware versions will also be ready for immediate use. Last but not least, XL Ultra streams simultaneously in NDI High Bandwidth and NDI HX3, offering ultimate flexibility.

Genlock and timecode enable perfect synchronization of multi-camera workflows.

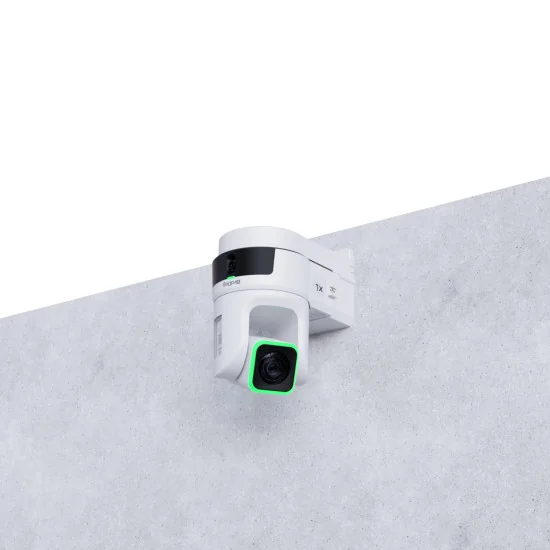

FreeD makes the XL Ultra a natural addition to AR/XR environments. An integrated OLPF filter reduces moiré effects when shooting in front of high-resolution LED walls. An (optionally available) mounting system hides cables and fits on trusses or tripods, ceilings, or studio installations.

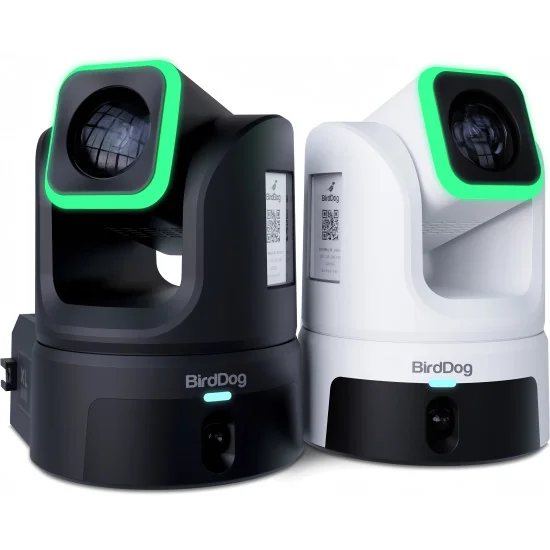

The BirdDog XL Ultra is available in black or white.

Features:
Large-format 4/3'' CMOS sensor for cinematic depth of field and outstanding low-light performance.
20× optical zoom (40× in HD) with OLPF and ND filters for precision and clarity.
AI tracking with machine learning, using dual-camera input for natural, human-like framing.
Ultra-quiet motors and advanced thermal design for distraction-free operation.
Dual 4K60 outputs via 12G-SDI and HDMI for uncompromising image quality.
FreeD and Genlock support, making XL ideal for XR stages, AR workflows, and multi-camera sync.
SFP+ fiber connectivity for large-scale and remote installs.
Simultaneous Full NDI® and NDI® HX3 streaming for flexible workflows.
Dual streaming support — NDI plus SRT, RTMP, or RTSP concurrently.
Firmware-ready for NDI 6.2, ensuring future-proof performance.

Tech Specs:

Primary Camera
Image sensor: Sony 4/3-inch CMOS 5K
Lens focal length 9.8 to 186 mm
20x optical zoom
Video format 2160p60, 59.94, 50, 29.97, 25 fps
1080p@60, 59.94, 50, 30, 29.97, 25 fps
1080i60, 59.94, 50 fps
720p@60, 59.94, 50 fps
Horizontal angle of view: 71 degrees (W) to 4 degrees (T)
Vertical angle of view: 40 degrees (W) to 2 degrees (T)
Diagonal angle of view: 79 degrees (W) to 4.5 degrees (T)
Aperture: F2.8 to 4.5
Focus: Auto, Manual
Exposure time: 1/1 to 1/10,000s
Optical low pass filter
Digital image stabilization

Secondary Panoramic Camera
Image Sensor: 1/1.8'' Sony CMOS 4K sensor
Lens: Fixed
Focal Length: 4.4 mm
Aperture: f2.0
Horizontal Field of View: 85°
Vertical Field of View: 53°
Diagonal Field of View: 93°

Mechanical
Pan/Tilst Rotation +170°, -30° -+90°
Pan control Speed 0.05° -120°
Tilt Control Speed 0.05°~90%

I/O interface
Video output interfaces: 12G-SDI, 36-SDI x 2, HDMI 2.0, USB-C 1Gb RJ45, SFP+ Cage (Ethernet)
Video compression: H.264, H.265, SpeedHQ
Network interfaces: 1GbE Adaptive Ethernet port++; 1x SFP+ cage (Ethernet)
Encoder network protocols: High-bandwidth NDI (SpeedHQ), NDI HX3, NDI HX2, SRT, RTSP, RTMP
Decoder network protocols: NDI-HX3, NDI-HX2
Control protocols: VISCA IP, NDI, VISCA Serial, Pelco-P, Pelco-D
Digital audio: Embedded with main and secondary HDMI, 12G-SDI, network video, USB (UVC)
Analog audio: Balanced audio XLR x 2
Genlock supported
Timecode supported
Kensington Lock supported

AI Features
Advanced tracking with Secondary camera support
Advanced auto-framing with Secondary camera support
Zone tracking supported
Gesture control supported

General Parameters
Input voltage: DC 12V, PoE++
Input current: 12V 5A (max.)
Power consumption: 60W (max.)
Operating temperature: 0 to 40 degrees Celsius
Operating humidity: 20 to 80 percent (non-condensing)
Dimensions (WxHxD): approx. 21.9 x 29.2 x 26.3 cm
Weight: approx. 4 kg

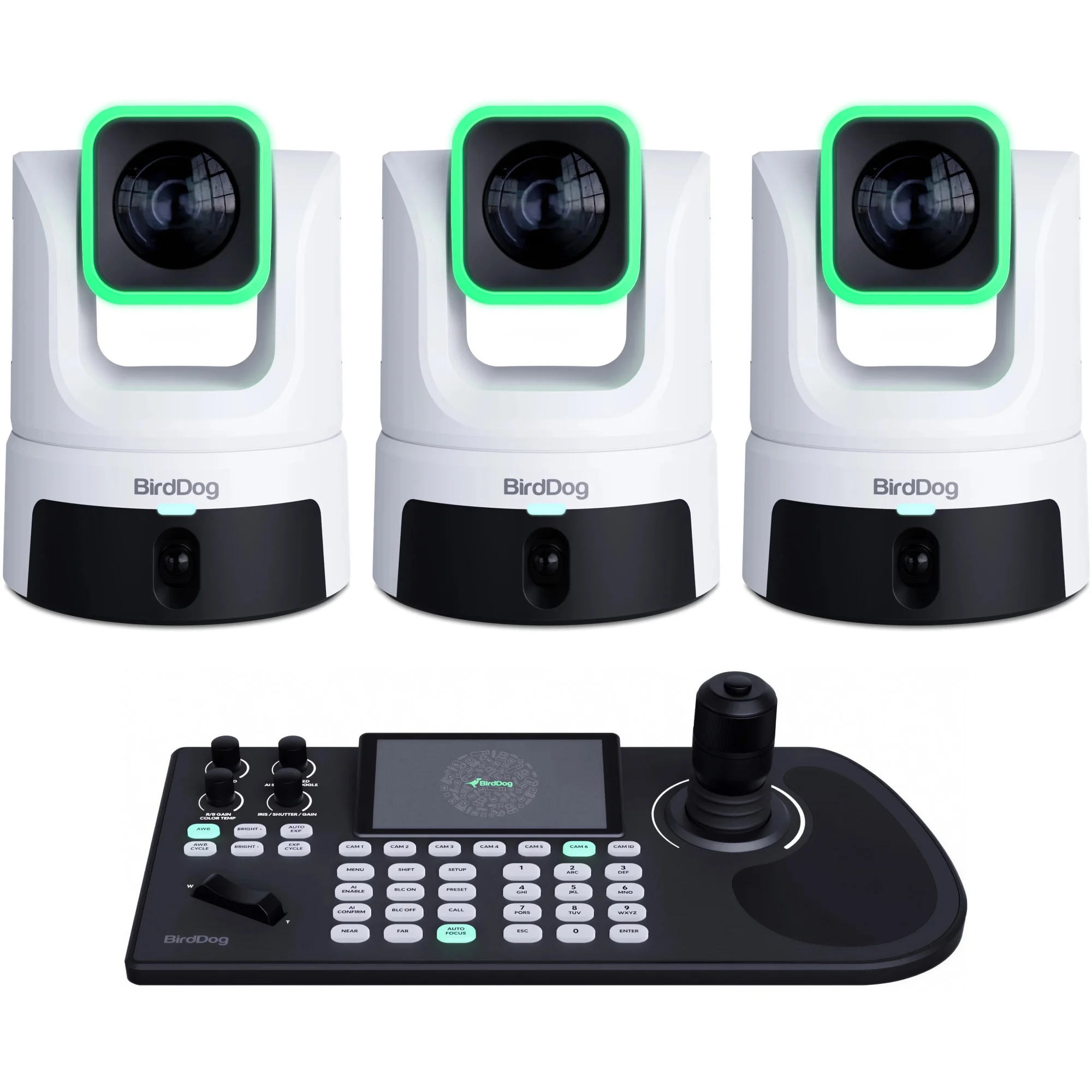

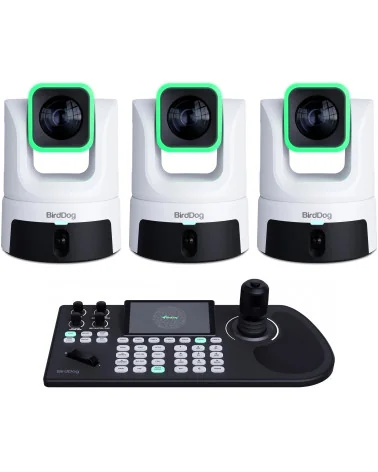

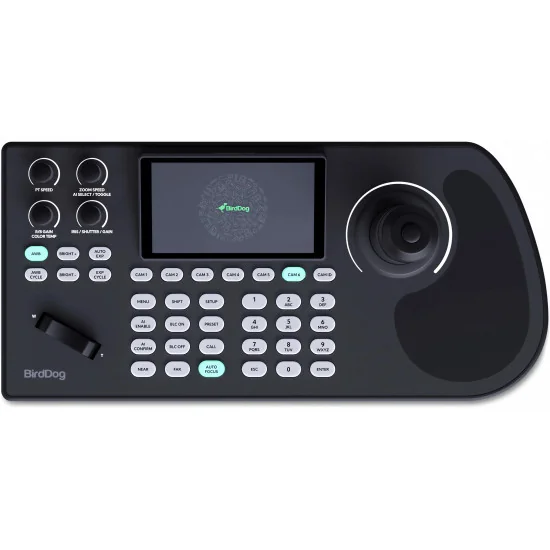

BirdDog KBD PTZ Controller

Crafted from Feedback. Built for Brilliance.
BirdDog KBD Controller offers PTZ camera operators a rugged, ergonomic design, a large multi-camera display, and direct access to essential functions. With a built-in tally display and physical feedback for camera switching, it’s intuitive and eco-friendly, made with Ocean-Bound Plastics and recyclable Aircraft-grade Aluminum. NDI, VISCA, ONVIF, RS-232, and RS-422 connectivity ensure versatility no matter what language you speak.

Built for Seamless Control and Comfort.
KBD is crafted for those who rely on precision and ease in their workflow. With a rugged, ergonomic design, it’s built for comfort, featuring a hand-rest area and tactile controls for all-day use.

Super-fine Control Mode.
When it’s time to fine-tune, you can easily shift the camera joystick into ‘fine-tune’ mode, increasing the sensitivity of the joystick by 10x, making reframing shots on air more artistic flair than nail-biting scare.

Expanded Screen. Instant Camera Control.
The big screen allows you to monitor up to four cameras at once or focus on one full screen. Pairing and switching between cameras is just a single press away, with a tactile button that gives instant feedback under your finger, making transitions smooth and intuitive.

The KBD’s screen offers live previews for NDI-HX2/HX3 cameras and key text-based details for others, ensuring seamless compatibility and clarity across your workflow.

Built-in Tally Borders.
Pairing and switching between cameras is just a single press away, with tactile buttons providing instant feedback under your finger for smooth, intuitive transitions. When integrated with mixers like TriCaster or vMix, KBD’s built-in tally border shows the live camera directly on the keyboard, so you can stay focused without looking at other screens.

Camera Setting Sync.
An industry-first feature, you can tune one camera to look exactly how you like, and then simply copy those settings directly to another camera of the same model (BirdDog X series function). Making it easy to dial your cameras in and take your production quality to the next level.

Direct Access to Key Functions.
No more endless menu diving! KBD brings you straight to the essentials. With its streamlined layout, operators can access camera pairing, switching, and configuration in seconds. It’s all there, clear and accessible, thanks to user feedback that’s shaped a truly friendly experience.

Ultimate Connectivity in an Eco-Friendly Design.
BirdDog KBD connects seamlessly through NDI, VISCA, ONVIF, RS-232, and RS-422, making it versatile for any setup. And with a commitment to sustainability, it’s made using ocean-bound plastics, reducing environmental impact.

Affordable Innovation.
With enhanced features and a lower price than its predecessor, KBD is refined through user insight, offering unmatched comfort, control, and eco-consciousness for the modern PTZ camera operator.

*The KBD’s screen offers live previews for NDI-HX2/HX3 cameras and key text-based details for others, ensuring seamless compatibility and clarity across your workflow.

Tech Spec:

Camera Control
PTZ Control: VISCA-IP, NDI, ONVIF, PELCO-P, PELCO-D
Fine PTZ Control: VISCA-IP, NDI
Focus Control: Auto Focus, Manual Focus buttons
Auto Exposure: Direct Button
Manual Exposure: Toggle Dial adjustment Brightness/Shutter/Gain/Iris
Auto White Balance: Direct Button
Manual White Balance: Toggle Dial adjustment R-Gain, B-Gain, Color Temperature
Auto Focus: Direct Button
Manual Focus: Direct Button (Near/Far)
BLC (Backlight Compensation): Direct Button
Zoom Ring on Joystick: Yes (enable/Disable)
Programmable Trigger on Joystick: Adjustable, One-Push Focus, AI Tracking, One-Push AWB
AI Camera Mode Control: Camera Dependent, supported
Copy/Paste Camera Settings: Supported on selected BirdDog Cameras (VISCA-IP, NDI)

Camera Access
Max. Cameras support: 255
Direct Camera access keys: 6
Direct Preset access keys: 10
Max Preset support: 255 per camera
OSD Camera Menu: Menu Button / Interaction with Joystick

Display
Display Diagonal Dimension: 5"
Display Resolution: 1280x720
Multiview IP Video: Supported, NDI HX (Proxy), RTSP (max. 30 fps)
Full Screen IP Video: Supported, NDI HX (Proxy), RTSP (max. 30 fps)
IP Video CODEC support: h.264, h.265
Tally Borders: Selectable, Multiview and Full Screen mode
On Screen Menu: Fully configurable
Light/Dark Mode: YES

NDI Support
NDI Control: NDI HX2, NDI HX3, High Bandwidth NDI
NDI Multiview: NDI HX2, NDI HX3
NDI Router: Yes, follows current active camera
NDI Discovery: Supported
NDI Access Manager: Supported
NDI PTZ Sensitivity: Standard (NDI); Superfine (BirdDog Specific)

Setup/Configuration
WebUI: BirdUI for setup and firmware updates
Light/Dark Mode: YES
API-based Camera Selection: YES

Serial Connections
RS-232: D-Sub connector (9-pin)
RS-422: Phoenix connector

Mechanical
Joystick Type: 4D (Integrated Trigger button)
Keys: 37 Keys; Backlit, Individual Contact, Silicon Pad
Toggle Dials: 4 knobs; Press Button, Graduated, 360° adjustment
Zoom Rocket: Spring loaded, adjustable
Dimensions: 377mm x 177mmx 118mm ; 14.84in x 6.96 x 4.64in (LxWxH including Joystick)
ConstructionMaterial: Aluminium; OBP Ocean-Bound Plastic
Integrated Carry Handle: YES
Operating Temperature: -10°C - +55°C; 14°F - 130°F
Storage Temperature: -10°C - +55°C; 14°F - 130°F
Operating Humidity: 20% - 80% (Non-condensing)
Storage Humidity: 0% - 90% (Non-condensing)
Power Supply: PoE (802.3af), DC12V
Power Consumption: ≤5W
Packaging Dimensions: 390x215x165mm; 15.35x8.46x6.49 in
