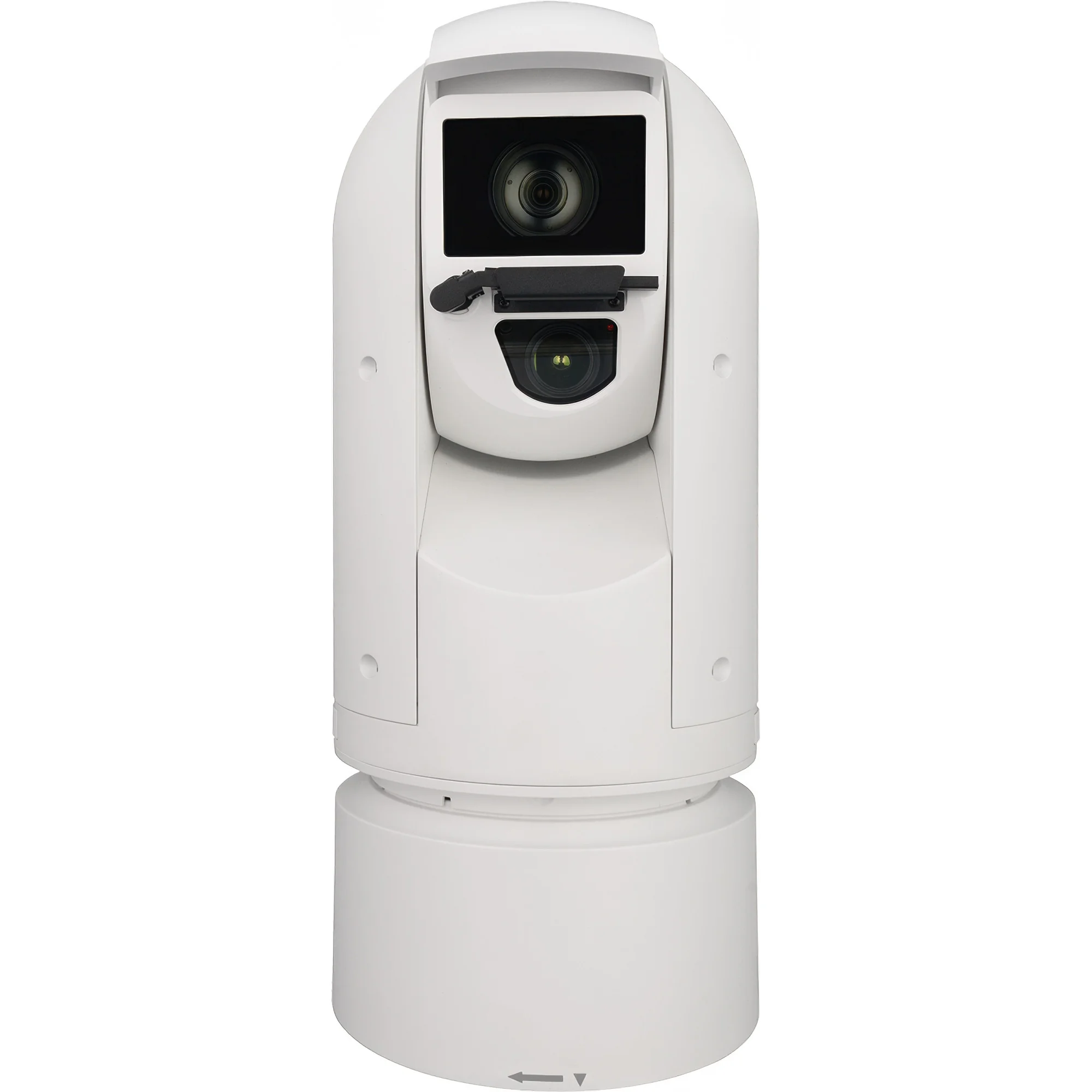

EX1030H (Gen3) SDI IP Dual Output Outdoor PTZ Camera
Designed for professional outdoor video production, the Bolin EX1030H SDI IP Dual Output Outdoor PTZ camera delivers broadcast-quality Full HD video with exceptional clarity and stability. Equipped with a 30x zoom, it captures detailed visuals from long distances, making it ideal for sports, outdoor events, and observation applications. The camera's advanced low-light performance ensures clear and vibrant images even in challenging lighting conditions. Its Super Image Stabilization Plus feature minimizes vibrations and motion blur, providing steady shots in dynamic and high-vibration settings.

Keeping extreme weather conditions in mind, the EX1030H's IP67-rated weatherproof and wind-resistant housing offers robust protection against dust, water, and temperature fluctuations. An integrated rain wiper and heater maintain a clear lens, allowing for uninterrupted performance. The innovative mechanical roll-axis adjustment up to 15 degrees adds flexibility for creative positioning and corrects leveling issues. With continuous 360-degree panning, upright mounting capability of 360 degree upper skyview, and industry-leading 255 steps of PTZ control, the EX1030H ensures smooth movement, making it ideal for capturing wide-area coverage with precision in professional outdoor productions.

The EX1030H supports simultaneous and independent outputs, including 3G-SDI and IP streaming for integration into broadcast, live production, and AV-over-IP workflows. It is compatible with control protocols such as VISCA over IP and ONVIF, offering versatile control options to suit various operational needs. The inclusion of the FreeD protocol enables real-time AR/VR tracking, making the EX1030H a valuable asset for interactive live experiences.

From long-duration event coverage to permanent outdoor installations, the Bolin EX1030H delivers professional video quality, reliable stability, and rugged durability, ensuring every moment is captured with clarity and precision in any environment.

EX1030H SDI IP Outdoor PTZ camera equipped with the latest Sony's 1/2.8-type Full HD color image sensor Full HD offers high sensitivity with a minimum illumination of 0.009 lx. The combination of these three Core technologies provides an overwhelming sense of resolution, and the advanced AF / AE / AWB functions reproduce faithful images even in low-light environments.

• 1/2.8 inch STARVIS II sensor
• Enhanced High Resolution image quality
• 30X High Resolution optical zoom lens
• Advanced AF performance, Spot Focus · Spot AE · Spot AWB
• Wide Dynamic Range (Wide-D)
• Visibility Enhancer (VE)
• Super low light in color performance
• Super image stabilizer

RUGGED & DURABLE

• Made for Extreme Weather Condition
• Dustproof and Waterproof IP67 Rated
• Nitrogen Filled to keep inside free of moisture and condensation
• Wind Load Durability, Non-Destructive and Steady Operation at 60 m/s or less
• –30 °C to 60 °C (-22°F to 140°F) Operational

High Resolution-Day Light/Night View
The combination of these three Core technologies provides an overwhelming sense of resolution, and the advanced AF / AE / AWB functions reproduce faithful images even in low-light environments.

Super image stabilization
The blur suppression has been greatly improved from the conventional stabilizer function, and high-definition movies with less blur can be shot even in a harsh environment with large vibrations. Equipped with two modes, "Super" and "Super + (plus)".

Sony’s sophisticated proprietary AF algorithm
Sony’s proprietary AF algorithm enables zoom and focus at the same time in difficult conditions. Unlike common cameras, which cannot zoom and focus at the same time nor refocus after defocusing under certain circumstances, the camera can zoom and focus at the same time and has the algorithm design which minimizes defocusing in difficult conditions, especially in dark environments (including environments with a mixture of visible light and infrared light and environments with locally strong light sources).

30x enhanced optical zoom
In pursuit of high image quality, with  a 30x enhanced optical zoom, beautiful images can be obtained not only at the Wide end, but also at the Tele end where the effects of reduced resolution and aberrations are easily visible.

Jero effect correction
In electronic image stabilization, the image is generally distorted when the amount of blur is large. This product corrects this phenomenon and enables the acquisition of natural images with little distortion.

True Dual-Output
Simultaneously output SDI, and IP, which can be set to independent formats for different application use.

PTZ Movement-Smooth, Accurate and Quiet

• PAN: 360° continuous; Fully proportional 0.05°〜100°/S
• TILT: 180° (-45° to +135°); Fully proportional, speed 0.01° to 100°/s
• Preset: 255 positions, Speed 100°/s, 0~5 Level Adjustable
• Picture Profile Preset
• Motionless Preset
• PTZ Trace Memory
• Auto-Flip
• Quietness less than NC35
• ZDP (Zero Deviation Positioning), Position Deviation optical self-correction
• Smooth and Accurate Movement

FreeD Protocol Integrated for VR/AR Video Production
FreeD (Free Dimensional Video) is a protocol that enables the capture and rendering of immersive, three-dimensional video content. It is especially useful for virtual live video productions with baseband video feeds and, with Bolin PTZ cameras, with ultra-low latency AV Over IP streaming. This capability can be widely used in applications like weather reporting, sports, news, and live events.

FreeD helps provide all the axis data needed for a Bolin PTZ camera to intelligently and smoothly pan, tilt, and zoom while following designated objects and people. Broadcasters can combine Bolin’s FreeD-enabled PTZ cameras with available, sophisticated software to automate complex camera operations with spectacular results.

Various Control Methods

• IP Control
• Serial Control
• Rest API
• Control Protocol:
• VISCA Over IP
• ONVIF
• VISCA
• PELCO P/D

360° Range of The Aerial View
EX1030H series PTZ camera features 360° horizontal continuous rotation and vertical 180° rotation with auto-flip. Based on the upright installation, the camera provides a 360° range of the aerial view.

SPECIFICATION

IMAGE FULL HD, 30X
Image Block: Sony
Image Sensor: Progressive scan CMOS image sensor 1/2.8 type, STARVISTM 2
Number of effective pixels: 2.13MP
Picture elements: 1920x1080
Lens Optical zoom: 30X
Digital Zoom: 12X
Horizontal Angle of View: 64 ˚ (W)~2.4 ˚ (T)
Focal Length: f= 4.3 mm (WIDE) to 129 mm (TELE)
Min. object distance: 10mm (Wide), 1200mm (Tele)
Aperture: F1.6 (Wide) to F14 (Tele)
Min. Illumination (50%, High Sensitivity Mode ON): ICR-OFF mode: 0.009 lx (Shutter Speed: 1/30 s), ICR-ON mode: 0.00008 lx (Shutter Speed: 1/30 s)
Min. Illumination (50%, High Sensitivity Mode OFF): ICR-OFF mode: 0.09 lx (Shutter Speed: 1/30 s), ICR-ON mode: 0.00063 lx (Shutter Speed: 1/30 s)
Shutter Speed: 1/1 sec to 1/10000 sec (22 steps)
Focusing System: Auto, Manual, One Push Trigger, Full Scan one push trigger, Near Limit, Spot Light Avoidance, Spot Focus
White Balance: Auto, ATW, Indoor, Outdoor, One Push WB, Manual, Outdoor Auto, Sodium Vapor Lamp Auto, Sodium Vapor Lamp, Sodium Vapor Lamp Outdoor Auto
Exposure: Full Auto, Gain Limit Setting, Shutter Priority, Iris Priority, Manual, EV Compensation
Features: Backlight Compensation, E-FLIP, Mirror, Day/Night, Flicker ,Contrast, Effect, Sharpness
WDR: Yes
ND Filter: /
Image Stabilizer: Yes: Super image stabilizer (Super / Super+)
Contrast: Yes
Color Gain: Yes
Color Hue: Yes
Color Matrix: Yes
Gamma: Yes
Noise Reduction: On/Off (level 5 to 1 / Off, 6 steps), 3D / 2D Noise Reduction
S/N Ratio: ≥50db
Spot Light Avoidance: Yes
E-Flip: Yes
Spherical Privacy Zone Masking: -
Defog: Yes (low/mid/high)
High Sensitivity: Yes
Slow AE Response: Yes
Day/Night (Auto ICR): Yes: ON (B&W/Color)
Backlight Compensation: Yes
Low Latency Mode: Yes
Focus Zone: All, Central Area
Scene Style: Default, Clear, Bright, Soft
Auto Flip: Yes

MECHANICAL
Pan Movement: PAN: 360° Continuous ; Fully proportional 0.05°〜100°/S
Tilt Movement: TILT: 180° (-45° to +135°); Fully proportional 0.05°〜100°/S
Image Rolling Adjustment: ±15°
Speed Proportional: Pan/Tilt speed proportional to zoom range
Preset Position: 255 positions, Speed 100°/s, 0~5 Level Adjustable, Accuracy: 0.05°
Preset Memory: Picture Profile Preset-Preset Memory for image parameters: Backlight Compensation, White Balance, Auto Exposure, Bright, Iris, Shutter, Gain, Aperture, Effect, Noise Reduction, Mirror, Gamma, Ex-COMP, Color Hue, Contrast etc.)
Motionless Preset: ON/OFF
PTZ Trace Memory: Yes, 4
Cruise: Yes, 12
Position Limit: Pan/Tilt, programmable
Quietness: NC55/45/35 or less when operating speed is 60°/30°/15°/sec or less
Home Position: Yes
FreeD: Yes, FreeD protocol for AR/VR camera tracking, via IP
Position Deviation Correction: Yes
Environmental: IP67 (Waterproof and Dust Proof)
Environment Temperature Sensor: Yes
Body Finishing: C5 Corrosion Resistant Power Coating
Wind Load Durability: 0-15m/s Operation Normal 15-30m/s Pan/Tilt Operational Non-Destructive and steady operation at 60m/s or less
Wiper: Yes
Heater: Yes
Illumination: Laser IR LED (500M)

INTERFACE
SDI Video Output: 3G-SDI, Standard 75 Ω (BNC x 1)
Network LAN Port: RJ45 Standard 10M/100M/1000M Ethernet, LAN connector for IP control/video output/System FW Upgrade
Camera Environment Temperature: Outside camera body temperature sensor built in
System Firmware Upgrade: FW Upgrade via IP interface (Including MCU, IP, FPGA)
Power Connector Type: AC24V/ DC 36V
Preset Memory: PoE++ (IEEE802.3bt)
Control Interface: RS422, IP Control
Control Protocol: Serial: VISCA, PELCO P/D, IP: VISCA Over IP, ONVIF, FreeD

SDI SIGNAL FORMAT
SDI Video Format: 1080p: 60/59.94/50/30/29.97/25; 1080i: 60/59.94/50; 720p: 60/59.94/50
Color Precision: 10bit(SDI), YCbCr, 4:2:2
Color Space: YUV
Standard: SMPTE 292M, SMPTE 296M (1.5Gb/s), SMPTE 424M, SMPTE 274M, SMPTE 425-A (3Gb/s) standard/75 Ω, with SMPTE352 SDI Metadata Supported
True Dual Output: IP and SDI signal can be set to independent resolution formats
OSD Menu Display: Yes
On-Screen Information Display: Yes, In-video On-Screen character generator （Image Parameter Setting, Camera Optional Data, User Customization Character, Image/Logo Insert)

NETWORK
Video Compression: MJPEG,H.264/H.265 by SoC
IP Resolution/Frame Rate: 1080P60/50/30/25; 720P60/50/30/25 2nd Stream:704x576, 640x480, 640x360, 576x480, 352x228 P30/25
True Dual Output: IP and SDI signal can be set to independent resolution formats
IP Protocols: TCP/IP, ICMP, ARP, RTP, UDP, HTTP, HTTPS, DNS, DHCP, FTP, NTP
Application Protocols: RTP, RTSP, RTMP,RTMPS, SRT, ONVIF
Multi-stream: 2 Stream (Simultaneous up to 8 users)
OSD: Customized OSD
Compatible Integration: ONVIF2.4 (Profile S), VISCA Over IP
Bandwidth ( results may vary depending on network configuration and management settings.): 1024-101376Kbps; By default, 1920x1080 H.264, 4096kbps,1920x1080 H.265 2048kbps; 1280x720 H.264 4096kbps 1280x720 H.265 2049kbps
Latency (Overall latency may increase depending on network configurations): <150ms
Browser Support: HTML5 support for Microsoft Edge, Google Chrome, Firefox, and Safari

GENERAL
Operating Temperature: ,-30 to +60 (°C)/-22 to 140 (°F)
Operating Humidity: 100% Suitable for Use
Power Input: AC 24V/DC 36V, PoE++(Compatible with IEEE802.3bt)
Power Consumption: Min: 30W(Static state with no movement); Max: 58W（Fully loaded operation with heater on）
Installation Method: Pendant Mount, Upright Mount
Mounting Bracket: Ceiling Mount, Wall Mount
Body Color: Grey / White
Dimension: Φ180×423mm
Weight: 23.1Ibs/10.5kg (Net weight)
Accessories Included: Power Adaptor x1, Safety Chain Lock x1, Power Connector x1, Waterproof Connectorx4
Accessories Optional: Wall Mount - ES-WM
Home Position: Upright Mounting Base - QR-BM
FreeD: Pendant Mount Base Adaptor - C-PMBA
Position Deviation Correction: Pendant Mount System - C-PMSB
Certificate: CE，FCC，IC，UKCA，ROHS，WEEE
