BOLIN IMAGE BLOCK, SONY 4K SENSOR

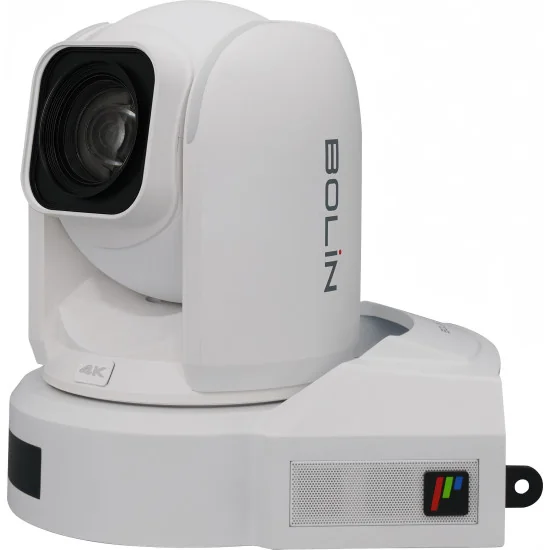

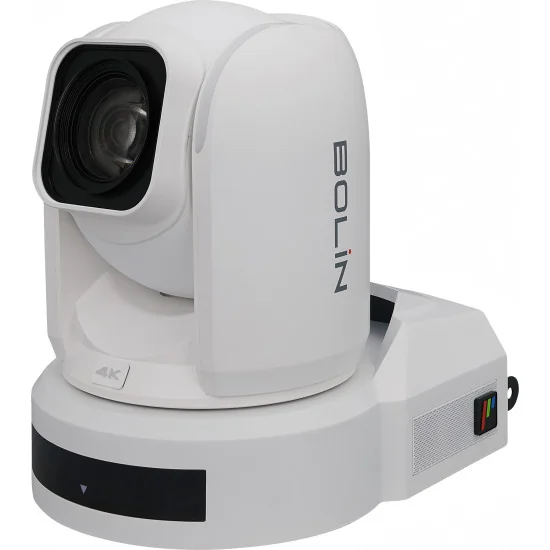

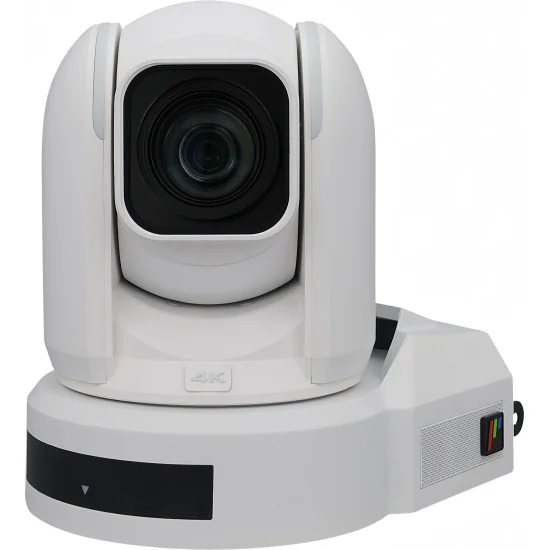

The Bolin R9-420F 4K60 Professional PTZ Camera is a high-performance 4K60 PTZ camera designed for studio broadcast, live production, and professional AV applications. Built for smooth motion and optimized image quality, the R9-420F delivers 4K resolution at up to 60 frames per second, ensuring smooth video capture for live events, sports broadcasting, corporate productions, studio applications, and high-motion environments. Its 20x zoom maintains clarity across wide and close-up shots, while the advanced image signal processing (ISP) engine enhances color accuracy and low-light performance.

The R9-420F integrates into both baseband video and AV-over-IP workflows, offering maximum flexibility in connectivity and control. It supports dual 12G-SDI, HDMI, Optical SDI, and IP streaming, making it a powerful choice for modern production environments. FPGA hardware FAST HEVC codec provides high-quality, low latency and low bandwidth IP streams include RTSP, RTMP, SRT, ONVIF, and MPEG-TS, allowing for remote production, cloud streaming, and hybrid broadcast applications.

Designed for next-generation workflows, the R9-420F features a built-in SFP+ slot, allowing for optional 12G-SDI fiber expansion, enabling long-distance, high-resolution video transmission. Additionally, FreeD protocol support provides real-time tracking for AR/VR applications, making it an essential tool for virtual studios, sports analytics, and interactive productions. The camera’s 255-step precise PTZ movement, built-in image stabilization, and flexible mounting options ensure smooth operation in high-demand live environments.

From theaters to immersive productions, the Bolin R9-420F delivers high-quality 4K60 video, flexible connectivity, and precision PTZ control, empowering production teams to capture every moment with clarity and reliability.

IEC 60601-certified, ensuring electromagnetic safety for use in clinical, surgical, and healthcare education environments.

R9-420F, equipped with Bolin 4K60 image module
Bolin image module BM4620 equipped with Sony image sensor IMX715, and 8M ultra high resolution 20X optical lens, integrated with AI based  algorithm ISP this image module delivers high quality and clean noiseless high speed 60fps UHD color image.

• 1/2.8 Inch CMX715 High Class Sensor
• Crisp and clean UHD image quality
• Crystal 20X High Resolution optical zooms
• Super WDR
• Gamma Level
• AI Face Detection Auto Focus/Exposure

Video Codec: FAST HEVC Codec Built-in

• There is "FAST HEVC" logo on the camera body
• H.264/265 - AVC/HEVC
• Hardware FPGA  based encoder built-in
• High Quality, Ultra Low Latency, Low Bandwidth
• Browser, hardware and software  decode-able
• Up to 4K60, Full HD
• Two IP video streaming
• Unicast, Multicast
• RTSP, RTMP, RTMPS., SRT, ONVIF
• IP control: Visca Over IP, Onvif
• Audio encode
• Open platform

FreeD Protocol Integrated for VR/AR Video Production
FreeD (Free Dimensional Video) is a protocol that enables the capture and rendering of immersive, three-dimensional video content. It is especially useful for virtual live video productions with baseband video feeds and, with Bolin PTZ cameras, with ultra-low latency AV Over IP streaming. This capability can be widely used in applications like weather reporting, sports, news, and live events.

FreeD helps provide all the axis data needed for a Bolin PTZ camera to intelligently and smoothly pan, tilt, and zoom while following designated objects and people. Broadcasters can combine Bolin’s FreeD-enabled PTZ cameras with available, sophisticated software to automate complex camera operations with spectacular results.

PTZ Movement-Smooth, Accurate and Quiet

• PAN: 340° (-170° to +170°); Fully proportional, speed 0.05° to 70°/s
• TILT: 120° (-30° to +90°); Fully proportional, speed 0.05° to 60°/s
• Preset: 255 positions, Speed 70°/s, 0~5 Level Adjustable, Accuracy: 0.1°
• Picture Profile Preset
• Motionless Preset
• PTZ Trace Memory
• Quietness less than NC35
• Smooth and Accurate Movement
• FreeD protocol for virtual reality production system

Various Control Methods

• IP Control
• Serial Control
• IR Remote Control
• Bolin API
• Control Protocol:
• VISCA Over IP
• ONVIF
• VISCA
• PELCO P/D
• FreeD Supported

AI Powered Auto Focus and Auto Exposure
Built with Bolin’s latest AI-powered facial analytics engine, which enables smart focus and smart exposure to provide faster, more precise focusing and improved auto exposure on faces in complex lighting environments.

SPECIFICATION

IMAGE 4K60, 20X
Camera Image: 20X 4K60
Image Maker: Bolin
Image Sensor: IMX715, CMOS image sensor 1/2.8 type
Number of effective pixels: 8.29MP, 8.29 MP
Picture elements: 3840x2160
Lens: 20X
Digital Zoom: 16X
Horizontal Angle of View: 78.59° (W)~4.92° (T)
Vertical Angle of View: 48.39° (W)~2.79° (T)
Focal Length: f= 3.55 mm (WIDE) to 71 mm (TELE)
Min. object distance: 10cm
Aperture: F2.0 (Wide) to F3.8 (Tele)
Min. Illumination: 0.5lux（color），0.1lux（black）
Shutter Speed: 1/60-1/100k sec (21steps)
Focus: Auto, Push, Manual
White Balance: Auto, Indoor, Outdoor, OPW, ATW, Manual, USER, SVL
Exposure: Auto, Manual, Shutter, Iris priority
Features: Backlight Compensation, E-FLIP, Mirror, Day/Night, Flicker ,Contrast, Effect, SHARPNESS
WDR: 120db
Color Gain: Yes
Color Hue: Yes
Gamma: Yes
Gamma Level: 0-4
Color Matrix: -
Noise Reduction: 2D / 3D (level 0 to 100)
S/N Ratio: ≥50db
E-Flip: Yes
Defog: Yes
Day/Night: Yes
Backlight Compensation: Yes
AI Face Detection Focus: Yes
AI Face Auto Exposure: Yes
Scene Style: Standard, Bright, Clarity, Soft
Focus Zone: Face Priority, All Area, Top/Central/Bottom

MECHANICAL
Pan Movement: PAN: 340° (-170° to +170°); Fully proportional 0.05° to 70°/s
Tilt Movement: TILT: 120° (-30° to +90°); Fully proportional 0.05° to 60°/s
Speed Proportional: Pan/Tilt Speed proportional to zoom range
Preset Position: 255 positions, Speed 70°/s, 0~5 Level Adjustable, Accuracy: 0.1°
Preset Memory: Picture Profile Preset-Preset Memory for image parameters: Backlight Compensation, White Balance, Auto Exposure, Bright, Iris, Shutter, Gain, Aperture, Effect, Noise Reduction, Mirror, Gamma, Ex-COMP, Color Hue, Contrast etc.)
Motionless Preset: YES, ON/OFF
PTZ Trace Memory: YES, 4
Cruise: YES, 12
Quietness: NC35 Compliant
Home Position: Yes
FreeD: Yes, FreeD protocol for AR/VR camera tracking, via IP
Environmental: Indoor

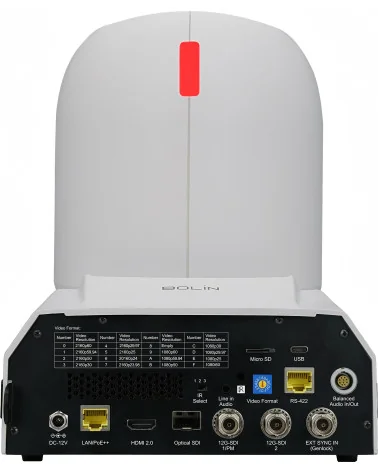

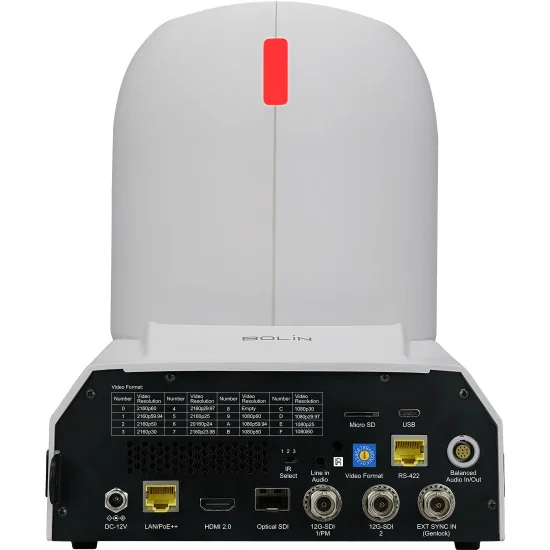

INTERFACE
HDMI Video Output: HDMI 1.4 Type A
SDI Video Output: 12G-SDI, 75Ω BNC x 2，SDI Clean / SDI PM for output having OSD display
SDI Optical Fiber Output: Optical SDI SFP module support up to 12G-SDI (Module Excluded). Detachable slot, Connector: Duplex LC (optional via ST, LC or SMPTE)
Laser Unit: Single-mode 1,310nm DFB-LD transmitter and PIN receiver Complaint with MSA SFP+ Specification SFF-8402.
Network LAN Port: RJ45X1, Standard 10M/100M/1000M Base-TX Ethernet, LAN connector for IP control/video output/audio output/System FW Upgrade
Synchronization System: Internal/External synchronization (BBS/Tri-level sync)
External Sync Input: Genlock, BNC connector, BBS (Black Burst Sync), tri-level sync supported
Audio Input: Balanced XLR (Hirose Connectorvia Atomos 10-Pin LEMO Type to XLR Breakout Cable) with 48V Phantom power, 3.5mm TRRS for bidirection audio intercom (Preserve)
Audio Output: Balanced XLR (via 10-Pin LEMO Type to XLR Breakout Cable)(Preserve), embedded with HDMI, SDI, and IP, 3.5mm TRRS for bidirection audio intercom (Preserve)

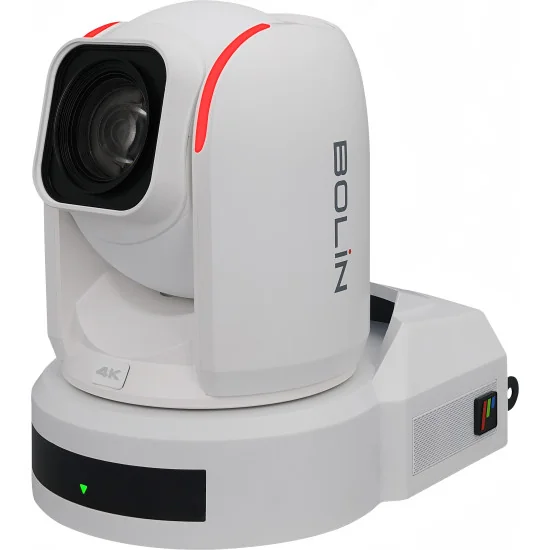

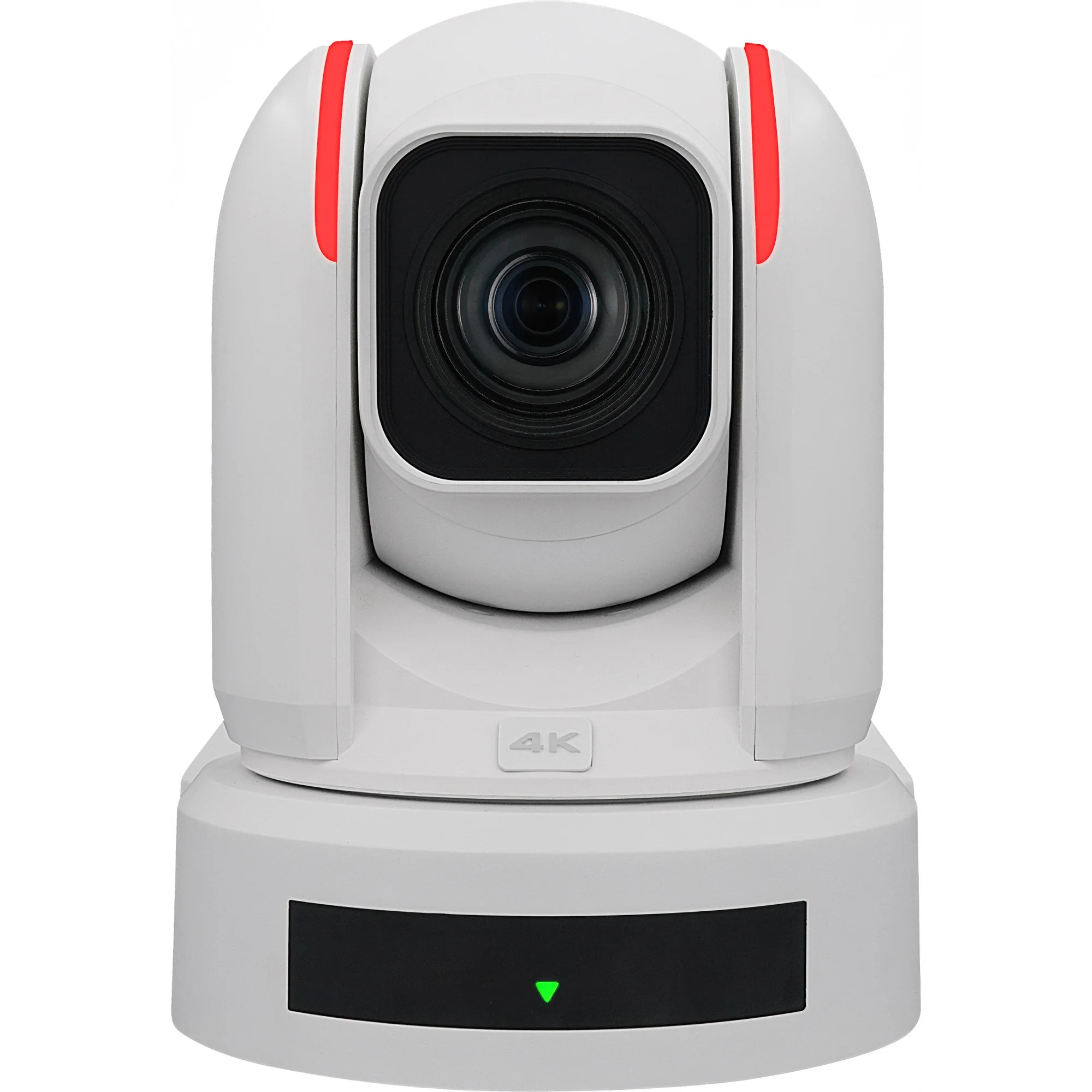

Tally Light: Red, Green Color/Front and Rear
Dip Switch Video Resolution: Dip Switch x1
System Firmware Upgrade: Upgrade via IP for camera system MCU, FPGA and Encoder
Power Connector Type: INPUT: DC12V, connect with screw secure (Type - 5.5mm×2.1mm Male DC Power Plug Connector & Screw Lock Female Panel Socket Mount Adapter), INPUT: RJ45, PoE++ (IEEE802.3bt)
Control Interface: RJ45X1-RS422, RJ45X1-IP Control, IR Remote Control
Control Protocol: Serial: VISCA, PELCO P/D; IP: VISCA Over IP, ONVIF; FreeD, API

HDMI VIDEO SIGNAL SYSTEM
HDMI Video Format: 3840x2160P 60/59.94/50/29.97/30/25/24/23.98 1920x1080P 60/59.94/50/30/29.97/25/24/23.98 1920x1080i 60/59.94/50 1280x720P 60/59.94/50
Color Precision: 12bit(HDMI), YUV4:2:2
Color Space: YUV、RGB
OSD Menu Display: Yes
On-Screen Title: Yes, video embedded On-Screen title character generator; Image/Logo Insert Screen Display with IP Image Stream

SDI SIGNAL FORMAT
SDI Video Output: 12G-SDI
SDI Video Format: 3840x2160P 60/59.94/50/29.97/30/25/24/23.98 1920x1080P 60/59.94/50/30/29.97/25/24/23.98 1920x1080i 60/59.94/50 1280x720P 60/59.94/50
Color Precision: 10bit(SDI), YUV 4:2:2
Color Space: YUV
Standard: SMPTE 292M, SMPTE 296M (1.5Gb/s), SMPTE 424M, SMPTE 274M, SMPTE 425-A(3Gb/s) SMPTE 2081(6Gb/s), SMPTE, 2082‑1(12Gb/s) with SMPTE352 SDI Metadata Supported
True Dual Output: HDMI and SDI signal can be output with different format
OSD Menu Display: Yes
On-Screen Title: Yes, video embedded On-Screen title character generator

NETWORK
Video Compression: AVC-H.264/HEVC-H.265/MJPEG by FPGA
IP Resolution/Frame Rate: 3840x2160P 29.97/30/25/24/23.98 1920x1080P 60/59.94/50/30/29.97/25/24/23.98 1920x1080i 60/59.94/50 1280x720P 60/59.94/50
True Dual Output: IP, HDMI, and SDI signal can be set with different format
IP Protocols: TCP/IP, IGMP, ICMP, ARP, QoS, SNMP, UDP, HTTP, DNS, DHCP, FTP, NTP, UPNP, SRT
Application Protocols: RTMP(S), RTSP, RTSP Encryption, RTP Streaming (Unicast, Multicast), SRT, MPEG-TS over UDP, MPEG-TS over RTP
NDI Bridge: Yes, embedded
Color Format: YUV4:2:0 8bit、YUV4:2:2 8bit、YUV4:2:2 10bit
Multi-stream: 2 stream
Audio Compression: 32-128Kbps(AAC-LC) Selectable
OSD: Customized OSD
Compatible Integration: ONVIF2.4 (Profile S), VISCA Over IP
Bandwidth ( results may vary depending on network configuration and management settings.): 128Kbps-60Mbps, 4kp60 12 bit 4:2:2, 10-20Mbps, 1080p60 12 bit 4:2:2
Latency (Overall latency may increase depending on network configurations): 2-3 frame (e.g. 2160p60 latency is < 45ms glass to glass
Browser Support: Cross Browser Compatibility - HTML5 support for Microsoft Edge, Google Chrome, Firefox, and Safari

GENERAL
Operating Temperature: –10 °C to 50 °C（14°F to 122°F)
Operating Humidity: ≤80% Suitable for Use (no condensation)
Power Input: DC12V, POE++ (IEEE802.3 bt Type 4 Calss 7)
Power Consumption: Min: 51W (Static state with no movement) Max: 57W（Fully loaded operation）
Installation Method: Stand-alone (Upright) or suspended (Pendent) or Tripod
Mount: Ceiling mount, Wall mount, Tripod
Handle: Built-in for portable use application
Size of Tripod Screw Hole: 1 x 1/4” safety bond point
Body Color: Black, White
Dimension-Camera: 201*253*249mm(W*D*H), 201*253*256(with feet mats)
Net Weight: 3.8kg (8.36lb)
Accessories Included: IR Remote controller x1, Power adapter and power cord (US, EU, UK), Mounting screws x3, RJ45 to RS422 Extension cable
Certificate: CE, FCC, IC, UKCA, ROHS, WEEE, IEC60601 (Medical Grade)
