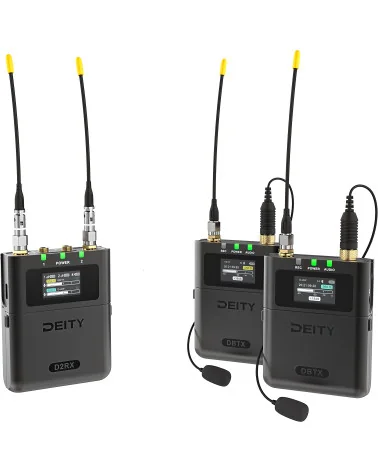

The Deity Theos Digital Wireless Microphone System sets itself apart by utilizing a broad UHF spectrum instead of the congested 2.4 GHz band.  The Deity Theos Digital Wireless Microphone System has a unique feature that allows remote control of both the transmitter and receiver through the Sidus Audio app.

• Features Global OneBand: 550-960MHz for possible frequencies
• The transmitter features a built-in recorder* for alternative use
• True multi-ADC 32-bit Float
• Supports MicroSD card; up to 128GB in size
• Wirelessly sync timecode to the Deity TC-1; Hard-wire jam via 3.5mm
• Supports remote control functionality via the Sidus Audio app
• Ultra-Long battery life
• Up to 100mW RF Power; Up to 450ft Range

Wideband UHF Spectrum
The Deity Theos Digital Wireless Microphone System sets itself apart by utilizing a broad UHF spectrum instead of the congested 2.4 GHz band. This system’s frequencies range from 550-960 MHz. (the actual band size and spectrum will depend on which block / regional kit is purchased).

Wireless Timecode Sync
The Theos’ most unique feature is that the transmitter can be natively synced wirelessly from the Deity TC-1 timecode generator. Timecode ensures your backup WAV files will sync with your master file in post. This feature is especially useful for filmmakers who need to work with multiple cameras or devices. It ensures that your audio and video files are perfectly synced, thus making the editing process much smoother. Alternatively, the DBTX can be synced via the 3.5mm jack if you are using 3rd party timecode generators.

Remote Control via Sidus Audio App
The Deity Theos Digital Wireless Microphone System has a unique feature that allows remote transmitter and receiver control through the Sidus Audio app. With this app, you can easily perform frequency scanning and assignment, coordinate frequencies among several receivers, adjust gain staging, and remotely trigger the backup recorder. This feature eliminates the need to physically handle the device, making it much more convenient when working on set.

SMA Antenna Ports
Both the DBTX and D2RX come with SMA antenna ports, which allow you to swap out antennas to fine-tune your frequency or replace them if they get damaged. This feature makes transporting your gear more compact in its case, which is especially useful when working on location.

SPECIFICATIONS

Transmitter:
RF Modulation Proprietary Digital RF Modulation
RF Power 10mW, 25mW, 50mW, 100mW*
RF Spectrum 550MHz ~ 960MHz
RF Frequency Step 100KHz
Channel RF Spacing 700kHz
Antenna Connector 50 Ω SMA
Dynamic Range 123dB
Distortion <0.5%
Frequency Response 20Hz ~ 20kHz
Mic Power MIC-3V、MIC-5V, LINE
Mic Connector 3.5mm TRS
Input Gain 0dB ~ 30dB
Transmission ADC Bit-Depth 24
ADC Sampling-Rate 48
Dimensions (H x Wx D) 88.45 x 65 x 17.8 mm
Operational Temp -20°C ~ +45°C

Timecode Reader / Generator:
Clock Accuracy 0.15 PPM (1 Frame Out in 48 Hours)
Timecode Type LTC(SMPTE)
Timecode Frame-Rates 23.98, 24, 25, 29.97, 29.97DF, 30, 30DF

Internal Recording:
Media MicroSD Card (Up to 128Gb)
File Format .wav BWF
Record Format 24-Bit or 32-Bit Float
EIN -132dBV (-130dBu) max (A-weighting, gain= 30dB, 150ohm source impedance)

Receiver:
RF Frequency Step 100kHz
RF Spacing 700kHz
Antenna Connector 50 Ω SMA
Sensitivity -95dBm
Latency 6.3ms
Dimensions (H x Wx D) 89.47 x 66.81 x 20.06 mm
Operational Temp -20°C ~ 45°C

Receiver Audio:
Analog Output (x 2)
Dynamic Range 103dB
Distortion <0.5%
DAC Bit-Depth 24
Output Type Mono, Stereo, Headphone

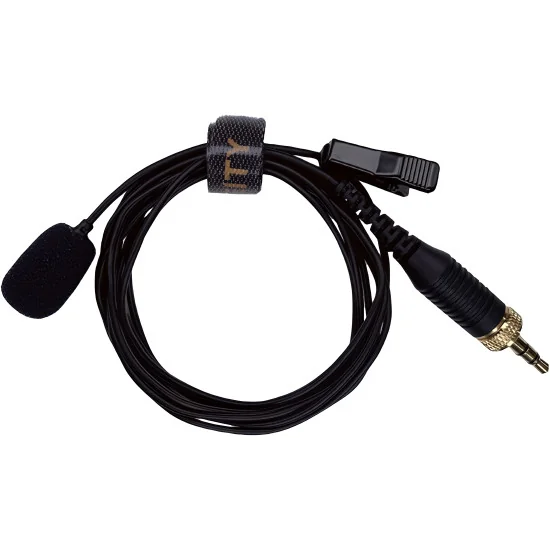

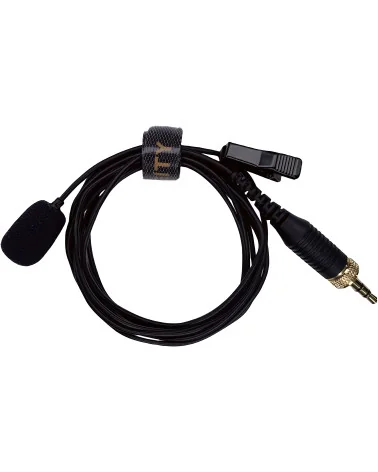

Lavalier Mic:
Color: Black
Sound Field: Mono
Frequency Response: 20Hz – 20KHz
Polar Pattern: Pre-Polarized Condenser
Capsule Type: Omni
Sensitivity: -40dB
Maximum SPL: >110dB SPL*
Dynamic Range: 110dB typical
Weatherproof Standard: IP57
Mic Head Size: 4mm*17mm
Cable Length: 1.8m
Connect Type: Locking 3.5mm
Operational Temperature: -20C – 70C
