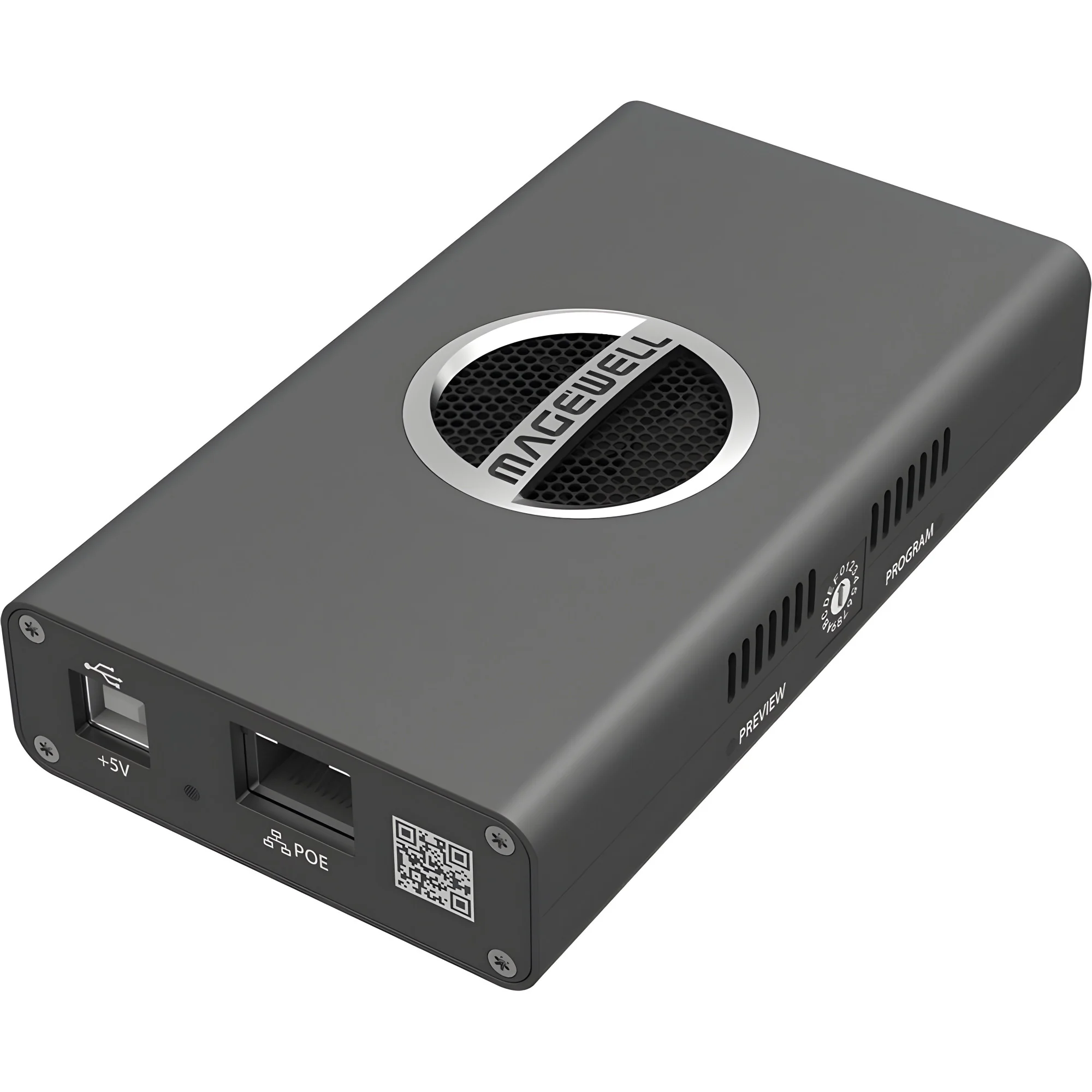

The Magewell Pro Convert HDMI Plus converts one HD HDMI input signal into Full NDI®, enabling users to connect existing source equipment into NDI or IP media networks. This device supports one HDMI video signal up to 4096x2160 4:4:4/4:2:2 30fps or 4:2:0 60fps with 8bit NDI encoding up to 2048x2160 120fps

The plug-and-play simplicity of the Magewell Pro Convert HDMI Plus makes it very easy to use. Once connected, the device will automatically detect the input formats. All network configuaration settings are done through DHCP.

The Magewell Pro Convert Encoders offer aslo a perfect solution for connecting SDI or HDMI cameras into NDI workflows. In addition, the encoders feature PTZ control for centralized and remote control of PTZ cameras.

- Converts an HD HDMI input signal into Full NDI® with loop-through
- Supports up to 4096x2160 60fps (4:2:0) or 30fps (4:4:4), down-converting them to HD NDI
- Connects existing source equipment into NDI-enabled, IP-based media networks
- Plug-and-play ease of use with automatic input format detection and DHCP network configuration.

Easily pair Magewell Pro Convert encoders and decoders
The Magewell Pro convert encoders convert HDM and SDI signals to Full NDI®. Users are also able to encode to NDI|HX® when paired with the Magewell decoders.

Ultra Low Latency
When users choose to transmit video over the network, the transmission latency is often what they care about most. During the entire transmission process, the selection of software and hardware encoders & decoders is very important, which can directly affect the latency of network transmission. The average latency for all pro convert encoders and decoders is 47ms at 1080p@60fps. Read more about latency below.

Easy Access and Installation
The Pro Convert Encoders feature Plug-and-Play and Easy installation. The devices automatically detect your DHCP-based network as well as the video input format. The Magewell web GUI interface offers more flexibility and allows users to control devices and settings.

For a single 1080p or 4Kp60 input, Pro Convert requires 100Mbps to 250Mbps to deliver an NDI stream. A Gigabit network can deliver 6 to 7 1080p60 streams or 2 to 3 4Kp60 streams while guaranteeing stable transmission.

Other Features
Power via Power over Ethernet (PoE) or USB power supply
Program and preview tally lights
FPGA-based video processing
Remote NDI control of PTZ cameras
Automated failover redundancy
Send NDI streams across network segments

Input & Loop through Features
Max input & loop through signal:
4096x2160 30fps 4:4:4/4:2:2
4096x2160 60fps 4:2:0
Input video at any format by custom EDID of input port
Video formats: RGB, YUV BT.601/709/2020
8-channel HDMI-embedded audio
HDMI interfaces: HDMI 1.4, DVI-D

NDI® Encoding Features
Encoding Full NDI real-time stream at up to 2048x2160 120fps 4:2:2 8-bit
Output the same resolution as input or any custom resolution. Typical outputs include:
2048x1080p/1920x1080p 23.98/24/25/29.97/30/50/59.94/60
1280x720p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
1920x1080i 25/29.97/30/50/59.94/60
720x480p/720x480i 59.94/60/119.88/120
720x576p/720x576i 50/100
Output frame rate same as the original, 1/2, 1/3 or 1/4 of input frame rate
Encoding 8-channel NDI-embedded audio
Support NDI 5.x

Configuration Management
Register with Magewell Cloud
Remote control via WebUI and Magewell Cloud
Provide comprehensive information regarding the device and input signals in real-time
Allow to configure how an input is processed and encoded, including deinterlacing, EDID, up/down scaling, frame rate, aspect ratio, as well as the network connection
Update firmware
Support USB RNDIS/ECM
Support IE/Edge/Firefox/Chrome/Safari/Opera web browsers
Provide HTTP APIs

On-board Control Buttons
16 Position Rotary DIP Switch: set board-index from 0 to F

PTZ Control
Control PTZ cameras using protocols of VISCA, Visca UDP, Visca UDP2rs232, PELCO-P and PELCO-D via NDI
Mini-DIN–8 jack (shared with Tally light)

Network Interfaces
10/100/1000Mbps Ethernet
IEEE 802.3af PoE

USB Interface
USB2.0 Type B
5V/2.1A power supply
USB RNDIS/ECM

Supported Products
NDI Studio Monitor
OBS
vMix
Any other NDI-enabled product

LED Indicators
Status LEDs indicate:
Power supply: on/off
Tally: preview/program
Input signal: locked/unlocked
Loop through signal: device connected and signal detected/undetected

Form Factor
117.5mm (L) x 66.7mm (W) x 23.4mm (H)

Accessories
USB 2.0 A to B cable
5V/2.1A power adaptor
Mini-DIN 8 breakout cable
Tally light
L-bracket

Screw Mounting Hole
1⁄4–20 threaded hole

Power Consumption
5V max current: ~1.5A
Max power consumption: ~8W

Working Environment
Operating temperature: 0 to 45 deg C
Storage temperature: –20 to 70 deg C
Relative humidity: 5% to 90% non-condensing
