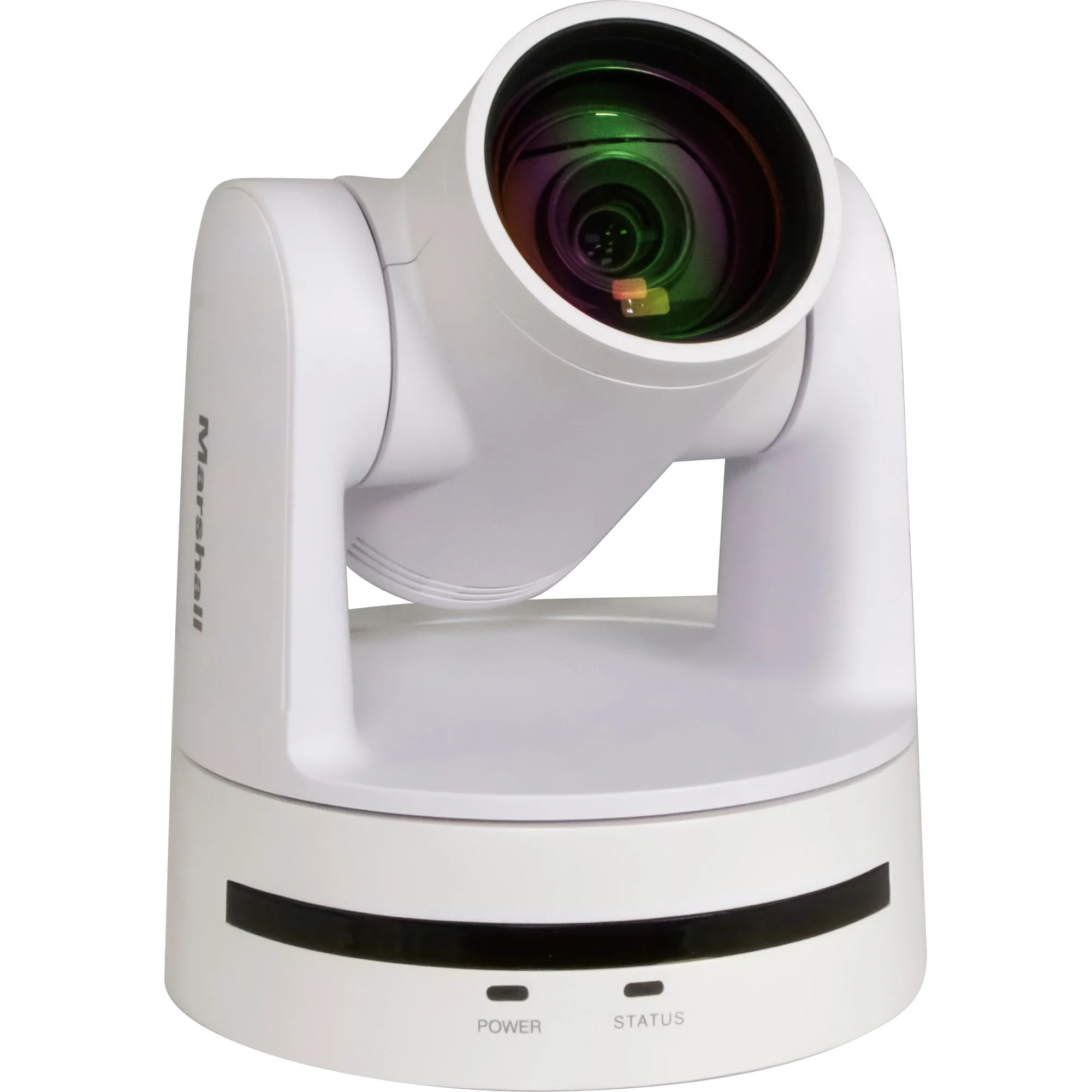

The CV612-TBI/CV612-TWI 12X optical zoom 3GSDI camera utilizes a professional-grade 2.07-megapixel sensor to capture crisp HD video starting at a Pan rotation of 170° and a tilt rotation of -90°-+90°, all in a 1920x1080p resolution. Multiple available outputs include 3GSD, HDMI, USB 3.0 and IP. Marshall's straight forward design and ease-of-use make this camera an affordable camera for a wide variety of live streams, broadcast, and professional A/V applications for all your streaming applications.

Key features:

• Accurate auto-track, follow and frame subjects using AI facial learning technology
• 1/2.8" high quality HD CMOS sensor with 2.07 megapixel-inch
• Format Resolutions 1920x1080, 1280x720, 640x480
• Video outputs include: 3GSDI, HDMI, USB3.0 and IP
• 12x optical zoom (4.1~49.2mm)
• Supports real time tracking and regional tracking up to 8m
• Dante Ready AV-H supports up to 1080p and 2 audio channels (Requires end user activation in Dante Controller)
• Horizontal Angle of View 6.6°- 70.3°
• Pan rotation of +/- 170°, Tilt rotation of -90°-+90°

AI Auto Track Technology
The CV612 models can automatically track, follow, and frame presenters using AI facial learning for accurate and smooth self-adjusting maneuvers. Tracking features include Presenter real-time tracking and Zone regional tracking, Presenter mode follows a single person and ignores others.  Regional mode follows a person from one established shot to another.

Live Streaming Made Simple
The camera can stream HEVC/H.264 directly via RTSP/RTMP/SRT while simultaneously outputting video via SDI, HDMI making it an ideal solution to stream live to YouTube, Livestream, Facebook (Meta), Twitch, etc. High quality USB-C is available also. When USB and SDI are set to the same format/frame rate, all four video output types are available simultaneously.

Flexibility Workflow
CV612 camera is equally at home in houses of worship, classrooms, reality shows, pod casting channels and corporate boardrooms. It's compact size allows it to fit on a desktop, on a shelf, or concealed by set decorations in a reality shoot. It operates equally well on a surface or mounted upside down from an overhead location.

High Compatibility
Multiple output types, multiple control methods and P0E+ power make life easy for system designers. Nearly all common control methods are supported including Visca & Pelco (RS232), Visca-over-IP, ONVIF, USB UVC, Web Browser setup and control, plus a hand-held IR Remote. It's a perfect match for Marshall’s VS-PTC-300 PTZ control panel as well as many 3rd party products.

Camera Applications:
The CV612-TBI/CV612-TWI cameras are suitable for use in networked HD workflows where image quality and versatility are of utmost concern, including live broadcast productions, conference rooms, live streaming, online content, courtroom capture, corporate video, government assembly, house of worship and many more.

CV612-TBI / CV612-TWI Specifications
Optical Zoom: >12X, f=4.1～49.2mm
Sensor: >1/2.8-inch-high quality HD CMOS sensor, 2.07 megapixel

Video Output Format
HDMI and SDI:
1080p 60/59.94/50/30/29.97/25
1080i 60/59.94/50
720p 60/59.94/50

To USB3.0 port on PC:
YUY2: 1920*1080 @60/50/30/25fps
1280*720 @60/50/30/25fps
960*540 @30fps
800*600 @30fps
640*480 @30fps

To USB2.0 port on PC:
YUY2: 960*540 @30fps
800*600 @30fps
720*576 @50fps
720*480 @60fps
640*480 @30fps

Viewing Angle: >6.6°- 70.3°
Digital Zoom: >8X
Minimum Illumination: 0.5Lux (F1.8)
White Balance: Auto / Manual/ One Push/ VAR
Focus: >Auto/Manual/One Push
Iris: >Close/F11/9.6/8.0/6.8/5.6/4.8/4.0/3.4/2.8/2.4/2.0/1.8
Electronic Shutter: Auto/Manual (1/60, 1/90, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/725, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/6000, 1/10000)
BLC: >ON/OFF
Video Adjustment: Brightness, Hue, Saturation, Contrast, Sharpness,
B/W mode: SNR ≥50dB

Input/ Output Interface

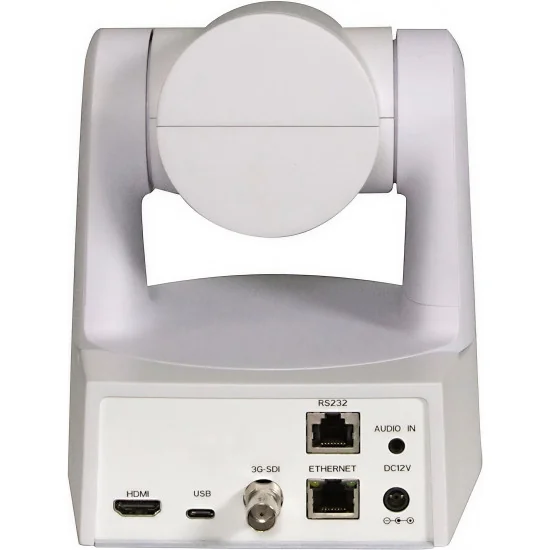

Video Interfaces: USB3.0 TYPE-C, 3G-SDI, HDMI, LAN
Video Compression Format: USB3.0: YUY2, LAN: MJPEG, H264, H265
Audio Input: Two-channel 3.5mm line input
Network Protocol: RTSP, RTMP, SRT, ONVIF; VISCA over IP control
Control Interface: RS232
Control Protocol: VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/38400/9600/4800/2400
Power Interface: HEC3800 outlet (DC12V)
Supply Adapter: AC110V-AC220V to DC12V/2A
Input Voltage: DC12V±10%
Input Current: 1.25A
Consumption: 15W (12V, 1.25A Max)

PTZ Parameter
Pan Rotation: >±170°
Tilt Rotation: >-90°～+90°
Pan Control Speed: 0.42°/s ~ 60.32°/s
Tilt Control Speed: 0.27°/s ~ 40.34°/s
Preset Speed: >Pan: 60°/sec, Tilt: 30°/sec
Preset Number: 255 presets (10 presets by remote controller)

AI Tracking
Real Time and Regional tracking up to 8m.
Regional tracking can be set up to 4 continuous regions to track.

Other Parameter
Store Temperature: -10° C～+70° C
Store Humidity: 20%～90%
Working Temperature: -10° C～+50° C
Working Humidity: 20%～80%
Dimension: >162.3mm (height) x 146.2mm (width) x 164.9mm (length)
Weight: 1.49 kg (3.30 lbs)
Using Environment: Indoor
Accessory: >Power supply, IR remote controller, USB3.0 Type-C cable
