Jupiter Kore
Mini-SAS HD Connected Direct Attached Storage / NAS Expansion Solution

Let Us Help You Build the Perfect Shared Data Storage System
- 2U + 3U rack form factor
- 1.6GB/sec (2U) and 3.4GB/sec (3U) internal disk speeds
- Connect multiple Kores for up to 2.5PB of storage
- 12Gb Mini-SAS performance
- 16-64TB of SSD or 32-320TB HDD storage capacity1
- Hot swap drives & fans
- Redundant power

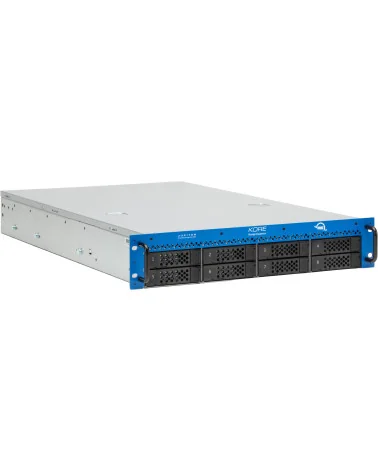

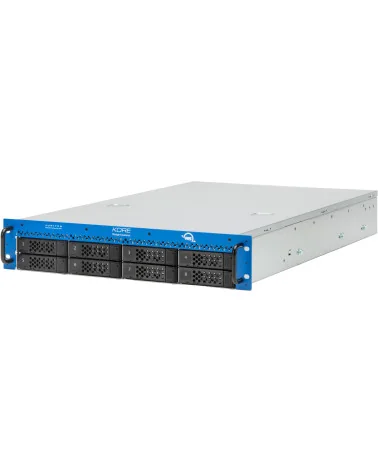

OWC Jupiter Kore
Expand your workflow with the performance, capacity, reliability, and value of OWC Jupiter Kore enterprise-class storage. The Kore is equipped with a high performance 12Gb Mini-SAS expander allowing further expansion beyond a single Kore unit. This allows for the addition of up to 6 more Kore systems to a single server system for a total of 7 Kore units.

The Kore may be directly connected to a 12Gb Mini-SAS system, or used to expand an existing RAID server system including the OWC Jupiter Callisto NAS storage server.

Up to 320TB, 2.5PB Expanded
OWC Jupiter Kore provides a vast amount of direct-attached or expansion storage capacity with up to 160TB of storage in a 2U 8-drive rack system and up to 320TB of storage in a 3U 16-drive rack system. As your storage needs increase, attach additional Kore systems via Mini-SAS for even greater capacity up to 2.5PB on 3U systems.

RAID
When high-performance RAID storage is a requirement for your computer or server, Kore is the perfect storage for connecting to Mini-SAS RAID controller cards and adapters. Since Kore provides high-speed JBOD storage, it can also extend the storage of networked storage servers such as OWC Jupiter Callisto.

Tremendous Mini-SAS HD Speed
At the core of Kore is the blazing fast Mini-SAS HD interface architecture which provides single cable speeds up to 48Gb/s, or run dual direct Mini-SAS HD cables to achieve up to 96Gb/s. Use this performance to speed up practically any workflow, ingest more video, edit more simultaneous video streams, and move more data around – saving time and money by allowing creative professionals to actualize their artistic vision.

2U & 3U Racks
Whether building from the ground up, or integrating into an existing system, 8-drive 2U racks and 16-drive 3U racks provide installation flexibiilty so you can add the OWC Jupiter Kore system that best provides the capacity you need in the space you have.

Hot Swap Drives & Fans
Downtime is unacceptable. When you need to update, upgrade, or replace a drive or fan, you can keep the rest of the system up and running.

Redundant Power
Kore has robust power supplies that feature redundancy, the ability to hot-swap, and load balancing to ensure that the system remains up and running 24/7.

Specs At-a-Glance
8 drives
2U rack space
Up to 16-32TB SSD / 32-160TB HDD of internal raw capacity
Mini-SAS storage expansion
18.9 in x 3.7 in x 29.0 in (WHD) 48.0 cm x 9.4 cm x 73.7 cm (WHD)
29.9 pounds (13.56 kg) without drives
(2) Mini-SAS HD (12Gb/s) SFF-8644 ports (8) 12Gb/s SAS-3 compliant channels, 96Gb/s total bandwidth (48Gb/s per port)
380W high-efficiency 1+1 redundant 90~264 VAC full-range, auto-switching power supply
Operating Environment 32°F to 104°F (0°C to 40°C) 20 to 95% non-condensing
Storage Environment -4°F to 176°F (-20°C to 80°C) 10 to 95% non-condensing
OWC Limited Warranty 3 Years, expandable up to 5 Years
