The RGBLink Mini-ISO is a portable and versatile video switcher that combines quad SDI and HDMI inputs, real-time preview, PTZ camera control, and multi-platform streaming support for professional video production.

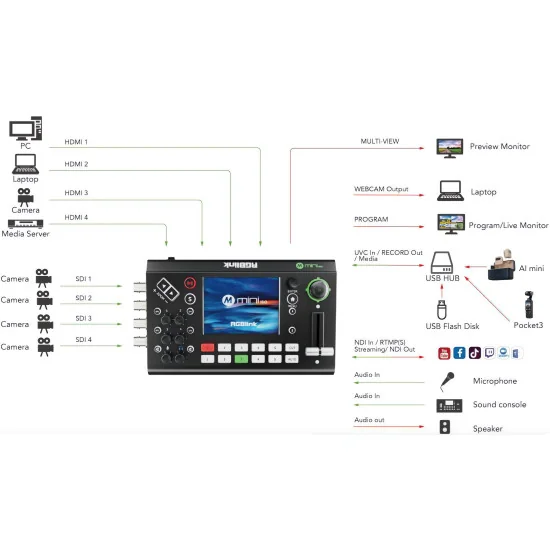

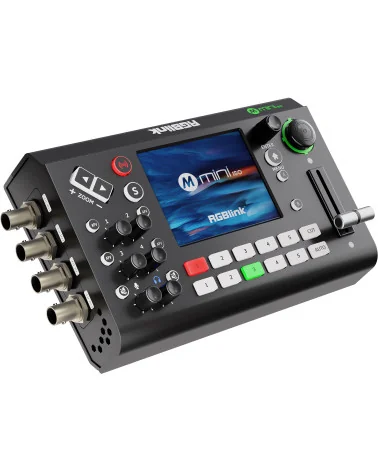

The RGBLink Mini-ISO is an advanced yet compact video switcher designed for creators and professionals who need a powerful, portable solution for video production. Featuring quad SDI and HDMI 2.0 inputs, the Mini-ISO supports resolutions up to 4K@60, making it perfect for seamless integration of video feeds from PCs, cameras, and other sources.

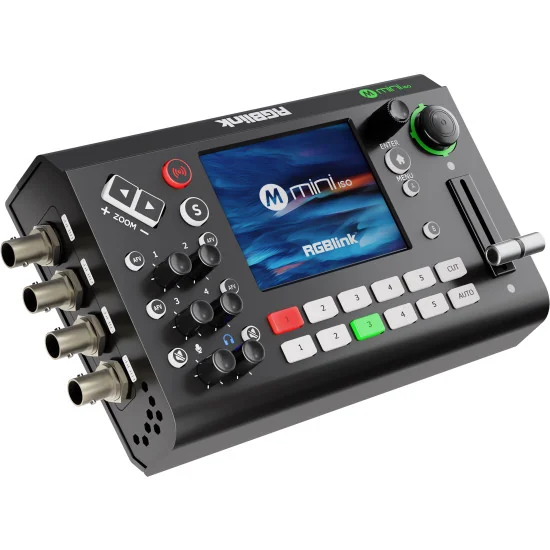

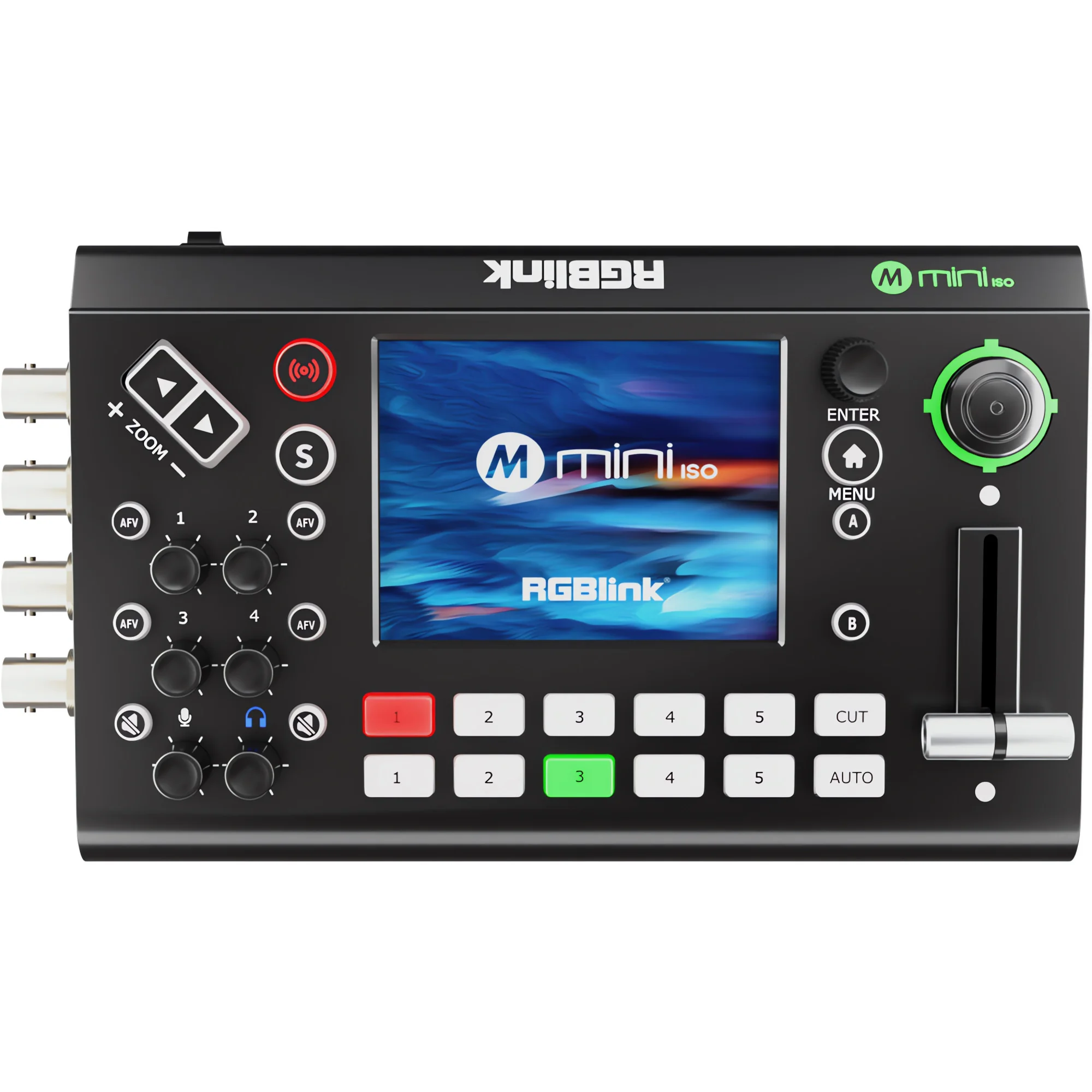

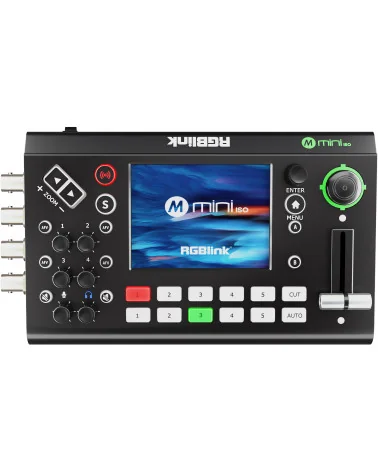

The 3.5-inch touch screen provides an intuitive interface for menu operation, signal preview, and real-time status monitoring. Dual HDMI 1.3 outputs allow for multi-view previews, program displays, or test pattern generation, ensuring comprehensive output options.

With support for embedded audio mixing from four HDMI/SDI channels and two external channels, the Mini-ISO ensures professional-grade sound. Its USB 2.0 recording feature captures content in exFAT or FAT32 format with up to 16Mbps bitrate, while its USB webcam output makes streaming to platforms straightforward.

The device supports 15 transition effects, AUTO and WIPE switch modes, and advanced Chroma Key and Luma Key options. For PTZ camera setups, the Mini-ISO offers precise control via its 5-direction joystick and IP VISCA protocol compatibility, complete with preset saving and one-click recall.

The Mini-ISO integrates seamlessly with TAO Cloud for mobile and desktop control and supports RTMP(S) streaming to up to four platforms simultaneously. Its compact design makes it ideal for on-the-go productions, whether in the studio or on location.

Key Features:
- Versatile Inputs: Quad SDI and HDMI 2.0 inputs supporting up to 4K@60 resolutions.
- Compact Design: Portable and easy to carry for flexible use in various environments.
- User-Friendly Interface: 3.5-inch touch screen for easy operation, preview, and monitoring.
- Dual HDMI Outputs: For multi-view previews, program displays, or test patterns.
- Audio Mixing: 4-channel HDMI/SDI embedded audio plus 2 external audio channels.
- USB Recording: One-key recording in exFAT or FAT32 format with up to 16Mbps bitrate.
- PTZ Camera Control: Joystick and toggle for precise IP VISCA protocol control with presets.
- Streaming Capability: RTMP(S) streaming to up to four platforms simultaneously.
- Advanced Effects: 15 transitions, Chroma Key (green/blue), and Luma Key support.
- Cloud Control: TAO Cloud integration for mobile and desktop management.

Specification

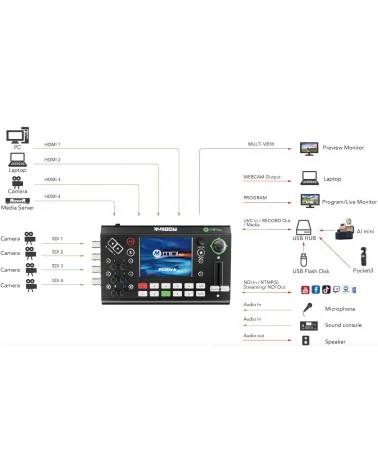

Connectors
Input

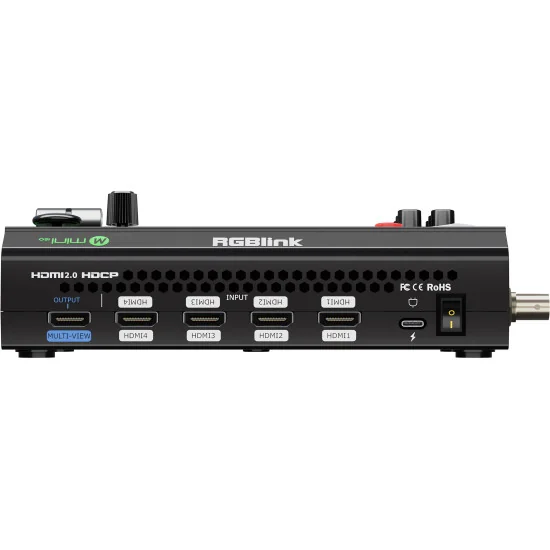

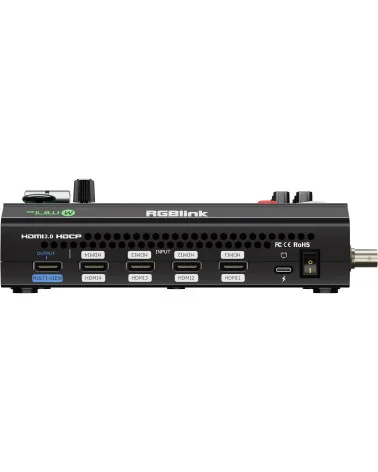

HDMI 4K: 4×HDMI-A
UVC (USB Cam): 1×USB-A (Record)

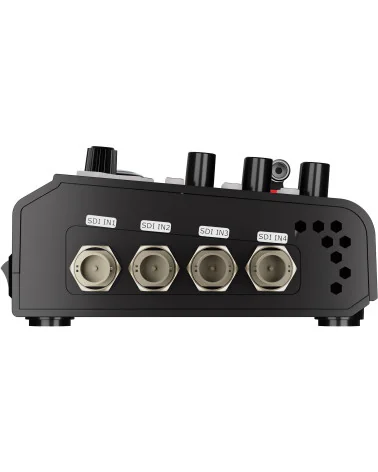

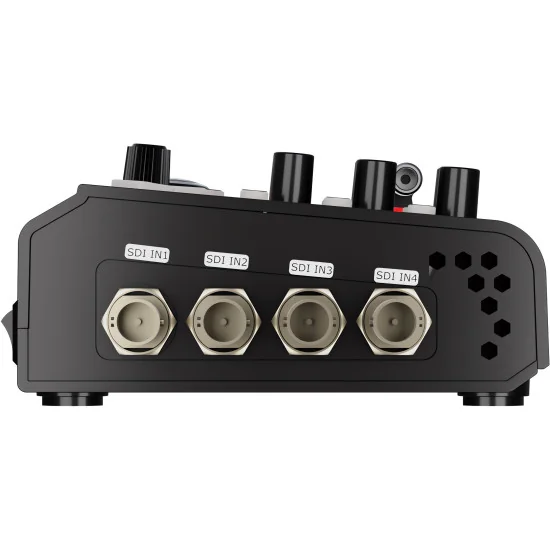

SDI: 4×BNC
Media: 1×USB-A (Record)
NDI: 1×RJ45 (LAN)

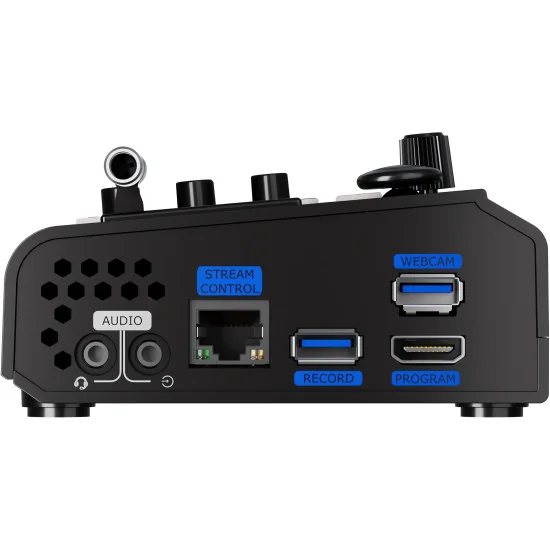

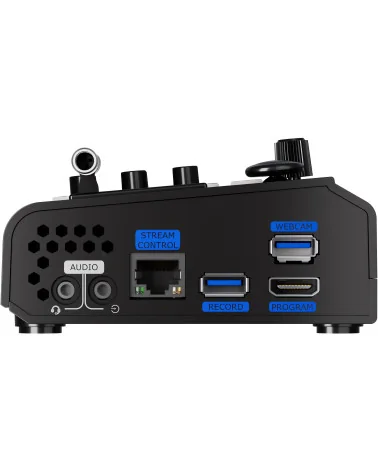

Output
HDMI 2K: 2×HDMI-A
USB (Record): 1×USB-A (Record)
USB (Stream): 1×USB-A (Webcam)
RTMP(s)/NDI: 1×RJ45 (LAN)
Audio
Embedded Audio Input: 4×HDMI-A
External Digital Input: 1×USB-A (Record)
External Analog Input: 2×3.5mm mini-Jack
External Analog Ouput: 1×3.5mm mini-Jack
Communication/Stream/Upgrade
LAN: 1×RJ45
Power
Power Supply: 1×USB-C

Performance
Input Resolutions
HDMI 2.0
SMPTE: 720p@50/60 | 1080i@50/60 | 1080p@24/30/50/60
VESA: 1024×768p@60 | 1280×720p@60 | 1280×768p@60 | 1280×800p@60 | 1280×1024p@60 | 1360×768p@60 | 1366×768p@60 | 1440×900p@60 | 1600×1200p60 | 1680×1050p@60 | 1920×1080p@60 | 1920×1200p@60 | 3840×2160p@60 | 4096×2160p@60
SDI: 720p@50/60 | 1080i@50/59.94/60 | 1080p@23.98/24/25/29.97/30/50/59.94/60
UVC: 1080p@60
Output Resolutions
HDMI 1.3: 1280×720p@50/60 | 1920×1080p@23.98/24/25/29.97/30/50/59.94/60
USB: 1280×720p@60 | 1920×1080p@24/25/30/50/60
Video Color Space: RGB 8bit | YCbCr 4:4:4 8bit | YCbCr 4:2:2 8bit
Video Latency: <3 frames
Audio
Audio Format: PCM/2ch/24bit/48kHZ
Sampling Rate: 48K
Bitrate: 24bit
Record/Storage
Record Formats: MP4 (up to 16Mbps)
Disk Formats: FAT32 | exFAT
Supported Standards
HDMI 2.0
HDCP 1.4
USB 3.0
SDI: SMPTE 425M (Level A & B) | SMPTE 424M | SMPTE 292M | SMPTE 259M-C | DVB-ASI
NDI: NDI | HX2

Power
Compatability: USB Power Delivery (PD) 3.0
Supported Cables: Certified USB PD Aware
Input Voltage: 12V/2.5A
Maximum Power: 30W

Environment
Temperature: 0℃～60℃
Humidity: 10%~85%

Physical
Net Weight: 0.60kg
Packaged Weight: 1.38kg
Net Dimension: 197mm × 113mm × 60mm
Packaged Dimension: 255mm × 145mm × 85mm
