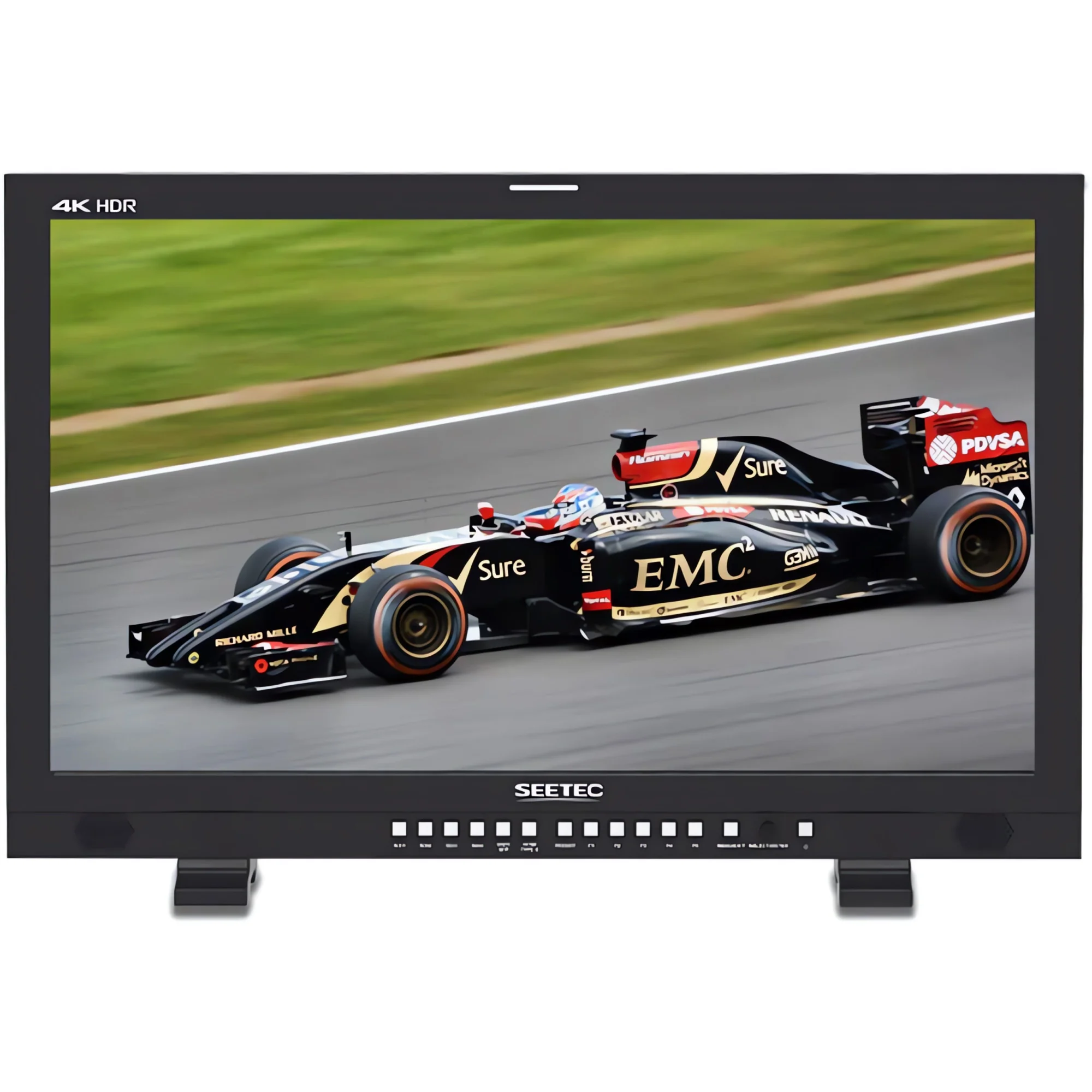

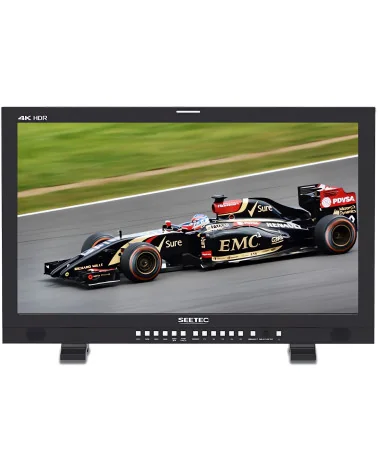

SEETEC 12G270D is a professional film and television production monitor equipped with 2*12G-SDI can support 4K signal input, and presenting you up to 2160p@60 native display. The 27-inch ultra HD IPS panel with the color depth up to 8 bit and a series of aux functions. And featuring the option of 12G-SFP Fiber Optic input connection for Ultra HD monitoring over massive distances! You also can connect your computer to control the monitor via applications. It is widely used in the pre-shooting and post color grading work of broadcast, film and television, and high-end advertising production.

Key Features
● 27-inch 3840X2160 ultra HD large screen
● Rugged aluminium housing, durable
● Flexible and intuitive button operation, easy to use
● Supports multiple gamut, meet the different needs of photographers for color gamut.
● Mulitple display modes (Quade, Quadview triple side , Quadview triple bottom, PBP, PAP)
● SDR and HDR Image Comparison Function
● With Waveform, Vectorscope, RGB Histogram, Focus Assist, Monochrome etc. functions, can help you accurately exposure and focus every shot.
● Multiple interfaces, meet different needs (2*12G-SDI inputs and outputs, 1*HDMI 2.0 inputs, RS422 in and out, GPI, LAN, Type-C, SFP)
● Three Tally color(Red, Yellow, Green)
● Stereo Earphone output, speaker
● VESA standard mounting points support for hang wall installation

Display Spec.
Model: 12G270D
Screen Size: 27" IPS
Color Depth: 8Bit(1.67M)
Resolution: 3840×2160 pixels
Pixel pitch: 0.1369(W) x 0.1369(V) mm
Aspect Ratio: 16:9
Brightness: 300cd/m²
Contrast Ratio: 1000:1
Backlight: LED
Viewing Angle: 89°/89°(L/R) 89°/89°(U/D)

Input
2 X 12G-SDI
1 X HDMI 2.0 (support 4K)
1 X RS422
1 X GPI
1 X USB (upgrade and LUT import)
1 X LAN Ethernet
1 X Type-C (compatible with Lightning 3)
1 X SFP Module (optional)

Output
2 X 12G-SDI
1 X RS422

Audio
Audio: Stereo Headphone, Speaker

SDI Support Format
SMPTE-425M-A/B: 1080p (50/59.94/60)
SMPTE-274M: 1080p (23.98/24/25/29.97/30p/psf)
SMPTE-296M: 720p(60/59.94/50)
SMPTE ST 2036-1:2009: 3840×2160(23.98/24/25/29.97/30/50/59.94/60p)
SMPTE ST 2048-2:2011: 2048x1080(23.98/24/25/29.97/30p/psf, 47.95/48/50/59.94/60p)
SMPTE ST 2081: 3840x2160 (30/25/24p)
SMPTE ST 2082: 3840x2160 (60/50/30/25/24p)

HDMI Support Format
4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)

General
Input Voltage: AC 100V~240V
Power Consumption: ≤75W
Working Temperature: -10°C~55°C
Storage Temperature: -20°C~60°C

Advanced Features
* Built-in Multi camera Delog LUTs
* User 3DLUTs upload via USB (up to 8)
* Support GPI control
* Support dynamic IMD, support TSL 3.1/4.0/5.0 and IMAGE VIDEO protocol
* Support TALLY
* Support 16-ch embedded audio meters display
* Histogram
* HDR
* Color Preset Mode (T.709, BT.2020 , DCI-P3, PQ_DCI-P3, PQ_BT.2100, HLG_BT.2100)
* Gamma-EOTF (Gamma2.0, Gamma2.2, Gamma2.4, Gamma2.6, SMPTE ST 2084(PQ), ITU-R BT.2100(HLG), S-Log3, Canon Log)
* PQ Options (PQ-300, PQ-500, PQ-1000)
* Timecode Display
* Color Gain (Red, Green, Blue)
* Color Bias (Red, Green, Blue)
* Under Scan, Over Scan
* EETF
* Center Marker
* Safety Marker (80%、85%、88%、90%、93%)
* Marker Mat (16:9, 15:9, 14:9, 13:9, 4:3, 2.35:1, 1.85:1)
* Waveform (Luminance waveform, component waveform, RGB waveform, RGB overlay waveform )
* Gamma Warning
* Gamma (ITU-R BT.709、SMPTE-C、EBU、DCI-P3、ITU-R BT.2020)
* Crosshatch
