The Big, Small, Powerful, Monitoring Solution.
Ultra 10 hits the sweet spot in power, performance and size between production monitors and our Ultra Bright Series, with 6G-SDI architecture, unprecedented weather and shock-resistance, new multi-function knobs, and more.

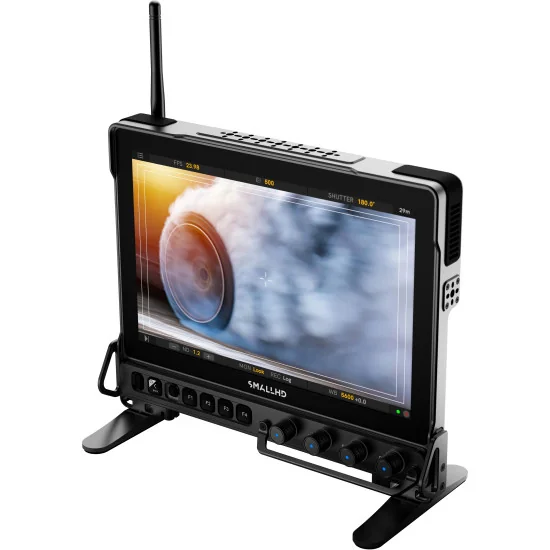

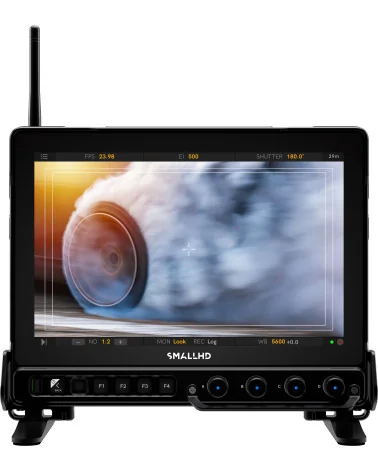

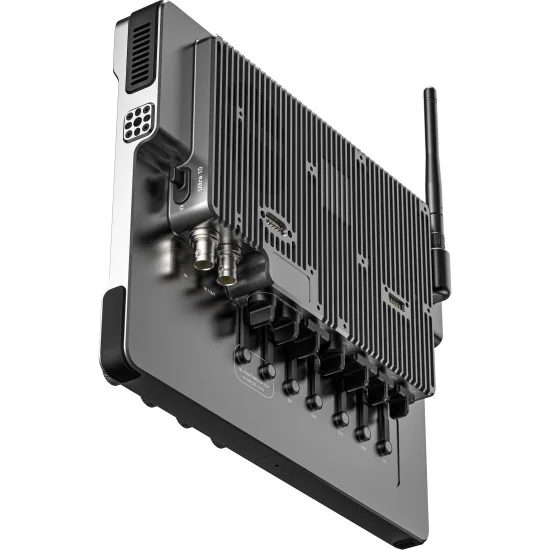

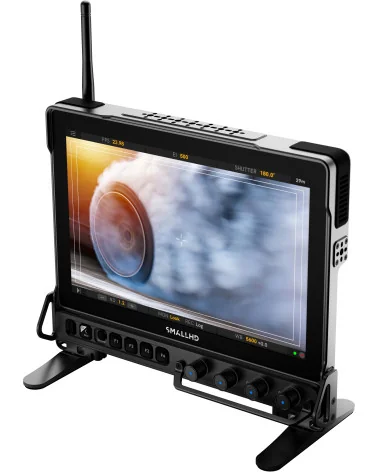

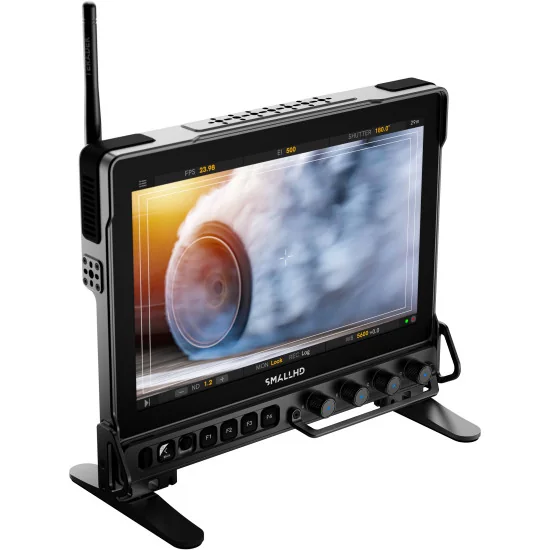

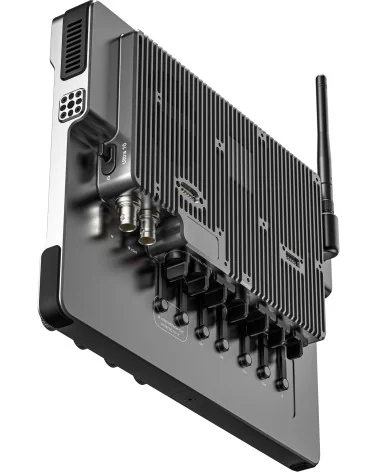

Ultra 10

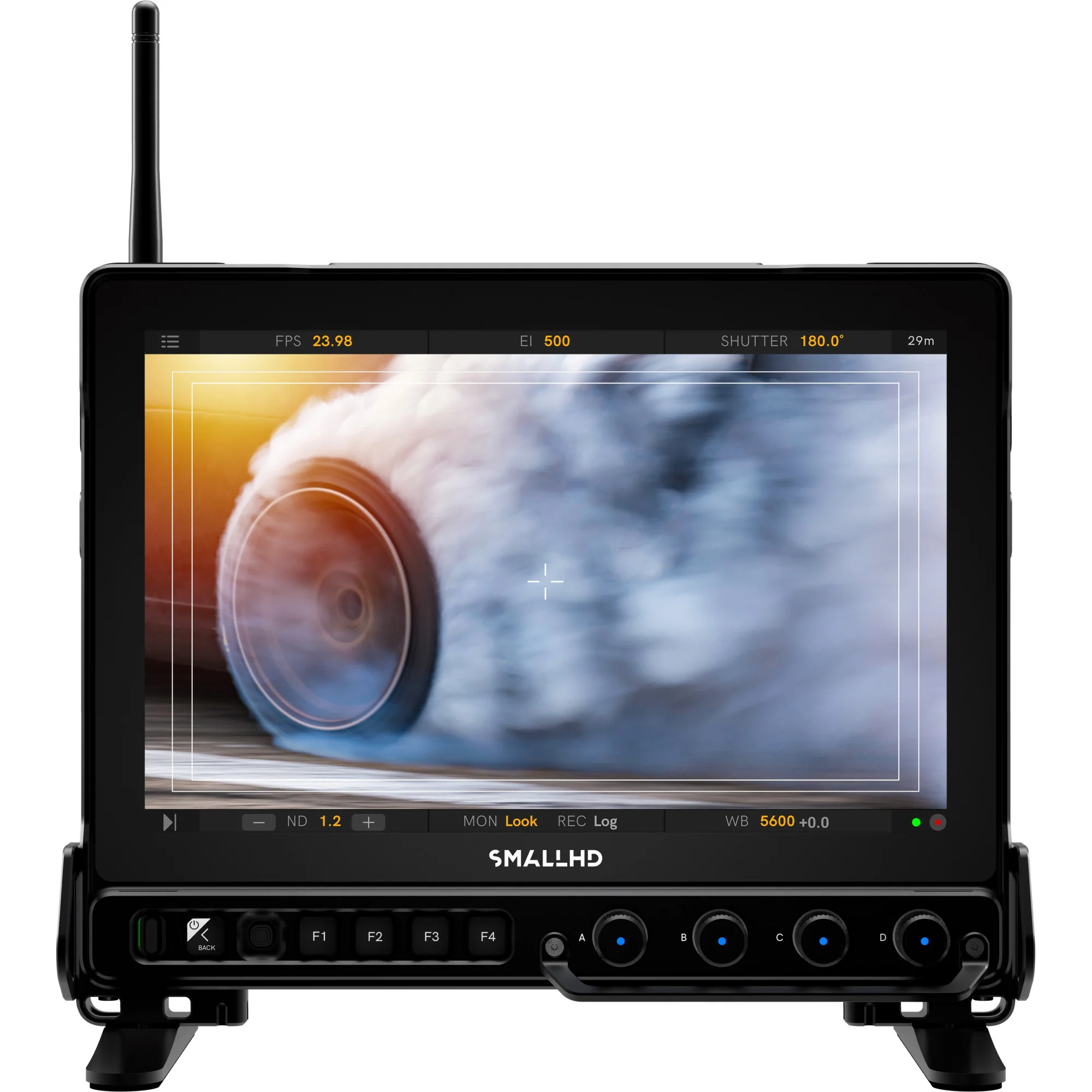

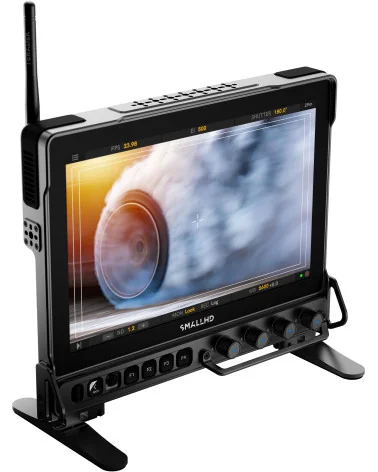

The largest touchscreen monitor we’ve ever made. Portable, powerful, and rugged, Ultra 10 packs 2000nits of brightness, 6G-SDI architecture, intuitive multi-function rotary encoder knobs, and the full power of PageOS into a 10-inch display. Perfect for focus pullers, pursuit vehicles, director’s cages, DITs, multi-camera studios, and anyone who desires maximum flexibility from their monitor.

QD-LED Edge-Lit LCD Panel Technology
Ultra 10’s LEDs are built into an edge-lit panel stack that diffuses and focuses the light through a quantum-dot film, ensuring incredible brightness, excellent image fidelity, ultra-pure color accuracy, and the highest tolerance for color uniformity.

Rain, Sun, or Snow Ultra Protected
Built into a rugged, shock-resistant chassis designed to withstand production and environmental rigors alike, Ultra 10 is designated with an IP54 rating, defined as protected against harmful dust and water spray from all directions.

Fully Sealed
All electronic components are cap-sealed to protect against dust and water.

Impact Resistant
Shock-absorbing bumpers withstand most drops, tumbles, and impacts.

Thermal Management
Ultra 10 can safely operate in extreme temperatures from 0º-40ºC.

Strength & Durability
Strong, durable chassis with raised edges for enhanced screen protection.

Splash Resistant
Extra protection in damp, wet, and windy conditions.

The Folding Magnetic Sunhood
The Ultra 10 Sunhood connects to the monitor in seconds with a powerful array of integrated magnets. It requires no tools for installation or removal and provides total panel protection when closed.

PageOS - Powerful new tools. Unprecedented creative control.
PageOS is the first and only monitoring solution of its kind: an advanced, page-based software toolset with an intuitive UI/UX that gives you full control over color, exposure, camera, LUTs, and so much more. Experience effortless navigation, exclusive industry-first integrated tools, and limitless creative possibilities.

A Camera Interface on Every Page
View and adjust crucial camera-control functions and PageOS tools at the same time on the Ultra 10 with a camera-control interface anchored to every page.

Quickly Adjust with Dials
Control and customize tools like Pixel Zoom, Focus Assist, Peaking, Brightness, Color Pipe cycling and more-- using our multi-function dials. These can be programed to global tools and functions or be specific to a page.

Handheld Multi-View
We’ve added powerful Multi-View* tools from our 4K Production Monitors to the Ultra 10. View two camera feeds and use multiple tools pages all on screen at the same time, side-by-side.

Lens Control Overlays
Using Teradek RT Overlays, you can view critical lens data on your monitor. Quickly create, edit, and delete marks on the focus scale, set on-screen limits, and even pinch-zoom the scale.

A Tactile Complement to Touchscreen UI
Easily accessible physical buttons give you full control of the monitor, even when you’re wearing gloves. Assign workflow shortcuts for software tools, switch inputs, adjust display brightness, and more.

SPECS

Environmental
IP Rating: IP54
Item Weight (oz): 52.8
Height (in): 1.73
Width (in): 9.92
Length/Depth (in): 10.89

Display
Panel Type: IPS LCD
Diagonal Size: 10.1"
Resolution: 1920x1200
Contrast: 1000:1
Color Depth: 10-bit Processing (8-bit panel)
Backlight Type: LED Edgelit
Refresh Rate: Synchronizes with input from 48Hz to 60Hz

Input Signal
3G-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i102
6G-SDI Input Types: YCC 4:2:2 @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95
HD-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.100
SD-SDI Input Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i52
HDMI Input Types: YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 3840x2160 30p, 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i52

Output Signal
3G-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i102
HD-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.100
SD-SDI Output Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i52
HDMI Output Types: YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i51
Audio Output Types: HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

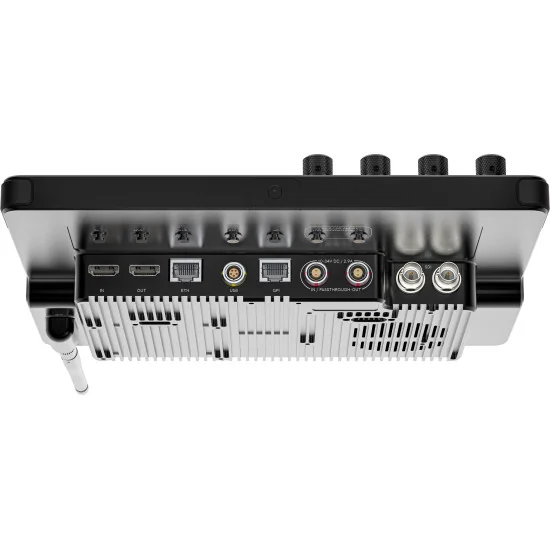

Data I/O
SDI: 1x BNC 6G input and 1x BNC 6G selectable input/output
HDMI: 1 input and 1 output: HDMI Type-A Receptacles (full size)
Audio: 1x 3.5mm 3-pin Stereo Headphone Jack
Ethernet: RJ45 and GPI

Power
Connector: 2-Pin Locking Connector
Voltage: DC in - 10V minimum to 34V maximum, Battery terminals - 6.0V minimum to 16.8V max
Power Supply: Recommend DC 12~15V at ~2.5 amp or greater
Battery Types: Optional V Mount, Gold Mount Micro Battery Plates
Overload Protection: DC input: Reverse polarity
Battery Chemistry: Li-ion

Software
Pixel Zoom: 1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom
Frame Guides: Preset Aspect Ratios & Customizable
DSLR Scale: Canon 5DMkii & Canon 7D
Custom Scale: Yes (Underscan Only)
Anamorphic De-Squeeze: 0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x
Image Rotate: Automatic or Manual Control
Image Flip: Automatic or Manual Control
Cross Conversion: Yes: HDMI → SDI & SDI → HDMI
Focus Assist: User Adjustable Color Style and Intensity
Peaking: User Adjustable Intensity
False Color: Rainbow, Arri Style, Custom with up to 10 nodes
Zebra: Dual - User Configurable
Waveform: Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope: Yes
RGB Parade: Fully User Customizable
Histogram: Luma & RGB Style
Image Capture: Yes
LUTS: - 33pt User LUT instead of 17pt - 33pt Cal LUT instead of 17pt - LUT tool continues to work after removable media containing the LUT has been removed
Custom LUTS: - Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu - LUT Downstream: Available on SDI or HDMI Out. Applied on Output Preview Page. - LUT Import: via SD Card or USB Storage Device
Color Pipe: - Unique Calibrations may be saved to each Color Pipe - Accurate color processing
Overlay: With Opacity Slider and Blink Setting
Audio Meters: HDMI & SDI up to 8 channel
Multi-View: 2 camera feeds simultaneously
