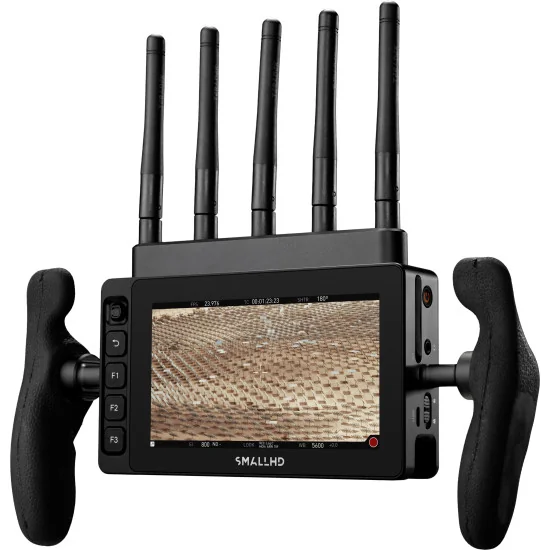

Le SmallHD Ultra 5 Bolt 6 RX 750 Gold-Mount Kit réunit un écran tactile 5 pouces / 12,7 cm avec le récepteur Bolt 6 RX 750 et une plaque micro Gold-Mount. L’IPS délivre 3000 nits, 1920 × 1080 à 440 ppi et un signal 10 bits 4:2:2 Rec. 709 pour un cadrage net en plein soleil. Châssis aluminium, six filetages ¼-20 et PageOS 5 tactile garantissent robustesse et ergonomie, tandis que le verre laminé antireflet couvre 100 % DCI-P3.
Les ports HDMI 2.0 et 3G-SDI acceptent la 4K30 et assurent une sortie croisée. PageOS 5, piloté via une interface utilisable avec des gants, propose EL-Zone, waveform, parade, false colour, zoom pixel-à-pixel et LUT. Ethernet ou Bolt activent le contrôle caméra (ARRI, RED, Sony) sans câbles. Quatre touches et un joystick rappellent vos Pages, 16 Go internes les sauvegardent. Deux entrées tally signalent l’enregistrement.

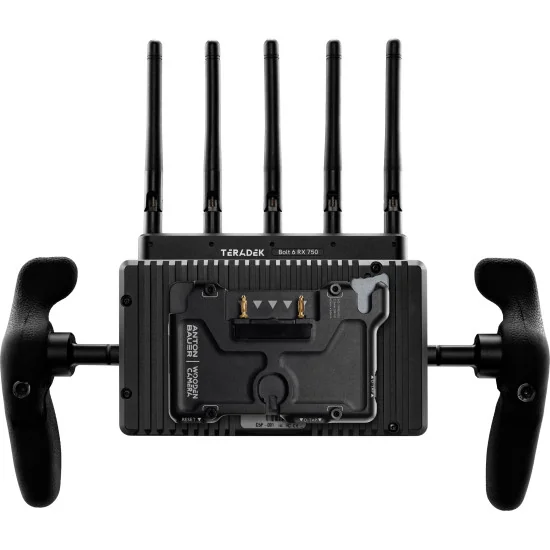

La plaque Gold-Mount micro autorise le hot-swap ; entrée 2 broches 10–34 V DC. Deux D-Tap 12 V alimentent les accessoires et les 8 W de consommation prolongent l’autonomie. Refroidissement passif et prise 3,5 mm pour écoute. Embase LEMO verrouillée et port USB-C pour LUT ou firmware. Un pas de vis ARRI anti-torsion sécurise la fixation sur cage ou bras articulé.
Le Bolt 6 encastré reçoit la 4K30 sur 5/6 GHz avec latence nulle (<0,001 s) et chiffrement AES-128, la sélection automatique de canal dans PageOS identifie la bande la moins encombrée, tandis que le chiffrement protège les images confidentielles. Portée 750 ft / 228 m en champ libre, jusqu’à six récepteurs, compatible Bolt 4K. L’Ultra 5 RX 750 devient ainsi un hub sans câble pour mise au point, exposition et visionnage client. Analyse de spectre et multicast gratuits.
Le SmallHD Ultra 5 Bolt 6 RX 750 Gold-Mount Kit réunit un écran tactile 5 pouces / 12,7 cm avec le récepteur Bolt 6 RX 750 et une plaque micro Gold-Mount. L’IPS délivre 3000 nits, 1920 × 1080 à 440 ppi et un signal 10 bits 4:2:2 Rec. 709 pour un cadrage net en plein soleil. Châssis aluminium, six filetages ¼-20 et PageOS 5 tactile garantissent robustesse et ergonomie, tandis que le verre laminé antireflet couvre 100 % DCI-P3.
Les ports HDMI 2.0 et 3G-SDI acceptent la 4K30 et assurent une sortie croisée. PageOS 5, piloté via une interface utilisable avec des gants, propose EL-Zone, waveform, parade, false colour, zoom pixel-à-pixel et LUT. Ethernet ou Bolt activent le contrôle caméra (ARRI, RED, Sony) sans câbles. Quatre touches et un joystick rappellent vos Pages, 16 Go internes les sauvegardent. Deux entrées tally signalent l’enregistrement.
La plaque Gold-Mount micro autorise le hot-swap ; entrée 2 broches 10–34 V DC. Deux D-Tap 12 V alimentent les accessoires et les 8 W de consommation prolongent l’autonomie. Refroidissement passif et prise 3,5 mm pour écoute. Embase LEMO verrouillée et port USB-C pour LUT ou firmware. Un pas de vis ARRI anti-torsion sécurise la fixation sur cage ou bras articulé.
Le Bolt 6 encastré reçoit la 4K30 sur 5/6 GHz avec latence nulle (<0,001 s) et chiffrement AES-128, la sélection automatique de canal dans PageOS identifie la bande la moins encombrée, tandis que le chiffrement protège les images confidentielles. Portée 750 ft / 228 m en champ libre, jusqu’à six récepteurs, compatible Bolt 4K. L’Ultra 5 RX 750 devient ainsi un hub sans câble pour mise au point, exposition et visionnage client. Analyse de spectre et multicast gratuits.
Livraison dans toute l’UE pour 20 €, gratuite dès 1 000 €.
Boutique B2B réservée aux professionnels, prix HT.
Distribution et garantie officielles de l'UE.
Paiements en ligne sécurisés via Stripe.
Demande de devis via formulaire ou e-mail: avgear@avgear.shop

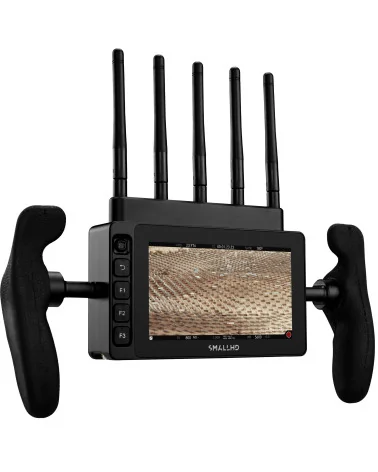

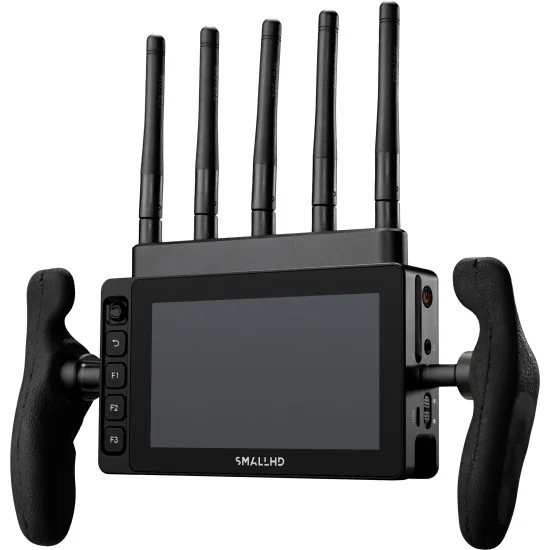

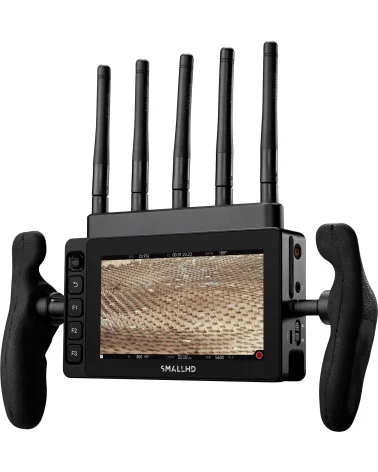

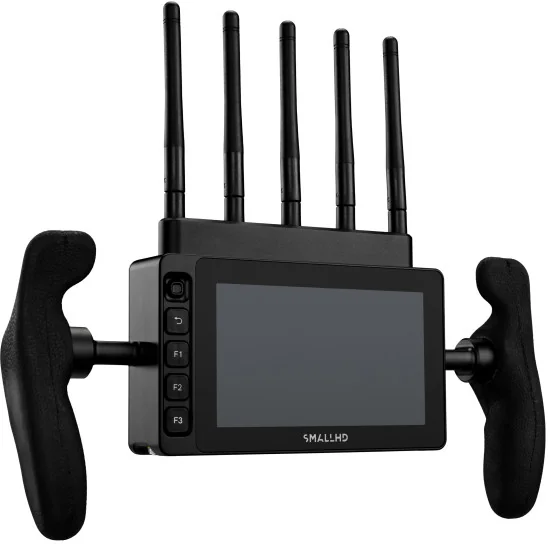

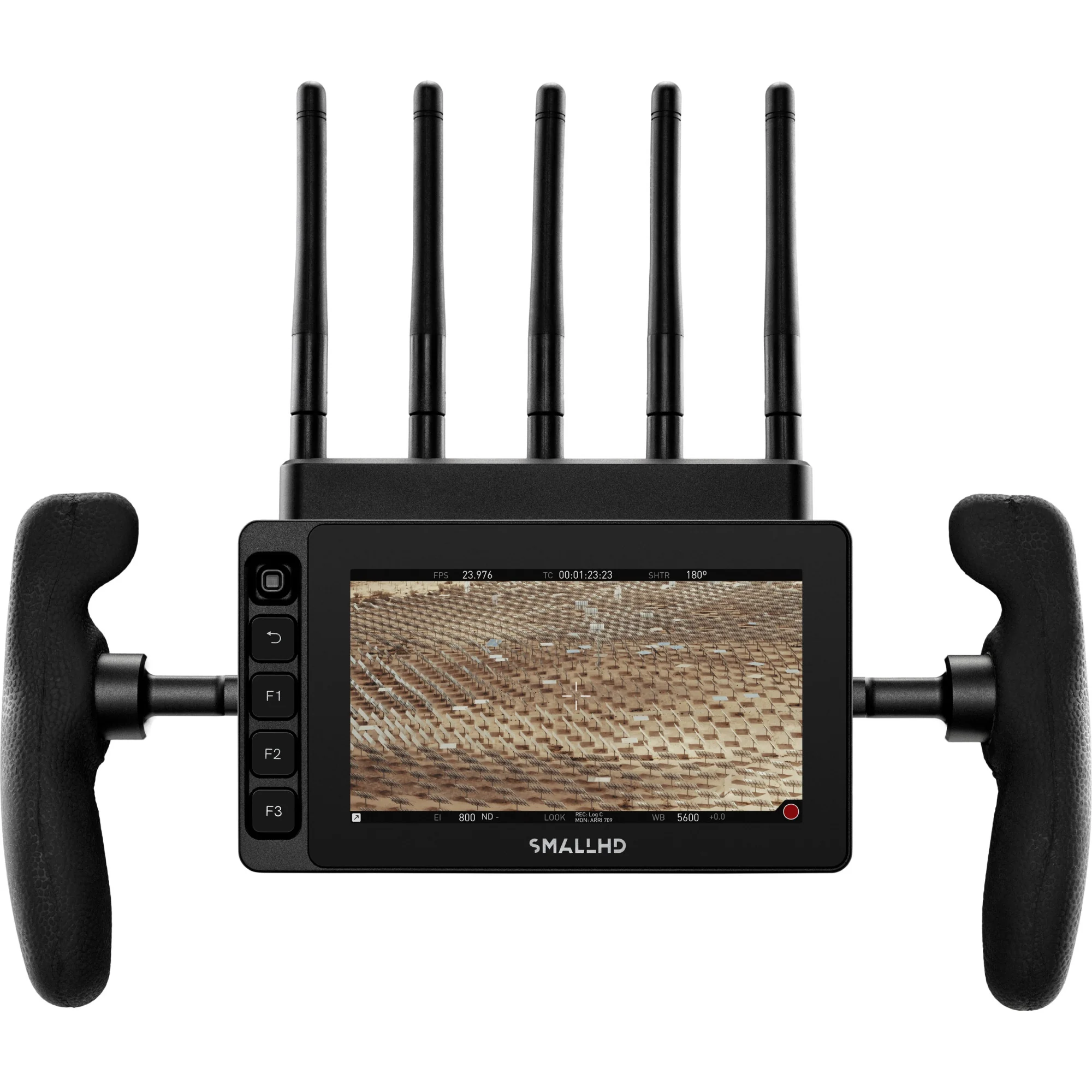

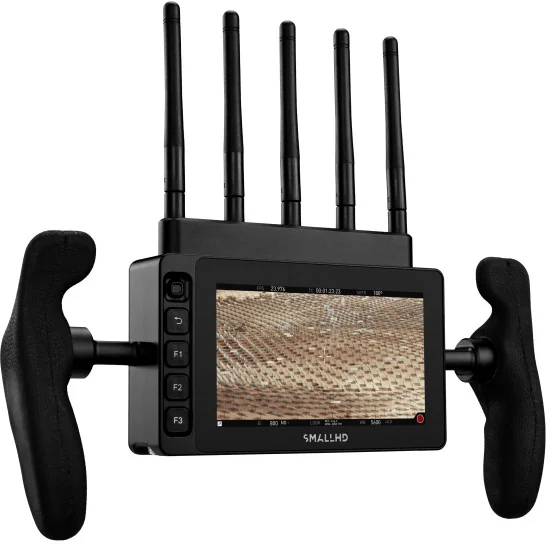

Bringing together SmallHD’s field-ready Ultra 5 monitor with Teradek’s wireless transmission technology, the Ultra 5 Bolt 6 RX 750 integrates a Bolt 6 750 Receiver directly inside, allowing you to view the image from your camera up to 750 feet away.
Teradek Bolt 6 750 RX
The Bolt 6 RX is a real time wireless video receiver that supports video signals up to 4Kp30 via HDMI with no image delay. This RX allows you to receive color accurate, True HDR images in less than 0.001 seconds. Reliably receive your videos with advanced hardware and minimal image break-up.
Camera Control for ARRI, RED®, and Sony VENICE
Transform your touchscreen into the central command hub of your camera. SmallHD’s proprietary software enables unfettered access to ARRI, RED DSMC2, KOMODO®, V-RAPTOR™, and Sony VENICE camera functions and project settings such as Start/Stop Record, FPS, Shutter Speed, ISO, Color Temperature/White Balance, Clip Playback, and more. *Individual Camera Control software licenses are sold separately.
Ultra 5 - Ultra Bright. Ultra Powerful. Ultra Compact.
Our brightest screen, locking power & USB connectors, touchscreen, and 3x custom function buttons make Ultra 5 the best-in-class 5-inch monitor.
Powerful, portable, and adaptable, the Ultra 5 offers 3000nits of dazzling brightness, a locking power adaptor, an Ethernet port for camera control, plus a full suite of large, front-facing physical buttons for maximum control in all conditions. Experience all your favorite PageOS tools, functions, and settings pages on a fully-loaded 5-inch touchscreen monitor.
PageOS - Next-Gen Tools, Customizable Workflow, Premium UX
Smarter, more intuitive software tools for at-a-glance adjustments, effortless navigation, and more accurate exposure and color control. Personalized Page Profile, Focus and Exposure Assist, Lookaround Camera Control, Tetrahedral LUT Interpolation, Advanced Teradek RT Overlays, and more.
LOOK-AROUND CAMERA CONTROL
A Camera Interface on Every Page
View and adjust crucial camera-control functions and PageOS tools at the same time on Smart 5 Series Monitors with a camera-control interface anchored to every page.
TERADEK RT OVERLAYS
Lens Control Overlays
View critical lens, focus, iris, and zoom data on your monitor. Quickly create, edit, and delete visual marks on the focus scale, set on-screen limits, and even pinch-zoom the scale for extremely precise focal-change sequences.
EL ZONE
Light Metering Evolved
Developed by legendary cinematographer, Ed Lachman, ASC, EL Zone is a stop-based exposure map tool that works like a virtual spot meter, replacing IRE exposure values with stops. Sensor data from the camera provides a reference point, and a false color represents each stop above and below 18% gray, allowing for easier, more intuitive on-set communication.
HORIZON INDICATOR
Keep Your Frame on the Level
A built-in digital bubble-level overlay you can apply to the image to precisely gauge camera rotation.
CUSTOM FUNCTION BUTTONS
A Tactile Complement to Touchscreen UI
Easily accessible physical buttons give you full control of the monitor, even when you’re wearing gloves. Assign workflow shortcuts for software tools, switch inputs, adjust display brightness, and more.
SPECS
Environmental
Item Weight (oz): 17.8
Height (in): 3.39
Width (in): 5.28
Length/Depth (in): 1.36
Mount Points: 6x 1/4-20 Mounting Points
Display
Panel Type: Touch-Screen
Resolution: 1920 x 1080
Aspect Ratio: 16:9
Max Brightness: 3000nits
Backlight Type: Edgelit
Input Signal
3G-SDI Input Types
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI Input Types
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Input Types
YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI Input Types
YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
Audio Input Types: HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels
Output Signal
3G-SDI Output Types
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI Output Types
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Output Types
YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI Output Types
YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
Audio Output Types: HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection
Connector Type

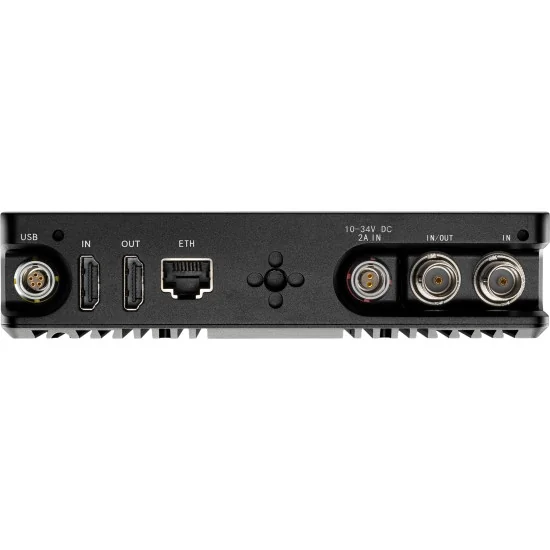

SDI: 1x 3G-SDI (In), 1x 3G-SDI (In/Out)
HDMI: 1x HDMI 2.0 (4Kp30) [In], 1x HDMI 2.0 (4Kp30) [Out]
Audio: 1x 3.5mm Stereo Headphone Jack
Data I/O
Connector Type: 1x RJ45 Ethernet
Storage Media: 1x SD Card Slot
USB: 1x Micro USB 1x Locking USB
Power
Input: 2-pin Locking Power Input (10-34V DC, 2.1A)
Software
Pixel Zoom: Yes
Focus Assist: Yes
Peaking: Yes
False Color: Customizable False Color Overlays
Waveform: Customizable 4K Waveform w/Region of Interest Highlighting (Coming Soon)
Custom LUTS: 17pt 3D-LUT on Output/Input 33pt 3D-LUT on Output/Input
