KUWI Wireless Technology - SDI&HDMI® 500ft / 150m (LOS)

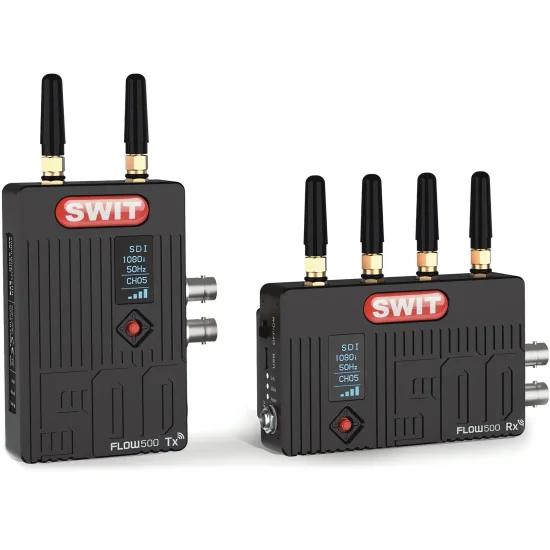

FLOW500 wireless system is based on SWIT latest KUWI wireless technology, 5.1-5.9GHz license free bands, DFS comply, supports 3G/HD-SDI and HDMI® (Max 1080p60) to transmit 500 feet (150 meters) Line-of-Sight distance. The system is pure hardware con- nection, plug and play, which is widely used in director monitoring, drone, ropeway camera, steadicam etc.

Key features
› KUWI 5.1-5.9GHz Wireless Technology
› DFS Comply
› 3GSDI & HDMI®, with 3GSDI loop out
› 500ft/150m (Line-of-Sight) distance
› 32ms stable low latency
› Strong Wall-Cross Performance
› 2-ch SDI/HDMI® audio transmission
› OLED info and channel switching
› Support up to 22 pairs working in one location
› Multicast - 1 transmitter to unlimited receivers
› Wireless protocol & content double encryption
› Reclock and accurate color reproduction

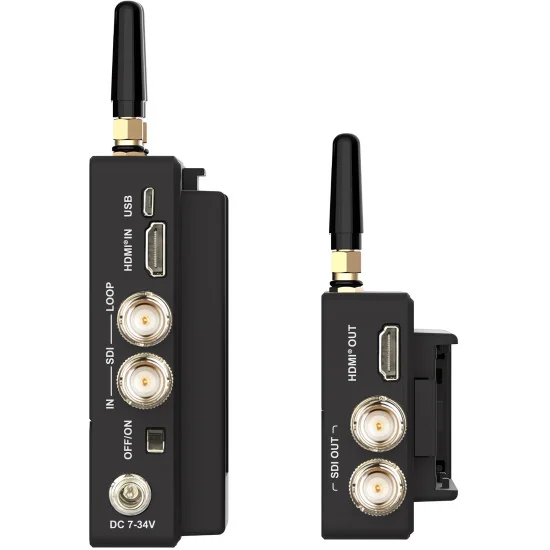

Input & Output
The Transmitter (Tx) has 2 omni antennas, supports
1x 3G/HD-SDI input
1x 3G/HD-SDI loop output
1x HDMI® 1.3 input

The Receiver (Rx) has 4 omni antennas, supports
2x 3G/HD-SDI output
1x HDMI® 1.3 output

SDI & HDMI® formats:
1080p60, 1080p59.94, 1080p50
1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30;
1080psf23.98, 1080psf24
1080i60, 1080i59.94, 1080i50;
720p60, 720p59.94, 720p50

500ft/150m Transmission - Strong Wall-cross Performance
FLOW500 wireless supports 500ft/150m (Line-of-sight) reliable wireless transmission, and featured stronger wall-cross performance due to both RF optimize and image quality optimize, so that will keep video transmis- sion without date lost or crash comparing to regular 5GHz wireless transmitters.
* Supports SDI & HDMI® embedded audio (CH1&2) transmission.

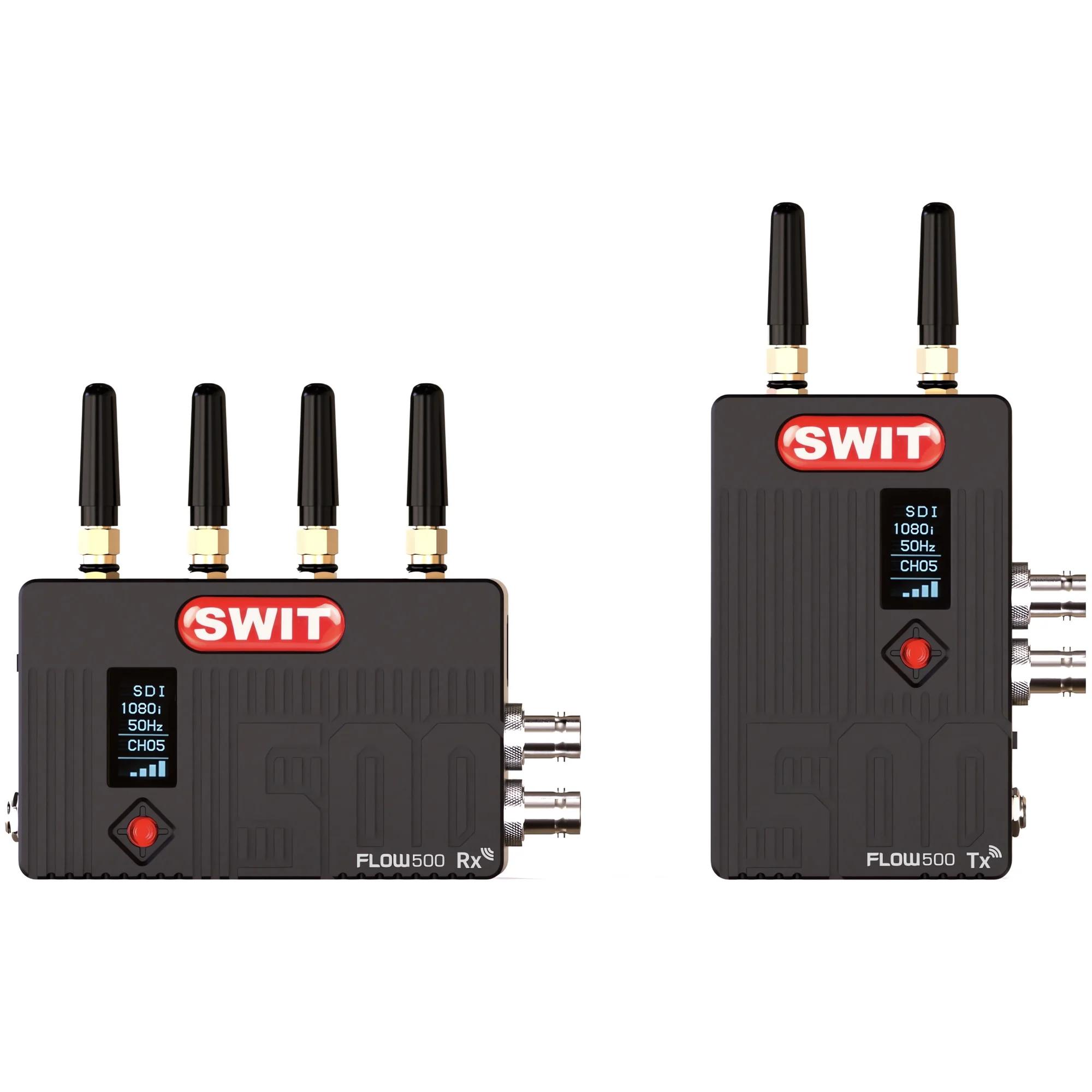

OLED Display & Channel Switch, DFS Comply
The FLOW wireless works under 5.1-5.9GHz, with built-in wireless scanner, and detect wireless condition of all fre- quencies, automatically jump to the best wireless channel to keep reliable connection and transmission, and DFS comply. You can also switch the wireless channels manually from 7 Non-DFS restricted channels. Both Tx and Rx are equipped with OLED to display signal format, wireless channel number and signal strength.

Multicast and Double Encryption
Support 1 transmitter to unlimited quantity receivers reliable multicast mode. The transmitter and receivers are paired and double encrypt- ed by private transmission protocol and by AES128, in order to protect the footages.

Stable Connection at Worst Wireless Environment
The FLOW series adopt professional KUWI 5GHz wireless technology, can keep connected at any complex wireless environment, such as sports stadium, concert, public plaza where full of people, electronic devices or wifi routers.

Reclock & Color Reproduction
To ensure the quality of black level, signal noise and color re- production of the wireless received signal, the FLOW series wireless receiving supports signal re-clock and accurate color reproduction.

USB Firmware Update
The FLOW series wireless provides a Micro USB port, supports OTG USB Firmware update for future more functions.

Power Supply
The power consumption of Tx and Rx are less than 8W. Both Tx and Rx provide NP-F DV battery plate, and 7-34V lockable DC input.

Specifications

Input / Output
Transmitter: 3G/HD-SDI input×1; loop out x1 , HDMI® 1.3 input ×1
Receiver: 3G/HD-SDI output×2 , HDMI® 1.3 output ×1

Video Formats

SDI
1080p60, 1080p59.94, 1080p50
1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30;
1080psf23.98, 1080psf24
1080i60, 1080i59.94, 1080i50;
720p60, 720p59.94, 720p50

HDMI®
1080p60, 1080p59.94, 1080p50
1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30;
1080psf23.98, 1080psf24
1080i60, 1080i59.94, 1080i50;
720p60, 720p59.94, 720p50

Wireless
Frequency: 5.17GHz-5.69GHz and 5.75GHz-5.83GHz
RF Modules: OFDM 16QAM, 64QAM, QPSK, BPSK
RF Power: 128mW
Transmission Distance: 500 feet / 150 meters (Line of sight)

General
Input voltage
Transmitter DC 7-34V
Receiver DC 7-34V
Power Consumption
Transmitter 8W
Receiver 8W
Dimension(w/o antenna)
Transmitter 66×106.5×24.7 (mm)
Receiver 106.5×66×24.7 (mm)
Net weight
Transmitter 236g
Receiver 245g; With package 2.55kg
Working Temperature: 0°C -+40°C
