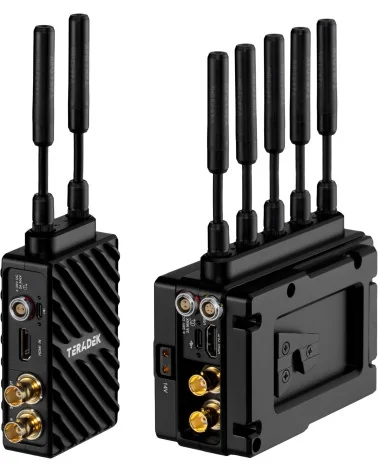

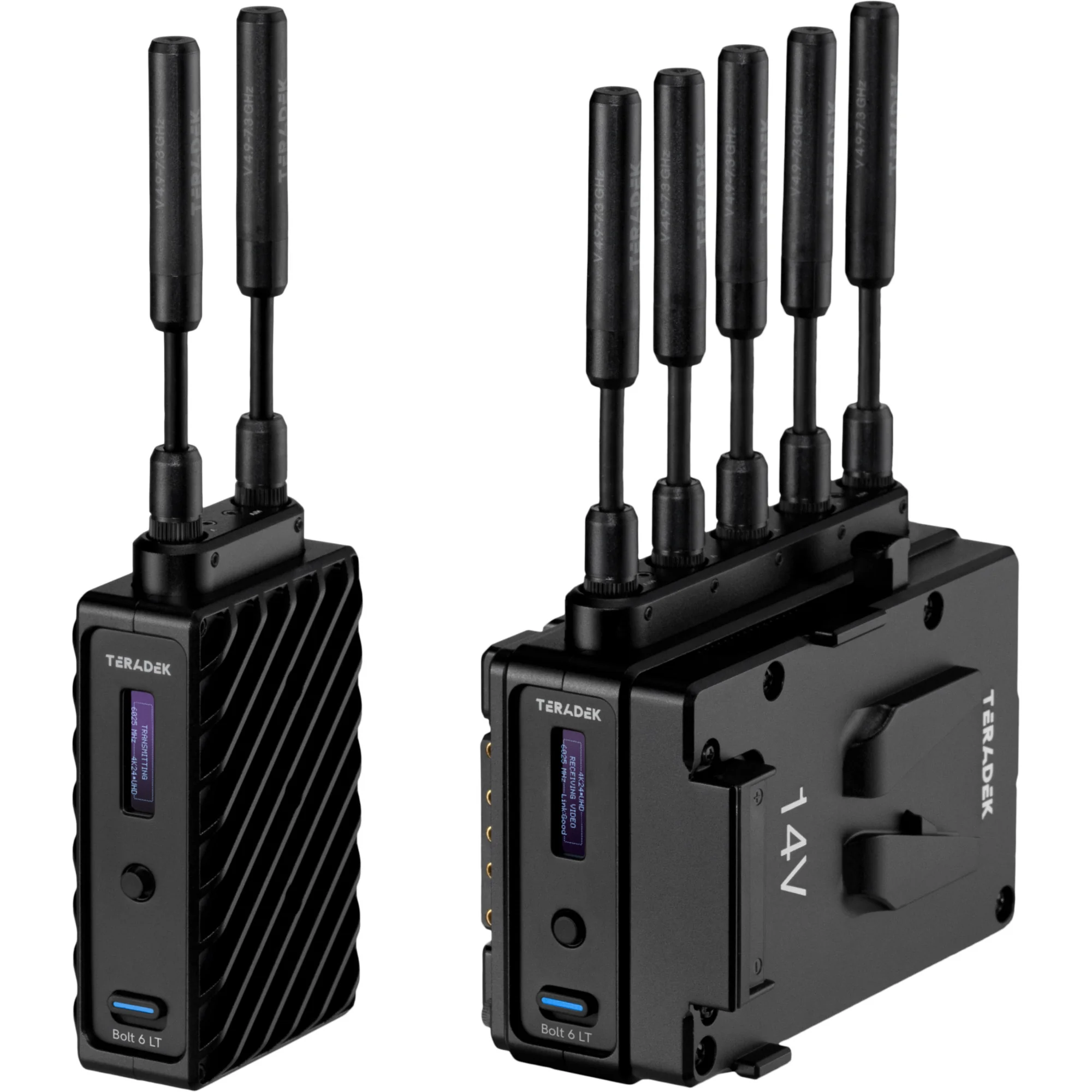

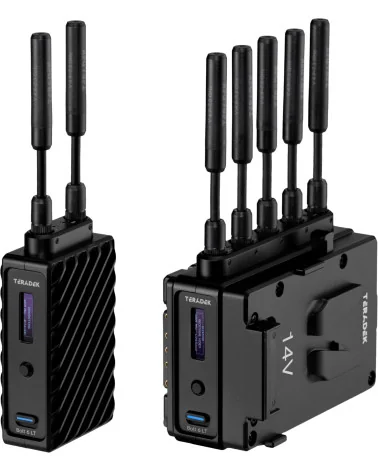

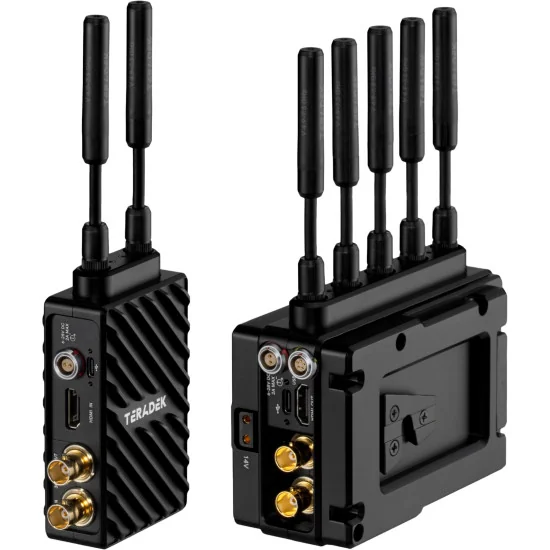

Teradek Bolt 6 LT 1500 TX/RX Deluxe Set V-Mount Système vidéo sans fil

Teradek Bolt 6 LT 1500 TX/RX Deluxe Set V-Mount Système vidéo sans fil

Name: Teradek Bolt 6 LT 1500 TX/RX Deluxe Set V-Mount Système vidéo sans fil
Brand: Teradek
SKU: TE-10-2270-V
Price: 7590.00 EUR
Availability: InStock

MPN: TE-10-2270-V

Prix : 7 590,00 €

Ventes à l'échelle de l'UE, facturation pour livraisons intracommunautaires exonérée de TVA.

In stock (Shipping 3-7 working days.)

Le Teradek Bolt 6 LT 1500 TX/RX Deluxe Set V-Mount assure une transmission sans délai sur la bande 6 GHz (et 5 GHz) dans les environnements RF chargés. Signal 10 bits 4:2:2 HDR non compressé jusqu’au 4K30 via HDMI 2.0 ou 1080p60 via 3G-SDI, sécurisé par AES-256 et RSA-1024. La portée en champ libre atteint 1500 ft / 457 m, avec Rec.2020. Le 6 GHz est autorisé aux États-Unis, dans l’UE, au Canada, au Japon et en Australie/Nouvelle-Zélande, avec moins de congestion.

Les E/S TX/RX couvrent HDMI + 3G-SDI, audio 2 canaux 48 kHz, timecode / start-stop. L’agilité RF offre 13 canaux (40 MHz) ou 25 canaux (20 MHz) avec DFS. Appairage, canaux, analyse du spectre et LUT dans l’application Bolt via Bluetooth. Avec <1 ms de latence et un signal non compressé, la MAP à distance et la commutation live restent nettes, y compris en aréna.

Alimentation et montage : RX avec plaque V-Mount; les deux unités acceptent le LEMO 2 broches 10–28 VCC; 9 W (TX) / 11 W (RX). Châssis compacts - 103×60×33 mm / 206 g (TX) et 122×94×27 mm / 292 g (RX); pas de vis 1/4-20et 3/8-16. Le Deluxe Set ajoute une Array Antenna, des adaptateurs pied/griffe, un support Wooden Camera, un cordon D-Tap, des câbles BNC/HDMI, un adaptateur secteur 18 W et une valise robuste.

Souplesse d’écosystème : compatibilité croisée avec Bolt 4K en 5 GHz et diffusion vers jusqu’à six récepteurs par émetteur. Des outils tels que l’SDI Eye Pattern et un mode longue portée renforcent la stabilité et le contrôle d’intégrité des câbles. Pour la télévision, l’événementiel et le plateau, ce Bolt 6 LT 1500 V-Mount couvre les requêtes vidéo sans fil 6 GHz, 1500 ft / 457 m zero-delay, TX/RX V-Mount 4K30 HDMI/3G-SDI.

Expédition vers l'UE

Livraison dans toute l’UE pour 20 €, gratuite dès 1 000 €.

Boutique B2B

Boutique B2B réservée aux professionnels, prix HT.

Achats en toute sécurité

Distribution et garantie officielles de l'UE.

Paiement sécurisé

Paiements en ligne sécurisés via Stripe.

Devis individuel

Demande de devis via formulaire ou e-mail: avgear@avgear.shop

Technical Specs

Bolt 6 LT 1500 RX V-Mount

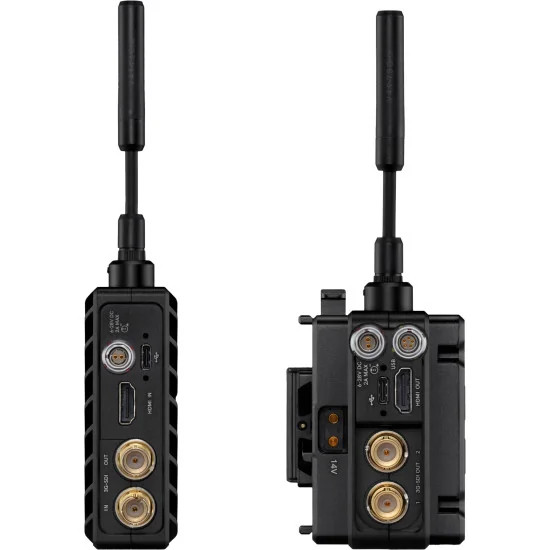

Video Outputs: 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1) 1 x HDMI 1.4b Type-A receptacle
Sdi Ancillary Data Support: Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.
Color Sampling: SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit
Output Video Scaling: No manual settings, but all signals above 4K30 for HDMI and 1080p60 for SDI are scaled down to 1080p for corresponding output
Supported Resolutions: 4Kp23.98/24/25/29.97/30 (HDMI only) 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p59.94 576p50 480i(NTSC)/576i(PAL)
Video Compression: Visually Lossless
Test Pattern Generator Support: Yes
Spectrum Analyzer: Yes
Color Correction: 17x17x17 3D LUT (supports 10-bit color)
Audio Compression: 48kHz 24-bit PCM
Dimensions: 122mm x 94mm x 27mm
Weight: 292g (10.3oz)
Construction: Milled Aluminum(Chassis) and regulation-compliant PCB

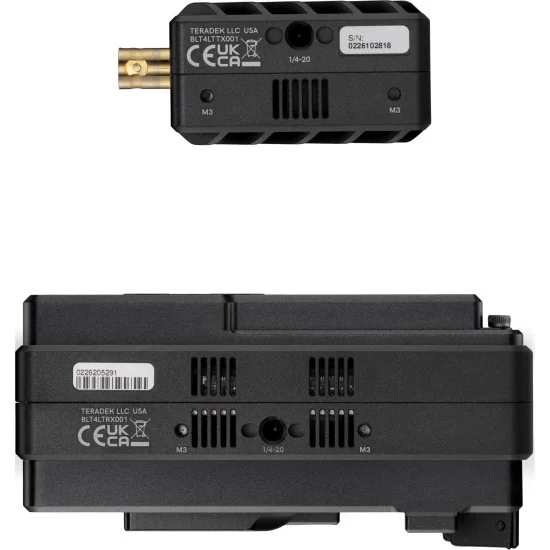

Mountability: Multiple mounting options with 1/4"x20 and 3/8"x16 holes
Configuration Interfaces: OSD with Menu, Joystick Navigation
Switches: On/Off Switch
Mobile App: Bolt App
Desktop App: Bolt Manager application for OSX & Windows
Usb Interface Functionality: Upgrade via Micro-USB
Bluetooth: 2.4 GHz

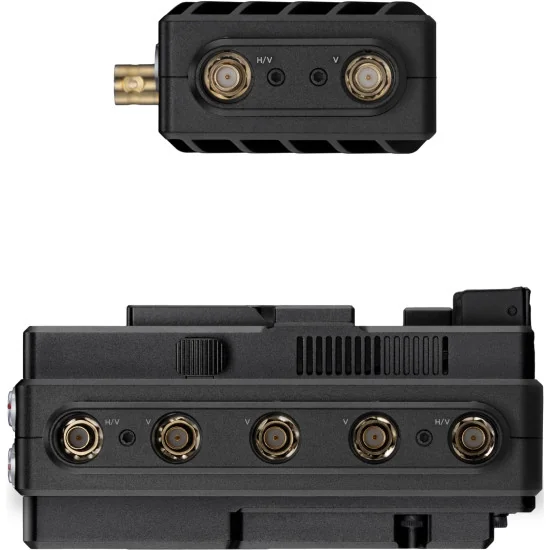

Antennas: 5 External 2 dBi antennas (included)
Wireless: Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz DFS Frequencies: 5.270 ~ 5.670 GHz
Rf Channel Selection: Auto, Manual
Encryption: AES-256, RSA-1024 key exchange
Rf Power: 21 dbm EIRP
Range: Up to 1500 ft, line of sight
Unicast Multicast: Can connect one Transmitter to up to 6 Receivers
Noise Rejection: Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location
Interoperability Compatibility: Can receive wireless video from all ranges of Bolt 4K XT and Bolt 4K LT transmitters (limited by shortest range device)
Power Input: 2-Pin Circular locking Connector 6-28 VDC
Battery: V mount battery plate
Nominal Power Consumption: 11 Watts
Operating Temperature: 0-40℃
Audio Output: Embedded SDI/HDMI Audio Output (2 Channel)

Bolt 6 LT 1500 TX
Video Inputs: 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1) 1 x HDMI 1.4b Type-A receptacle
Video Outputs: 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1)
Sdi Ancillary Data Support: Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.
Color Sampling: SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit
Delay Tx To Rx: <0.001sec
Input Cross Conversion: Yes, HDMI to SDI (4Kp23.98-30 HDMI input is scaled and looped out as 1080p23.98-30 on SDI loopout)
Supported Resolutions: 4Kp23.98/24/25/29.97/30 (HDMI only) 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p59.94 576p50 480i(NTSC)/576i(PAL)
Video Compression: Visually Lossless
Color Correction: None
Audio Compression: 48kHz 24-bit PCM
Dimensions: 60mm x 103mm x 33mm
Weight: 206g (7.3oz)
Construction: Milled Aluminum(Chassis) and regulation-compliant PCB
Mountability: Multiple mounting options with 1/4"x20 and M3 holes
Configuration Interfaces: OSD with Menu, Joystick Navigation
Switches: On/Off Switch
Mobile App: Bolt App
Desktop App: Bolt Manager application for OSX & Windows
Usb Interface Functionality: Upgrade via Micro-USB
Bluetooth: 2.4 GHz
Antennas: 2 External 2dBi antennas (included)
Wireless: Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz DFS Frequencies: 5.270 ~ 5.670 GHz
Rf Channel Selection: Auto, Manual
Encryption: AES-256, RSA-1024 key exchange
Rf Power: 23 dbm EIRP
Range: Up to 1500 ft, line of sight
Unicast Multicast: Can connect one Transmitter to up to 6 Receivers
Noise Rejection: Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location
Interoperability Compatibility: Can transmit wireless video to all ranges of Bolt 4K XT and Bolt 4K LT receivers (limited by shortest range device)
Power Input: 2-Pin Circular locking Connector 6-28 VDC
Battery: None, optional Sony/Canon dual battery plate
Nominal Power Consumption: 9 Watts
Operating Temperature: 0-40℃
Audio Input: Embedded SDI/HDMI Audio Input (2 Channel)

In the Box
1 x Bolt 6 LT 1500 TX
1 x Bolt 6 LT 1500 RX V-Mount
7 x Teradek 6G V Antenna (2dBi 4.9-7.3Ghz RP-SMA)
3 x Teradek 6G Flexible H Antenna "Mushroom" (2dBi 4.9-7.3Ghz RP-SMA)
1 x Antenna Array
1 x Lightstand Adapter 1/4-20in
1 x Hot Shoe Adaptor
1 x 2pin Conn. to PowerTap - 18in/46cm Cable
1 x 2pin Conn. to 2pin Conn. (Alexa) 18in/46cm Cable
5 x RP-SMA Female to RP-SMA Female 4in/10cm Cable
2 x SDI - BNC to BNC Cable, 10in
1 x PSU 2pin Conn. to 18W AC Adapter (Int) - 6ft Cable
1 x Wooden Camera - Teradek Offset Mount for Bolt 4K LT TX
1 x Teradek Case XL - Bolt 6 LT TX/4RX and Antenna Array
3 x Antenna 2dBi Rigid V 4.9-7.3Ghz RP-SMA
