Teradek Bolt 6 LT MAX TX/RX Deluxe Set V-Mount Système vidéo sans fil

Teradek Bolt 6 LT MAX TX/RX Deluxe Set V-Mount Système vidéo sans fil

Name: Teradek Bolt 6 LT MAX TX/RX Deluxe Set V-Mount Système vidéo sans fil
Brand: Teradek
SKU: TE-10-2280-V
Price: 12999.00 EUR
Availability: InStock

MPN: TE-10-2280-V

Prix : 12 999,00 €

Ventes à l'échelle de l'UE, facturation pour livraisons intracommunautaires exonérée de TVA.

In stock (Shipping 3-7 working days.)

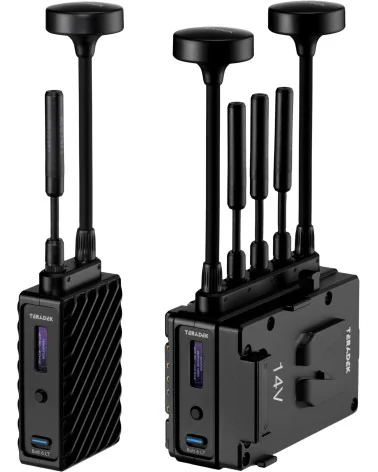

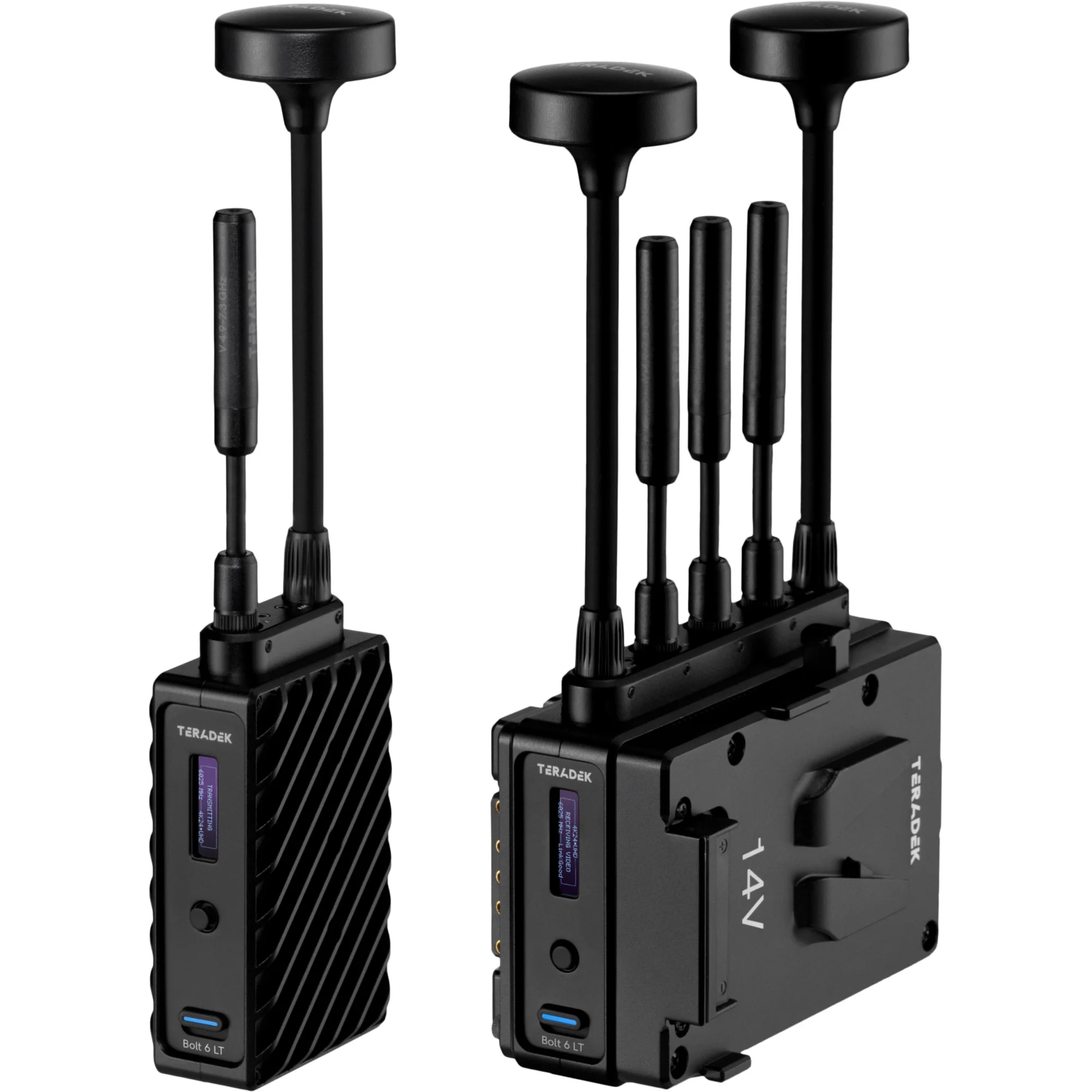

Le Teradek Bolt 6 LT MAX TX/RX Deluxe Set assure une transmission vidéo zéro-délai. Exploitant les bandes 6 GHz et 5 GHz, il transporte un signal 10-bits 4:2:2 HDR 4K30 ou 1080p60 sur 5000 ft (≈1 524 m) avec moins de 0,001 s de latence. Le tandem LT MAX – émetteur compact et récepteur V-Mount – repose sur le silicium Teradek pour des liaisons stables en plateau, en régie mobile ou lors d’événements.

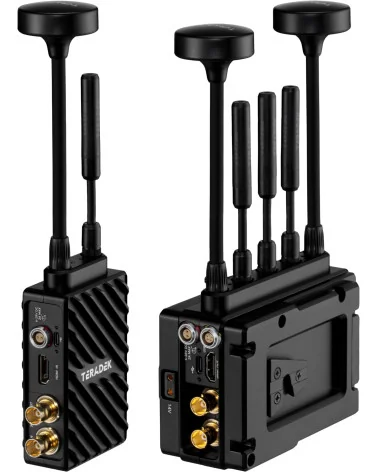

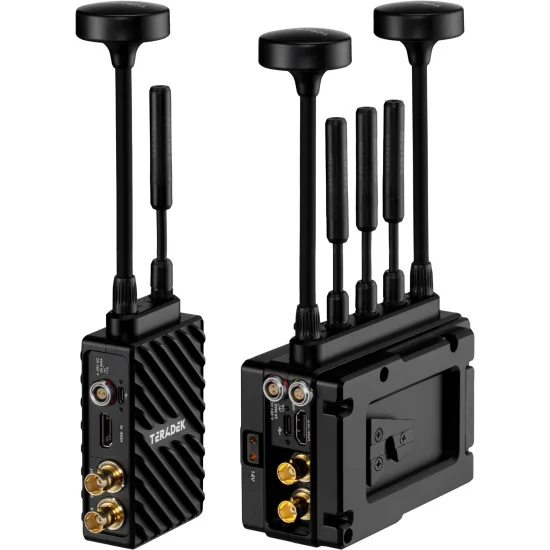

Chaque boîtier propose des ports 3G-SDI & HDMI. Le TX convertit le HDMI 4K en SDI 1080p ; le RX adapte la sortie aux moniteurs. L’audio PCM 48 kHz, le timecode, les métadonnées et le déclenchement caméra suivent intactes. Compatibilité totale avec la série Bolt 4K, protégeant les investissements. Les flux sont chiffrés par AES-256/RSA-1024. Analyseur de spectre et 12 nouveaux canaux UNII-5 évitent la saturation Wi-Fi, avec choix Auto ou Manuel de la fréquence.

Châssis usinés pour un usage intensif. Résolutions : 4K p23,98-30 (HDMI), 1080p/i/psf 23,98-60, 720p60, PAL/NTSC. TX : deux antennes 2 dBi (23 dBm) ; RX : cinq (21 dBm) + réseau. Température 0–40 °C. TX : 60 × 103 × 33 mm, 206 g. RX : 122 × 94 × 27 mm, 292 g. Alimentation 6–28 V via connecteur 2-broches (TX 9 W, RX 11 W) ou plaque V-Mount. Un TX pilote six RX, ou nombre illimité en Broadcast. Fonctions pro : Long Range Mode, appli mobile Bolt App, Bolt Manager, mire interne, spectre, LUT 3D 17×17×17.

Le Deluxe Set inclut antennes V 6 GHz, trois « mushroom », un réseau directionnel, câbles SDI/HDMI/alim, support Wooden Camera, adaptateur pied-luminaire et mallette XL. Idéal pour drones, tournages multi-caméras et streaming, Bolt 6 LT MAX garantit un flux vidéo sûr et propre. Multicast jusqu’à 6 RX

Expédition vers l'UE

Livraison dans toute l’UE pour 20 €, gratuite dès 1 000 €.

Boutique B2B

Boutique B2B réservée aux professionnels, prix HT.

Achats en toute sécurité

Distribution et garantie officielles de l'UE.

Paiement sécurisé

Paiements en ligne sécurisés via Stripe.

Devis individuel

Demande de devis via formulaire ou e-mail: avgear@avgear.shop

Technical Specs

Bolt 6 LT MAX RX V-Mount
Video Outputs: 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1) 1 x HDMI 1.4b Type-A receptacle
Sdi Ancillary Data Support: Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.
Color Sampling: SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit
Output Video Scaling: No manual settings, but all signals above 4K30 for HDMI and 1080p60 for SDI are scaled down to 1080p for corresponding output
Supported Resolutions: 4Kp23.98/24/25/29.97/30 (HDMI only) 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p59.94 576p50 480i(NTSC)/576i(PAL)
Video Compression: Visually Lossless
Test Pattern Generator Support: Yes
Spectrum Analyzer: Yes
Color Correction: 17x17x17 3D LUT (supports 10-bit color)
Audio Compression: 48kHz 24-bit PCM
Dimensions: 122mm x 94mm x 27mm
Weight: 292g (10.3oz)
Construction: Milled Aluminum(Chassis) and regulation-compliant PCB

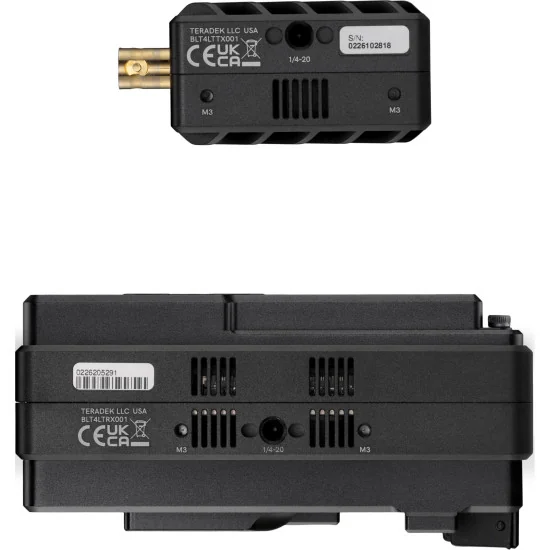

Mountability: Multiple mounting options with 1/4"x20 and 3/8"x16 holes
Configuration Interfaces: OSD with Menu, Joystick Navigation
Switches: On/Off Switch
Mobile App: Bolt App
Desktop App: Bolt Manager application for OSX & Windows
Usb Interface Functionality: Upgrade via Micro-USB
Bluetooth: 2.4 GHz

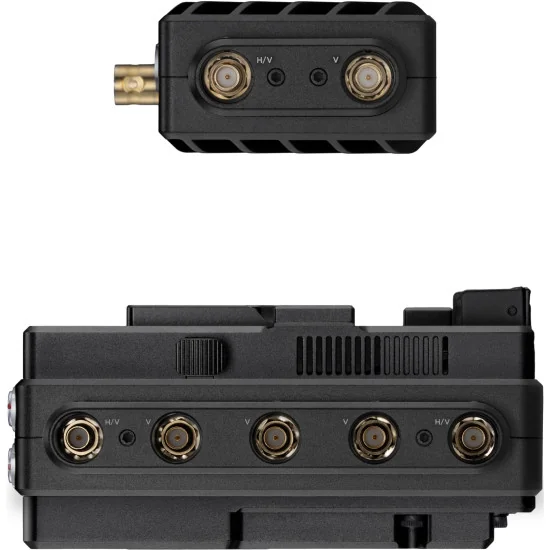

Antennas: 5 External 2 dBi antennas (included)
Wireless: Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz DFS Frequencies: 5.270 ~ 5.670 GHz
Rf Channel Selection: Auto, Manual
Encryption: AES-256, RSA-1024 key exchange
Rf Power: 21 dbm EIRP
Range: Up to 5000 ft, line of sight
Unicast Multicast: Can connect one Transmitter to up to 6 Receivers
Noise Rejection: Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location
Interoperability Compatibility: Can receive wireless video from all ranges of Bolt 4K XT and Bolt 4K LT transmitters (limited by shortest range device)
Power Input: 2-Pin Circular locking Connector 6-28 VDC
Battery: V mount battery plate
Nominal Power Consumption: 11 Watts
Operating Temperature: 0-40℃
Audio Output: Embedded SDI/HDMI Audio Output (2 Channel)

Bolt 6 LT MAX TX
Video Inputs: 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1) 1 x HDMI 1.4b Type-A receptacle
Video Outputs: 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1)
Sdi Ancillary Data Support: Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.
Color Sampling: SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit
Delay Tx To Rx: <0.001sec
Input Cross Conversion: Yes, HDMI to SDI (4Kp23.98-30 HDMI input is scaled and looped out as 1080p23.98-30 on SDI loopout)
Supported Resolutions: 4Kp23.98/24/25/29.97/30 (HDMI only) 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p59.94 576p50 480i(NTSC)/576i(PAL)
Video Compression: Visually Lossless
Color Correction: None
Audio Compression: 48kHz 24-bit PCM
Dimensions: 60mm x 103mm x 33mm
Weight: 206g (7.3oz)
Construction: Milled Aluminum(Chassis) and regulation-compliant PCB
Mountability: Multiple mounting options with 1/4"x20 and M3 holes
Configuration Interfaces: OSD with Menu, Joystick Navigation
Switches: On/Off Switch
Mobile App: Bolt App
Desktop App: Bolt Manager application for OSX & Windows
Usb Interface Functionality: Upgrade via Micro-USB
Bluetooth: 2.4 GHz
Antennas: 2 External 2dBi antennas (included)
Wireless: Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz DFS Frequencies: 5.270 ~ 5.670 GHz
Rf Channel Selection: Auto, Manual
Encryption: AES-256, RSA-1024 key exchange
Rf Power: 23 dbm EIRP
Range: Up to 5000 ft, line of sight
Unicast Multicast: Can connect one Transmitter to up to 6 Receivers
Noise Rejection: Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location
Interoperability Compatibility: Can transmit wireless video to all ranges of Bolt 4K XT and Bolt 4K LT receivers (limited by shortest range device)
Power Input: 2-Pin Circular locking Connector 6-28 VDC
Battery: None, optional Sony/Canon dual battery plate
Nominal Power Consumption: 9 Watts
Operating Temperature: 0-40℃
Audio Input: Embedded SDI/HDMI Audio Input (2 Channel)

In the Box
1x Bolt 6 LT MAX TX
1x Bolt 6 LT MAX RX V-Mount
1x Antenna Array
2x Bolt 4K LT RX Battery Cover
1x Light Stand Adapter ¼-20 inch
1x Hot shoe adapter
2x Flat head Phillips screws
1x (Bit 118) 2-pin connector to PowerTap - 18in/46cm cable
1x (Bit 718) 2-pin plug to 2-pin plug (Alexa) - 18 inch/46 cm cable
5x RP-SMA socket to RP-SMA socket - 4in/10cm cable
2x SDI - BNC to BNC cable, 10 inches
1x Power supply 2-pin to 18W AC adapter - 1.8m cable
1x Wooden Camera - Teradek Offset Mount for Bolt 4K LT TX
1x Teradek case XL - Bolt 6 LT TX/4RX and antenna array
1x USB type A plug to USB type B plug - 0.9m cable
3x antenna 2dBi rigid V 4.9-7.3Ghz RP-SMA
