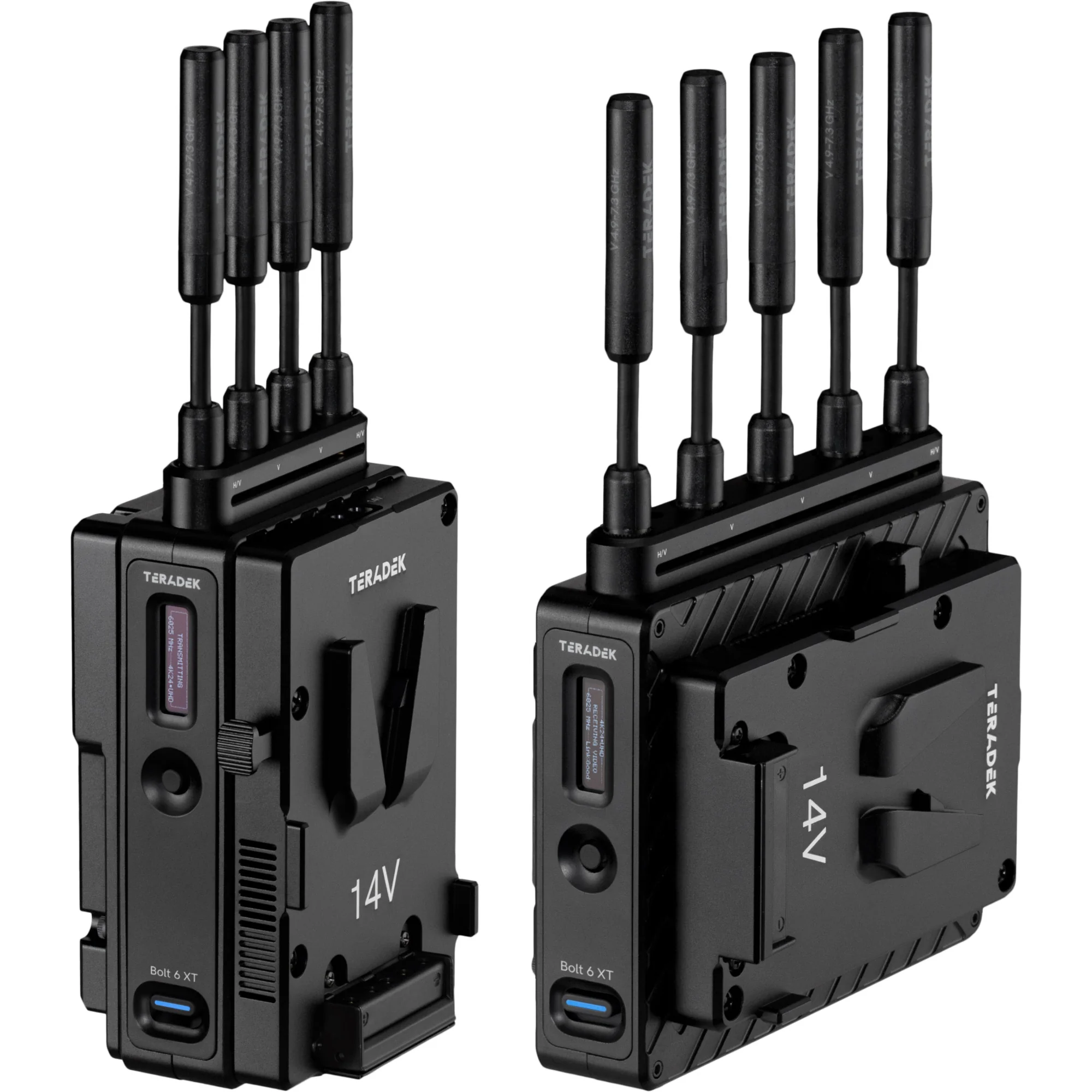

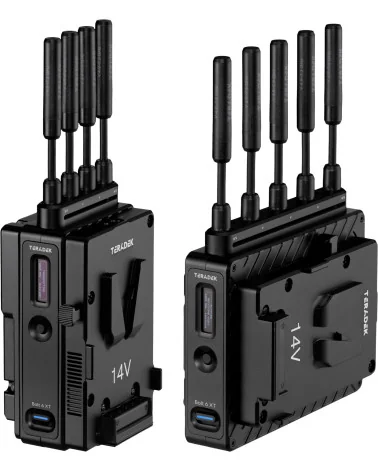

Teradek Bolt 6 XT 750 TX/RX Deluxe Set V-Mount Système vidéo sans fil

Teradek Bolt 6 XT 750 TX/RX Deluxe Set V-Mount Système vidéo sans fil

Name: Teradek Bolt 6 XT 750 TX/RX Deluxe Set V-Mount Système vidéo sans fil
Brand: Teradek
SKU: TE-10-2300-V
Price: 6790.00 EUR
Availability: InStock

MPN: TE-10-2300-V

Prix : 6 790,00 €

Ventes à l'échelle de l'UE, facturation pour livraisons intracommunautaires exonérée de TVA.

In stock (Shipping 3-7 working days.)

Teradek Bolt 6 XT 750 TX/RX Deluxe Set V-Mount est une liaison vidéo sans latence opérant en 6 GHz et 5 GHz pour limiter la saturation RF. Le modèle 750 transporte des signaux 4K jusqu’à 750 ft (228,6 m) en champ libre, avec compatibilité croisée Bolt 6 en 6 GHz et Bolt 4K en 5 GHz. La latence sous 1 ms assure la synchro caméra-moniteur en direct. Le kit Deluxe inclut l’alimentation V-Mount et un étui rigide.

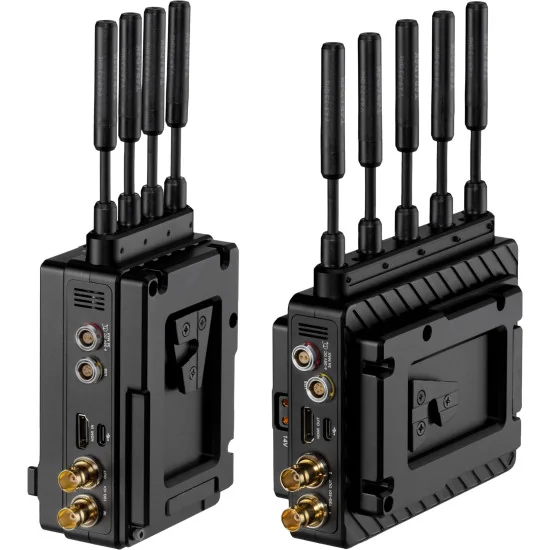

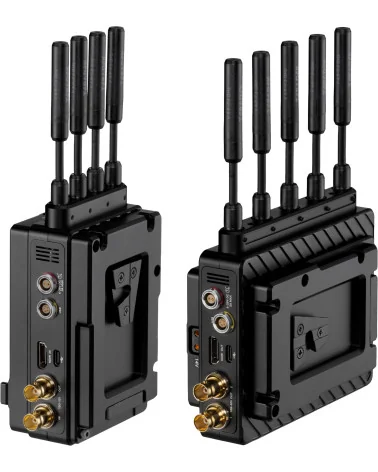

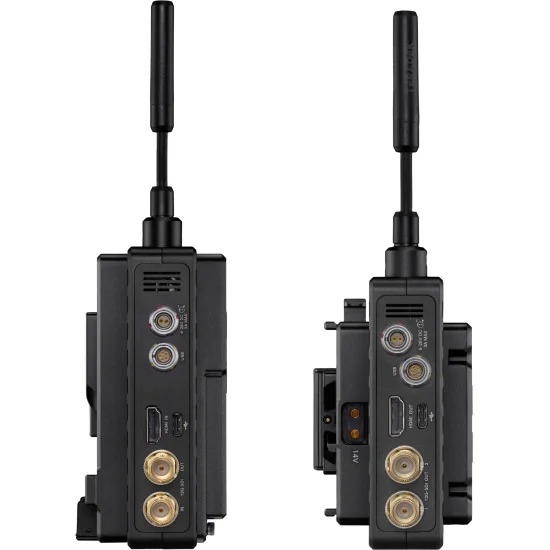

La connectique réunit 12G-SDI (entrée + loop sur TX, sortie sur RX) et HDMI 2.0 (entrée TX, sortie RX) avec transport non compressé et 10-bit 4:2:2 jusqu’au DCI/UHD 4K60. Flux auxiliaires : timecode, start/stop, HDR Rec. 2020 et SDI Eye Pattern pour valider les câbles. L’audio embarqué transmet LPCM 24-bits/48 kHz sur 2 canaux.

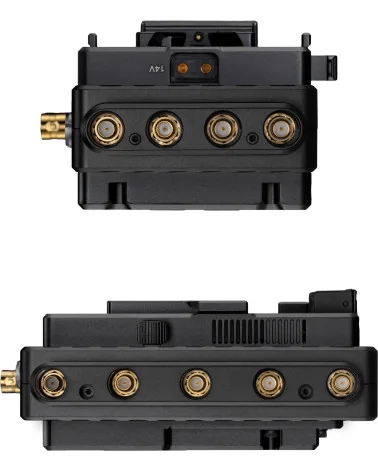

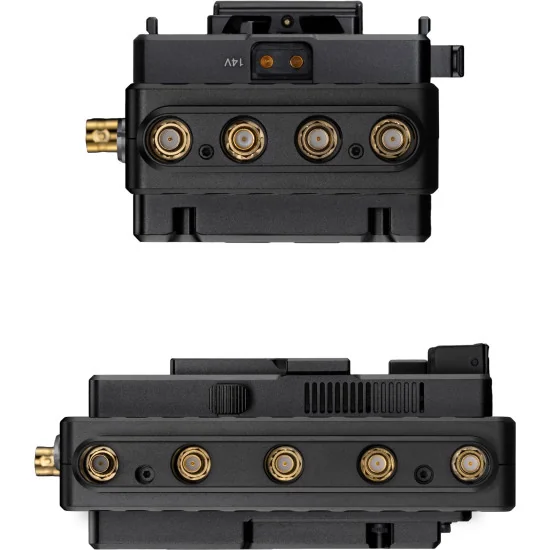

Les performances RF s’appuient sur des canaux 20/40 MHz et l’analyseur de spectre de l’app (Bluetooth) RF pour choix de canal et configuration. La sécurité utilise le chiffrement AES-256 avec appairage RSA-1024. Un émetteur alimente jusqu’à six récepteurs. Le kit 750 intègre des antennes en V et des connecteurs RP-SMA.

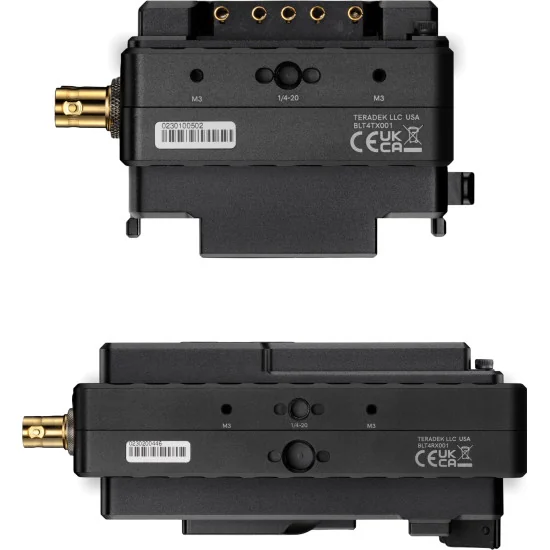

L’énergie et le montage répondent aux exigences broadcast/cinéma. Le récepteur possède une plaque V-Mount pour un montage sur moniteur; TX et RX acceptent le LEMO 2 broches via D-Tap. Consommation : 20 W (TX) et 18 W (RX). Boîtiers compacts (TX 132×91×27 mm / 344 g; RX 138×112×27 mm / 430 g) avec fixations 1/4-20/3/8-16.

Expédition vers l'UE

Livraison dans toute l’UE pour 20 €, gratuite dès 1 000 €.

Boutique B2B

Boutique B2B réservée aux professionnels, prix HT.

Achats en toute sécurité

Distribution et garantie officielles de l'UE.

Paiement sécurisé

Paiements en ligne sécurisés via Stripe.

Devis individuel

Demande de devis via formulaire ou e-mail: avgear@avgear.shop

Technical Specs

Bolt 6 XT 750 12G-SDI/HDMI Wireless RX V-Mount
Video Outputs: 12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1) 1 x HDMI 2.0 Type-A receptacle
Sdi Ancillary Data Support: Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers.
Color Sampling: SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit
Delay Tx To Rx: <0.001sec
Output Video Scaling: Yes, Framerate and Resolution Scaling
Supported Resolutions: 4Kp23.98/24/25/29.97/30/50/59.94/60 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60
Video Compression: Visually Lossless
Color Correction: 17x17x17 3D LUT (supports 10-bit color)
Audio Compression: 48kHz 24-bit PCM
Dimensions: 112 x 139 x 27 mm
Weight: 430g (15.2 Oz)
Construction: Milled Aluminum(Chassis) and regulation-compliant PCB
Mountability: Multiple mounting options with 1/4"x20 and 3/8"x16 holes
Configuration Interfaces: OSD with Menu, Joystick Navigation
Switches: On/Off Switch
Usb Interface Functionality: Upgrade via USB-C 5pin Locking Connector CCU
Bluetooth: 2.4 GHz
Antennas: 5 External 2 dBi antennas (included)
Wireless: Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz DFS Frequencies: 5.270 ~ 5.670 GHz
Rf Channel Selection: Auto, Manual
Encryption: AES-256, RSA-1024 key exchange
Rf Power: 21 dbm EIRP
Range: Up to 750 ft, line of sight
Unicast Multicast: Can connect one Transmitter to up to 6 Receivers
Noise Rejection: Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location
Power Input: 2-Pin Circular locking Connector 6-28 VDC
Battery: V-Mount battery plate
Battery Runtime: 18 Watts
Operating Temperature: 0-40℃
Audio Output: Embedded SDI/HDMI Audio Output (2 Channel)

Bolt 6 XT 750 12G-SDI/HDMI Wireless TX V-Mount
Video Inputs: 12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1) 1 x HDMI 2.0 Type-A receptacle
Video Outputs: 12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1)
Sdi Ancillary Data Support: Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers.
Color Sampling: SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit
Delay Tx To Rx: <0.001sec
Input Cross Conversion: Yes, HDMI to SDI
Supported Resolutions: 4Kp23.98/24/25/29.97/30/50/59.94/60 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60
Video Compression: Visually Lossless
Color Correction: None
Audio Compression: 48kHz 24-bit PCM
Dimensions: 132 x 91 x 27 mm
Weight: 344g (12.1 Oz)
Construction: Milled Aluminum(Chassis) and regulation-compliant PCB
Mountability: Multiple mounting options with 1/4"x20 and M3 holes
Configuration Interfaces: OSD with Menu, Joystick Navigation
Switches: On/Off Switch
Usb Interface Functionality: Upgrade via USB-C 5pin Locking Connector CCU
Bluetooth: 2.4 GHz
Antennas: 4 External 2dBi antennas (included)
Wireless: Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz DFS Frequencies: 5.270 ~ 5.670 GHz
Rf Channel Selection: Auto, Manual
Encryption: AES-256, RSA-1024 key exchange
Rf Power: 23 dbm EIRP
Range: Up to 750 ft, line of sight
Unicast Multicast: Can connect one Transmitter to up to 6 Receivers
Noise Rejection: Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location
Power Input: 2-Pin Circular locking Connector 6-28 VDC
Battery: V-Mount battery plate
Battery Runtime: 20 Watts
Operating Temperature: 0-40℃
Audio Input: Embedded SDI/HDMI Audio Input (2 Channel)

In the Box
1x Bolt 6 XT 750 TX V-Mount
1x Bolt 6 XT 750 RX V-Mount
2x Bolt 6 XT front battery cover plate
1x Bolt 4K TX mounting bracket
1x light stand adapter 3/8 inch
1x hot shoe adapter
4x flat head Phillips screws
2x hexagon socket screws A S, M3 x 16 mm
1x hexagon key 2.5 mm size 3-5/8" length
2x (bit 118) 2-pin connector to PowerTap - 18 in/46 cm cable
1x (bit 718) 2-pin plug to 2-pin plug (Alexa) 18in/46cm cable
2x SDI 12G BNC to BNC 18 inch/46 cm cable
1x Teradek large case - Bolt XT TX/2RX
1x power supply 2-pin to 30W AC adapter - 1.8m cable
9x antenna 2dBi rigid V 4.9-7.3Ghz RP-SMA
1x wooden camera - universal ultra arm monitor mount (combo 1/4-20 & 3/8-16, 5")
1x USB 2.0 Type A plug to USB Type C plug - 1 m cable
2x Bolt 6 XT rear battery cover plate
