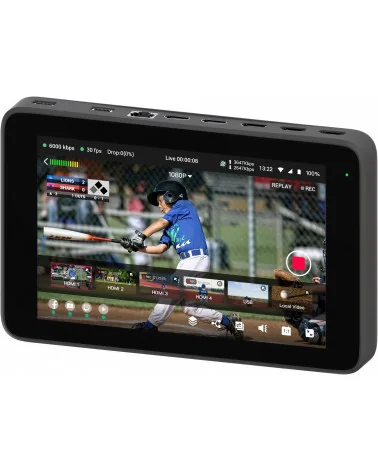

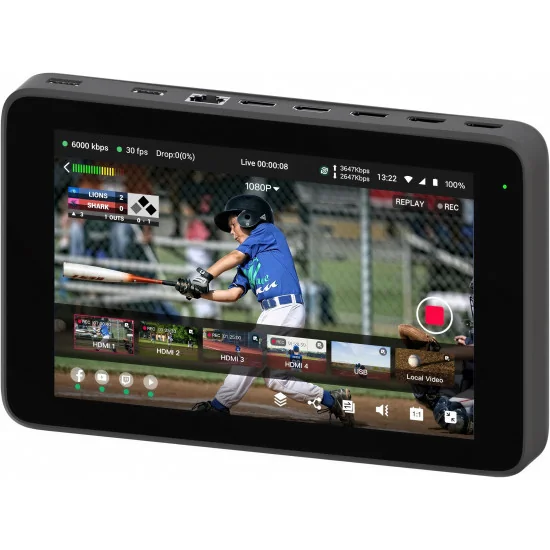

YoloBox ULTRA - The Ultimate YoloBox Experience
Everything in One: Stream Beyond Limits

Key features:

4 HDMI Inputs
Connect More, Experience More, Amplify Connectivity, Minimize Limitations
ISO Recording
Preserve Every, Precious Moment
Stronger CPU
Innovation taken to new depths & possibilities.
Cellular Bonding
Deliver rock-solid reliable videos
4K Streaming
Every Detail Comes Alive
NDI ® | HX3 & SRT
New ways to expand and evolve
Stronger CPU
Innovation taken to new depths & possibilities.
Bigger Battery
75.48Wh, stream up to 6 hours.
Bigger & Brighter
See Beyond, Shine Through

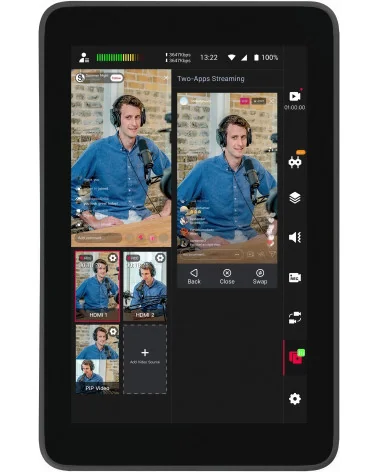

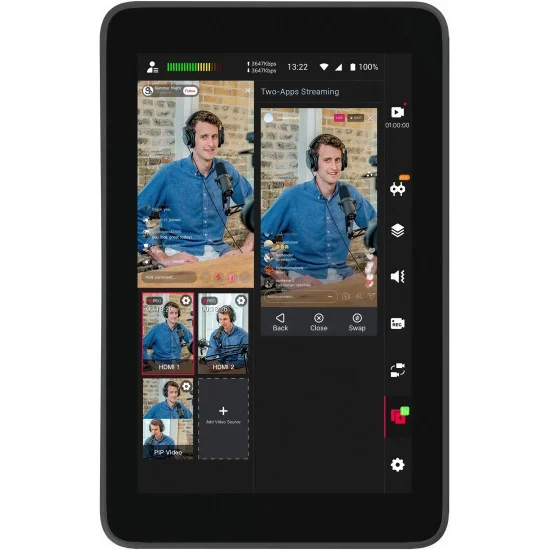

YoloBox & Instream In One, Angle it your way.
The combination of the YoloBox Pro and Instream becomes the YoloBox Ultra. Apart from the standard horizontal platforms, stream vertically to Instagram, TikTok without the necessity to purchase an Instream.

Mission-Critical Cellular Bonding. 3 SIM Data, 5 Connections.
Experience unparalleled global internet connectivity wherever you go with YoloLiv’s Cellular Bonding. It can bond* up to 5 network connections across 4G LTE (1x), Wi-Fi (1x), Ethernet (1x), and USB Modems (2x) – ensuring your stream never misses a beat event over the most challenging network conditions.

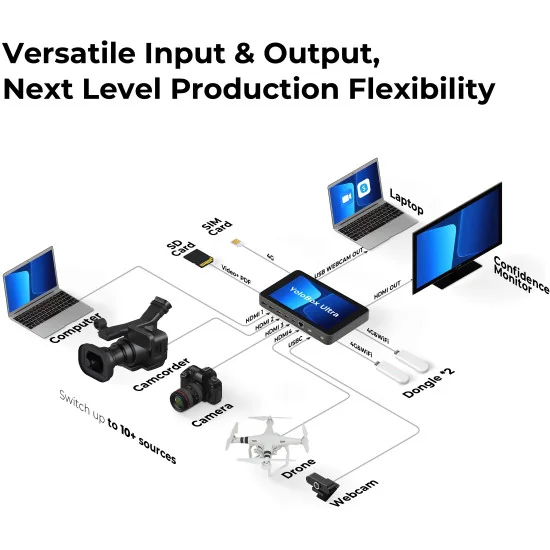

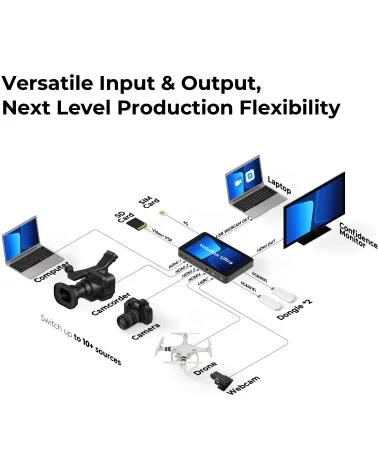

Versatile Input & Output, Next Level Production Flexibility
Add up to four HDMI inputs, three USB inputs, three simultaneous live IP sources (including SRT streams, RTMP streams and NDI® HX sources), or media assets (including video clips, PDFs, and images), and simultaneously output via Wi-Fi, 4G LTE or Ethernet to up to six destinations such as Facebook, YouTube, or Twitch using RTMP or SRT.

Auto Switching for Solo Creators
One-man band podcasting? Easy! Our Video Follows Audio (VFA) feature automatically switches your camera angles based on who's speaking. It’s ideal for solo podcasts, panel discussions, and live events. Easy to use with no extra devices needed, VFA provides a seamless, hands-free experience, allowing you to focus on your content without distractions.

Lower Bandwidth. Highest Quality.
YoloBox Ultra is equipped with High-Efficiency Video Coding (HEVC), also known as H.265. With HEVC, it achieves a remarkable reduction of over 50% in bandwidth requirements while preserving the highest video quality.

App/Web Control
Remote control your YoloBox for video switching, audio, graphics and scoreboard controls and more. You can even start and stop your live event remotely.
* Currently remote control only works with YoloBox Ultra.

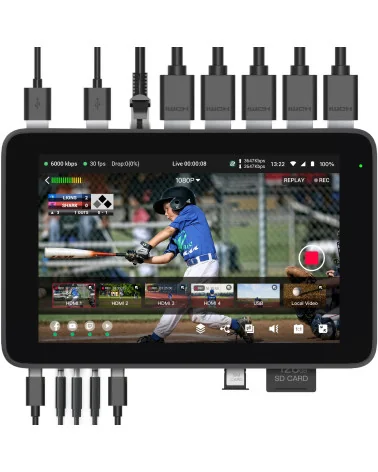

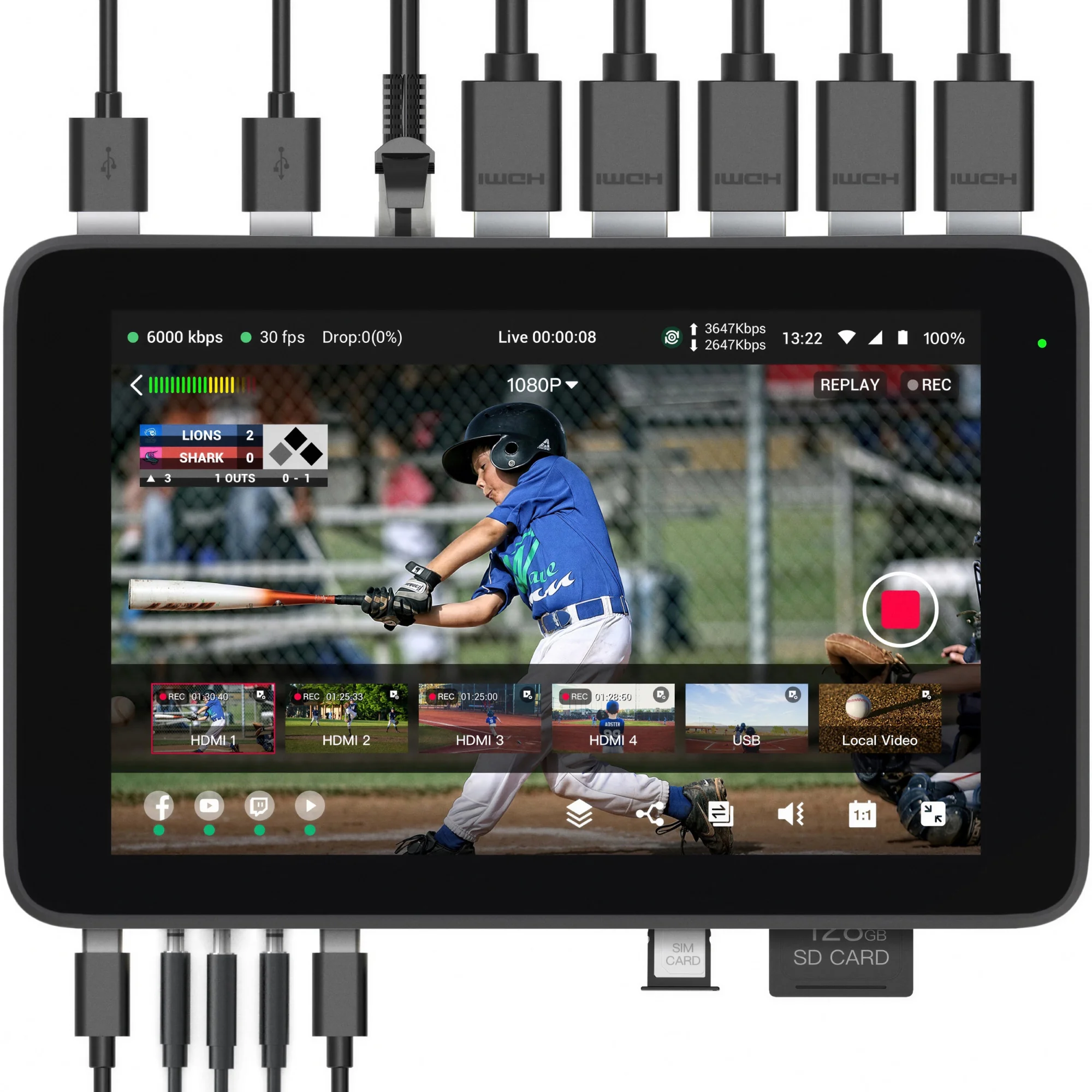

Ports
HDMI IN 1-4: Video input
HDMI OUT: Video out to monitor or computer for Zoom/Skype meetings
ETHERNET PORT: Connect to Internet by Ethernet cable
USB Type-A 3.0: Video input 1-2 ( Support: webcam; portable storage device ; wireless usb dongle.)
USB Type-A 3.0: Video input ( Support: webcam; portable storage device ; wireless usb dongle.)
USB Type-C: Only for charging
LINE IN(3.5mm): Stereo, connect to electric guitar or synthesizer
MIC IN(3.5mm): Mono, connect to microphone for recording
AUDIO OUT(3.5mm): Connect with monitor headphones
USB Type-C: A fully functional interface supports input
1/4'' Screw Hole: Mount Ultra with camera
Nano-SIM Card Holder: Insert SIM card to connect to Internet
SD Card Holder: Used for recording and loading graphics
Power Button: Turn on and turn off

Tech Specs
Input Power: DC5V/9V/, 12V/15V
Power Consumption: 45W
Power Supply: USB Type-C
USB Rated Output: USB-A:5V/1A
Battery Capacity: 6800mAh
Monitor Screen Size: 8inch LCD Resolution: 1200*1920; Brightness: 650nits; Contrast ratio(1500:1), Viewing Angle (full viewing Angle), NTSC 80%
Local Video Inputs: HDMI,USB-A
Video Over Ethernet: RTMP/RTMPS/SRT
Video Input Connectors: HDMI,USB-A,RJ-45,USB Type-C
Video Input Aspect Ratios: 16:9; 4:3; 1:1
Video Input Deinterlacing: No
Live Broadcast Video input Resolution: 480p/720p/1080p(up to 60fps)/4k 30fps
Video Encoded Format: H.264 H.265
Video processing Bitrate control: CQ, VBR, CBR
Hardware-Accelerated Video Encoding: Optional
Video Output Signal Types: FLV-RTMP,HDMI,UVC
Video Output Connectors: HDMI OUT, USB-C
Video Output Streaming protocols: RTMP, RTMPS, MJPEG, SRT
Live Broadcast Video Output Resolution: 480p/720p/1080p(up to 60fps)/4k 30fps
Analog Audio Input Connectors: Line In, Mic In, 3.5mm
Digital Audio Inputs: USB, HDMI, RTMP(From internet), Local video(From SD card)
Digital Audio Input Connectors: USB-A, HDMI, USB-C
Audio Input Mute: Yes
Audio Input Format: 32KHZ/44.1KHZ/48KHZ 16bit
Audio Encoded Format: (AAC)44.1K/48KHZ 2Ch 16bit
Analog Audio Output: 3.5mm headphone jack
Digital Audio Outputs: HDMI audio (Embedded), USB Audio (Embedded)
Record Formats: MP4
Wi-Fi: 2.4G/ 5G(Support WiFi6)

4G Network:
4G Network Countries & Frequency Band For
Users: [Variant for North America（US/Canada/Mexico)]
B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B41/B66/B71
Notes: Mexico B4 For Non-US/Canada/Mexico
Users: (EU: Variant for EMEA/India/Korea/Taiwan/South Asia/Latin/America/Australia/New Zealand)
Users: B1/B3/B7/(B8)
Please note that the certification of YoloBox Ultra is in line with the mainstream open 4G band requirements of operators in this country or region. For details, please refer to the approval report of this country or region.

YoloBox Ultra-TH
WCDMA Network: B1/B8
4G Network: B1/B3/B7/B8
USB Communication Standard: USB 2.0 and USB 3.0
Ethernet Data Rate: 10/100/1000M, half/full duplex with autodetect
SIM Card Size: Nano-SIM Card
SDCard format: FAT32(Under 128G), NTFS, EX-FAT
Operating Temperature: 0℃-40℃
Operating Humidity: 15%-85%, No Condensation
Dimensions & Weight: Height: 27.1 mm, Width: 140 mm, Length: 219 mm, Weight: ≈ 981 g
