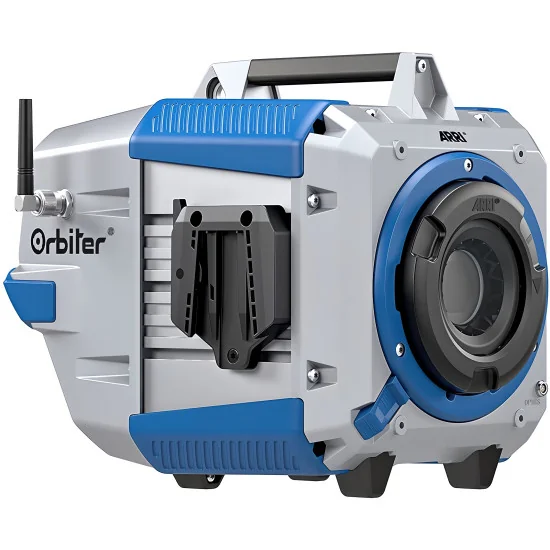

ARRI Orbiter (Blue/Silver) Projecteur LED Spot Light sans accessoires

ARRI Orbiter (Blue/Silver) Projecteur LED Spot Light sans accessoires

Name: ARRI Orbiter (Blue/Silver) Projecteur LED Spot Light sans accessoires
Brand: ARRI
SKU: L1.0033520
Price: 4090.00 EUR
Availability: InStock

MPN: L1.0033520

Prix : 4 090,00 €

Ventes à l'échelle de l'UE, facturation pour livraisons intracommunautaires exonérée de TVA.

Disponible chez le fournisseur (délai de livraison à confirmer)

ARRI Orbiter (Blue/Silver) est un projecteur LED directionnel à moteur RGBACL, basé sur ARRI Spectra six couleurs (rouge, vert, bleu, ambre, cyan, lime). Le blanc calibré couvre 2000–20000 K avec micro-ajustement ECC, gradation continue 100–0% et courbes au choix (linéaire/exponentielle/logarithmique/courbe S). Entre 3200 et 5600 K, la tolérance nominale est ±100 K et ±1/8 Vert/Magenta; en mode haute fidélité couleur, les valeurs typiques atteignent CRI >98, TLCI >95 et TM-30 >94, avec correction Vert/Magenta du plein minus-green au plein plus-green.

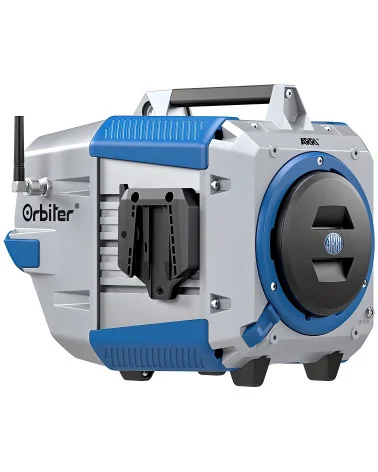

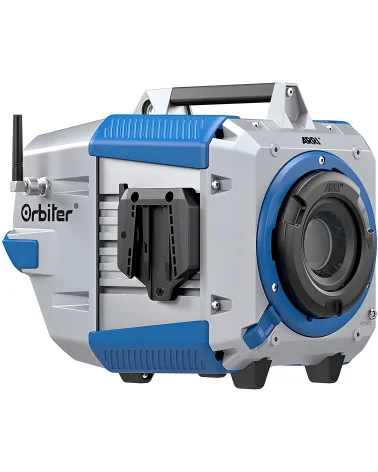

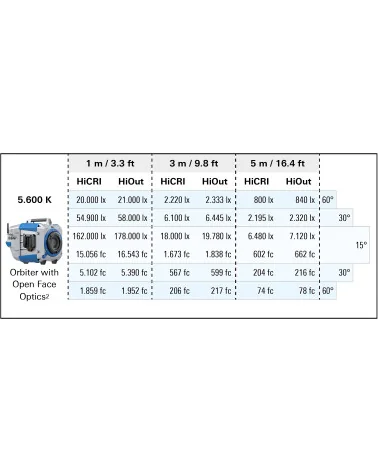

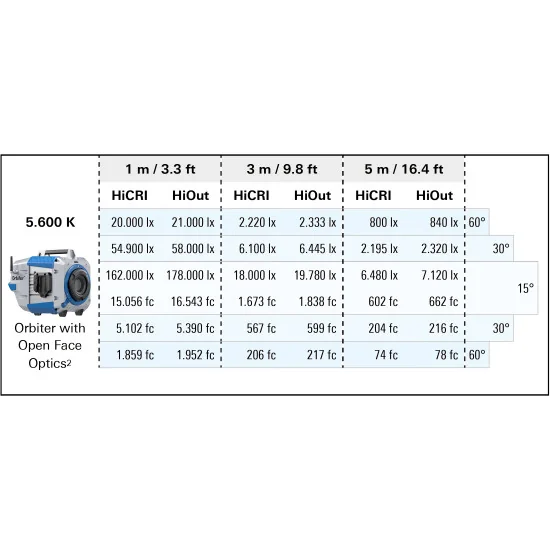

Cette version est le corps de luminaire uniquement : sans lyre, sans optique, sans panneau de contrôle et sans câbles. Elle s’intègre aux plateaux et parcs location qui standardisent accessoires et longueurs. La monture QLM reçoit open face, dômes, softboxes, fresnel et projection, afin de passer d’un faisceau dur à une clé diffuse ou à des découpes nettes. À 5600 K (HiOut) avec optiques open face, la photométrie de référence peut monter à 178 000 lx à 1 m en 15°, ou 21 000 lx à 1 m en 60° (valeurs dépendantes de l’optique).

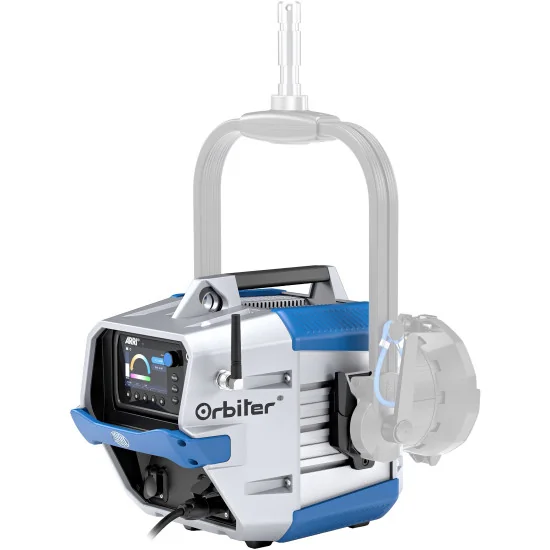

Alimentation : 400 W nominal / 500 W max, entrée universelle 100–240 V via powerCON TRUE1 TOP, et fonctionnement sur batterie 48–52 V par XLR 3 broches. Les modes incluent CCT, HSI, RGBACL, x/y, gélatines, source matching et capteur couleur. La commande couvre DMX512 (8/16-bit) avec RDM, CRMX LumenRadio, Art-Net, sACN et un portail web intégré. Un panneau de contrôle amovible se raccorde en PoE et peut s’utiliser en mode portatif via câbles de 5 m ou 15 m; la connectique du luminaire propose XLR 5 broches et EtherCON en entrée/boucle, USB-A/USB-C, carte SD et entrée sync.

Orbiter sert au fill daylight en virtual production, au top light en plateau multicaméra, aux reflets maîtrisés en packshot, et aux cues répétables en broadcast ou événementiel. Boîtier IP20 (ou IP24 avec protection pluie), plage -20 à +45 °C, durée de vie LED L70 50 000 h et dérive CCT estimée ±5%.

Expédition vers l'UE

Livraison dans toute l’UE pour 20 €, gratuite dès 1 000 €.

Boutique B2B

Boutique B2B réservée aux professionnels, prix HT.

Achats en toute sécurité

Distribution et garantie officielles de l'UE.

Paiement sécurisé

Paiements en ligne sécurisés via Stripe.

Devis individuel

Demande de devis via formulaire ou e-mail: avgear@avgear.shop

The ARRI Orbiter is a versatile, tuneable, and directional LED fixture. Orbiter’s six-color light engine ARRI Spectra delivers a wide color gamut and outstanding color rendition across all color temperatures, along with industry-leading, smooth dimming from 100% to 0%. With its changeable optics, Orbiter can transform into many different types of lamphead, including Beam, Open Face, Fresnel, Projection, soft light, and many more. Orbiter’s state-of-the-art technology and Lighting Operating software (LiOS) as well as its multi-functional design optimize it for today’s needs as well as for emerging requirements, with endless possibilities for updates, enhancements, and new configurations. Orbiter is the most technologically advanced luminaire for image capture, maintaining superior color fidelity. Its digital lighting system will revolutionize your lighting setup. Features such as a fast processor, ample memory, expanded connectivity, built-in array of sensors, weatherproof housing, and many more make Orbiter a formidable machine.

Changeable optics is the core innovation in Orbiter. With a wide variety of optics to choose from, Orbiter transforms into the perfect light for your application without sacrificing beam, output, or color quality. The Quick Lighting Mount (QLM) in Orbiter allows for optics with vastly different properties to be connected to the fixture. With Orbiter—you always have a choice.

Orbiter is an extremely bright directional LED fixture with an output similar to corresponding HMI systems. Orbiter’s powerful yet tuneable ARRI Spectra light engine provides outstanding color quality and brightness, rendering hard shadows with defined edges. Overall, Orbiter creates great highlights, natural skin tones, and crisp shadows. This revolutionary light engine is 76 times smaller than the L10’s light engine but produces greater output while drawing the same amount of power. Orbiter’s light engine consists of over 200 advanced LEDs, arranged in a point source-like aperture, which produce stunning light output while maintaining color quality and full-color tunability. The compact light engine uses a six-color LED mixture to create a homogeneous color beam field with brightness levels that easily rival much larger lighting fixtures.

Main Features
- Variety of optics and accessories
- ARRI Spectra six-color, wide gamut light engine
- Powerful output for maximal brightness and perfect colors
- Lighting Operating System (LiOS) with powerful software features
- User programmable quick buttons
- Integrated color sensor for matching ambient light

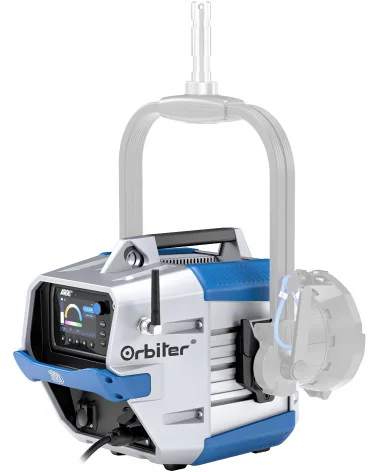

- Removable, intuitive Control Panel
- Full suite of connectors and sensors
- Perfected smooth dimming to zero
- Internal power supply, wireless DMX, & battery input

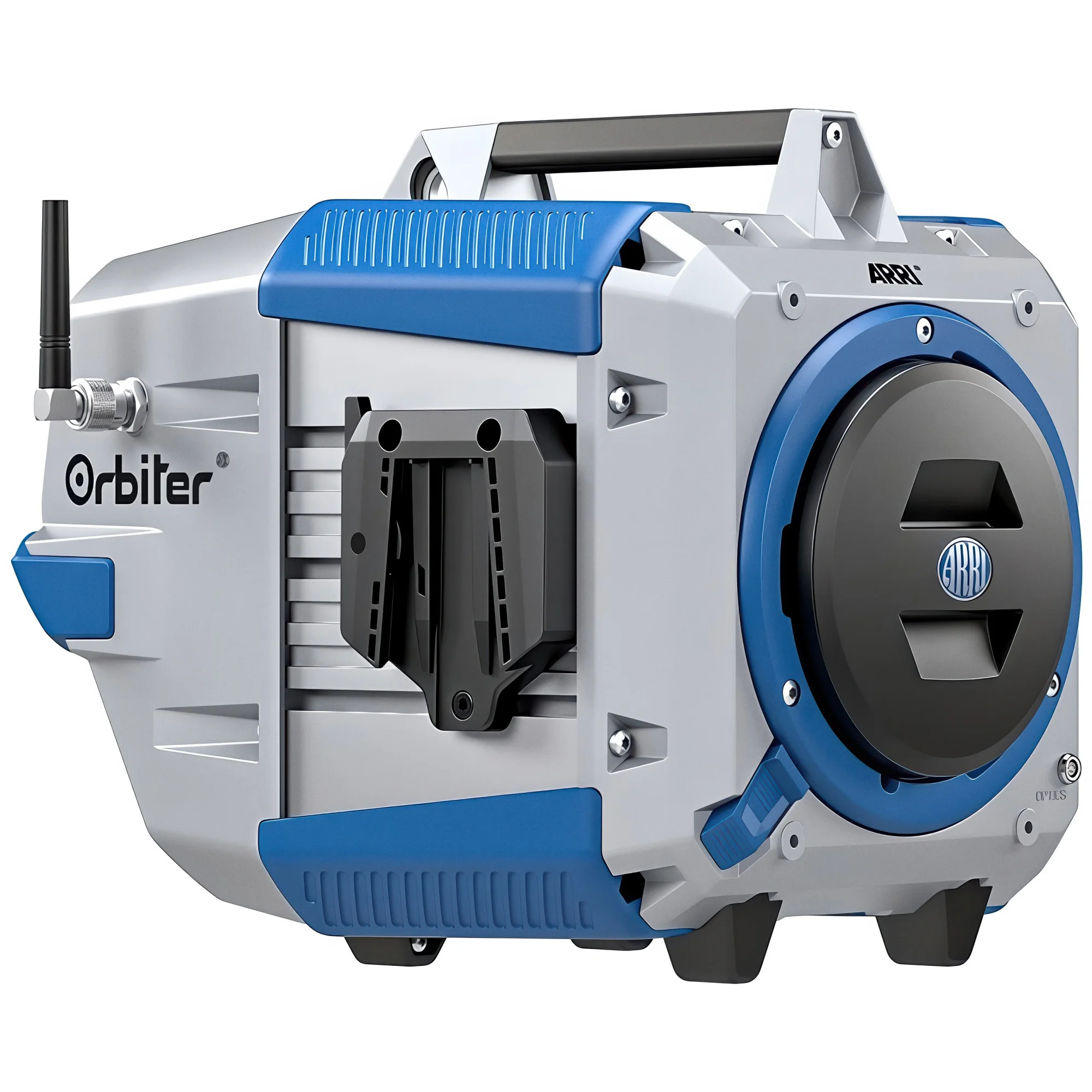

PACKAGES: L1.0033520 Orbiter blue/silver without Yoke, Optic, Control Panel, Control Panel Cable and Mains Cable
1x L1.0033520 Orbiter blue/silver

Technical Specifications
Optical System: Changeable optics
Light Aperture: 42 mm / 1,66“, without optics
Beam Angle: 80° half peak angle, without optics
Weight: Fixture only: 11,7 kg / 25.8 lbs, With Manual Yoke: 14,2 kg / 31.3 lbs, With Pole Operated Yoke: 14,9 kg / 32.9 lbs
Handling: Aluminum yoke with quick release, high strength tilt lock, pole operation option (pan and tilt)
Mounting: 28 mm spigot (junior pin)
Tilt Angle: +/- 90° in dry location, +75° / -90° in wet location with rain cover
Power Consumption: 400 W nominal, 500 W maximum
Voltage Input Range: 100 - 240 V~, 50 - 60 Hz
Mains Power Connection: powerCON TRUE1 TOP (Bare Ends / Schuko / Edison, Japanese, Chinese cables available)
DC Voltage Range: 48 - 52 V
Battery Connector: 3-Pin XLR connector (Pin 1: negative, Pin 2: positive)
White Light: calibrated 2,000 K to 20,000 K continuously variable correlated color temperature
Color Modes: CCT, HSI, RGBACL, x/y coordinates, gel selection, source matching & color sensor plus: extended color control (ECC) for individual finetuning
Color Temperature Tolerance: 3.200 to 5.600 K: +/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal)
High Color Rendition Mode: 3.200 to 5.600 K: CRI average > 98, TLCI average > 95, TM-30 average > 94
Green-Magenta Adjustment: Continuously adjustable between full minusgreen to full plusgreen
Dimming: Smooth, 100 to 0 %, continuously, linear / exponential / logarithmic / “S“ curve

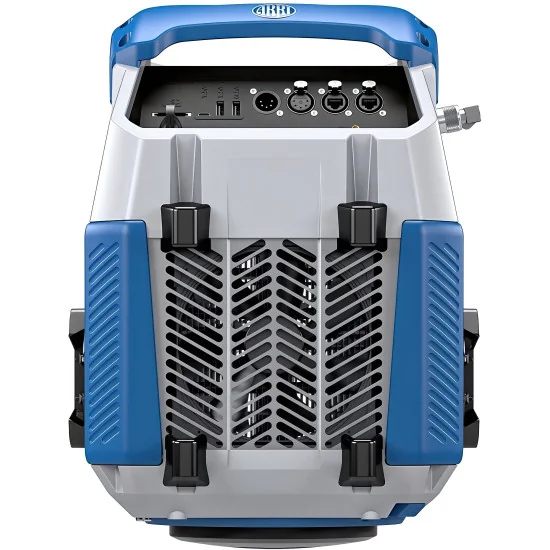

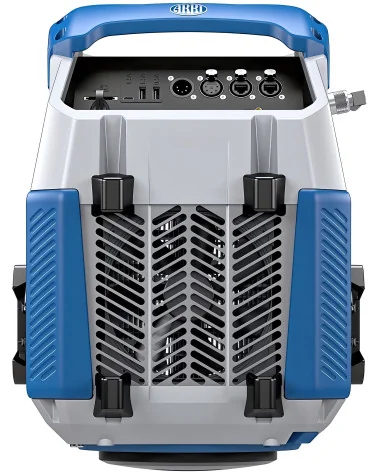

Connectivity: Removable Control Panel via PoE, 5-Pin XLR in and through, EtherCON in and through, 2 x USB-A, USB-C, SD Card, sync input
Control Options: DMX 512 (8 & 16 bit), RDM E1.20, wireless control via LumenRadio CRMX1 (DMX & RDM), Art-Net, sACN, removable Control Panel, integrated webportal
Housing Color: Blue/silver, black
Ambient Temperature Operation: -20 to +45º C (-4 to +113º F)
Protection Class: I
IP Rating: IP 20 without Rain Cover, IP 24 with Rain Cover L2.0037805
Estimated LED Lifetime (L70): 50,000 hours
Estimated Color Shift Over Lifetime (CCT): +/- 5 %
Certifications & Declarations of conformity: CB, CE, UKCA, ENEC, cNRTLus, ICES, FCC, PSE, MIC, KC, SRRC, RCM, IFT, TRA, ETA, ANATEL, ENACOM, NTC
