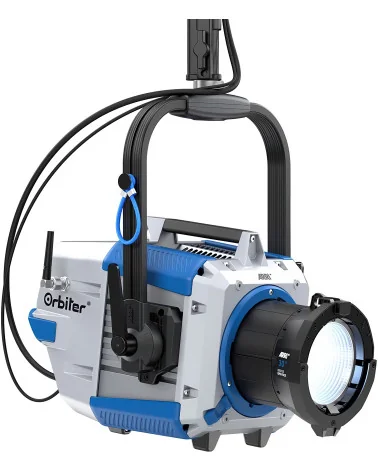

The ARRI Orbiter is a versatile, tuneable, and directional LED fixture. Orbiter’s six-color light engine ARRI Spectra delivers a wide color gamut and outstanding color rendition across all color temperatures, along with industry-leading, smooth dimming from 100% to 0%. With its changeable optics, Orbiter can transform into many different types of lamphead, including Beam, Open Face, Fresnel, Projection, soft light, and many more. Orbiter’s state-of-the-art technology and Lighting Operating software (LiOS) as well as its multi-functional design optimize it for today’s needs as well as for emerging requirements, with endless possibilities for updates, enhancements, and new configurations. Orbiter is the most technologically advanced luminaire for image capture, maintaining superior color fidelity. Its digital lighting system will revolutionize your lighting setup. Features such as a fast processor, ample memory, expanded connectivity, built-in array of sensors, weatherproof housing, and many more make Orbiter a formidable machine.

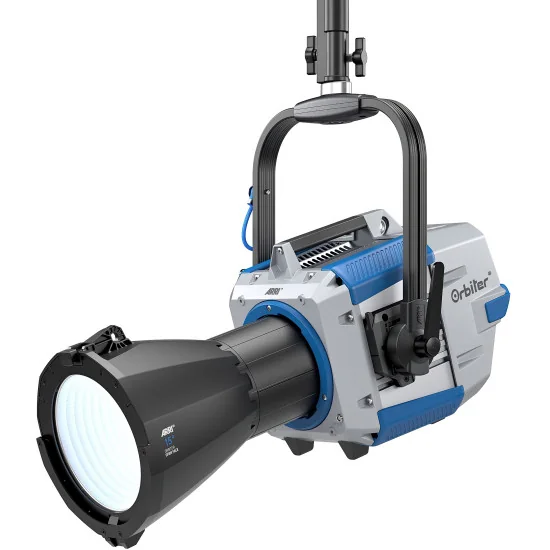

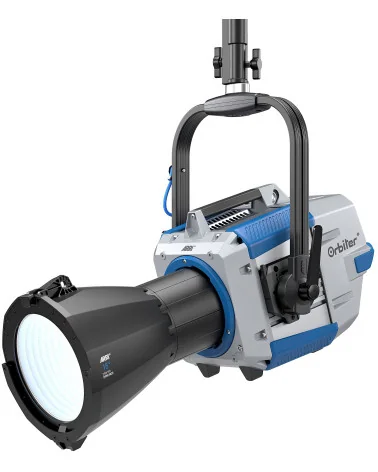

Changeable optics is the core innovation in Orbiter. With a wide variety of optics to choose from, Orbiter transforms into the perfect light for your application without sacrificing beam, output, or color quality. The Quick Lighting Mount (QLM) in Orbiter allows for optics with vastly different properties to be connected to the fixture. With Orbiter—you always have a choice.
Orbiter is an extremely bright directional LED fixture with an output similar to corresponding HMI systems. Orbiter’s powerful yet tuneable ARRI Spectra light engine provides outstanding color quality and brightness, rendering hard shadows with defined edges. Overall, Orbiter creates great highlights, natural skin tones, and crisp shadows. This revolutionary light engine is 76 times smaller than the L10’s light engine but produces greater output while drawing the same amount of power. Orbiter’s light engine consists of over 200 advanced LEDs, arranged in a point source-like aperture, which produce stunning light output while maintaining color quality and full-color tunability. The compact light engine uses a six-color LED mixture to create a homogeneous color beam field with brightness levels that easily rival much larger lighting fixtures.
Main Features
- Variety of optics and accessories
- ARRI Spectra six-color, wide gamut light engine
- Powerful output for maximal brightness and perfect colors
- Lighting Operating System (LiOS) with powerful software features
- User programmable quick buttons
- Integrated color sensor for matching ambient light

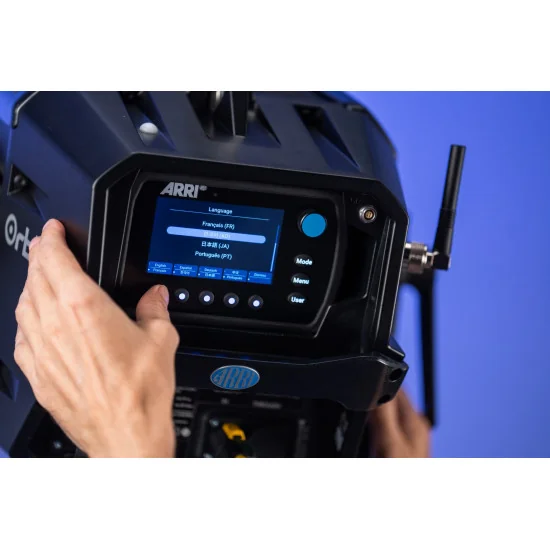

- Removable, intuitive Control Panel
- Full suite of connectors and sensors
- Perfected smooth dimming to zero
- Internal power supply, wireless DMX, & battery input

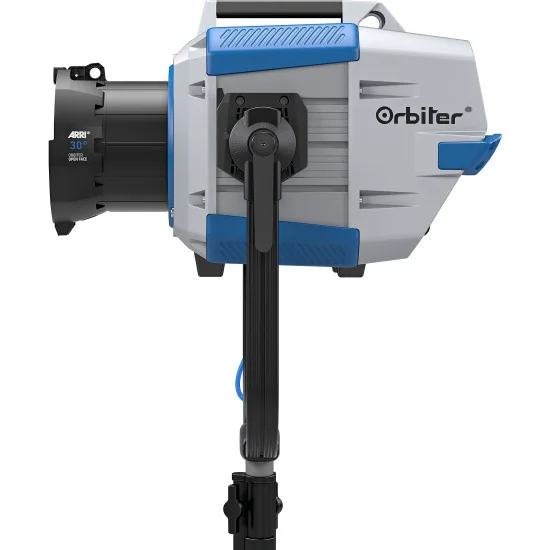

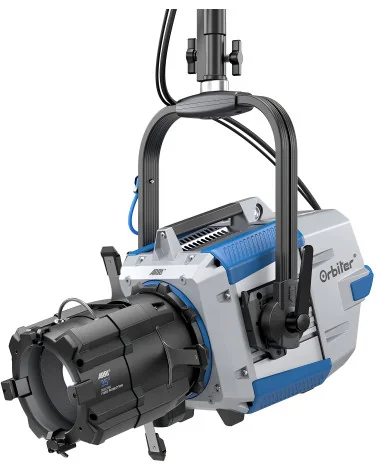

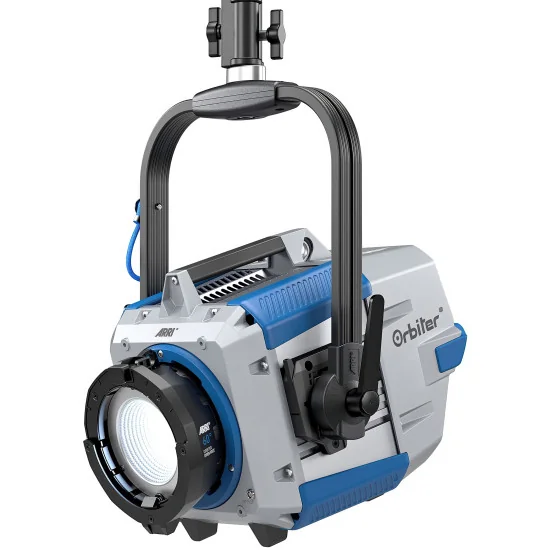

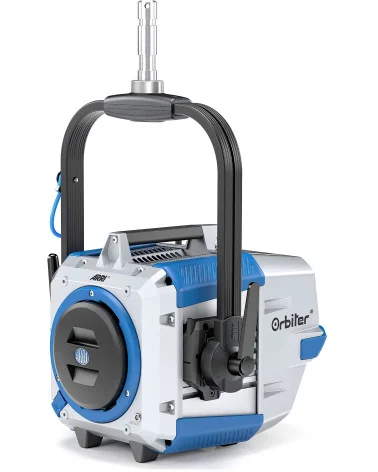

PACKAGES: L0.0050674 Orbiter Projection 35° Set (Bare Ends)
1x L1.0033520 Orbiter blue/silver

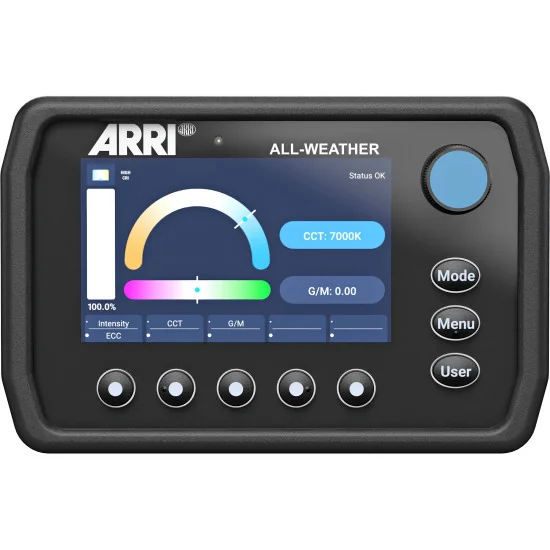

1x L2.0033732 Orbiter Control Panel (without Cable)
1x L2.0033800 Cable for Control Panel, 15 m
1x L2.0034025 Orbiter Manual Yoke with Spigot
1x L2.0024627 Mains cable, 3 m, powerCON TRUE1 TOP Bare Ends, with line switch

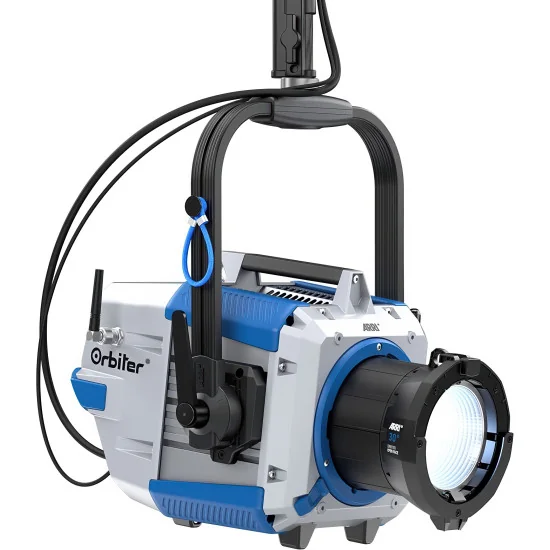

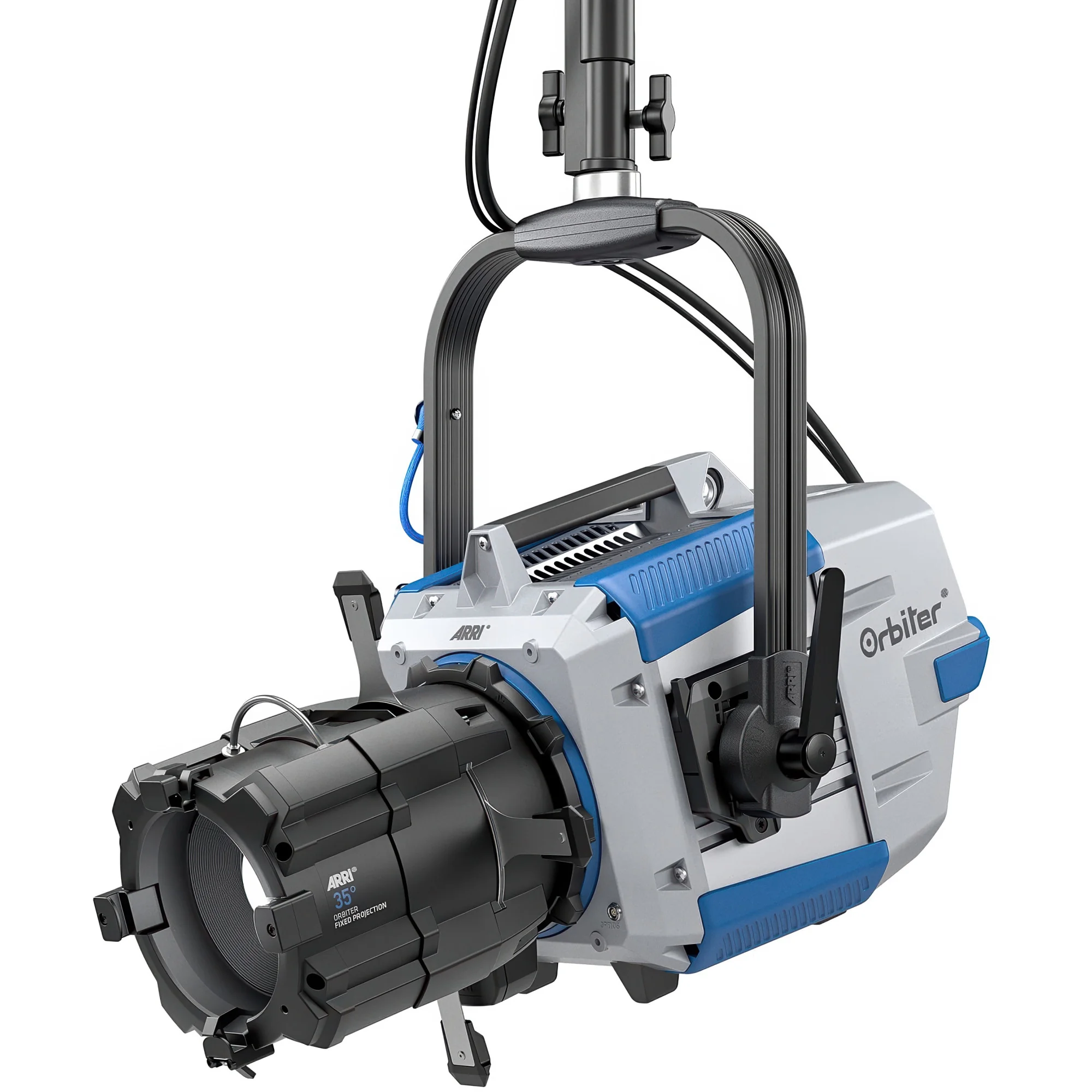

1x L2.0033550 Orbiter Projection Optic 35° incl. gobo holder
Technical Specifications
Optical System: Changeable optics

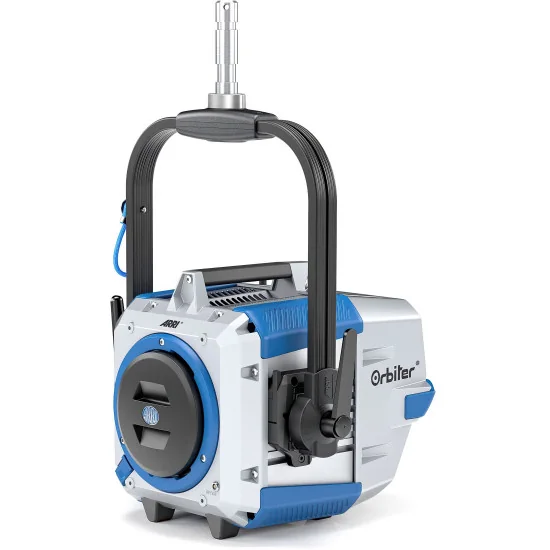

Light Aperture: 42 mm / 1,66“, without optics
Beam Angle: 80° half peak angle, without optics
Weight: Fixture only: 11,7 kg / 25.8 lbs, With Manual Yoke: 14,2 kg / 31.3 lbs, With Pole Operated Yoke: 14,9 kg / 32.9 lbs
Handling: Aluminum yoke with quick release, high strength tilt lock, pole operation option (pan and tilt)
Mounting: 28 mm spigot (junior pin)
Tilt Angle: +/- 90° in dry location, +75° / -90° in wet location with rain cover
Power Consumption: 400 W nominal, 500 W maximum
Voltage Input Range: 100 - 240 V~, 50 - 60 Hz
Mains Power Connection: powerCON TRUE1 TOP (Bare Ends / Schuko / Edison, Japanese, Chinese cables available)
DC Voltage Range: 48 - 52 V
Battery Connector: 3-Pin XLR connector (Pin 1: negative, Pin 2: positive)
White Light: calibrated 2,000 K to 20,000 K continuously variable correlated color temperature
Color Modes: CCT, HSI, RGBACL, x/y coordinates, gel selection, source matching & color sensor plus: extended color control (ECC) for individual finetuning
Color Temperature Tolerance: 3.200 to 5.600 K: +/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal)
High Color Rendition Mode: 3.200 to 5.600 K: CRI average > 98, TLCI average > 95, TM-30 average > 94
Green-Magenta Adjustment: Continuously adjustable between full minusgreen to full plusgreen
Dimming: Smooth, 100 to 0 %, continuously, linear / exponential / logarithmic / “S“ curve
Connectivity: Removable Control Panel via PoE, 5-Pin XLR in and through, EtherCON in and through, 2 x USB-A, USB-C, SD Card, sync input
Control Options: DMX 512 (8 & 16 bit), RDM E1.20, wireless control via LumenRadio CRMX1 (DMX & RDM), Art-Net, sACN, removable Control Panel, integrated webportal
Housing Color: Blue/silver, black
Ambient Temperature Operation: -20 to +45º C (-4 to +113º F)
Protection Class: I

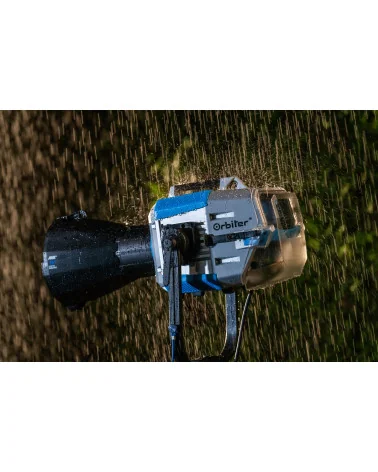

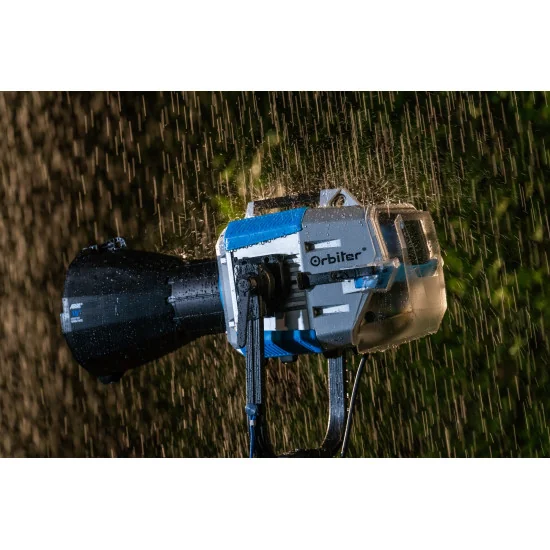

IP Rating: IP 20 without Rain Cover, IP 24 with Rain Cover L2.0037805
Estimated LED Lifetime (L70): 50,000 hours
Estimated Color Shift Over Lifetime (CCT): +/- 5 %
Certifications & Declarations of conformity: CB, CE, UKCA, ENEC, cNRTLus, ICES, FCC, PSE, MIC, KC, SRRC, RCM, IFT, TRA, ETA, ANATEL, ENACOM, NTC
