SkyPanel is a compact, ultra-bright and high-quality LED soft light that sets a new standard for the industry. With a design focused on form, color, beam field and output, SkyPanel represents the culmination of more than a decade of research and development of LED technology at ARRI.

SkyPanel is available in several sizes: the S30, S60, S120, and S360. The S60 is a mid-range model, featuring a light aperture of 645 x 300 mm and accommodating the vast majority of applications. The S120 is twice as long as the S60, but weighs nearly the same. Its larger light aperture makes a great soft light even better. The S30 is a smaller, more portable version; half the length of the S60, it is perfect for on-the-go mobile applications. The S360 is the largest and brightest SkyPanel with four times the output of the S60 and almost six times the aperture size. The S360 is perfect for lighting large areas with tuneable, soft light. S30 and S60 models are available in fully color tuneable and remote phosphor versions.

Incorporating features of ARRI’s successful L-Series LED Fresnels, SkyPanel is one of the most versatile soft lights on the market, as well as one of the brightest. Like the L-Series, SkyPanel ‘C’ (Color) versions are fully tuneable; correlated color temperature is adjustable between 2,800 K and 10,000 K, with excellent color rendition over the entire range. Full plus and minus green correction can be achieved with the simple turn of a knob, and in addition to CCT control, vivid color selection and saturation adjustment is also possible.

Unlike other tuneable fixtures, SkyPanel makes no sacrifice when it comes to light output. SkyPanel puts out a tremendous amount of light, in a soft and uniform beam field. The S360-C is twice as bright as a 4 kW tungsten soft light or three times as bright as a 12 kW tungsten space light. At the same time, the lamphead is able to perform beautifully at lower light levels. This range of illumination and color gives users an unprecedented amount of control. Achieving an energy efficiency of over 80 lumens per watt, the S360-C is also one of the most eco-friendly LED soft lights available while also being one of the brightest.

Made in Germany to the high standards for which all ARRI products are known, SkyPanel is built to last – constructed from resilient materials and assembled by hand with great care. Other features include LAN port for network connectivity, USB-A port for firmware updates via thumb drive, and many more.

PACKAGES: L0.0016335 S360-C Kit (Schuko / Edison)

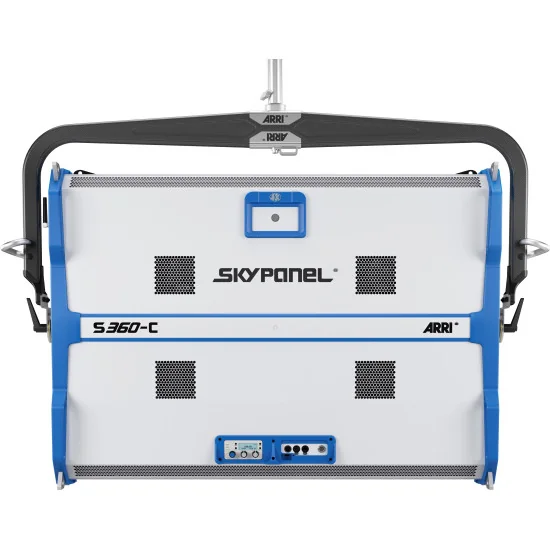

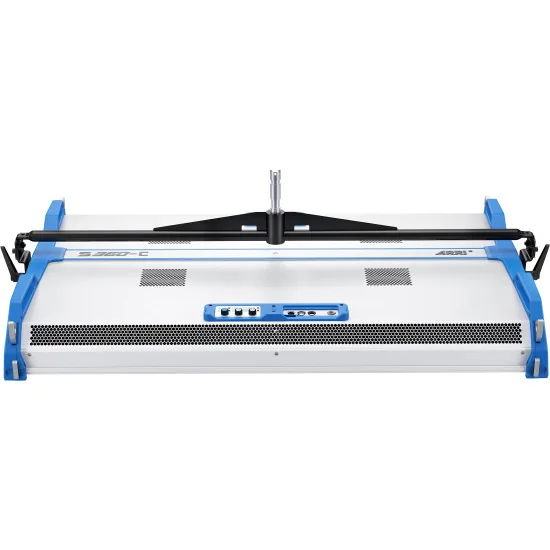

1x L1.0015122 S360-C, blue/silver

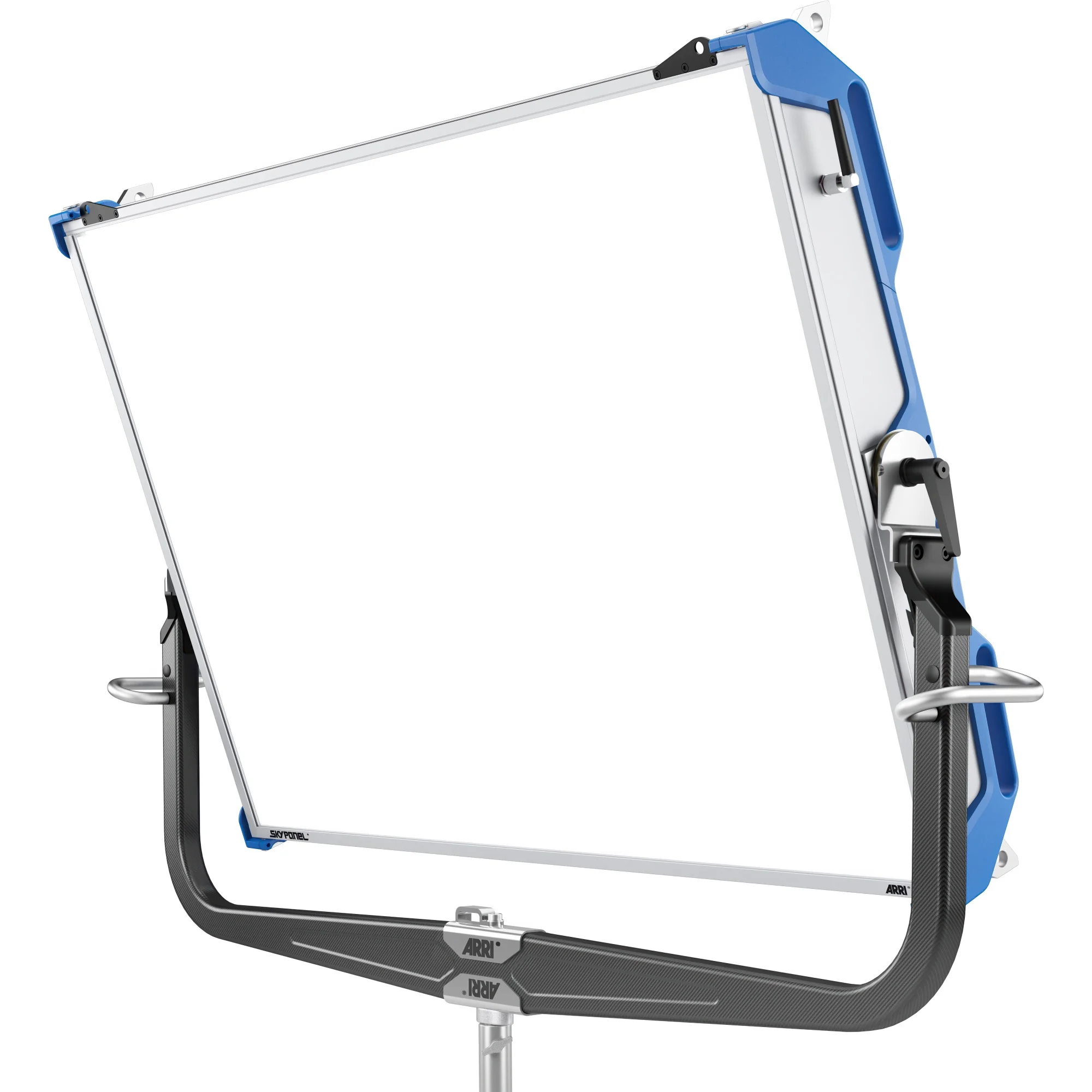

1x L2.0016078 Carbon Fiber Yoke for S360-C (incl. Pin)
1x L2.0015929 Short Yoke for S360-C (incl. Pin)
1x L2.0015014 Standard Diffusion for S360-C
1x L2.0015013 Heavy Diffusion for S360-C
1x L2.0015016 Lite Diffusion for S360-C
1x L2.0015022 Intensifier for S360-C

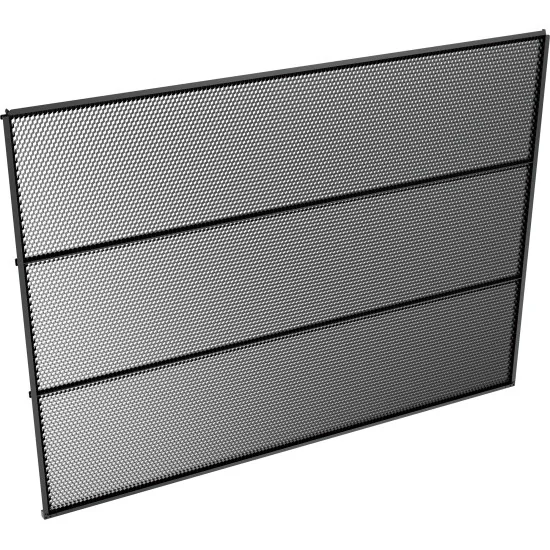

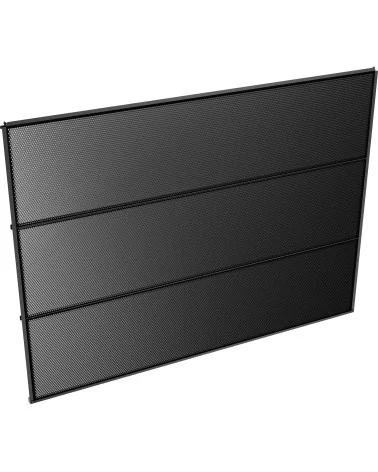

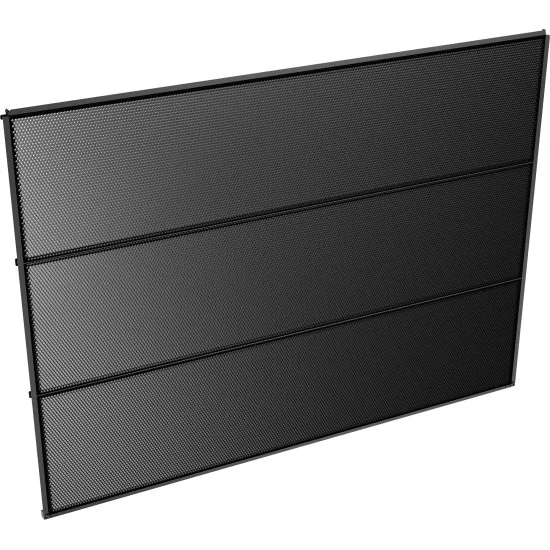

1x L2.0014979 Honeycomb 60° for S360-C

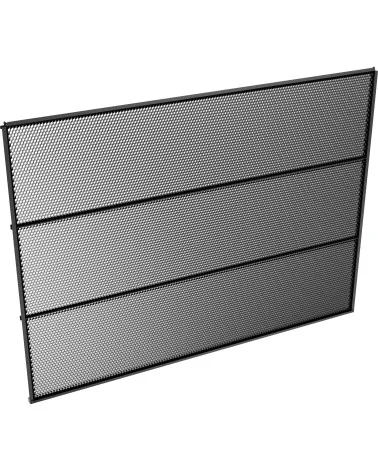

1x L2.0014978 Honeycomb 30° for S360-C

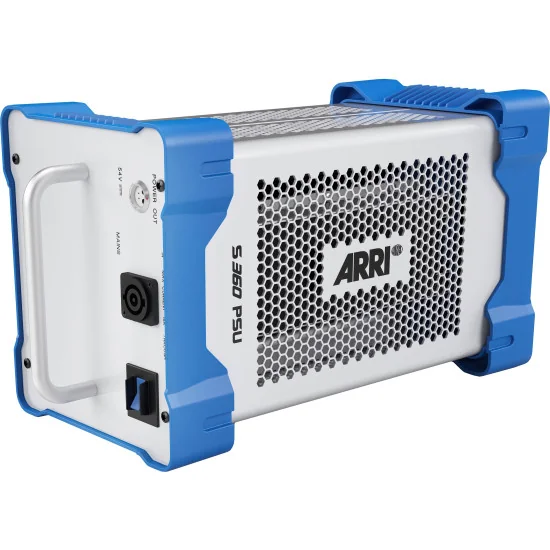

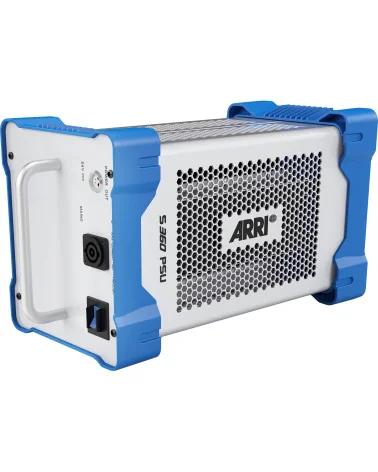

1x L2.0015249 Power Supply Unit for S360-C
1x L2.0006921 Super Clamp Adapter for SkyPanel PSU
1x L2.0015784 Mains cable powerCON 32A, 3 m (Schuko)
1x L2.0015785 Mains cable powerCON 32A, 3 m (Edison)
1x L2.0016030 DC cable 5 m (4-Pin 30A) S360-C

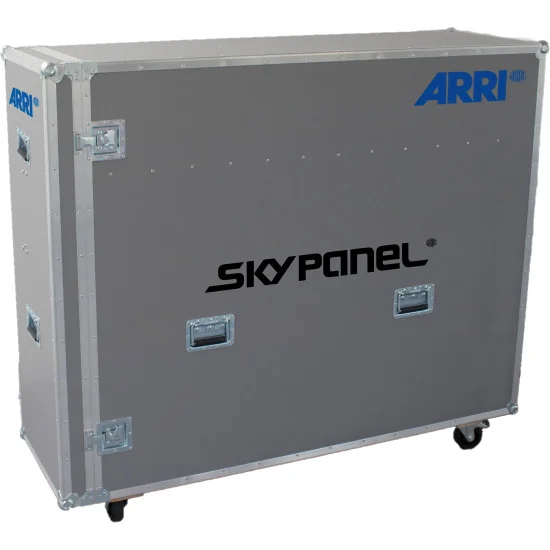

1x L2.0016354 Transportation Case for SkyPanel S360-C

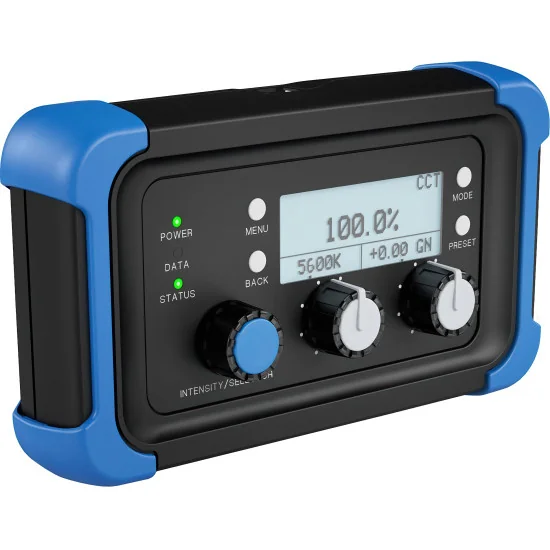

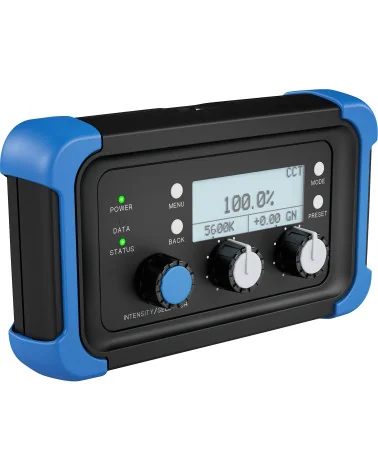

1x L2.0022690 SkyPanel Remote

Technical Specifications

Lamphead
Optical System: Swappable Soft Diffusion Panels
Light Aperture: 1280 x 870 mm / 50.4 x 34.4“
Beam Angle: 105° (Half Peak Angle)
Weight: 40 kg / 89 Ibs (Fixture only, incl. Diffusion), 45 kg / 98 lbs (incl. Carbon Fiber Yoke and Spigot), 45 kg / 98 Ibs (incl. short Yoke)
Handling: Carbon Fiber Yoke, short Yoke, Dual High-Strength Tilt Lock
Mounting: 28 mm Spigot (Junior Pin)
Tilt Angle: +/- 90°
Lamphead Voltage Input: 54 V DC
Power Consumption: 1,500 W Maximum
Lamphead Power Connection: Male 4-Pin Metal Locking - 30 Amp
White Light: 2,800 K to 10,000 K continuously variable correlated color temperature
Colored Light: Full RBG+W color gamut with Hue and Saturation control
Color Temperature Tolerance: +/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal)
Color Rendition: CRI Average > 95 , TLCI Average > 90
Green-Magenta Adjustment: continuously adjustable (Full Minusgreen to Full Plusgreen)
Dimming: 0 to 100 % continuous
Control: On-Board Controller, 5-Pin DMX In and Through, EtherCon LAN network connectivity, USB-A, Art-Net
Wireless Control: LumenRadio CRMX (DMX & RDM)
Remote Device Management (RDM): DMX Setup, Hour Counter and Standard RDM commands
Software Interface: Ethernet: DMX Setup, Fixture Status & Control, and Firmware Upgrade through PC or Mac, USB-A: Software Upgrade via flash drive
Housing Color: Blue / Silver
Ambient Temperature Operation: -20 to +45º C (-4 to +113º F)
Protection Class / IP Rating: III / IP20
Estimated LED Lifetime (L70): 50,000 hours
Estimated Color Shift Over Lifetime (CCT): +/- 5 %
Certifications & Declarations of Conformity: CE, UKCA, CB, ENEC, cNRTLus, FCC, PSE

Power Supply Unit
Power Supply Input Range: 100 to 240 V ~, 50/60 Hz
Power Supply Output Range: 54 V DC
Power Input Connection: powerCON 32A (Schuko / Edison / China / Japan / Bare Ends cables available)
Power Output Connection: Female 4-Pin Metal Locking - 30 Amp
Protection Class / IP Rating: I / IP20
Weight: 11.4 kg / 25.2 lbs
Dimensions: 451 x 240 x 206 mm / 17.7 x 9.4 x 8.1“
Control: On-Board On / Off Switch
Mounting: SkyPanel PSU Super Clamp Adapter
Certifications & Declarations of Conformity: CE, UKCA CB, ENEC, cNRTLus, FCC
