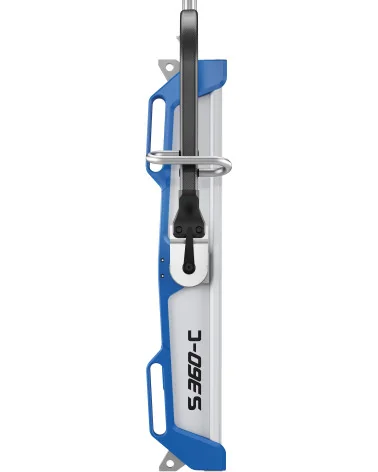

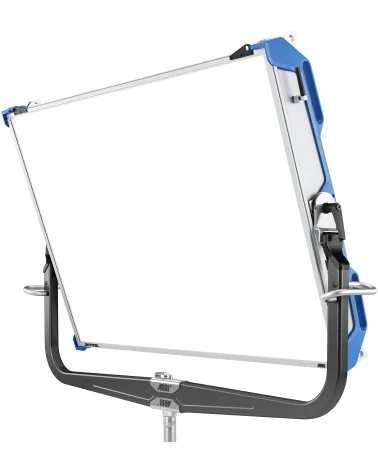

ARRI SkyPanel S360-C Standard Diffusion (Bare Ends) Panneau LED

ARRI SkyPanel S360-C Standard Diffusion (Bare Ends) Panneau LED

Name: ARRI SkyPanel S360-C Standard Diffusion (Bare Ends) Panneau LED
Brand: ARRI
SKU: L0.0016329
Price: 14890.00 EUR
Availability: InStock

MPN: L0.0016329

Prix : 14 890,00 €

Ventes à l'échelle de l'UE, facturation pour livraisons intracommunautaires exonérée de TVA.

Disponible chez le fournisseur (délai de livraison à confirmer)

ARRI SkyPanel S360-C Standard Diffusion (Bare Ends) est un softlight LED RGBW à très haut flux pour grilles studio, cars régie et grands plateaux, quand la surface émissive et la répétabilité colorimétrique priment. Le blanc est variable en continu de 2800 à 10000 K (tolérance nominale ±100 K) avec correction Vert/Magenta continue (±1/8 nominal). Le moteur couleur gère teinte et saturation tout en conservant CRI >95 et TLCI >90. Variation 0–100% et consommation maximale 1500 W.

Le diffuseur Standard Diffusion fourni conserve un champ large et homogène à 105° (demi-crête) pour une clé douce sans point chaud. Photométrie typique : 6444 lx à 5600 K à 3 m (5878 lx à 3200 K), puis 2320 lx à 5 m et 1184 lx à 7 m. Cette réserve sert au cyclo, à l’ambiance en gril, aux interviews grand cadre, aux packshots via cadres de diffusion et au fill large en streaming multicaméra ou TV live, lorsque l’uniformité d’exposition sur un plan large est critique.

Côté commande, l’intégration est immédiate : interface locale, DMX512-A câblé avec RDM, et Ethernet via Art-Net. Le DMX sans fil est natif grâce à LumenRadio CRMX et au CRMX2 avec clé de liaison, utile en environnements RF chargés. Le port USB-A sert aux mises à jour et aux fichiers de show. L’alimentation externe accepte 100–240 V (50/60 Hz) et délivre 54 V DC, vers la tête via une connexion verrouillable 4 broches 30 A.

La version Bare Ends cible les installations fixes et les parcs location qui terminent le secteur selon leur propre distribution (grilles câblées, systèmes CEE, breakouts sur mesure). Cette configuration ARRI inclut un câble DC de 5 m, le S360 PSU avec adaptateur Super Clamp, ainsi que le panneau Standard Diffusion. Pour plafonds studio, ponts de tournée et plateaux grande hauteur, elle aligne le câblage sur le standard maison, avec une certification IP20, une plage de fonctionnement -20 à +45 °C et une durée de vie LED estimée L70 50 000 h.

Expédition vers l'UE

Nous livrons dans toute l'Union Européenne pour 20 €, livraison gratuite pour les commandes supérieures à 1 000 €.

Boutique B2B

Notre offre s'adresse uniquement aux clients B to B, tous les prix sont hors taxes.

Paiement sécurisé

Paiements en ligne sécurisés via Stripe.

Devis individuel

Envoyez votre demande via le formulaire ou par mail: avgear@avgear.shop

SkyPanel is a compact, ultra-bright and high-quality LED soft light that sets a new standard for the industry. With a design focused on form, color, beam field and output, SkyPanel represents the culmination of more than a decade of research and development of LED technology at ARRI.

SkyPanel is available in several sizes: the S30, S60, S120, and S360. The S60 is a mid-range model, featuring a light aperture of 645 x 300 mm and accommodating the vast majority of applications. The S120 is twice as long as the S60, but weighs nearly the same. Its larger light aperture makes a great soft light even better. The S30 is a smaller, more portable version; half the length of the S60, it is perfect for on-the-go mobile applications. The S360 is the largest and brightest SkyPanel with four times the output of the S60 and almost six times the aperture size. The S360 is perfect for lighting large areas with tuneable, soft light. S30 and S60 models are available in fully color tuneable and remote phosphor versions.

Incorporating features of ARRI’s successful L-Series LED Fresnels, SkyPanel is one of the most versatile soft lights on the market, as well as one of the brightest. Like the L-Series, SkyPanel ‘C’ (Color) versions are fully tuneable; correlated color temperature is adjustable between 2,800 K and 10,000 K, with excellent color rendition over the entire range. Full plus and minus green correction can be achieved with the simple turn of a knob, and in addition to CCT control, vivid color selection and saturation adjustment is also possible.

Unlike other tuneable fixtures, SkyPanel makes no sacrifice when it comes to light output. SkyPanel puts out a tremendous amount of light, in a soft and uniform beam field. The S360-C is twice as bright as a 4 kW tungsten soft light or three times as bright as a 12 kW tungsten space light. At the same time, the lamphead is able to perform beautifully at lower light levels. This range of illumination and color gives users an unprecedented amount of control. Achieving an energy efficiency of over 80 lumens per watt, the S360-C is also one of the most eco-friendly LED soft lights available while also being one of the brightest.

Made in Germany to the high standards for which all ARRI products are known, SkyPanel is built to last – constructed from resilient materials and assembled by hand with great care. Other features include LAN port for network connectivity, USB-A port for firmware updates via thumb drive, and many more.

PACKAGES: L0.0016329 S360-C Standard Diffusion blue/silver (Bare Ends) - w/o Accessories
1x L0.0016329 S360-C Standard Diffusion blue/silver (Bare Ends)
The yoke, power supply, and other accessories are available separately.

Technical Specifications

Lamphead
Optical System: Swappable Soft Diffusion Panels
Light Aperture: 1280 x 870 mm / 50.4 x 34.4“
Beam Angle: 105° (Half Peak Angle)
Weight: 40 kg / 89 Ibs (Fixture only, incl. Diffusion), 45 kg / 98 lbs (incl. Carbon Fiber Yoke and Spigot), 45 kg / 98 Ibs (incl. short Yoke)
Handling: Carbon Fiber Yoke, short Yoke, Dual High-Strength Tilt Lock
Mounting: 28 mm Spigot (Junior Pin)
Tilt Angle: +/- 90°
Lamphead Voltage Input: 54 V DC
Power Consumption: 1,500 W Maximum
Lamphead Power Connection: Male 4-Pin Metal Locking - 30 Amp
White Light: 2,800 K to 10,000 K continuously variable correlated color temperature
Colored Light: Full RBG+W color gamut with Hue and Saturation control
Color Temperature Tolerance: +/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal)
Color Rendition: CRI Average > 95 , TLCI Average > 90
Green-Magenta Adjustment: continuously adjustable (Full Minusgreen to Full Plusgreen)
Dimming: 0 to 100 % continuous
Control: On-Board Controller, 5-Pin DMX In and Through, EtherCon LAN network connectivity, USB-A, Art-Net
Wireless Control: LumenRadio CRMX (DMX & RDM)
Remote Device Management (RDM): DMX Setup, Hour Counter and Standard RDM commands
Software Interface: Ethernet: DMX Setup, Fixture Status & Control, and Firmware Upgrade through PC or Mac, USB-A: Software Upgrade via flash drive
Housing Color: Blue / Silver
Ambient Temperature Operation: -20 to +45º C (-4 to +113º F)
Protection Class / IP Rating: III / IP20
Estimated LED Lifetime (L70): 50,000 hours
Estimated Color Shift Over Lifetime (CCT): +/- 5 %
Certifications & Declarations of Conformity: CE, UKCA, CB, ENEC, cNRTLus, FCC, PSE

Power Supply Unit
Power Supply Input Range: 100 to 240 V ~, 50/60 Hz
Power Supply Output Range: 54 V DC
Power Input Connection: powerCON 32A (Schuko / Edison / China / Japan / Bare Ends cables available)
Power Output Connection: Female 4-Pin Metal Locking - 30 Amp
Protection Class / IP Rating: I / IP20
Weight: 11.4 kg / 25.2 lbs
Dimensions: 451 x 240 x 206 mm / 17.7 x 9.4 x 8.1“
Control: On-Board On / Off Switch
Mounting: SkyPanel PSU Super Clamp Adapter
Certifications & Declarations of Conformity: CE, UKCA CB, ENEC, cNRTLus, FCC

Photometric Data	3 m / 9.8 ft		5 m / 16.4 ft		7 m / 23.0 ft		9 m / 29.5 ft		12 m / 39.4 ft
S360-C	3,200 K	5,600 K	3,200 K	5,600 K	3,200 K	5,600 K	3,200 K	5,600 K	3,200 K	5,600 K
S360-C with Standard Diffusion	5,878 lx	6,444 lx	2,116 lx	2,320 lx	1,080 lx	1,184 lx	653 lx	716 lx	367 lx	403 lx
	546 fc	599 fc	197 fc	216 fc	100 fc	110 fc	61 fc	67 fc	34 fc	37 fc
S360-C with Lite Diffusion	6,022 lx	6,600 lx	2,168 lx	2,376 lx	1,106 lx	1,212 lx	669 lx	733 lx	376 lx	412 lx
	559 fc	613 fc	202 fc	221 fc	102 fc	112 fc	62 fc	68 fc	35 fc	38 fc
S360-C with Heavy Diffusion	4,833 lx	5,311 lx	1,740 lx	1,912 lx	888 lx	975 lx	537 lx	590 lx	302 lx	332 lx
	449 fc	493 fc	162 fc	178 fc	82 fc	90 fc	50 fc	55 fc	28 fc	31 fc
S360-C with Intensifier	8,700 lx	9,544 lx	3,132 lx	3,436 lx	1,598 lx	1,753 lx	967 lx	1,060 lx	544 lx	596 lx
	808 fc	887 fc	291 fc	319 fc	148 fc	162 fc	90 fc	99 fc	50 fc	55 fc
