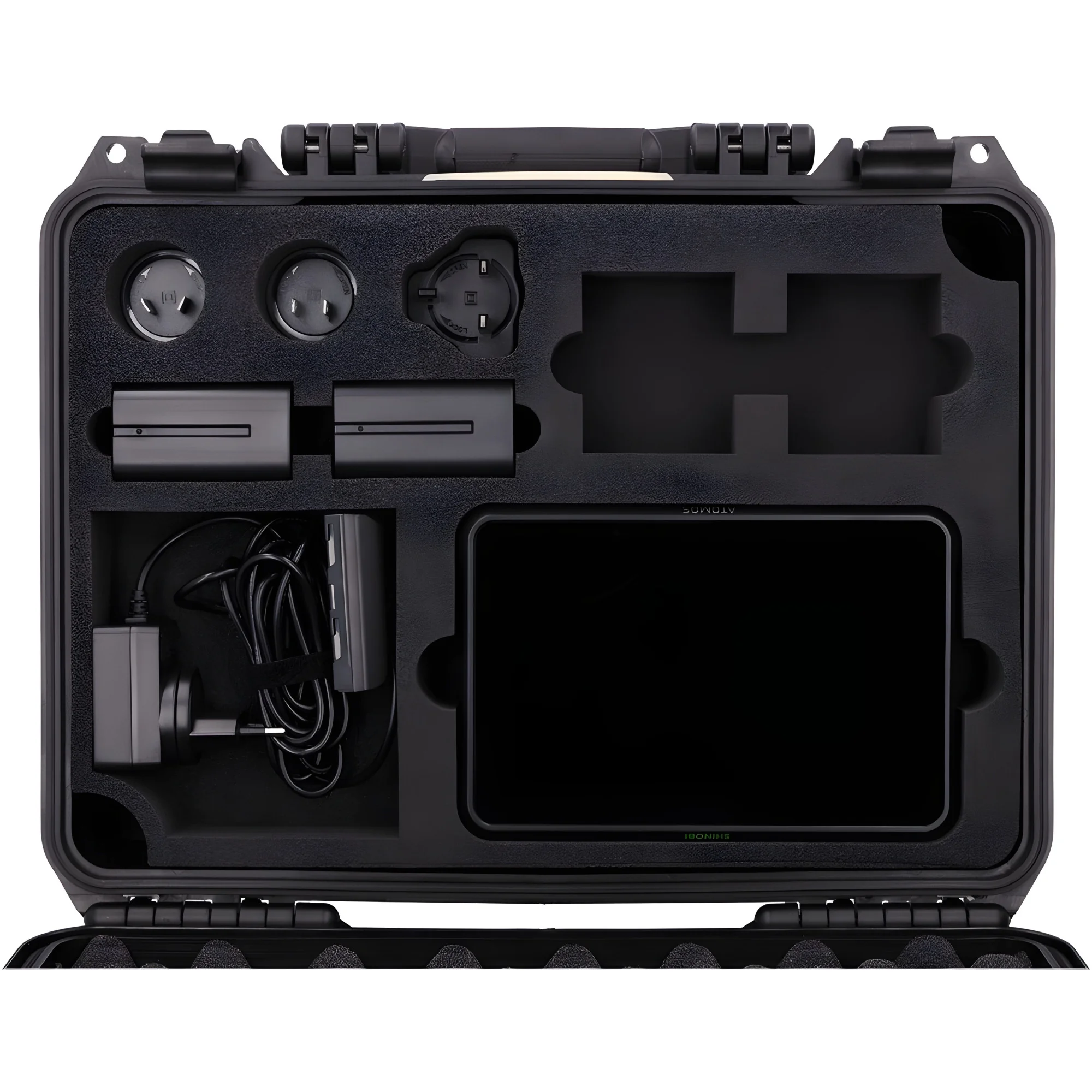

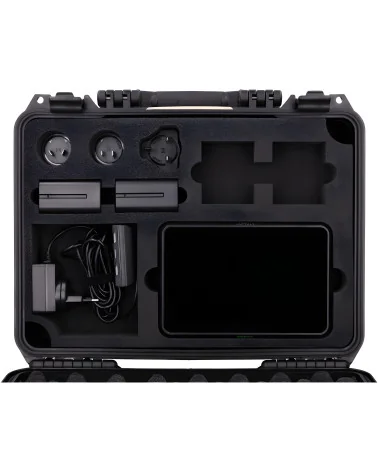

Set consisting of the Shinobi 7 monitor and many accessories in a hard case

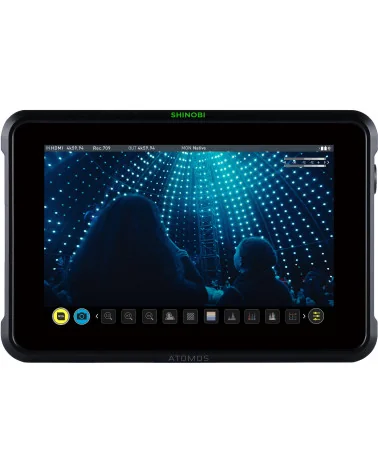

The Shinobi Pro Kit contains all the necessary accessories for professional monitoring. It comes with the 7'' HDR Monitor Shinbi 7 with a calibrated peak brightness of 2200 Nits. The Shinobi 7 can be used in the brightest of environments to monitor signals up to 4Kp60 via HDMI. An ideal directors' monitor, focus pullers' monitor, program or preview display for video switchers and perfect for vloggers presenting to camera.

The Kit also contains all the necessary accessories to start with your work right away. You get two reliable 5200 mAh NPF-Type Batteries, a fast-charger, a PSU and a D-TAP to DC coiled cable. The kit comes in a sturdy HPRC Hardcase to keep your gear safe on transport and for storage.

Features:
2200Nits HDR / Daylight viewable display
HDMI 2.0 support for 4Kp60, 3G-SDI support up to2Kp60
Bi-directional HDMI < > SDI signal cross conversion
Dual NPF battery slots for continuous power
3D LUT support with Preview and Loop out
AtomHDR provides Log to HDR conversionfor display and loop out
Touch screen camera control via optional cable forcompatible cameras of Iris, WB, Shutter speed and ND
Exposure tools - histogram, waveform, false color& zebras
Vertical and Horizontal screen mode - enable the selfiemode for easy piece to camera monitoring
Pull focus with confidence using Zoom 4:1, 2:1, 1:1
Headphone monitoring of camera audio

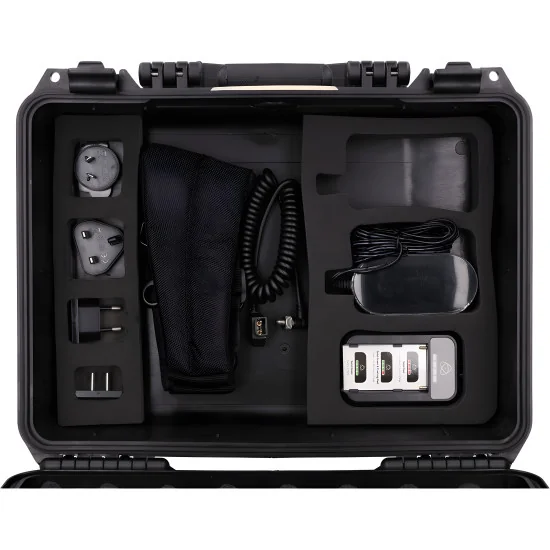

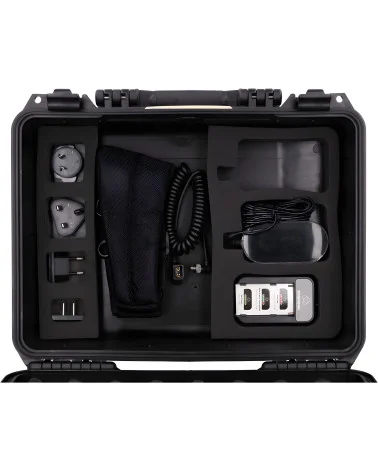

What’s in the box:
1 x Shinobi 7
1 x Power Supply Unit
1 x Fast Charger
2 x 5200 mAh Batteries
1 x D-Tap to DC coiled cable
1 x HPRC Carry Case

Physical Specifications
Dimensions (W x H x D mm) 198 x 133 x 39
Weight 577g / 1.04lb
Mount points 1 x Anti rotation 1/4"-20 top and bottom

Environmental
Ambient operating temperature Up to 40° C

Construction and Control
Body Polycarbonate ABS Plastic
Cooling Actively controlled fan and heat sink
Multi-function button Power / lock Screen

Power
Input voltage 6.2V - 16.8V
Operating power 5.8 - 7.2W
Compatible batteries 2 x NPF L series
Built in battery No
Battery Run time (Record) 5200mAh - up to 2hrs, 7800mAh - up to 3hrs
Continuous power Dual battery slots
DC in connector Locking DC jack
Dtap Via optional DTap to DC cable

Display

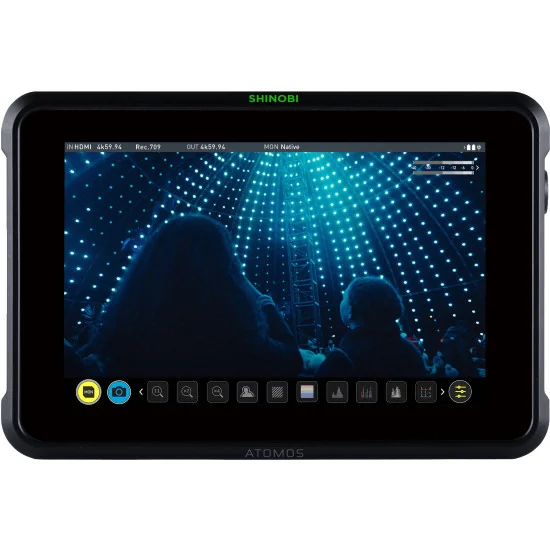

Touchscreen SuperAtom IPS panel (capacitive touch)
Size 7"
Resolution 1920 x 1200
PPI 325
Bit depth 10-bit (8+2 FRC)
Backlight Type Edge lit
Brightness (cdm2 / nits) 2200 +/- 10%
Aspect ratio 16:9 Image Display
Color Gamut Rec.709
Calibration support Atomos Calibrator with Xrite i1 Display Pro / Plus (Retail)

Color Pipeline
Gamma Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog, JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm Flog, PQ (HDR10), HLG, Nikon N-Log
Gamut Bt2020, DCI P3, PDCI p3 65, Sony SGamut / SGamut3 / SGamut3.cine / Canon Cinema / DCI P3 / DCI P3+ / BT2020, Panasonic V Gamut, Arri Alexa Wide Gamut Rec709, JVC LS300, Red DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut
3D LUT Display .Cube Format
3D LUT Output Loop out
3DLUT 50/50 Yes
Monitoring Modes Native / HLG / PQ / 3D LUT
HDR output Conversion HLG / PQ

Video Input

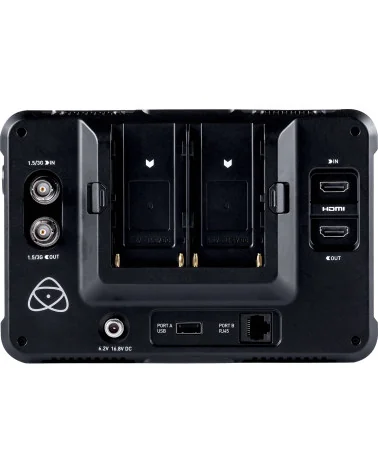

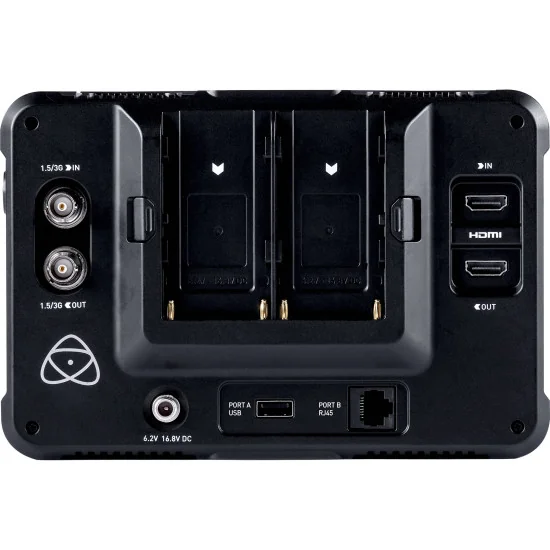

HDMI 1 x HDMI (2.0) 4Kp60
SDI 1 x 3G SDI - 2Kp60
Bit Depth 8/10-bit Video
Video Chroma Subsampling YCbCr 420 & 422

Video Output
HDMI 1 x HDMI (2.0) 4Kp60
SDI Play out 1 x 3G SDI - 2Kp60

Video Signal Conversion
HDMI to SDI Yes
SDI to HDMI Yes

Audio In/Out
HDMI 2ch 24-bit, input dependent
SDI 8ch 24-bit, input dependent
Headphone out 3.5mm 2ch.

Timecode / Sync
Embedded HDMI and SDI

Resolution and Frame Rates (Record, Monitor & Playback)
4k DCI Monitor Only: DCI: HDMI: 23.98p, 24p, 25p, 29.97p, 50p, 59.94p
4k UHD Monitor Only: UHD: HDMI: 23.98p, 24p, 25p, 29.97p, 50p, 59.94p
2K DCI 2046 x 1080 Monitor Only: DCI 2046 x 1080: SDI: 23.98p, 24p, 25p, 29.97p, 50p, 59.94p
FHD 1920 x 1080 Progressive Monitor Only: HDMI and SDI : 23.98/24/25/29.9/30/50/59.94/60p
FHD 1920 x 1080 Interlaced Monitor Only: 50/59.94/60i 1280 x 720p: 50/59.94/60p

Supported media

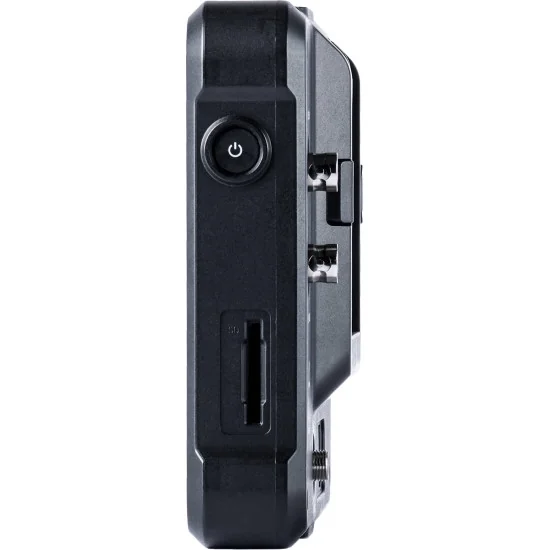

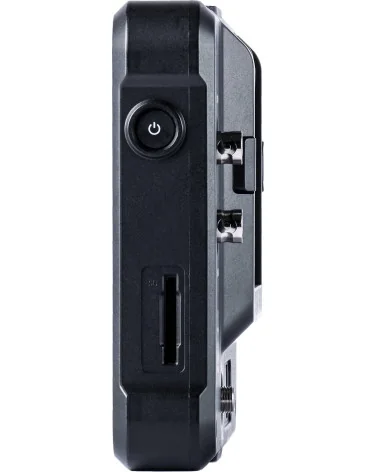

SD SD Card slot for LUTs / Firmware
File System ExFAT

On screen tools
MultiScope Analysis View Image, selectable Waveform, Histogram, Vectorscopes and Audio bars
Waveform Yes, 3 size / Position
Histogram Luma and RGB
RGB parade Yes, 3 size / position
Vector scope Yes, 2 size / position and zoom
1 x Zoom Yes. 1:1 Pixel mapping for 4K
2 x Zoom Yes
4 x Zoom Yes
Focus peaking Color selected / focus assist sharpening / threshold setting / color / mono / edges only
False colour Yes
Zebra Yes, adjustable
Isolate color channel Blue only
Cine Frame Guides 2.4:1, 2.35:1, 1.9:1, 1.85:1, 4:3
Social Frame guides 9:16, 1:1, 191:1, 4:5
Safe areas Action and Graphic
Grid markers 9 Grid
Anamorphic desqueeze 1.25x, 1.33x, 1.5x, 1.8x, 2x
Display Flip Vertical and Horizontal selfie mode

Onboard Signal Processing
4K UHD Downscale for HD Yes
DCI Crop Yes

External Device Control

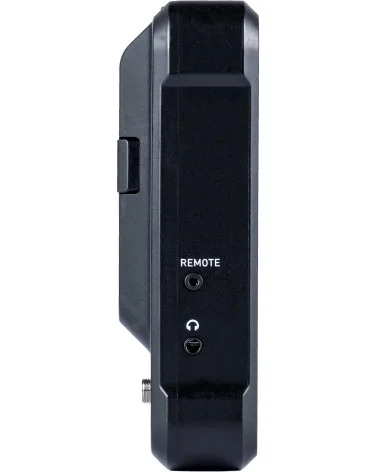

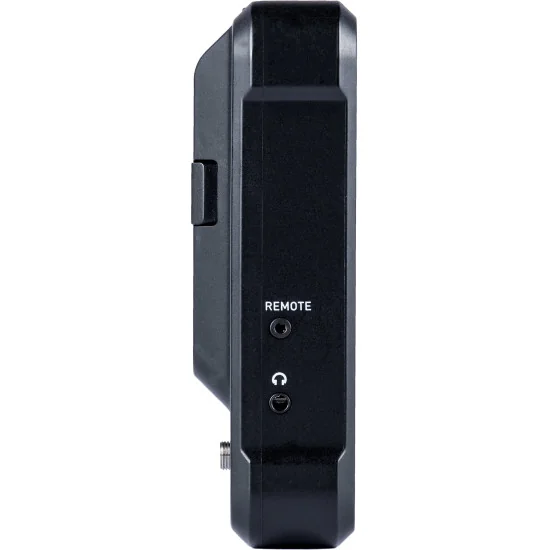

Serial 2.5mm Jack USB-C to Serial (ATOMCAB018)
USB Camera control for supported cameras in future firmware release
RJ45 Camera control for supported cameras in future firmware release
