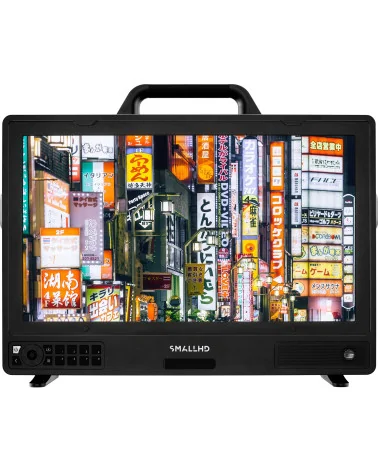

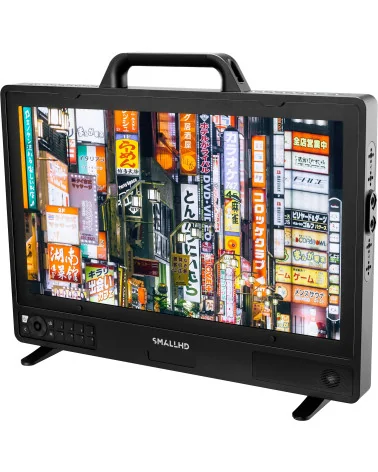

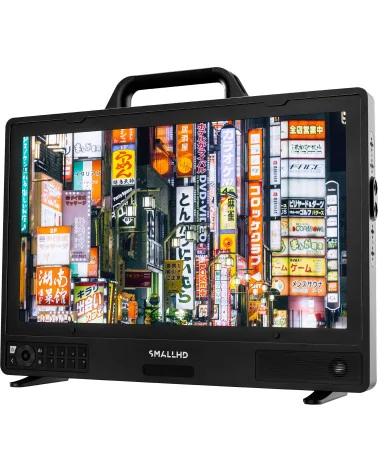

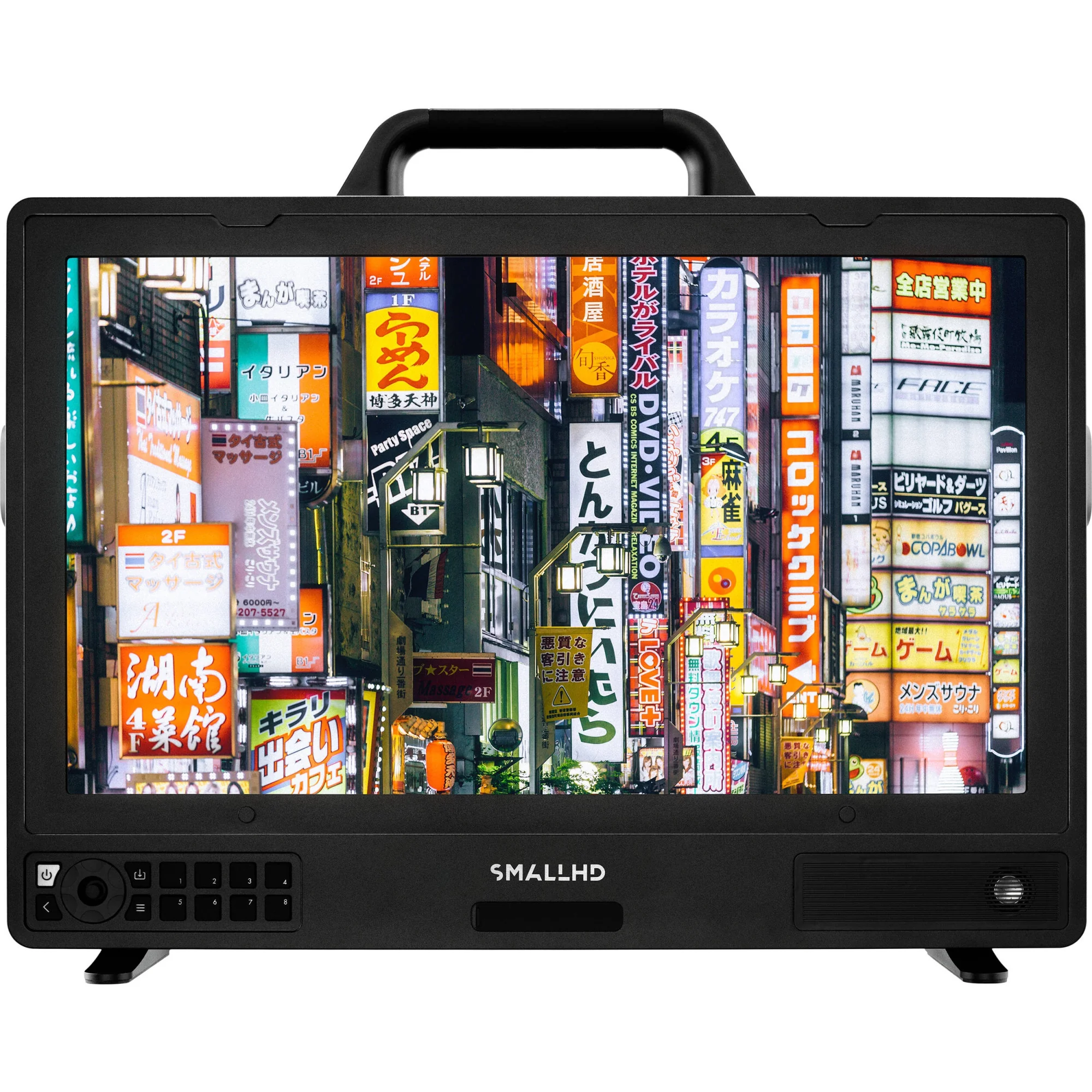

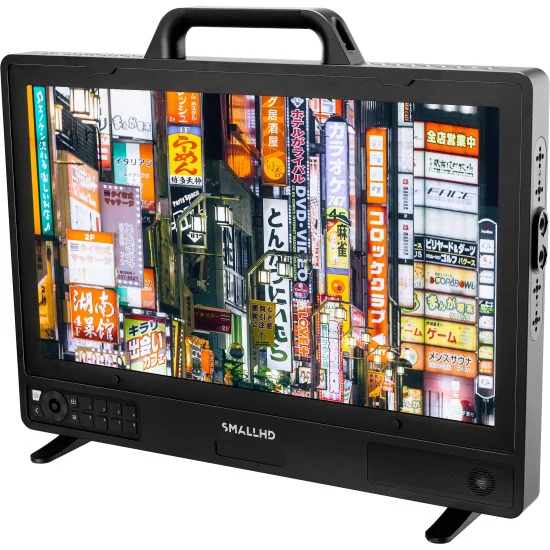

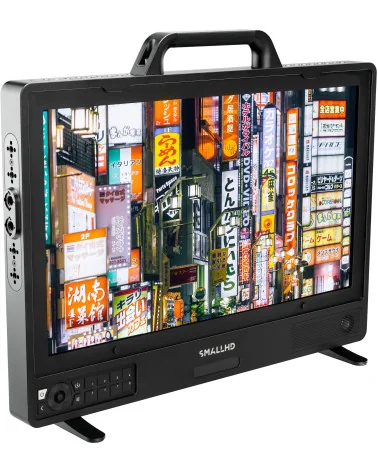

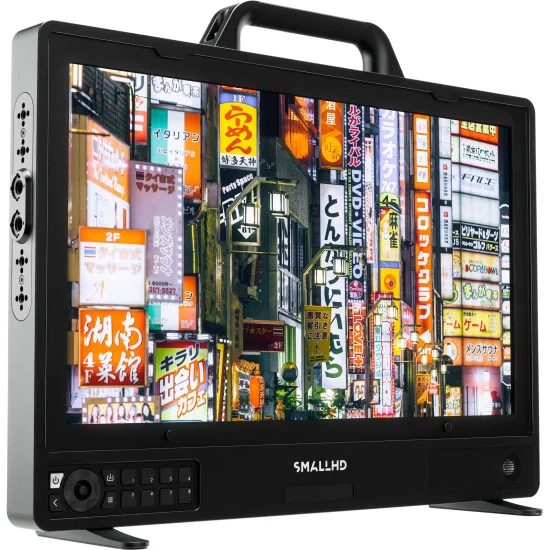

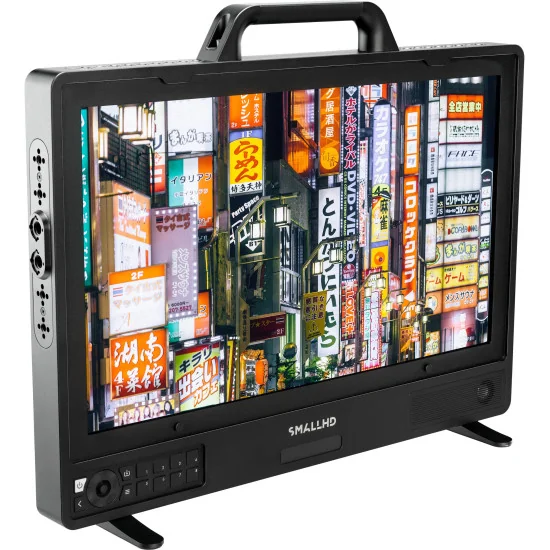

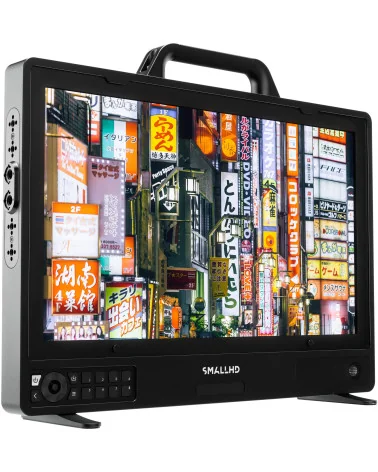

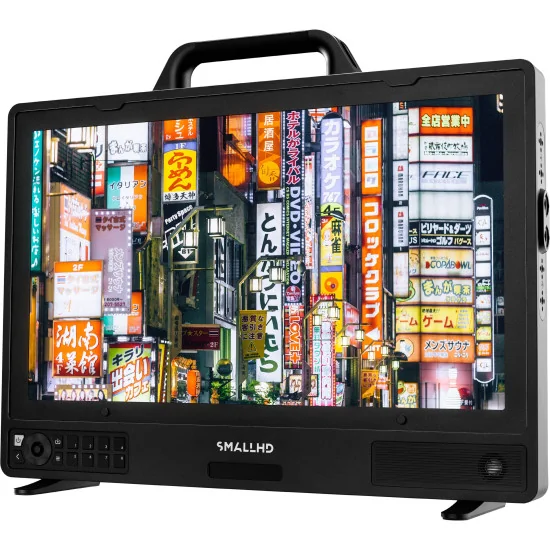

SmallHD Cine 18 Moniteur de studio

Name: SmallHD Cine 18 Moniteur de studio
Brand: SmallHD
SKU: SHD-16-1801
Price: 5849.00 EUR
Availability: InStock

MPN: SHD-16-1801

Prix : 5 849,00 €

Ventes à l'échelle de l'UE, facturation pour livraisons intracommunautaires exonérée de TVA.

In stock (Shipping 3-7 working days.)

Le SmallHD Cine 18 Moniteur 4K Haute Luminosité est conçu pour les professionnels exigeant une fidélité d’image précise dans des environnements de production dynamiques. Son écran LCD de 18,4 pouces (46,7 cm) rétroéclairéoffre une résolution de 3840 x 2160, garantissant des visuels nets avec une luminosité de 1100 nits pour une visualisation fiable en plein jour. Le moniteur prend en charge une profondeur de couleur de 10 bits (8+2 FRC), couvrant 100 % de l’espace colorimétrique Rec. 709 et 98 % du DCI-P3, facilitant ainsi un étalonnage et une surveillance des couleurs précis.

Construit avec un châssis monocoque en aluminium léger, le Cine 18 est à la fois robuste et portable, pesant environ 5,4 kg. Son rapport de contraste de 1300:1 et son angle de vision de 178° offrent une qualité d’image constante sous divers angles de vue. Le moniteur intègre le PageOS 5 de SmallHD, proposant des outils tels que forme d’onde, vectorscope, fausse couleur et prise en charge des LUT 3D, améliorant les capacités de surveillance sur le plateau.

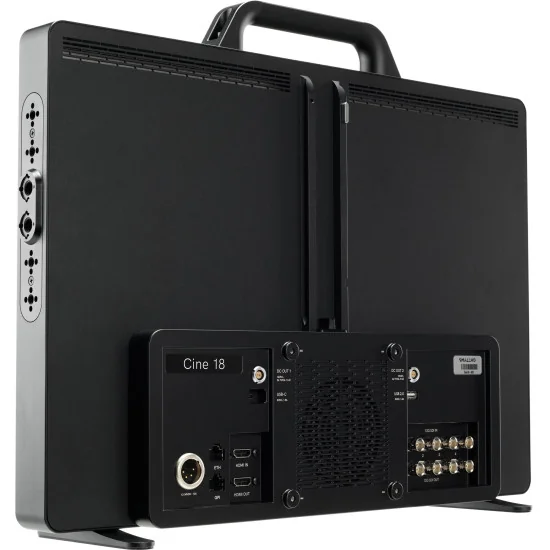

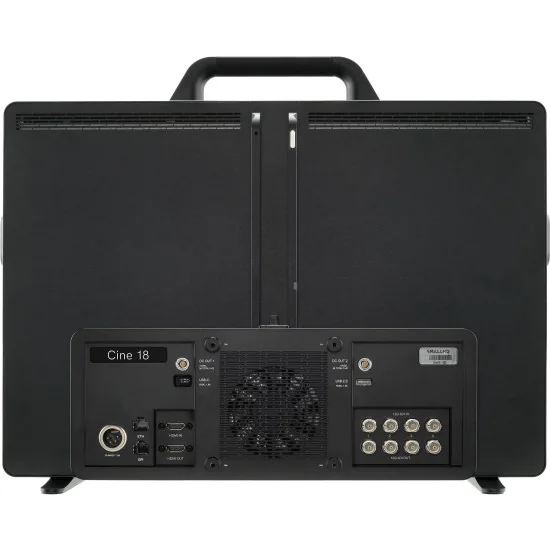

Les options de connectivité comprennent quatre entrées et sorties 12G-SDI, une entrée et sortie HDMI 2.0, et un emplacement pour carte SD pour le chargement des LUT. L’alimentation peut être fournie via un XLR 4 broches (12–34V DC) ou via des plaques de batterie double échangeables à chaud (V-Mount ou Gold Mount, vendues séparément). Les fonctionnalités supplémentaires incluent deux sorties LEMO 12V à 2 broches, des ports USB-A et USB-C, ainsi que des ports RJ45 Ethernet et GPI pour un contrôle et une intégration étendus.

Conçu pour la polyvalence, le Cine 18 convient à divers rôles, du moniteur de réalisateur au centre de station DIT. Sa combinaison d’affichage haute résolution, de précision colorimétrique complète et de construction robuste en fait un outil indispensable pour les flux de travail de production vidéo modernes.

Expédition vers l'UE

Livraison dans toute l’UE pour 20 €, gratuite dès 1 000 €.

Boutique B2B

Boutique B2B réservée aux professionnels, prix HT.

Achats en toute sécurité

Distribution et garantie officielles de l'UE.

Paiement sécurisé

Paiements en ligne sécurisés via Stripe.

Devis individuel

Demande de devis via formulaire ou e-mail: avgear@avgear.shop

CINE SERIES - 4K High-Bright Workhorse
Daylight-bright Cine 4K Monitors are color-accurate, lightweight, durable, and easily adapt to a wide range of production use cases: Video Village, AC, DP, DIT, or as a director’s monitor.

PAGEOS 5
A Dedicated OS Designed for Production Monitors
All our production monitors run on PageOS, which features the powerful new functionality of Multi-View & seamless integration with Calman® calibration software on 4K production monitors. Additionally, PageOS introduces highly-anticipated tools like Look-Around Camera Control on all pages, EL Zone false color, Tetrahedral LUT interpolation, improved HD upscaling, and more.

Color Pipe
Easily configure each of the five independent 4K video inputs on SmallHD 4K Production monitors with a custom input and output display configuration. Convert camera log signals into multiple HDR or SDR display setups, and switch effortlessly between these presets with the click of a function button on any page.

Multi-View
View up to four camera feeds at once on Cine and OLED Series and up to two camera feeds on Vision Monitors. Select from several options for multi-view configuration, and assign scopes and other video engineering tools for an endless variety of customizable layouts.

Integrated Calibration
SmallHD monitors are Calman® Ready, with a seamless integration tool for Cine and OLED 4K Series Production Monitors. Connect your 4K monitor via ethernet to a computer with a calibration probe running Portrait Displays® Calman®, and a calibration LUT will be uploaded directly into your monitor when finished.

EL Zone
The stop-based exposure map tool—developed in collaboration with legendary cinematographer, Ed Lachman, ASC—that works like a virtual spot meter, replacing IRE exposure values with stops. Sensor data from the camera provides a reference point, and a false color represents each stop above and below 18% gray, allowing for easier, more intuitive on-set communication.

Livegrade Integration
Pomfort Livegrade is now an integrated plug-in, enabling colorists and DITs to connect their reference monitor with a computer via single Ethernet cable, transforming their monitor into a dual-purpose color grading tool.

Video Engineering Tools

4K WAVEFORM
Robust exposure tool plotting your images luminance and chrominance to a graph that matches your screen left to right.

VECTORSCOPE
Plots the hue + saturation onto a color wheel, so to help gauge complimentary color.

HISTOGRAM
High resolution, low latency histogram is perfect for determining the overall exposure balance of your image.

EXPOSURE MEASUREMENT
Choose from industry-standard options or create your own custom False Color mapping.

Lightweight. Durable. Adaptable.
A Unibody Smart Chassis, a full complement of I/O options, integrated mounting points, and a field-tested reputation for lightweight durability.

QD-LED Edge-Lit LCD Panel Technology
The LEDs SmallHD sources for Cine Series panels have the highest tolerance for color uniformity. These LEDs are built into an edge-lit panel stack that diffuses and focuses the light with a quantum-dot film layer to ensure the purest color accuracy. The result is an extremely bright monitor with excellent image fidelity.

SPECS

Environmental
Item Weight (oz): 11.15lbs/5.06kg
Compliance: FCC, IC, CE, RoHS, SRRC, MIC
Operating Temperature: 32 F - 100 F
Storage Temperature: 0 F - 105 F
Screen Protection: Basic and Hardened
Mount Points: Interchangeable accessory mount plates on top and sides with multiple ¼”-20 and/or ⅜”-16 options
Construction: Anodized aluminum chassis with plastic accents

Display
Diagonal Size: 18.4
Resolution: 3840x2160
Max Brightness: 1100nits
Contrast: 1300:1
Gamut: Rec709 coverage 100% DCI_P3 coverage 97.77%
Color Depth: 10-bit (8+2)
Backlight Type: Edgelit
Refresh Rate: Synchronizes with input from 48Hz to 60Hz

Input Signal

3G-SDI Input Types
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98

6G-SDI Input Types
YCC 4:2:2 @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95

12G-SDI Input Types
YCC 4:2:2 @ 10 bits: DCI-4Kp60, DCI-4Kp59.94, DCI-4Kp50, DCI-4Kp48, DCI-4Kp47.95, 2160p60, 2160p59.94, 2160p48, 2160p47.95 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:2:2:4, RGB, @ 12 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98

HD-SDI Input Types
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

SD-SDI Input Types
YCC 4:2:2 @ 10-bits: 480i59.94, 576i50

HDMI Input Types
YCC 4:2:2 @ 12 bits, RGB & YCC 4:4:4 @ 8bits: DCI-4Kp60, DCI-4Kp59.94, DCI-4Kp50, DCI-4Kp48, DCI-4Kp47.95, 2160p60, 2160p59.94, 2160p48, 2160p47.95 YCC 4:2:2: @ 12 bits, RGB & YCC 4:4:4 @8/10/12/16 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25

Output Signal

3G-SDI Output Types
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98

6G-SDI Output Types
YCC 4:2:2 @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95

12G-SDI Output Types
YCC 4:2:2 @ 10 bits: DCI-4Kp60, DCI-4Kp59.94, DCI-4Kp50, DCI-4Kp48, DCI-4Kp47.95, 2160p60, 2160p59.94, 2160p48, 2160p47.95 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:2:2:4, RGB, @ 12 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98

HD-SDI Output Types
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

SD-SDI Output Types
YCC 4:2:2 @ 10-bits: 480i59.94, 576i50

HDMI Output Types
YCC 4:2:2 @ 12 bits, RGB & YCC 4:4:4 @ 8bits: DCI-4Kp60, DCI-4Kp59.94, DCI-4Kp50, DCI-4Kp48, DCI-4Kp47.95, 2160p60, 2160p59.94, 2160p48, 2160p47.95 YCC 4:2:2: @ 12 bits, RGB & YCC 4:4:4 @8/10/12/16 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25

Audio Output Types: 1x 3.5mm 3-pin Stereo Headphone Jack

Connector Type
Component: Not Supported
Composite: Not Supported
Audio: HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels

Data I/O
Connector Type: 1x SD Card Slot, 1x RJ45 Ethernet, 1x RJ45 GPI

Power
Input: 1x XLR 4-pin 12 - 34VDC IN (210W max, 12V-34V, 18A max)
Output: 2x 2pin (12V / 2A combined), 1x USB-A (2.4A) (Front), 1x USB-A (1.5A) (Rear), 1x USB-C (5V / 1.5A) (Rear)
Battery Plate Included: No
Battery Types: 1x Dual-GM/VM Batt.Plate (14/26V) (sold as accessory)
