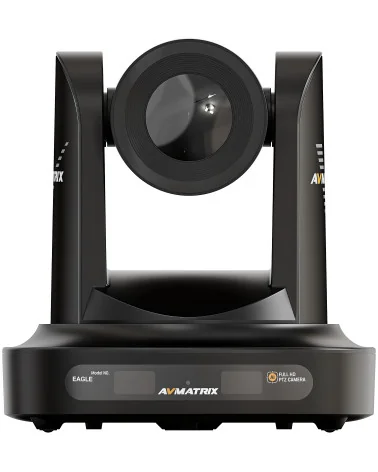

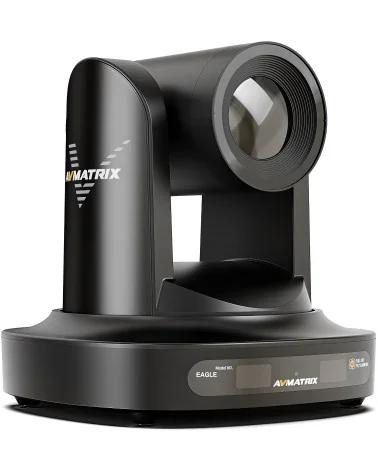

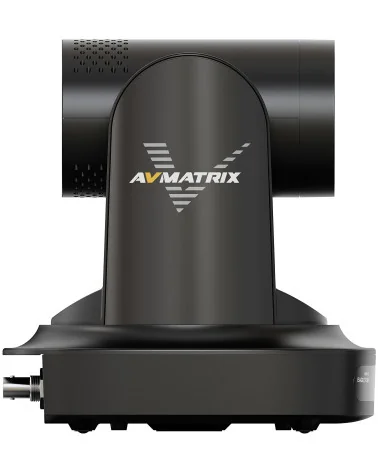

AVMATRIX EAGLE P12A-NDI Caméra PTZ

Name: AVMATRIX EAGLE P12A-NDI Caméra PTZ
Brand: AVMATRIX
SKU: EAGLE P12A-NDI
Price: 799.00 EUR
Availability: InStock

MPN: EAGLE P12A-NDI

Prix : 799,00 €

Ventes à l'échelle de l'UE, facturation pour livraisons intracommunautaires exonérée de TVA.

Disponible chez le fournisseur (délai de livraison à confirmer)

AVMATRIX EAGLE P12A-NDI est une caméra PTZ Full HD 1080p60 pour la régie, la captation de cours et les studios corporate où l’on attend des axes reproductibles et une colorimétrie stable. Le capteur CMOS HD 1/2,8" (2,07 MP, 16:9) est donné pour un SNR≥50 dB et une sensibilité de 0,5 lux (F1,8, AGC). Le traitement inclut réduction de bruit 2D/3D, compensation de contre-jour, réglage du niveau de dynamique, gamma sélectionnable et réglages d’image (luminosité, couleur, saturation, contraste, netteté, mode N/B).

L’optique zoom optique 12x (f=4,1–49,2 mm) couvre un champ horizontal de 70,28° à 6,57° pour passer du plan d’ensemble au gros plan conférencier. Mise au point, iris et obturateur fonctionnent en auto ou manuel; la balance des blancs propose auto, one-touch, manuel et température spécifiée de 2400–7100 K par pas de 100 K. L’auto-tracking IA assure Real-time, Stage Tracking, Area Tracking et Intelligent Framing, avec placement rapide du sujet et choix de taille de cadrage; la portée de suivi est donnée jusqu’à 18 m.

Les sorties sont simultanées en NDI|HX3 sur Ethernet, 3G-SDI, HDMI et USB 3.0 UVC/UAC, afin d’alimenter un mélangeur, un multiview et une capture ordinateur en parallèle. Sur le réseau, encodage H.264/H.265/MJPEG avec transport via RTSP, RTMP/RTMPS, SRT, ONVIF et FreeD. Une entrée ligne double canal 3,5 mm et l’audio AAC ou G.711A gardent un retour console intégré sur IP, NDI, SDI, HDMI et USB.

L’intégration s’effectue via PoE+ (IEEE 802.3at) ou alimentation 12 V DC à verrouillage, et le pilotage via VISCA (RS-232/RS-485), VISCA over IP et Pelco-D/P, complété par l’interface web et les pupitres joystick. Les mouvements atteignent ±170° en pan et -30°/+90° en tilt, avec des vitesses jusqu’à 100°/s et 45°/s, et jusqu’à 255 préréglages (10 via IR) pour rappeler des axes en direct. Mise à jour, redémarrage et réinitialisation à distance simplifient la maintenance d’un parc en installation fixe ou en flypack.

Expédition vers l'UE

Livraison dans toute l’UE pour 20 €, gratuite dès 1 000 €.

Boutique B2B

Boutique B2B réservée aux professionnels, prix HT.

Achats en toute sécurité

Distribution et garantie officielles de l'UE.

Paiement sécurisé

Paiements en ligne sécurisés via Stripe.

Devis individuel

Demande de devis via formulaire ou e-mail: avgear@avgear.shop

Al Auto Tracking
Supports four intelligent tracking modes: Real-time, Stage Tracking, Area Tracking, and Intelligent View. Automatically follows subjects and adapts to different scenes, ensuring smooth, professional-level framing for live events, lectures, or presentations.

Quick Subject Framing
Quickly choose the subject position (Left / Middle / Right) and frame size (Close / Half / Full / Custom), perfect for dynamic shooting and Al tracking scenarios. In Real-Time Tracking mode, both position and frame size can be adjusted, while Stage Tracking mode allows adjustment of frame size.

Zoom Lens Optional
Provides 12×/20×/30x optical zoom lens for effective close-up and wide-angle shooting. Quick pan and tilt speeds and picture controls like brightness, color, saturation, contrast, sharpness provide precision control of your images.

Easily Control The PTZ camera can be easily controlled by IR remote control, Web Ul as well as the joystick camera controller via IP or serial port. Multiple control protocols are supported including ONVIF, VISCA over IP, VISCA, PELCO-D, PELCO-P, NDI|HX3.

Threaded DC & PoE Power
Lockable threaded power and POE dual power supply ensure stable and reliable power delivery. Even in dynamic scenarios or frequent movement, the screw-lock DC connector prevents accidental disconnection, guaranteeing continuous power for uninterrupted shooting and live streaming.

A Variety of Installation
Support image flip function, the bottom thread of the camera can be used for mounting suitable for tripod mounting wall mounting, ceiling mounting. Widely used in many applications in broadcasting, education, church and other fields.

Application Fields
The PTZ camera can be widely used in various field events, such as conference, church, concert, education, interviews, sport live and other live broadcast activities.

HDMI & SDI Dual Outputs
Equipped with dual HDMI and SDI outputs, it supports simultaneous output of signals up to FHD 1080p resolution. Audio signals can be embedded into the SDI/HDMI channels to deliver high-quality video to monitors, switchers, and broadcast systems. This makes it ideal for live streaming, professional production, and multi-screen display applications.

USB Capture & LAN Streaming
Equipped with USB and LAN ports, this PTZ camera supports direct USB capture for video conferencing and computer recording, as well as LAN streaming to platforms via ONVIF/ RTSP/ RTMP/ SRT/ NDI|HX3. Flexible, professional, and easy to deploy for any live production.

PARAMETERS
Image Sensor: 1/2.8 inch high quality HD CMOS sensor
Effective Pixel: 2.07M, 16:9
Optical Lens: 12X f=4.1~49.2mm
Viewing Angle: D: 78.36° - 7.50°, H: 70.28° - 6.57°, V: 42.06° - 3.76°
Digital Zoom: 16 X
Minimum Illumination: 0.5Lux (F1.8, AGC ON)
DNR: 2D&3D
White Balance: Auto/Manual/One Touch White Balance/Specified Color Temperature (2400K-7100K, adjustable in 100K steps)
Focus: Auto/Manual/One-push
Iris: Auto/Manual
Electronic Shutter: Auto/Manual
BLC(Backlight Compensation): On/Off
Dynamic Range: Off/ Dynamic level adjustment
Video Adjustment: Brightness, Color, Saturation, Contrast, Sharpness, B/W Mode, Gamma curve
SNR: ≥50dB

INTERFACE
Video output: HDMI, SDI, LAN, USB3.0
Video Format:
HDMI/SDI interface video format: 1080P60/59.94/50/30/29.97/25, 1080|60/50/59.94, 720P60/59.94/ 50
USB3.0: YUY2/NV12: 1920*1080/1280*720/1024*576/800*600/800*448/640*480/640*360/480*270/320*180@60/30/25/20/15/10/5fps;
MJPG/H264/H265: 1920*1080/1280*720/640*360/640*480/320*240/320*180@60/30/25/20/15/10/5fps
LAN: Main Stream: H264/H265/MJPEG: 1920*1080/1280*720/640*480@60/30/25/20/15/10/5fps
Sub-stream: H.264/H.265/MJPEG: 1280*720/640*360/640*480/320*240/320*180@60/30/25/20/15/10/5fps;
Video compression formats: LAN: H.265, H.264 USB 3.0: MJPG, H264, H.265, YUY2, NV12
Video Bitrate: 64-40960
Bitrate Control: Fixed Bitrate, Variable Bitrate
Frequency: 50Hz:1fps ~ 50fps 60Hz:1fps ~ 60fps
Audio In Interface: Dual audio channel 3.5mm linear input
Audio Output Interface: HDMI, LAN, USB 3.0, SDI
Audio Bitrate: 96Kbps, 128Kbps
Audio Compression Format: AAC, G.711A
Network Interface: 100M Ethernet port, optional POE+ IEEE 802.3at power supply, supports audio and video output
Network Protocol: RTSP, RTMP, ONVIF, GB/T28181, SRT, FreeD, NDI|HX3/ND16.0(Optional), IP VISCA, supports remote upgrade, remote reboot, and remote reset
Control Interfaces: RS232-IN, RS232-OUT, RS485
Serial Communication Protocol: VISCA/Pelco-D/Pelco-P; Supports baud rates of 115200/38400/9600/4800/2400
USB Communication Protocol: UVC (Video Communication Protocol) UAC (Audio Communication Protocol)
Power Interface: HEC3800 power socket (DC12V)
Power Adapter: Input:AC110V-AC220V Output:DC12V/1.5A
Input Voltage: DC12V+10%
Input Currency: ≤1.2A
Power Consumption: ≤13 W

PTZ
Pan: -170°~+170°
Tilt: -30°~+90°
Pan Speed: 0.1~100%s
Tilt Speed: 0.1~45/s
Preset Speed: Pan: 100%s, Tilt: 45%
Preset Quantity: User can set 255 presets (10 via IR remote control)

MONOCULAR TRACKING
Tracking Modes: Off, Real-time Tracking, Stage Tracking, Area Tracking, and Intelligent Framing
Tracking Distance: Maximum tracking distance up to 18 meters

OTHERS
Storage Temperature: -10°C~ +70°C
Storage Humidity: 20% ~ 95%
Working Temperature: -10°C~+50°C
Working Humidity: 20% ~80%
Dimension: 170×170×180mm
Weight: 1.26kg
Environment: Indoors
