AVMATRIX EAGLE P20-12G-NDI PTZ Bundle regroupe une configuration 3 caméras / 1 pupitre pour la captation multi-angle : trois caméras PTZ EAGLE P20-12G-NDI et le contrôleur PKC4000-NDI. Chaque caméra embarque un capteur 8,3 MP CMOS 1/1,8" et sort du UHD 3840×2160 jusqu’à 60p/59,94, avec réduction de bruit 2D/3D et une sensibilité annoncée à 0,05 lux (F1,61). L’optique zoom optique 20× (7,1–141,3 mm, 59,2° en grand-angle) s’accompagne d’un zoom numérique 12×, de la mise au point auto et d’une entrée ligne 3,5 mm, audio AAC/G.711A/U.
La connectique couvre les régies hybrides : sorties synchrones double 12G-SDI, HDMI 2.0, USB 3.0 UVC et IP / NDI|HX3, pour alimenter en parallèle un switcher SDI 4K, le monitoring HDMI, un hôte USB de visioconférence et un réseau NDI. Encodage H.265/H.264/MJPEG; transport IP via RTSP, RTMP/S, SRT et ONVIF, avec options GB28181 et VPN, sur une interface Ethernet Gigabit pour transport et pilotage, avec audio via HDMI/SDI/NDI.
La mécanique suit les contraintes plateau : panoramique ±175° et inclinaison −30° à +90°, vitesse variable jusqu’à 100°/s (pan) et 80°/s (tilt). Jusqu’à 255 préréglages par caméra et le gel d’image au rappel sécurisent les changements de plans, tandis que le tally bicolore simplifie l’identification on-air. La prise en charge de FreeD fournit les données de tracking pour les workflows VR/AR.
Le PKC4000-NDI centralise l’exploitation en studio, captation de cours, lieux de culte, salles d’audience, événements d’entreprise et enceintes sportives. Un écran tactile 5 pouces, un joystick et des molettes donnent accès à l’exposition, la balance des blancs, la mise au point et le zoom, avec décodage vidéo intégré pour contrôle. Il adresse jusqu’à 100 caméras IP en 10 groupes et mémorise jusqu’à 255 presets. La connectique comprend RJ45 avec PoE+, RS-232, lignes RS-485/RS-422, tally et port USB-C service; prot. ONVIF, VISCA-IP et NDI, plus Pelco-D/P et VISCA en série (2400–115200 bps) pour parcs mixtes.
Au lieu de 6 506,00 €
AVMATRIX EAGLE P20-12G-NDI PTZ Bundle regroupe une configuration 3 caméras / 1 pupitre pour la captation multi-angle : trois caméras PTZ EAGLE P20-12G-NDI et le contrôleur PKC4000-NDI. Chaque caméra embarque un capteur 8,3 MP CMOS 1/1,8" et sort du UHD 3840×2160 jusqu’à 60p/59,94, avec réduction de bruit 2D/3D et une sensibilité annoncée à 0,05 lux (F1,61). L’optique zoom optique 20× (7,1–141,3 mm, 59,2° en grand-angle) s’accompagne d’un zoom numérique 12×, de la mise au point auto et d’une entrée ligne 3,5 mm, audio AAC/G.711A/U.
La connectique couvre les régies hybrides : sorties synchrones double 12G-SDI, HDMI 2.0, USB 3.0 UVC et IP / NDI|HX3, pour alimenter en parallèle un switcher SDI 4K, le monitoring HDMI, un hôte USB de visioconférence et un réseau NDI. Encodage H.265/H.264/MJPEG; transport IP via RTSP, RTMP/S, SRT et ONVIF, avec options GB28181 et VPN, sur une interface Ethernet Gigabit pour transport et pilotage, avec audio via HDMI/SDI/NDI.
La mécanique suit les contraintes plateau : panoramique ±175° et inclinaison −30° à +90°, vitesse variable jusqu’à 100°/s (pan) et 80°/s (tilt). Jusqu’à 255 préréglages par caméra et le gel d’image au rappel sécurisent les changements de plans, tandis que le tally bicolore simplifie l’identification on-air. La prise en charge de FreeD fournit les données de tracking pour les workflows VR/AR.
Le PKC4000-NDI centralise l’exploitation en studio, captation de cours, lieux de culte, salles d’audience, événements d’entreprise et enceintes sportives. Un écran tactile 5 pouces, un joystick et des molettes donnent accès à l’exposition, la balance des blancs, la mise au point et le zoom, avec décodage vidéo intégré pour contrôle. Il adresse jusqu’à 100 caméras IP en 10 groupes et mémorise jusqu’à 255 presets. La connectique comprend RJ45 avec PoE+, RS-232, lignes RS-485/RS-422, tally et port USB-C service; prot. ONVIF, VISCA-IP et NDI, plus Pelco-D/P et VISCA en série (2400–115200 bps) pour parcs mixtes.
Livraison dans toute l’UE pour 20 €, gratuite dès 1 000 €.
Boutique B2B réservée aux professionnels, prix HT.
Distribution et garantie officielles de l'UE.
Paiements en ligne sécurisés via Stripe.
Demande de devis via formulaire ou e-mail: avgear@avgear.shop

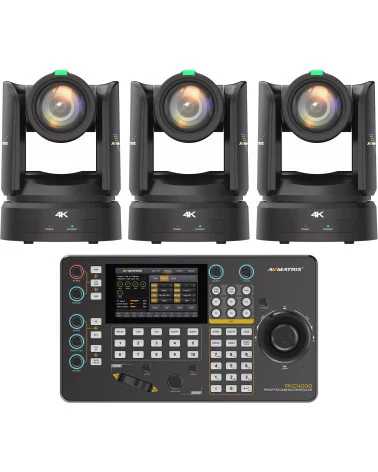

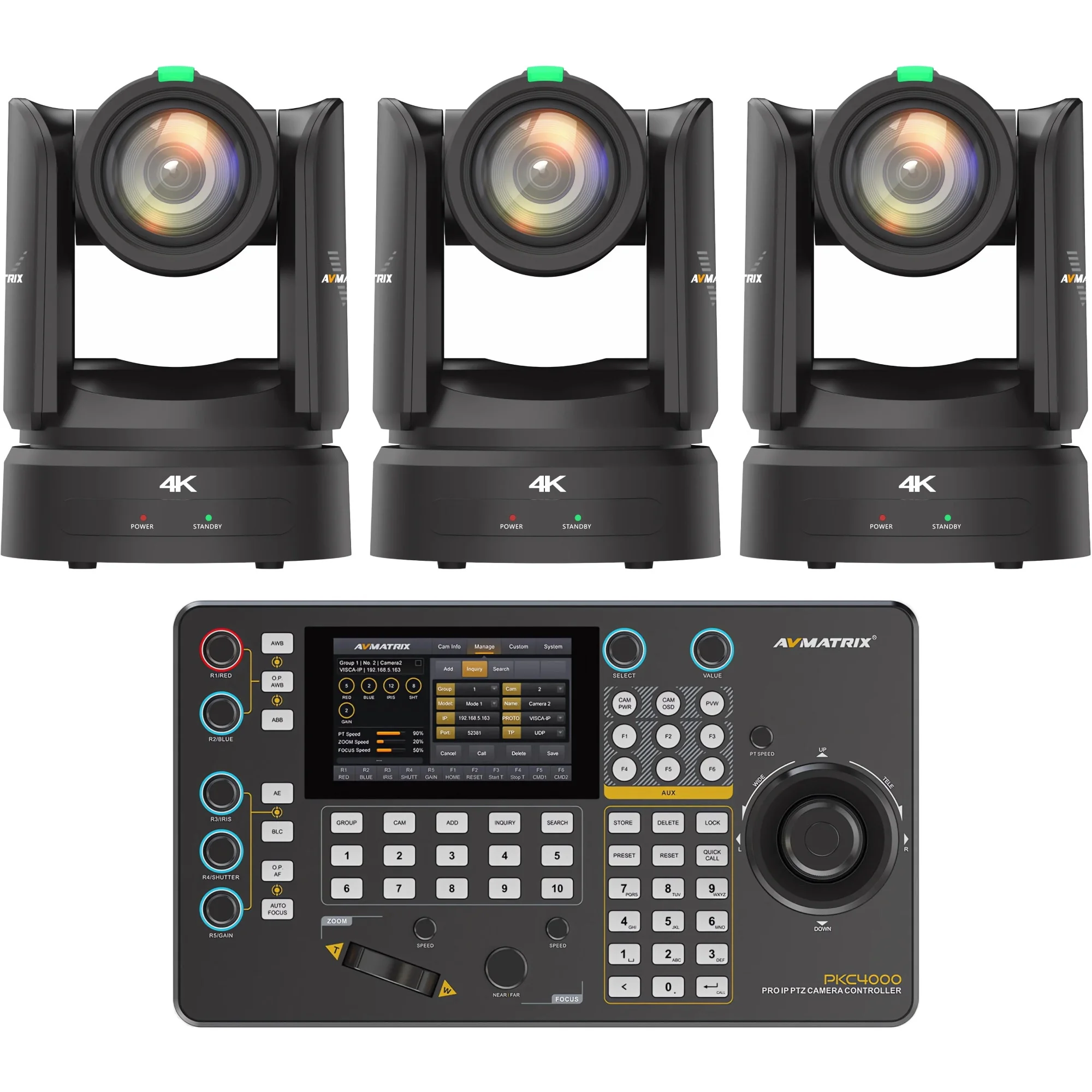

Complete set for live broadcasting: 3x AVMATRIX EAGLE P20-12G-NDI PTZ camera + PKC4000-NDI controller

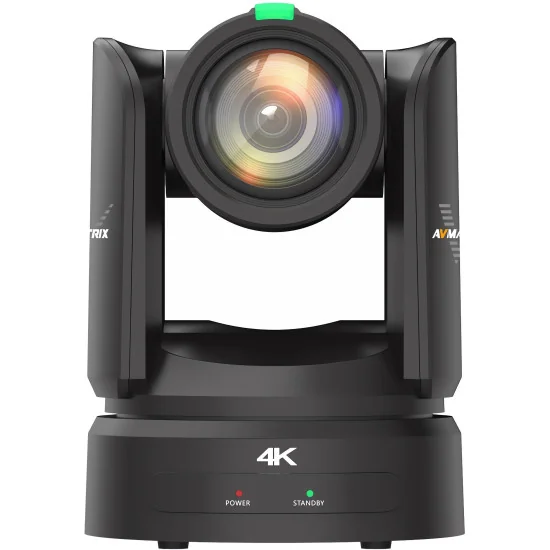

EAGLE P20/P30 Series
EAGLE P20/P30 adopts a new ROBOTIC concept appearance & U Type design, more stable and more smoothly in Pan/Tilt move. It will provide users with Real 4K@60 ultra-high-definition video experience with More Really, More Colorful, More Clear.
Equipped with 1/1.8” New Generation Sony 4K High quality Sensor, with 20X/30X multiple Optical Zoom lenses, and abundant Video interface; Support USB3.0、HDMI2.0 and Dual 12G-SDI Video output, and it can support NDI/HX3, which can give User give users the option to join Ultra HD broadcast workflows or transmit low latency UHD video over IP networks; SRT & FreeD Protocol also will be help user in AR/VR filed. And Built-in VISCA/Visca Over IP/ PELCO P/D/ ONVIF communication Protocol to to seamlessly integrate system control applications,
It can be widely used in Broadcast studios, Education recording, Conferences AV, Telemedicine, Remote training, Court trial systems, Emergency command systems, and Sports & Events Streaming.
4K Ultra-High-Definition ultimate picture quality, More Really, More Colorful, More clear
EAGLE P20/P30 Adopt 8.3 Megapixels Sony high quality 4K CMOS sensor, can reach maximum 3840x2160 resolutions and output frame rate up to 60fp &59.94.
20/30X optical zoom lens to capture every detail of what you need
Equipped with a 1/1.8" new generation SONY sensor, a variety of optical zoom lenses such as 20x and 30x can be selected. with Fast zoom and focus capabilities to provide clear and smooth images for user.
Abundant Interface, Max support Dual 12G-SDI video synchronous Video output
Support HDMI 2.0 HD，2*12G-SDI and IP Streaming/NDI output, USB3.0 uncompressed UVC output, optional SDVoE uncompressed network output, and all HDMI, SDI, IP, USB, SDVoE interfaces can synchronous output 4K60 images, Especial UHD800 Dual SDI Video Output design.Multi-channel SDI signal output can be realized without SDI distributor.
Live VR/AR video production
EAGLE P20/P30 supports the FreeD protocol. This enables users to work with Virtual Reality and Augmented Reality sets without the need for additional sensors.
Support multiple communication ways in remote control
EAGLE P20/P30 Built-in Multiple Communication Protocol of VISCA/UDP/ONVIF/PELCO/P, PELCO D/UVC. it can support Communition Control by RS485/RS422/RS232/USB3.0/ IP interface.
More stable and More smoothly & Ultra-silent in Pan/Tilt move
Using high-precision stepping motor with "U" Type Structure design in our Ultra-unique silent Drive, More stable and More smoothly in Pan/Tilt move, Ultra-silent.
Supports the preset freeze function, scene switching
The camera supports the preset freeze function. Users can enable this function and use the preset function to realize free switching of scenes.
Max Support 255 Presets
The camera can setting & call Presets max to 255 presets. (The Remote controller max support 10 Presets), You can freely switch the image at will, even in complex scenes，Don't let you miss every important moment.
IP Streaming in your video production
Support ONVIF, RTSP, RTMP/s, NDI|HX3, SRT protocols, and can be expanded according to user needs.
Double Color Tally Light
The Tally light support 2 kinds of color Red & Green. and the brightness can be adjusted according to customize. Distributed in Front or Behind of Camera.
360° infrared remote control
Supports 360° infrared remote control, no matter what angle or position，the user can freely control the camera through Remote Controller.
Specifications
Model: EAGLE P20-12G
CMOS Sensor: 1/1.8” CMOS
Zoom: 20X
Effective Pixels: 8.3 Megapixels
Video Format: 2160P60/59.94, 2160P50, 2160P30/29.97, 2160P/25, 1080P60/59.94, 1080P50, 1080P30/29.97, 1080P25, 1080i60/59.94, 1080i50, 720P60/59.94, 720P50
Optical Zoom: 20x Optical Zoom, 12X Digital Zoom
Focal Length: f=7.1~141.3mm
HFOV: 3.6°(T) ~59.2°(W)
Iris: F1.61 ~ F5.19
Min Illumination: 0.05 lux (F1.61)
Digital Noise Reduction: 2D&3D Noise Reductio
White Balance: Manual/Auto/Indoor/outdoor/One Push//3000K/4000K/5000K/6500K/ATW
Focus mode: Manual/Auto/Z- Trigger
Iris mode: Manual/Auto
BLC: 1-8/OFF
Picture adjustment: Brightness, Hue, Saturation, Contrast, Sharpness

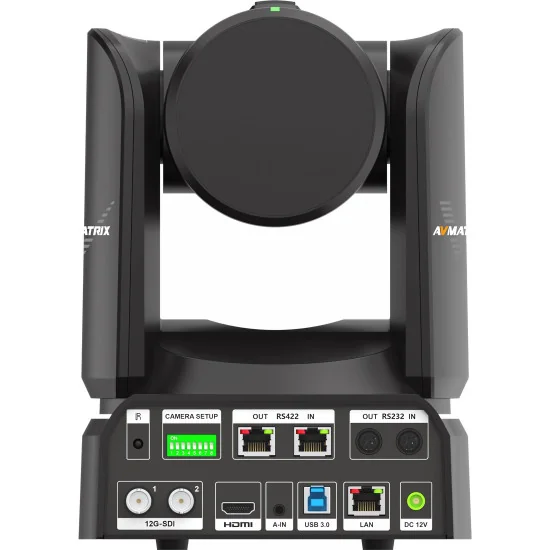

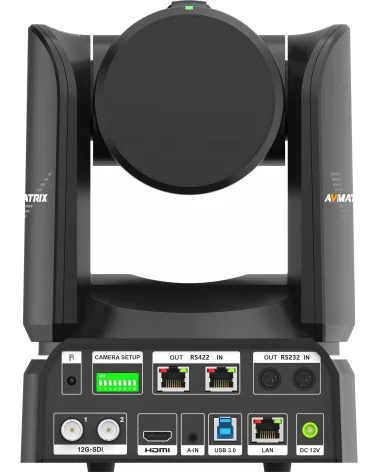

Video Output Interface: HDMI2.0, 12G-SDI*2, RJ45, USB3.0
Video Compression Format: H.264, H.265, MJPEG
Control interface: 1X RS232 IN, 1X RS232 Out, 1X RS422 IN, 1X RS422 Out , 1X RJ45
Control Protocol: VISCA /PELCO-D / PELCO-P, VISCA OVER IP, ONVIF, UVC（only for USB interface）
Baud Rate: 2400/4800/9600/19200/38400bps
Audio Input: Dual channel 3.5mm line input
Audio Compression: ACC, G711A, G711U
Network Interface: 1000M Internet Access(10/100BASE-TX)
Network Protocol: RTSP, RTMP, ONVIF, SRT, GB28181, VPN
NDI Protocol: NDI|HX3
Power Interface: DC-038 Outlet(DC12V)
Pan Rotation Anglee: -175°~+175°
Tilt Rotation Angle: -30°~+90°
Horizontal rotation speed range: 0.1~100°/s
Vertical rotation speed range: 0.1-80°/s
Presets: Max Support 255 Presets
Power Adapter: AC100V~AC240V Input, DC12V/2A Output
Input Voltage: DV12V
Power Consumption: 15W(MAX)
Storage Environment: -10°C ~ +60°C / 20% ~ 95%
Working Environment: -10°C ~ +50°C / 20% ~ 80%

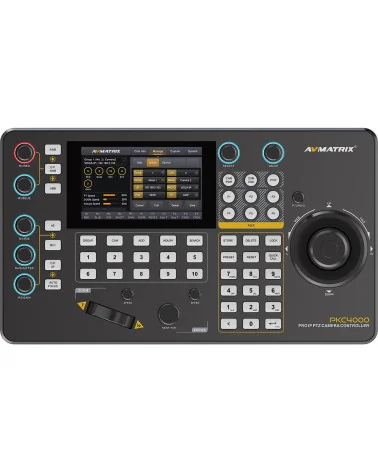

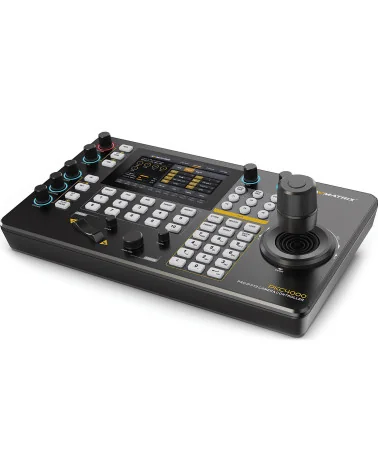

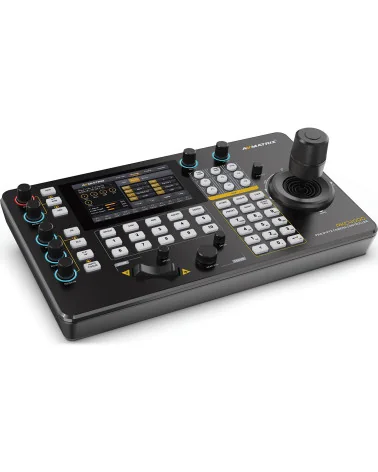

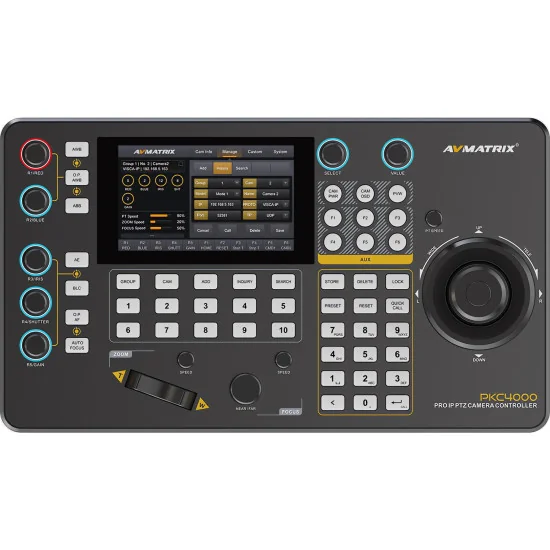

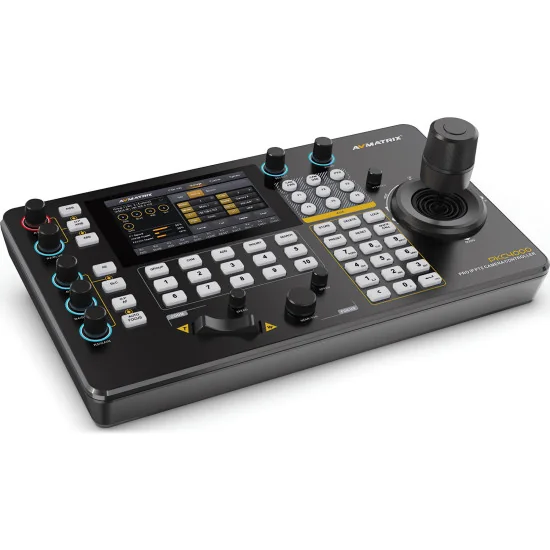

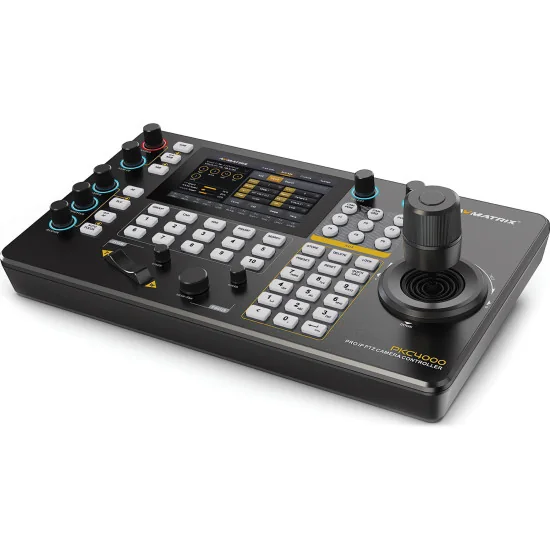

AVMatrix PKC4000 is a PTZ camera controller with IP and serial interface, touch screen and joystick.
- Easy operation with 5" touch screen and 4D joystick
- Supports video decoding for real-time signal monitoring
- Supports Visca, Visca Over IP, Pelco P&D and Onvif protocols, NDI version also supports NDI|HX
- Control over IP, RS-422, RS-485 and RS-232
- Automatic IP address assignment for quick setup
- Manage up to 100 IP cameras on a single network
- Six user-assignable buttons for quick access to functions
- Quickly control exposure, aperture, focus, pan, tilt, etc.
- Supports PoE and external 12 V= power supply
The touchscreen installation camera controller offers easy and intuitive operation with a 5" touchscreen and 4D joystick. It supports Visca, Visca Over IP, Pelco P&D and Onvif protocols and allows control via IP, RS-422, RS-485 and RS-232 interfaces. With real-time video monitoring, automatic IP address assignment and management of up to 100 IP cameras, it ensures efficient PTZ camera operation. Support for video decoding enables real-time signal monitoring and provides users with live feedback for accurate setup. Automatic IP address assignment simplifies the setup process, while the controller's ability to manage up to 100 IP cameras on a single network makes it suitable for large-scale productions. In addition, the panel features six user-assignable buttons for quick access to basic functions and offers dedicated controls for adjusting exposure, aperture, focus, pan, tilt and more. The device can be powered via PoE or a 12V DC power supply, and an NDI version is available for those requiring advanced IP video workflows.
CONNECTIONS
Interfaces: IP(RJ45)×1, RS-232×1, RS-485/RS-422×4, TALLY×1, USB-C (For upgrade)
IP Protocol: ONVIF, VISCA-IP, NDI
Serial Protocol: PELCO-D, PELCO-P, VISCA
Serial Baud Rate: 2400, 4800, 9600, 19200, 38400, 115200 bps
LAN Port: 100M×1 (PoE/PoE+: IEEE802.3 af/at)
USER INTERFACES
Display: 5 Inch Touch Screen
Joystick: Pan/Tilt/Zoom
Knob: Quickly control iris, shutter speed, gain, auto exposure, white balance, etc
Camera Group: 10 (Each group connect up to 10 cameras)
Camera Address: Up to 100
Camera Preset: Up to 255
POWER
Power: PoE+ / DC 7~24V
Power Consumption: PoE+: < 8W, DC: < 8W
ENVIRONMENT
Working Temperature: -20°C~60°C
Storage Temperature: -20°C~70°C
DIMENSION
Dimension(LWD): 340mm×195mm×49.5mm, 340mm×195mm×110.2mm (With joystick)
Weight: 1730g
