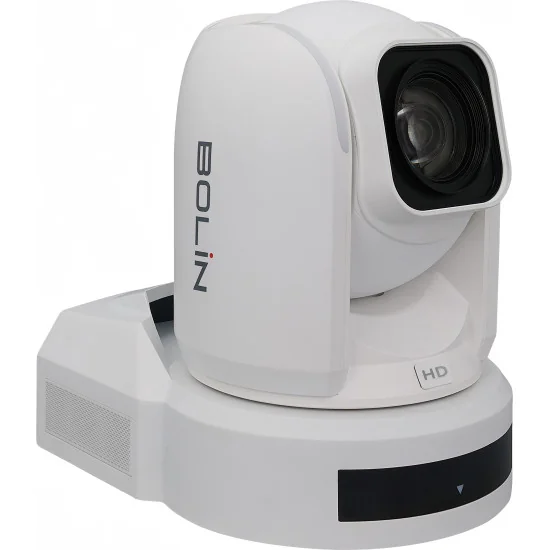

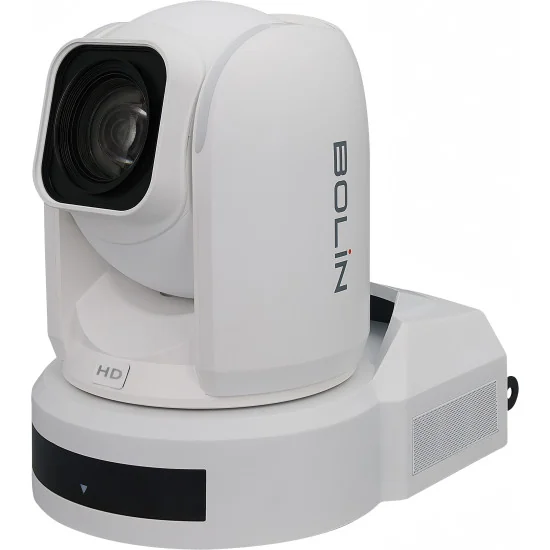

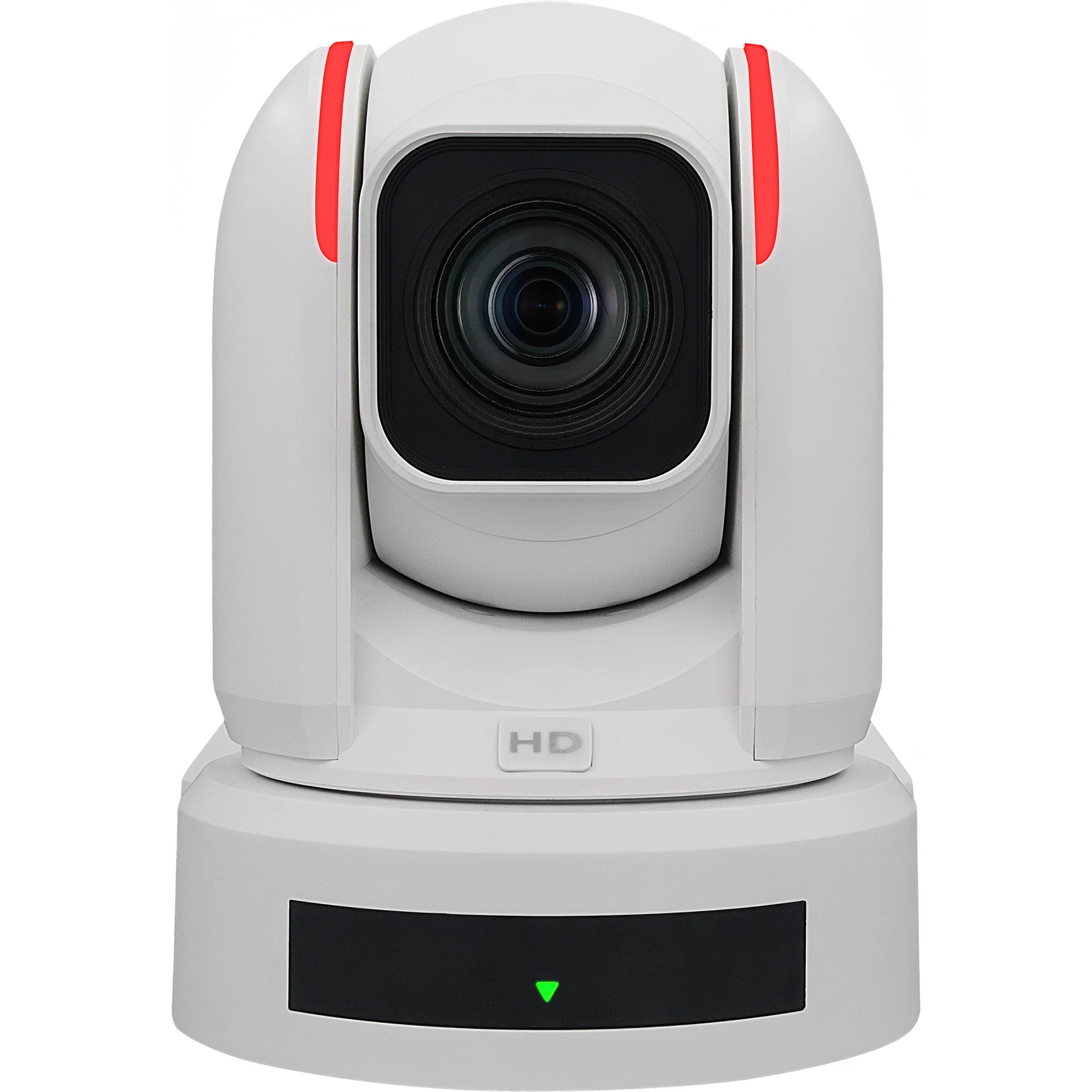

The Bolin R9-230H FHD Low-Light Performance PTZ camera is built for studio broadcast, live production, and professional AV applications, delivering exceptional Full HD video quality with advanced low-light performance and smooth PTZ movement. Powered by a full Sony image block, the R9-230H ensures accurate colors, sharp details, and superb clarity, even in challenging lighting conditions. Its 30x zoom provides crisp, detailed images, while Super Image Stabilization Plus minimizes vibrations, making it an ideal choice for sports, concerts, studios, and high-motion environments like nightclubs. The camera’s multiple simultaneous outputs, including dual 3G-SDI, HDMI, Optical SDI, and IP streaming, enable easy integration into both AV-over-IP and baseband video workflows. Supported IP Streams include RTSP, RTMP, SRT, ONVIF, and MPEG-TS.

Designed for professional production environments, the R9-230H supports Genlock for frame-accurate synchronization, ensuring in-sync multi-camera productions. It also includes balanced XLR audio inputs, allowing for direct integration with professional sound systems. FreeD protocol support provides real-time tracking for AR/VR applications, expanding possibilities for virtual productions and immersive live broadcasts. A built-in color matrix enables precise color tuning, ensuring every shot meets professional broadcast standards.

With PoE++ support, flexible mounting options, and a purpose-built design, the R9-230H is ready for any production environment. Whether capturing fast-paced live events or controlled studio shoots, the Bolin R9-230H delivers Full HD video with superior stability, professional audio integration, and next-level tracking capabilities, empowering production teams to capture every moment with confidence and precision.

IEC 60601-certified for use in medical environments, including operating rooms, clinical training facilities, and healthcare education settings.

SONY IMAGE BLOCK
Bolin R9-230H FHD Low-Light Performance PTZ, equipped with the latest Sony new color camera block that achieves higher visibility by adopting the 8M ultra high resolution lens, 4M image sensor (1 / 1.8 type), and ISP  from Sony. The combination of these three Core technologies provides an overwhelming sense of resolution, and the advanced AF / AE / AWB functions reproduce faithful images even in low-light environments.

• 1/1.8 inch STARVIS II sensor
• Enhanced High Resolution image quality
• 30X 8M High Resolution optical zoom lens
• Advanced AF performance, Spot Focus · Spot AE · Spot AWB
• Wide Dynamic Range (Wide-D)
• Visibility Enhancer (VE)
• Super low light in color performance
• Super image stabilizer

High Resolution-Day Light/Night View
The 8M compatible lens, 4M image sensor (1 / 1.8 type), and ISP all use new devices from Japanese manufacturers. The combination of these three Core technologies provides an overwhelming sense of resolution, and the advanced AF / AE / AWB functions reproduce faithful images even in low-light environments.

Sony’s sophisticated proprietary AF algorithm
Sony’s proprietary AF algorithm enables zoom and focus at the same time in difficult conditions. Unlike common cameras, which cannot zoom and focus at the same time nor refocus after defocusing under certain circumstances, the camera can zoom and focus at the same time and has the algorithm design which minimizes defocusing in difficult conditions, especially in dark environments (including environments with a mixture of visible light and infrared light and environments with locally strong light sources).

30x enhanced optical zoom
In pursuit of high image quality and a 1 / 1.8-inch sensor, we have introduced a 30x enhanced optical zoom with a combination zoom of an 8M compatible lens and a 4M image sensor. Beautiful images can be obtained not only at the Wide end, but also at the Tele end where the effects of reduced resolution and aberrations are easily visible.

Jero effect correction
In electronic image stabilization, the image is generally distorted when the amount of blur is large. This product corrects this phenomenon and enables the acquisition of natural images with little distortion.

IP Streaming Codec:  Standard HEVC Codec Built-in

• H.264/265 - AVC/HEVC
• SoC Software based encoder built-in
• Browser, software and hardware decode
• Up to Full HD
• 2 IP video streaming
• Unicast, Multicast
• RTSP, RTMP, RTMPS, SRT, ONVIF
• IP control: Visca Over IP, Onvif
• Audio encode

FreeD Protocol Integrated for VR/AR Video Production
FreeD (Free Dimensional Video) is a protocol that enables the capture and rendering of immersive, three-dimensional video content. It is especially useful for virtual live video productions with baseband video feeds and, with Bolin PTZ cameras, with ultra-low latency AV Over IP streaming. This capability can be widely used in applications like weather reporting, sports, news, and live events.

FreeD helps provide all the axis data needed for a Bolin PTZ camera to intelligently and smoothly pan, tilt, and zoom while following designated objects and people. Broadcasters can combine Bolin’s FreeD-enabled PTZ cameras with available, sophisticated software to automate complex camera operations with spectacular results.

Various Control Methods

• IP Control
• Serial Control
• IR Remote Control
• Software Control
• Control Protocol:
• VISCA Over IP
• ONVIF
• VISCA
• PELCO P/D
• FreeD

SPECIFICATION

IMAGE FULL HD, 30X
Camera Image: 30X Full HD
Image Maker: Sony
Image Sensor: CMOS image sensor 1/1.8 type STARVIS 2 sensor
Number of effective pixels: 2712 x 1538, 4.17MP
Picture elements: 2688 x 1520, 4.09MP
Lens Enhanced optical zoom: 30X
Digital Zoom: 12X
Horizontal Angle of View: 58.1˚ (Wide) - 2.3˚ (Tele),
Vertical Angle of View: 34.9˚ (Wide) - 1.7˚ (Tele),
Focal Length: f= 6.5 mm (WIDE) to 162.5 mm (TELE)
Min. object distance: 100mm (Wide), 1200mm (Tele)
Aperture: F1.6 (Wide) to F4.8 (Tele), 16 steps
Min. Illumination: ICR-Off, 0.009 lx (1/30 sec, 50%, High Sensitivity On); ICR-On, 0.00008 lx (1/30 sec, 50%, High Sensitivity On)
Shutter Speed: 1/1 sec to 1/10000 sec (22 steps)
Focus: Auto, Manual, One Push Trigger, Full Scan one push trigger, Near Limit, Spot Light Avoidance, Spot Focus
White Balance: Auto, ATW, Indoor, Outdoor, One Push WB, Manual, Outdoor Auto, Sodium Vapor Lamp Auto, Sodium Vapor Lamp, Sodium Vapor Lamp Outdoor Auto
Exposure: Full Auto, Gain Limit Setting, Shutter Priority, Iris Priority, Manual, EV Compensation
Features: High Sensitivity, Backlight Compensation, HLC, E-FLIP, Mirror, Day/Night
WDR: Yes
Image Stabilizer: Yes, Super, Super+
Color Gain: Yes, (0-255)
Color Hue: Yes, (0-255)
Gamma: Standard / Straight gamma
Color Matrix: Yes
Noise Reduction: On/Off (level 5 to 1 / Off, 6 steps), 3D / 2D
S/N Ratio: ≥50db
HLC: Yes
E-Flip: Yes
Privacy Zone Masking: -
Defog: Yes, (off, low, mid, high)
High Sensitivity: Yes
AE Speed: Yes
Day/Night: Yes
Backlight Compensation: Yes
Low Latency Mode: Yes
Slow AE Response: -
AI Face Detection Focus: Yes
AI Face Auto Exposure: -
Scene Style: Default, Clear, Bright, Soft, Bolin
Focus Zone: Face Priority, All Area, Upper/Central/Lower Area

MECHANICAL
Pan Movement: PAN: 340° (-170° to +170°); Fully proportional 0.05° to 70°/s
Tilt Movement: TILT: 120° (-30° to +90°); Fully proportional 0.05° to 60°/s
Speed Proportional: Pan/Tilt Speed proportional to zoom range
Preset Position: 255 positions, Speed 60°/s, 0~5 Level Adjustable, Accuracy: 0.1°
Preset Memory: Picture Profile Preset-Preset Memory for image parameters: Backlight Compensation, White Balance, Auto Exposure, Bright, Iris, Shutter, Gain, Aperture, Effect, Noise Reduction, Mirror, Gamma, Ex-COMP, Color Hue, Contrast etc.)
Motionless Preset: YES, ON/OFF
PTZ Trace Memory: YES, 4
Cruise: YES, 12
Quietness: NC35 Compliant
Home Position: Yes
FreeD: Yes, FreeD protocol for AR/VR camera tracking, via IP
Environmental: Indoor

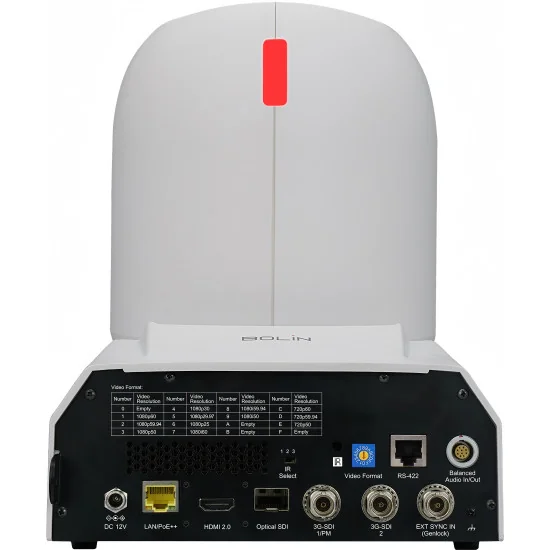

INTERFACE
HDMI Video Output: HDMI 1.4 Type A
SDI Video Output: 3G-SDI, 75Ω BNC x 2，SDI Clean / SDI PM for output having OSD display
SDI Optical Fiber Output: Optical SDI SFP module support up to 12G-SDI (Module Excluded). Detachable slot, Connector: Duplex LC (optional via ST, LC or SMPTE)
Laser Unit: Single-mode 1,310nm DFB-LD transmitter and PIN receiver Complaint with MSA SFP+ Specification SFF-8402.
Network LAN Port: RJ45X1, Standard 10M/100M/1000M Base-TX Ethernet, LAN connector for IP control/video output/audio output/System FW Upgrade
Synchronization System: Internal/External synchronization (BBS/Tri-level sync)
External Sync Input: Genlock, BNC connector, BBS (Black Burst Sync), tri-level sync supported
Audio Input: Balanced XLR (Hirose Connectorvia Atomos 10-Pin LEMO Type to XLR Breakout Cable) with 48V Phantom power, 3.5mm TRRS for bidirection audio intercom (Preserve)
Audio Output: Balanced XLR (via 10-Pin LEMO Type to XLR Breakout Cable)(Preserve), embedded with HDMI, SDI, and IP, 3.5mm TRRS for bidirection audio intercom (Preserve)
Tally Light: Red, Green Color/Front and Rear
Dip Switch Video Resolution: Dip Switch x1
System Firmware Upgrade: Upgrade via IP for camera system MCU, FPGA and Encoder
Power Connector Type: INPUT: DC12V, connect with screw secure (Type - 5.5mm×2.1mm Male DC Power Plug Connector & Screw Lock Female Panel Socket Mount Adapter)
White Balance: INPUT: RJ45, PoE++ (IEEE802.3bt)
Control Interface: RJ45X1-RS422, RJ45X1-IP Control, IR Remote Control
Control Protocol: Serial: VISCA, PELCO P/D; IP: VISCA Over IP, ONVIF; FreeD

HDMI VIDEO SIGNAL SYSTEM
HDMI Video Format: 1920x1080P 60/59.94/50/30/29.97/25/24/23.98 1920x1080i 60/59.94/50 1280x720P 60/59.94/50
Color Precision: 12bit(HDMI), YUV4:2:2
Color Space: YUV、RGB
OSD Menu Display: Yes
On-Screen Title: Yes, video embedded On-Screen title character generator; Image/Logo Insert Screen Display with IP Image Stream

SDI SIGNAL FORMAT
SDI Video Output: 3G-SDI, Standard 75 Ω (BNC x 1)
SDI Video Format: 1920x1080P 60/59.94/50/30/29.97/25/24/23.98 1920x1080i 60/59.94/50 1280x720P 60/59.94/50
Color Precision: 10bit(SDI), YUV 4:2:2
Color Space: YUV
Standard: SMPTE 292M, SMPTE 296M (1.5Gb/s), SMPTE 424M, SMPTE 274M, SMPTE 425-A(3Gb/s) with SMPTE352 SDI Metadata Supported
True Dual Output: HDMI and SDI signal can be output with different format
OSD Menu Display: Yes
On-Screen Title: Yes, video embedded On-Screen title character generator

NETWORK
Video Compression: MJPEG,H.264/H.265 by SoC
IP Resolution/Frame Rate: 1920x1080P 60/59.94/50/30/29.97/25/24/23.98; 1280x720P 60/59.94/50
True Dual Output: IP, HDMI, and SDI signal can be set with different format
IP Protocols: TCP/IP, ICMP, ARP, RTP, UDP, HTTP, DNS, DHCP, FTP, NTP，SRT
Application Protocols: RTMP(S), RTSP, RTSP Encryption, SRT, MPEG-TS over UDP, MPEG-TS over RTP
Color Format: -
Multi-stream: 2 stream
Audio Compression: AAC-LC Broadband Audio Encoding(Duplex Communicate Supported, Audio/Video synchronization)
OSD: Customized OSD
Compatible Integration: ONVIF2.4 (Profile S), VISCA Over IP
Bandwidth: 1Mbps - 100Mbps
Latency (Overall latency may increase depending on network configurations): < 150ms glass to glass at 1080p60
Browser Support: Cross Browser Compatibility - HTML5 support for Microsoft Edge, Google Chrome, Firefox, and Safari

GENERAL
Operating Temperature: –10 °C to 50 °C（14°F to 122°F)
Operating Humidity: ≤80% Suitable for Use (no condensation)
Power Input: DC12V, PoE++(IEEE802.3 bt Type 3 Calss 5)
Power Consumption: Min: 26W (Static state with no movement) Max: 31W（Fully loaded operation）
Installation Method: Stand-alone (Upright) or suspended (Pendent) or Tripod
Mount: Ceiling mount, Wall mount, Tripod (not included)
Handle: Built-in for portable use application
Size of Tripod Screw Hole: 1 x 1/4” safety bond point
Body Color: Black, White
Dimension-Camera: 201*253*249mm(W*D*H), 201*253*256(with feet mats)
Net Weight: 3.8kg (8.36lb)
Accessories Included: IR Remote controller x1, Power adapter and power cord (US, EU, UK), Mounting screws x3, RJ45 to RS422 Extension cable
Certificate: CE, FCC, IC, UKCA, ROHS, WEEE, IEC60601 (Medical Grade)
