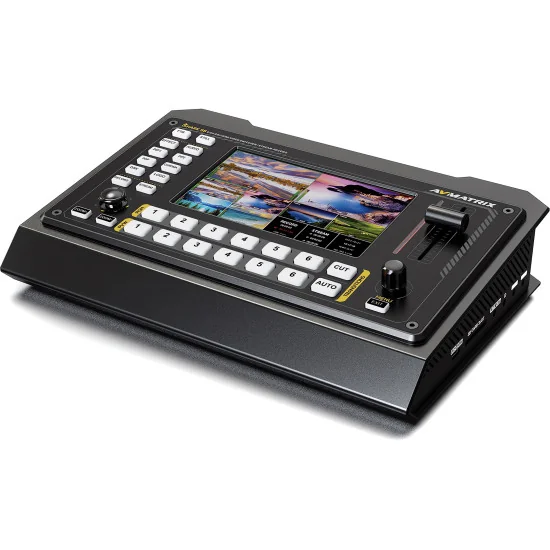

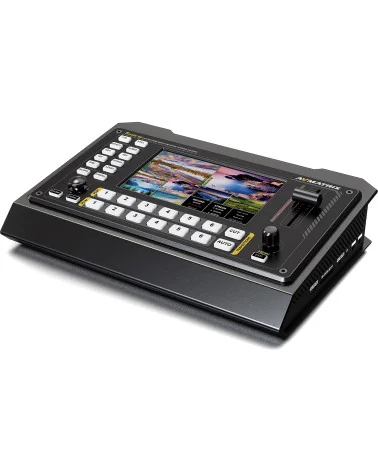

6-CH HDMI/SDI Video Switcher
Built-in 5 inch LCD display
Input: 4×SDI and 2×HDMI
Output: 2×SDI, 1×HDMI PGM, 2×SDI AUX ,1×HDMI Multiview, 1×USB Type-C
RTMP stream & USB Disk & SD Card Record
USB for capturing and streaming on PC
Professional chroma Key, downstream key, 2PIP/ POP, and LOGO overlay
T-bar/ Auto/ Cut transitions, various effects: MIX/ DIP/WIPE effects
Audio mixer:4×SDI, 2×HDMI audio & 2×MIC in
PTZ camera control: VISCA, VISCA over IP, Pelco D/P & ONVIF
Layout style: landscape & portrait mode
FTB/ STILL, GPIO port for tally system, RS232/RS422/RS485

Widespread Application
The video switcher can be widely used in various field events, such as live sports, virtual studio, Education, internet, concert, and so on.

Live Stream Via Ethernet
The LAN port supports IP streaming transmission through the RTMP(S), RTSP & SRT protocol, allowing users to easily live stream video programs to platforms such as YouTube, Skype, Facebook, and Twitch, and get high-quality videos.

USB Disk & SD Card Record
SD card and USB interface enable direct recording of PGM signal, making it easy to record high-quality videos. Bitrate of encode up to 32Mbps, and the supported file formats are MP4/TS.

USB Capture for Streaming
The USB type-C can be used as a webcam to capture video & audio and stream to various softwares & platforms such as OBS, VMIX, ZOOM, Teams, Skype and VLC. It is compatible with Windows, Linux, and Mac.

PTZ Camera Control
With the PTZ control feature, users can easily pan, tilt, and zoom PTZ cameras using LAN and RS-232/RS-422/RS-485. Camera control protocol supports VISCA, VISCA over IP, Pelco D/P and ONVIF.

Versatile Input & Output
The video switcher includes 4 SDI & 2 HDMI inputs; 2 SDI & 1 HDMI PGM outputs, 1 HDMI Multiview output, and 2 SDI AUX outputs which allow users to configure the output from IN 1-6, PGM, PVW, Multiview, etc.

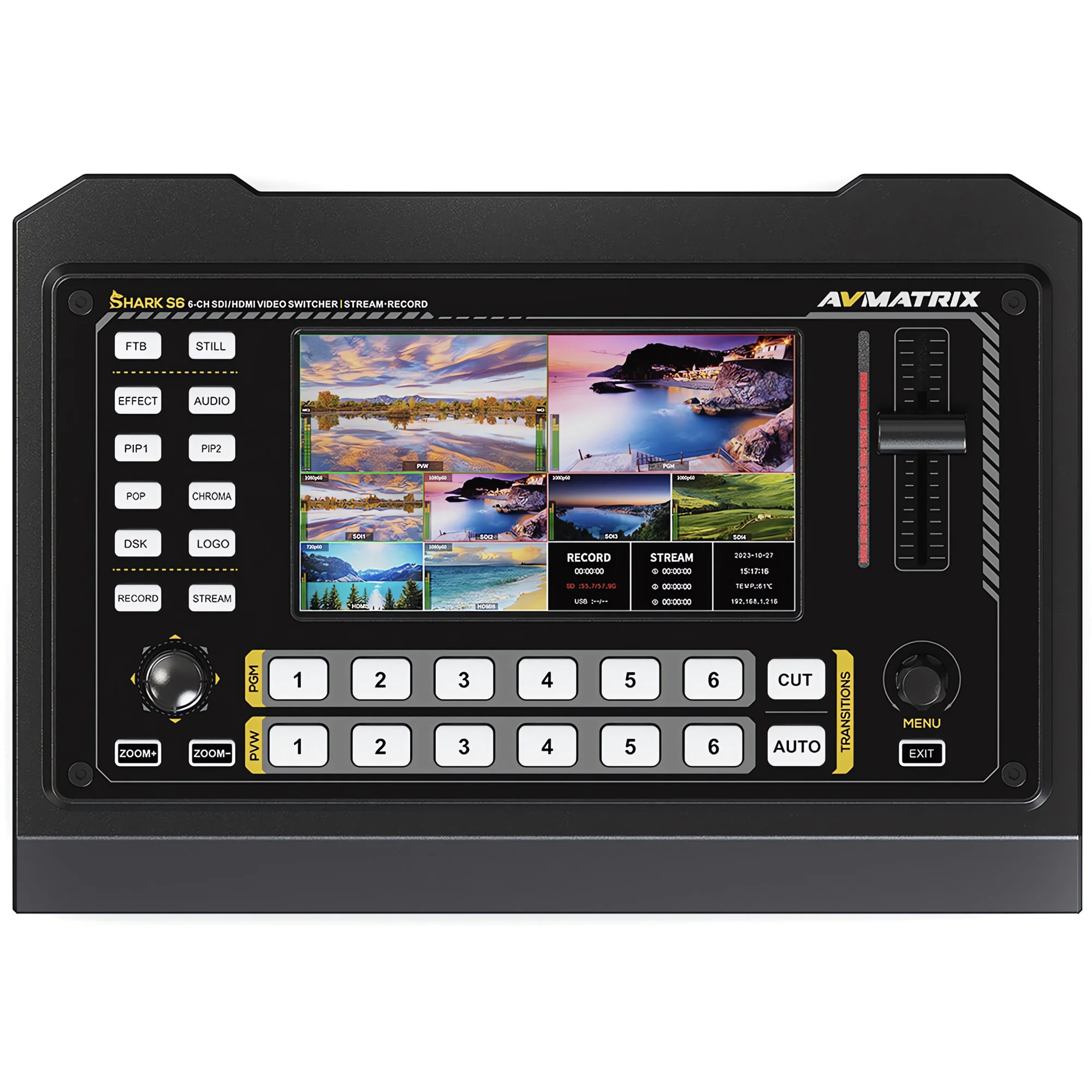

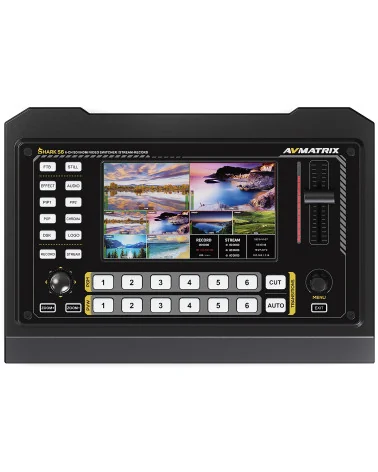

Built-in 5-inch Display
5-inch HD display provides a multiview with real-time monitoring of 6 channels inputs, as well as menu operation and streaming/ recording status.

Landscape & Portrait Mode
The video switcher provides both portrait and landscape modes for multiview output, user can choose the layout they need according to different event production application fields.

Professional Audio Mixer
The switcher's integrated audio mixer enhances the audio effect of your productions by combining two external MIC inputs and 6 input embedded audio. Users can also set the AFV and utilize the audio delay feature to ensure the audio-video synchronization.

SPECIFICATIONS

CONNECTIONS
Video Input: SD/HD/3G-SDI(75Ohm) x4, HDMI type-A(100Ohm) ×2
Media Port: USB type-A
Stream Output: LAN
Capture Output: USB type-C
PGM Outputs: HD/3G-SDI(750) ×2, HDMI type-A(100Ohm) ×1
Multiview Outputs: HDMI type-A(100Ohm) ×1
AUX Outputs: 3G-SDI(75Ohm) x2, including IN1~6, PVW, PGM, Color Bar, Multiview
Audio Input: MIC x2
Audio Output: Line x1, Earphone slot x1
Camera Control Port: LAN, RS-232/RS-422/RS-485
Tally Port: DB-15
Power In: DC 12V

STREAM & REC
Bitrate: 2M-32Mbps
Rate Control: CBR/VBR
Stream Protocols: RTMP(S)/RTSP/SRT
REC SD card Format: FAT32/ exFAT/NTFS
REC USB Disk Format: FAT32/ exFAT/NTFS
REC File Segment: 1-120mins

FUNCTIONS
Transitions: T-Bar/ AUTO/CUT
Effects: WIPE(11×3 patterns)/ MIX/DIP/ STILL(freeze)/FTB
Multiviewer Layout: Landscape & Portrait Mode
Upstream Key: Chroma Key x1, PIP x2, POP
Downstream Key: DSK x1, Logo x1
Audio Function: AFV, Mix, Audio delay
Logo Library: Up to 8 PNG image
Record: USB disk, SD card, record for PGM up to 1080p60
Display: 5 inch HD LCD display

STANDARDS
SDI Input Format Support: 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080psF 30/29.97/25/24/23.98, 1080i 60/59.94/50, 720p 60/59.94/50/30/29.97/25/24/23.98 625i 50 PAL, 525i 59.94 NTSC
HDMI Input Format Support: 1200p 60/50/30, 1080p 60/59.94/50/30/29.97/25/24/23.98/23.976, 1080i 50/59.94/60, 720p 60/59.94/50/30/29.97/25/24/23.98, 576i 50, 576p 50
PGM Output Format: 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080i 60/50/59.94
Multiview Output Format: 1080p 60
Color Space: RGB Full/ RGB Limited/YUV
SDI Video Rate: Auto detection, SD/HD/3G-SDI
SDI Compliance: SMPTE 292M/SMPTE 259M/SMPTE 424M
USB Capture Out: MJPG, up to 1080p 60
Supports OS: Windows 7/8/10/11, Linux (Kemel version 2.6.38 and above), Mac OS (10.8 and above)
Capture Compatibility: OBS studio, vMix, Skype, ZOOM, Teams, Youtube Live, etc.

OTHERS
Power: DC 12V 1.5A, 18W
Dimension(LWD): 238.5 x 168.2 × 47.5mm
Weight: Net weight: 1450g, Gross weight: 2370g
Temperature: Working: -20°C~60°C, Storage: -30°C~70°C

ACCESSORIES
Power supply (12V 3A)
USB cable (type A-C)
Tally connector (DB-15)
Handbag
