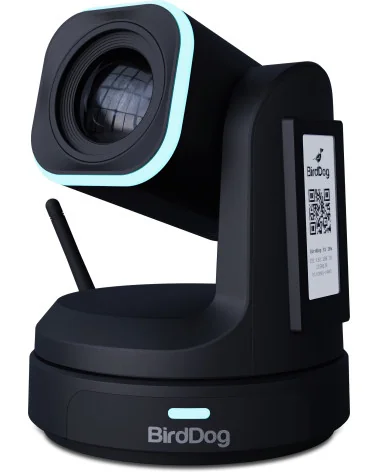

BirdDog X1 30x 1080P PTZ Camera with 30x Zoom
Following the X1 and X1 Ultra, BirdDog's new X1 30x is the third PTZ camera worldwide with integrated WiFi technology. It features an NDI-HX decoder that was specially developed for use with a control monitor or teleprompter via a single cable. In addition, the X1 30x offers a 30x zoom that is unmatched in the PTZ sector.

The AI tracking technology of all three X1 models keeps the respective subject in focus and follows it in real time: both during live events or spontaneous situations in hybrid environments as well as during dynamic sports recordings. Thanks to its Wi-Fi technology, the BirdDog X1 30x can also be used in locations where cables cannot be laid. This allows it to blend seamlessly into any environment. Thanks to NDI-HX3 integration, the image quality of the network transmission is excellent – with significantly reduced network load.

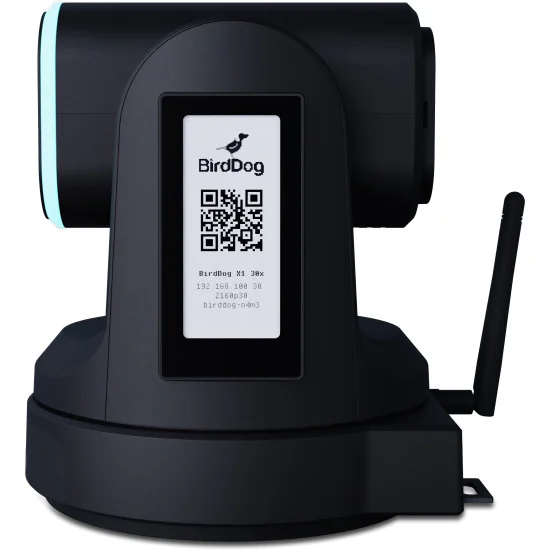

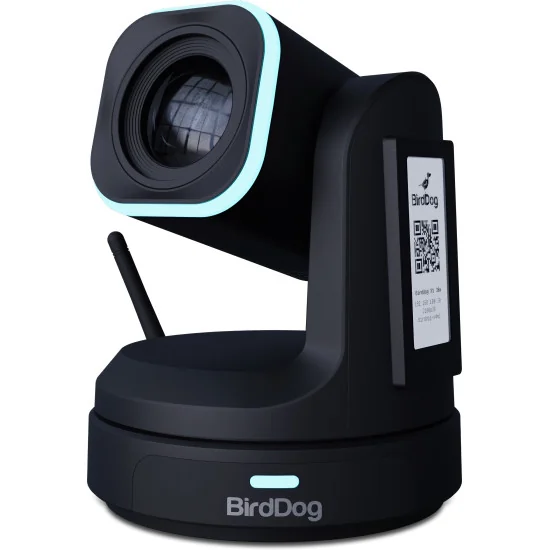

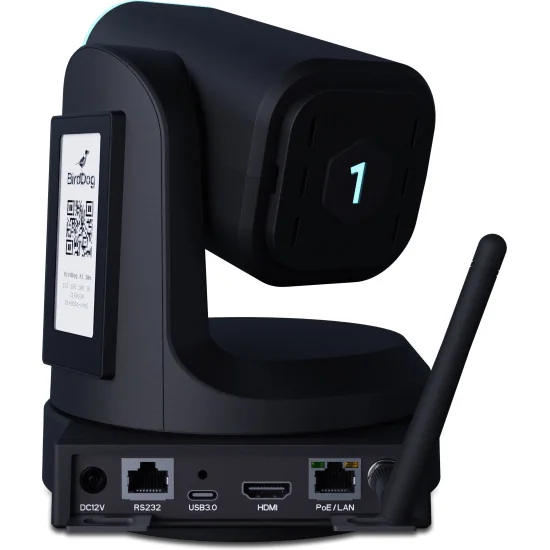

X1 30x features a unique tally system. A frame that is clearly visible even in daylight lights up on the front of the camera, while the rear can be marked with a replaceable, illuminated number. This means that both the actors in front of the camera and the crew always know which camera is currently on air. The revolutionary e-Ink label on the side displays the camera's network address, even when the power is off. This makes it clearly identifiable and very easy to set up at any time.

In addition, BirdDog has further optimized the display of image colors. X1 30x also features a full-color matrix with individual saturation control for red, green, blue, cyan, yellow, and magenta, with 64 control levels for each color.

The very easy-to-use app for iPad or iPhone gives you full control over the BirdDog camera – from panning, tilting, and zooming to saving and recalling preset PTZ positions to preview images in full-screen mode. All color matrix tools and settings can also be controlled via the app.

Connectivity is limitless with NDI HX3, HDMI, USB-C, and Wi-Fi, seamlessly connecting IP and baseband worlds. In the spirit of sustainability, every X1 30x is made from OBP plastics.

BirdDog X1 30x is available in black or white.

Features:
X1 with 30x optical zoom
ND-HX camera & decoder in one device
NDI-HX2 and NDI-HX3
NDI return channel usable for control monitor or teleprompter
Real-time AI tracking
Unique halo tally
Full-color matrix with individual saturation control
Control via app (iPad/iPhone)
WiFi & Ethernet

Tech Specs:

IMAGING
Sensor: Sony 1/2.8 inch CMOS; Full HD
Lens focal length: 5.2 to 148.4 mm
Video formats: 1080p at 60/50.94/50/30/29.97/25 fps, 720p at 60/50/30/25 fps, 608x1080p (9:16 ratio) at 60/59. 94/50/30/29.97/25 fps
Horizontal angle of view: 58.1 (W) - 2.14 (T) degrees
Vertical angle of view: 33.8 (W) - 1.2 (T) degrees
Diagonal angle of view: 65.4 (W) - 2.48 (T)
Aperture: F1.3 - 4.8
Focus: AI face detection, auto, manual
Exposure: Auto, manual, shutter/aperture priority
Backlight compensation: Yes
2D and 3D noise reduction
Signal-to-noise ratio: > 50 dB
Effective pixels: 2.07 MP

MECHANICAL
Pan/tilt rotation: ±175 degrees; -90 to +90 degrees
Pan control speed: 0.1 to 80 degrees/s
Tilt control speed: 0.1 to 60 degrees/s
255 presets

I/O INTERFACE
Video output: HDMI, USB-C UVC 1.1, network
Video compression format: H.264, H.265
Encoder network protocols: NDI-HX2, NDI-HX3, RTSP, RTMP
HDMI decoder network protocols: ND-HX2, ND-HX3
Control interface: 10M/100M Ethernet, Wi-Fi IEEE 802.11ac, RS232 (input/output), RS485, TYPE-C(UVC1.1)

GENERAL PARAMETER
Power supply: DC 12V, POE IEEE 802.3af
Current consumption: max. 2.0 A
Power consumption: max. 13 W
Operating temperature: -10 to +40 degrees Celsius
Operating humidity: 20 to 80 percent
Dimensions: approx. 17.2 x 19.3 x 17.2 cm
Weight: approx. 1.35 kg

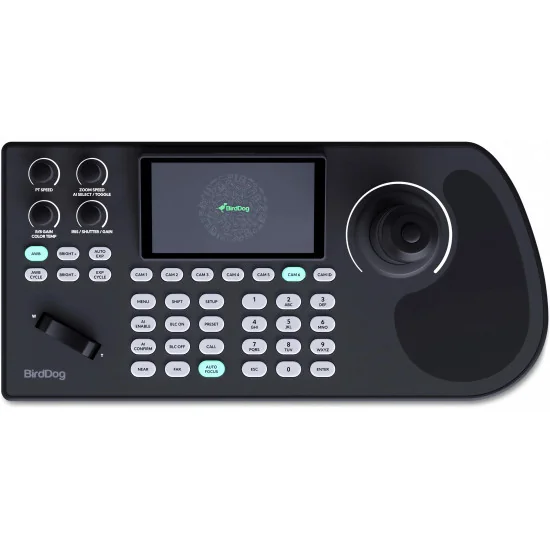

BirdDog KBD PTZ Controller

Crafted from Feedback. Built for Brilliance.
BirdDog KBD Controller offers PTZ camera operators a rugged, ergonomic design, a large multi-camera display, and direct access to essential functions. With a built-in tally display and physical feedback for camera switching, it’s intuitive and eco-friendly, made with Ocean-Bound Plastics and recyclable Aircraft-grade Aluminum. NDI, VISCA, ONVIF, RS-232, and RS-422 connectivity ensure versatility no matter what language you speak.

Built for Seamless Control and Comfort.
KBD is crafted for those who rely on precision and ease in their workflow. With a rugged, ergonomic design, it’s built for comfort, featuring a hand-rest area and tactile controls for all-day use.

Super-fine Control Mode.
When it’s time to fine-tune, you can easily shift the camera joystick into ‘fine-tune’ mode, increasing the sensitivity of the joystick by 10x, making reframing shots on air more artistic flair than nail-biting scare.

Expanded Screen. Instant Camera Control.
The big screen allows you to monitor up to four cameras at once or focus on one full screen. Pairing and switching between cameras is just a single press away, with a tactile button that gives instant feedback under your finger, making transitions smooth and intuitive.

The KBD’s screen offers live previews for NDI-HX2/HX3 cameras and key text-based details for others, ensuring seamless compatibility and clarity across your workflow.

Built-in Tally Borders.
Pairing and switching between cameras is just a single press away, with tactile buttons providing instant feedback under your finger for smooth, intuitive transitions. When integrated with mixers like TriCaster or vMix, KBD’s built-in tally border shows the live camera directly on the keyboard, so you can stay focused without looking at other screens.

Camera Setting Sync.
An industry-first feature, you can tune one camera to look exactly how you like, and then simply copy those settings directly to another camera of the same model (BirdDog X series function). Making it easy to dial your cameras in and take your production quality to the next level.

Direct Access to Key Functions.
No more endless menu diving! KBD brings you straight to the essentials. With its streamlined layout, operators can access camera pairing, switching, and configuration in seconds. It’s all there, clear and accessible, thanks to user feedback that’s shaped a truly friendly experience.

Ultimate Connectivity in an Eco-Friendly Design.
BirdDog KBD connects seamlessly through NDI, VISCA, ONVIF, RS-232, and RS-422, making it versatile for any setup. And with a commitment to sustainability, it’s made using ocean-bound plastics, reducing environmental impact.

Affordable Innovation.
With enhanced features and a lower price than its predecessor, KBD is refined through user insight, offering unmatched comfort, control, and eco-consciousness for the modern PTZ camera operator.

*The KBD’s screen offers live previews for NDI-HX2/HX3 cameras and key text-based details for others, ensuring seamless compatibility and clarity across your workflow.

Tech Spec:

Camera Control
PTZ Control: VISCA-IP, NDI, ONVIF, PELCO-P, PELCO-D
Fine PTZ Control: VISCA-IP, NDI
Focus Control: Auto Focus, Manual Focus buttons
Auto Exposure: Direct Button
Manual Exposure: Toggle Dial adjustment Brightness/Shutter/Gain/Iris
Auto White Balance: Direct Button
Manual White Balance: Toggle Dial adjustment R-Gain, B-Gain, Color Temperature
Auto Focus: Direct Button
Manual Focus: Direct Button (Near/Far)
BLC (Backlight Compensation): Direct Button
Zoom Ring on Joystick: Yes (enable/Disable)
Programmable Trigger on Joystick: Adjustable, One-Push Focus, AI Tracking, One-Push AWB
AI Camera Mode Control: Camera Dependent, supported
Copy/Paste Camera Settings: Supported on selected BirdDog Cameras (VISCA-IP, NDI)

Camera Access
Max. Cameras support: 255
Direct Camera access keys: 6
Direct Preset access keys: 10
Max Preset support: 255 per camera
OSD Camera Menu: Menu Button / Interaction with Joystick

Display
Display Diagonal Dimension: 5"
Display Resolution: 1280x720
Multiview IP Video: Supported, NDI HX (Proxy), RTSP (max. 30 fps)
Full Screen IP Video: Supported, NDI HX (Proxy), RTSP (max. 30 fps)
IP Video CODEC support: h.264, h.265
Tally Borders: Selectable, Multiview and Full Screen mode
On Screen Menu: Fully configurable
Light/Dark Mode: YES

NDI Support
NDI Control: NDI HX2, NDI HX3, High Bandwidth NDI
NDI Multiview: NDI HX2, NDI HX3
NDI Router: Yes, follows current active camera
NDI Discovery: Supported
NDI Access Manager: Supported
NDI PTZ Sensitivity: Standard (NDI); Superfine (BirdDog Specific)

Setup/Configuration
WebUI: BirdUI for setup and firmware updates
Light/Dark Mode: YES
API-based Camera Selection: YES

Serial Connections
RS-232: D-Sub connector (9-pin)
RS-422: Phoenix connector

Mechanical
Joystick Type: 4D (Integrated Trigger button)
Keys: 37 Keys; Backlit, Individual Contact, Silicon Pad
Toggle Dials: 4 knobs; Press Button, Graduated, 360° adjustment
Zoom Rocket: Spring loaded, adjustable
Dimensions: 377mm x 177mmx 118mm ; 14.84in x 6.96 x 4.64in (LxWxH including Joystick)
ConstructionMaterial: Aluminium; OBP Ocean-Bound Plastic
Integrated Carry Handle: YES
Operating Temperature: -10°C - +55°C; 14°F - 130°F
Storage Temperature: -10°C - +55°C; 14°F - 130°F
Operating Humidity: 20% - 80% (Non-condensing)
Storage Humidity: 0% - 90% (Non-condensing)
Power Supply: PoE (802.3af), DC12V
Power Consumption: ≤5W
Packaging Dimensions: 390x215x165mm; 15.35x8.46x6.49 in
