X5 Ultra. Simply Xtreme.
Productions are demanding; the X5 Ultra makes demanding a walk in the park. Featuring unparalleled capability, quality, and performance – take your PTZ game up a notch with X5 Ultra.

Imagine next-level robotic controls with ultra-fine and precise movement thanks to its category-busting advanced motor drive system. Movements on air are a breeze, and acceleration/deceleration of moves look natural and slick. Sporting BirdDog’s signature Halo tally system for true audience engagement, revolutionary built-in NDI® decoding*, all the video connectors, including 12G-SDI, dual e-ink displays make branding and maintenance a snap, all wrapped up with a stunning Sony 4K60 image sensor delivering the highest performance NDI® | HX3 possible. X5 Ultra. In every way.

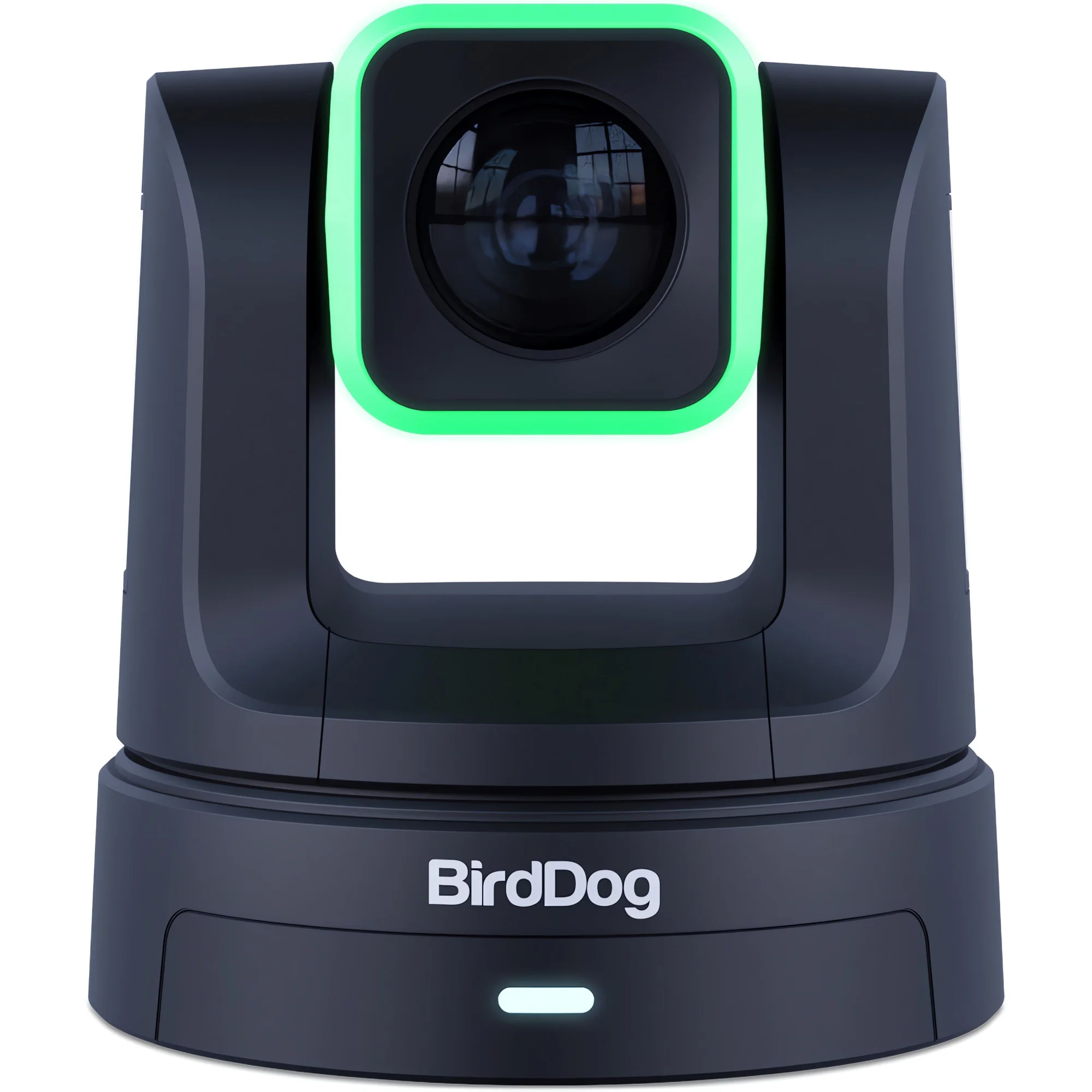

Tally Light. A Higher Order of Visual Queue.
Professional results need professional tools. The X5 Ultra sports the most visible and effective Tally system available. Up front, with a large, daylight-visible border keeping talent looking directly at the camera. Your cast and crew will always know where to look, keeping your audience engaged.

AI Tracking. Built for now and the future.
We aren’t playing catch-phrase bingo here. X5 Ultra takes AI auto-tracking and framing to the next level. Featuring an order of magnitude more neural processing capabilities, the out-of-the-box X5 Ultra has incredible AI powers but also the headroom to grow as AI progresses.

NDI® | HX3. In 4K60.
Performance meets convenience.
The X5 Ultra delivers superior network performance via our implementation of NDI® | HX3. Significantly reducing network impact while maintaining excellent image quality, meaning it is more friendly in more network environments.

BirdDog’s NDI® | HX3 surpasses certification parameters, delivering quality and performance you can count on across ALL video resolutions.
X5 Ultra blows all other cameras out of the game with NDI® | HX3 performance in 4K60 – sometimes the fine print is important.

Integrated NDI® | HX Decoder.
It can’t get much more convenient!
The X5 Ultra is part of the family of PTZ cameras featuring the first simultaneous NDI® | HX* Decoder designed specifically for confidence monitoring, return feeds, or teleprompter usage. We’ve pulled all this connectivity into a single cable, radically simplifying how you interface with your equipment.

Less gear. Less hassle. Less complexity.
Whether you’re broadcasting live or delivering a CEO address, the integrated NDI® | HX decoder enables more engagement with less setup.
*NDI® | HX2 and NDI® | HX3 supported in specific resolutions

One Ring. To Filter them all.
Adding an ND Filter or Polariser to X5 is a cinch with its 49mm filter ring. Get rid of pesky reflections, dial in your highlights and make your next production feel more ‘Hollywood’.

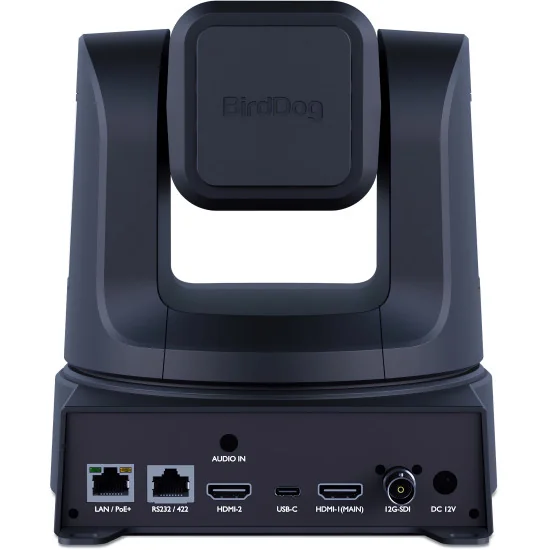

Connectivity for days.
Video productions all look different. We love NDI® because it allows a single network cable to operate everything, but sometimes it makes sense to take a different path. X5 Ultra makes this a snap. In a world of compromise, the X5 Ultra stands proud.

With 12G-SDI output, dual HDMI outputs, multiple network formats, including NDI® | HX3, SRT, RTMP and RTSP, Webcam connectivity over USB, however you work and whatever demand in quality you’ve got it at your fingertips.
X5 Ultra has got your back for today’s production… and tomorrow’s!

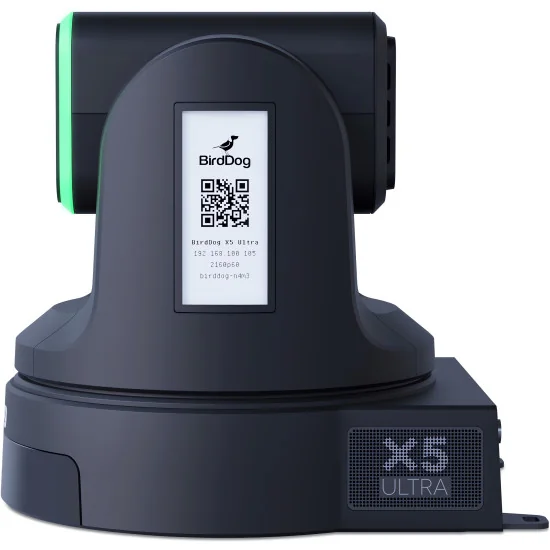

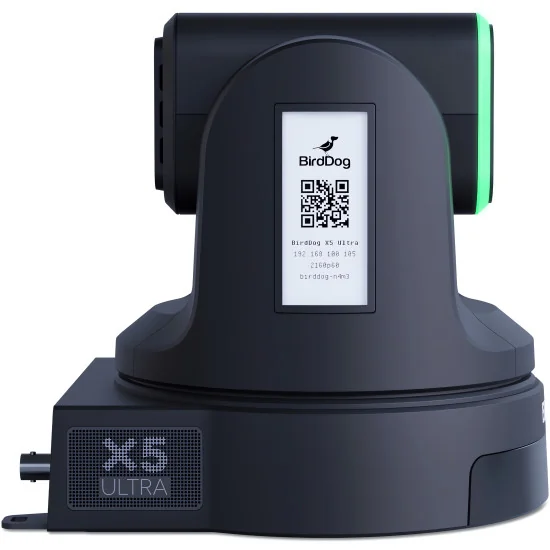

E-ink Label. Get Inked.
The dual, always-on e-ink labels on the X5 Ultra are a game-changer. From network addresses for easy access to controls to customisable logos* to complement your brand image, this cool feature ensures that your set-up is clear and each camera is easily identifiable even when the power is off.
*Coming soon

Advanced features in BirdUI.
BirdUI gives complete access to every function of your X5 Ultra, all within a beautiful and intuitive interface. As a browser-based application, it can be accessed from anywhere on the same network as the X5 Ultra.
BirdUI adds features including a dashboard for monitoring the camera and light/dark modes to suit your production environment.

X5 Ultra Tech Specs

IMAGING
Image Sensor: Sony 1/2.8” CMOS - ULTRA HD
Lens: f=5.4-104mm
Optical Zoom: 20x
Video Format: 2160p @ 60, 59.94, 50, 30/29.97/25fps,
1080p @ 60, 59.94, 50, 30/29.97/25fps,
720p @ 60, 59.94, 50fps
Horizontal Angle of View: 56.6°(W)-3°(T)
Vertical Angle of View: 32.5°(W)-1.7°(T)
Diagonal Angle of View: 64.7°(W)-3.5°(T)
Aperture: F1.6(W)-F3.6(T)
Focus: Auto, Manual
Exposure: Auto, Shutter Priority, Iris Priority, Manual, BLC, WDR
Shutter Speed: 1/1 - 1/10000s
Backlight Compensation: Yes
Digital Noise Reduction: 3D Noise Reduction
SNR: >50dB
Effective Pixels: 8.46 MP
Filter Ring: ∅49mm
AI Tracking: Presenter

MECHANICAL
Pan/Tilt Rotation: ±170°, -30° ~ +90°
Pan Control Speed: 0.1 -200°/sec
Tilt Control Speed: 0.1 -200°/sec
Preset Number: 128 presets, Speed Adjustable
Integrated Tally Light: Halo style, RGB
Pan/Tilt Drive System: Ultra-fine drive
Quietness: Max 28dB at full speed pan

I/0 INTERFACE
Video Output Interfaces: 12G-SDI, HDMI 2.0, HDMI 1.4, USB-C UVC 1.1, 1Gb Network
Video Compression Formats: H.264, H.265
Network Interfaces: 1GbE adaptive Ethernet port; PoE+ IEEE 802.3at
Encoder Network Protocols: NDI®|HX2, NDI®|HX3, SRT, RTSP, RTMP
HDMI Decoder Network Protocols: NDI®|HX2, NDI®|HX3
Decoder Supported Resolutions: 1080p @ 60 / 59.94 / 50 /30 / 29.97 / 25fps, 720p @ 60, 59.94, 50fps
Control Interfaces: 1GbE Ethernet, RS232 (input & output), RS422, TYPE-C(UVC1.1)
Control Protocols: VISCA Baud Rate: 38400/9600/4800/2400, VISCA-IP, NDI®
Analogue Audio: 3.5mm (1/4") Mic In / Line In (Stereo)
Digital Audio: Embedded with Main and Secondary HDMI, 12G-SDI, Network Video, USB (UVC)

GENERAL
Environmental Operation: Internal
Input Voltage: DC 12V, PoE+ IEEE 802.3at
Input Current: 2.0A (Max)
Power Consumption: 18W (Max)
Working Temperature: 0ºC ~ +40ºC
Working Humidity: 20% ~ 80%
Dimension (W*H*D) mm: 185.7*171.9*200.90mm/ 271*275*245mm (before / after packing)
Dimension (W*H*D) in: 7.31*6.76*7.90in/ 10.6*10.8*9.6in (before / after packing)
Net and Gross Weight: 2.31kg/3.76kg (Net/Gross weight)
