Capture All the Action

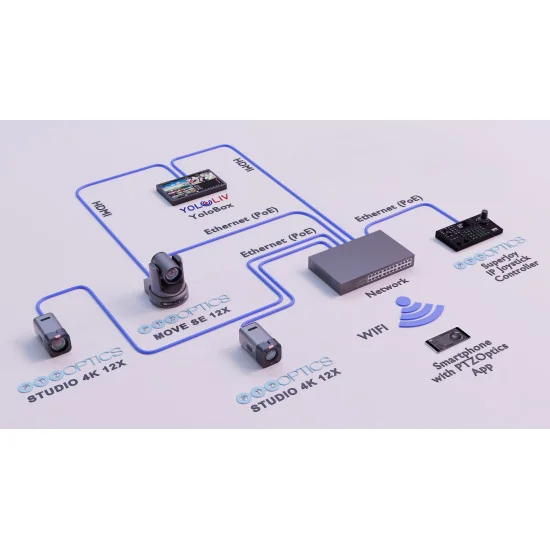

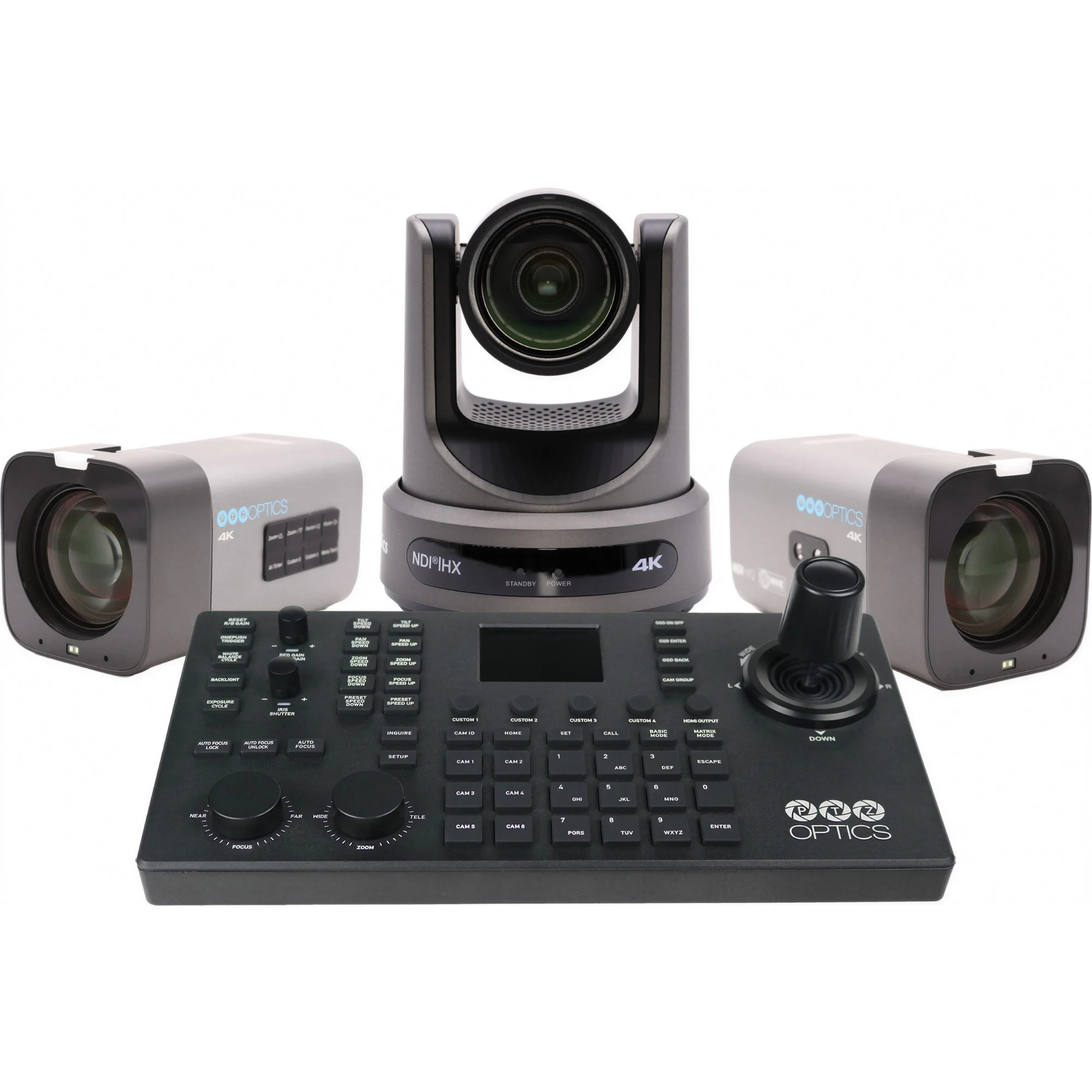

Head out to the field or arena with this sports-friendly setup designed by the PTZOptics team to optimize your coverage of the game. The PTZOptics Action Bundle comes with one Move 4K 12X PTZ camera, two Studio 4K 12X fixed cameras and a SuperJoy controller.

Connect Everywhere
Every Move 4K camera features SDI, HDMI, USB, and IP output, and comes native with NDI® HX3 for unparalleled performance and versatility. The Move 4K offers built-in auto-tracking capabilities – no need to run software on another computer and no camera operator required!

The Power of PTZ
Robotically controlled PTZ (pan-tilt-zoom) cameras give you the advantage of being able to manage your camera’s movements without a dedicated camera operator. Cinematic techniques are placed right at your fingertips to make sure your viewers catch all the action. With the included Move 4K, you’ll have the flexibility to cover the entire field, court or diamond with studio-quality camera controls.

Fixed Camera Creativity
Never miss a scoring shot with your Studio 4K fixed cameras capturing the action at each goal line, net or basket. The power of 12K optical zoom helps you capture the up-close action and player reactions. The Studio 4K provides crystal-clear 4K resolution, 12X optical zoom and conveniently Hive-Linked™ to our easy-to-use online platform, Hive Studio, delivering future-ready connectivity and control from anywhere. The Studio 4K features SDI, HDMI, USB, and IP output and comes native with NDI® HX3.

Easy Control
In addition to the Move 4K’s auto-tracking features, users also have access to PTZOptics’ latest Web UI – updated to provide everything you need in one simple menu. Nearly every feature in the Web UI has a tutorial function, perfect for novice producers navigating the settings for the first time.

Controller at Your Command

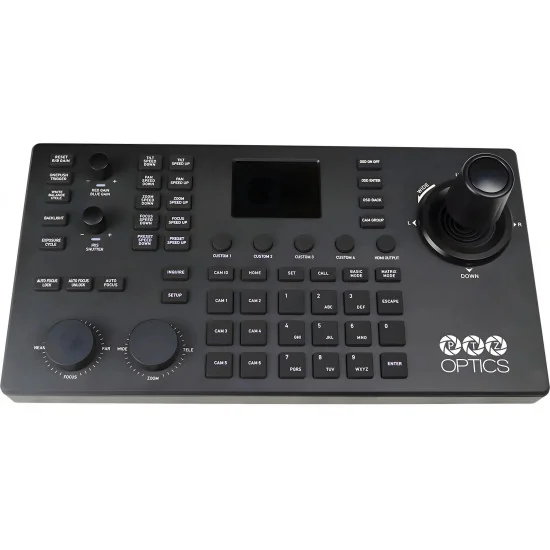

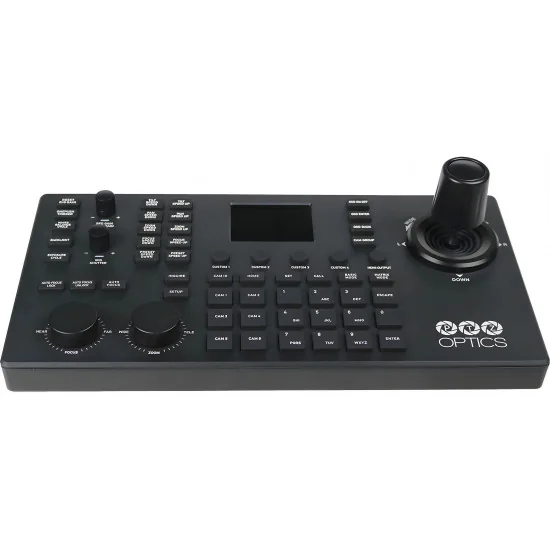

The SuperJoy joystick controller offers an intuitive, tactile interface, simplifying and streamlining even the most complex production setups. The SuperJoy’s HDMI video output provides a 1080p video preview for any camera connected to the SuperJoy that has an RTSP video feed available for use. This HDMI video output is ideal for viewing cameras over a local area network. In this way, a SuperJoy controller can be set up anywhere on a network to gain PTZ camera controls with a low-latency, live video preview.

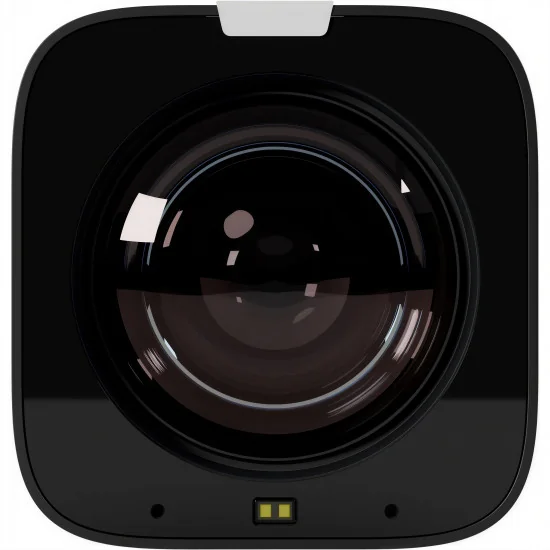

PTZOptics Studio 4K 12x Zoom Box Camera Grey Technical Specifications:

Camera & Lens
Image Sensor & Lens: 1/2.8” CMOS, 8MP (8.4M effective pixels)
Digital Zoom: 16x
Resolution and Frame Rate:
HDMI: 3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p-60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94
SDI: 1920x1080p-60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94/50
Optical Lens Focal Length (Zoom): 12x: f = 4.1mm ~ 49.2mm, F1.8 ~ F2.68
Optical Lens Field of View, Horizontal & Vertical: 12x: H 6.9° ~ 72.5° | V 3.9° ~ 44.8°
Display Field of View: 12x: 80.2°
Min Lux: 0.5 Lux @ (F1.8, AGC ON)
Shutter: 1/30s ~ 1/10000s
Presets: 255 Presets
Presets Accuracy: 0.1°
Image Flip: Supported
Image Mirror: Supported
Image Freeze: Supported

Physical Specifications
Material: Aluminum, Plastic
Color: Gray or White
Dimensions (L x W x H): 5.7" L x 2.99" W x 3.09" H | 145mm L x 76mm W x 78.5mm H
Weight: 12x: 1.5 lbs | 0.68kg
Working Environment: Indoor
Humidity Range: 10% ~ 80%
Operating Temperature: 14°F ~ 104°F (-10°C ~ 40°C)
Storage Temperature: -40°F ~ 140°F (-40 ~ 60°C)

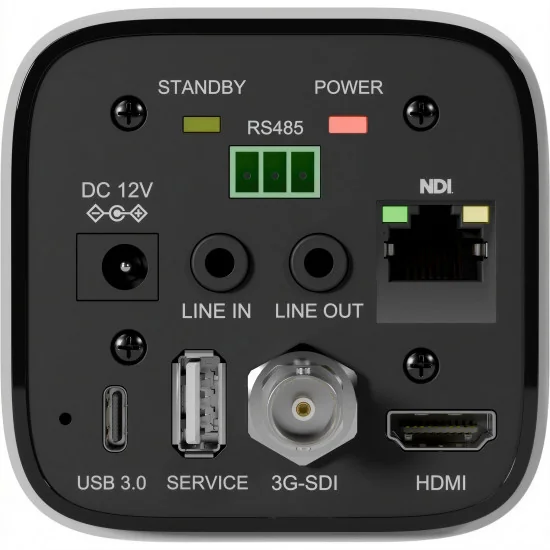

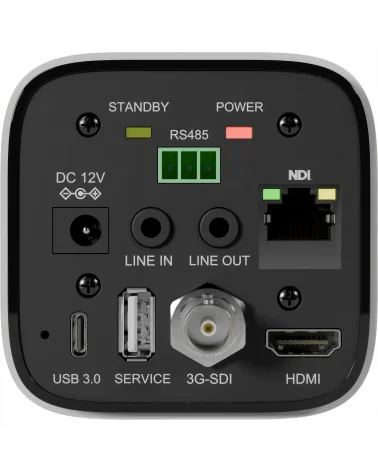

Connections
HD Video Output:
1x RJ45: 10/100/1000M Adaptive Ethernet Port | NDI® HX3 enabled
1x HDMI: Version 2.0
1x USB: 3.0 Type C
1x 3G-SDI: BNC type, 300mVP-p, 75Ω, Along to SMPTE 424M
Audio Interface: 1x 3.5mm Line level input, 1x 3.5mm Line level output
Video Formats:
USB:
YUY2: Max resolution 1920x1080p @ 30fps
MJPEG: Max resolution 3840x2160p @ 30fps
H.264 AVC & SVC: Max resolution 3840x2160p @ 30fps
RTSP/NDI® HX3 only: H.265: Max resolution 3840x2160p @ 60fps
Compression Standards: H.264 / H.265 / MJPEG / YUY2 (H.265 HEVC via RTSP/NDI® HX3 only)
UVC Version Supported: UVC 1.1 ~ 1.5
Supported Protocols: TCP/IP, UDP, HTTP, RTSP, RTMP/RTMPS, ONVIF, NDI® HX3, SRT, Multicast, etc.
IR: 4x IR Addresses, Max distance 30ft / 9m
Power Supply: JEITA type (DC IN 12V) / PoE+ (802.3at)
Current Consumption: Max 2A
Power Consumption: Max 18W

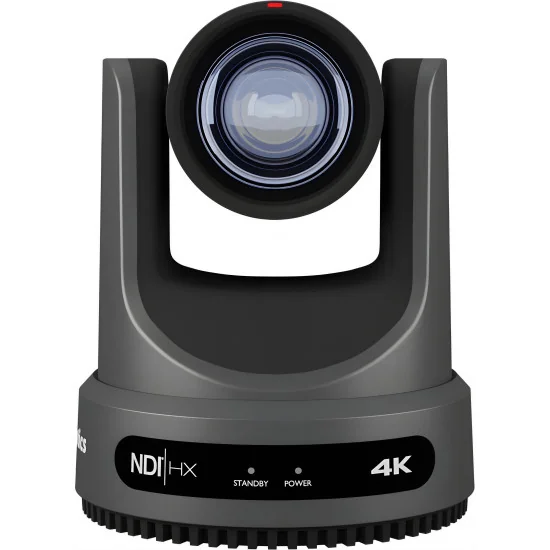

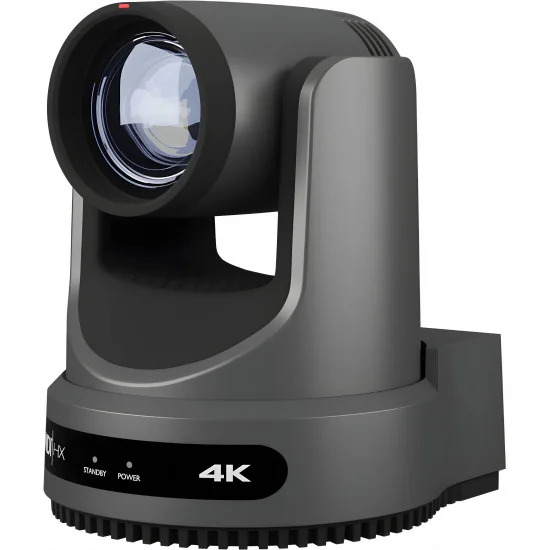

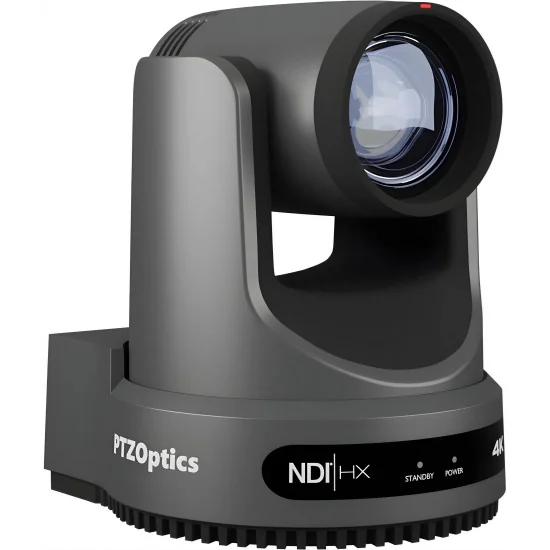

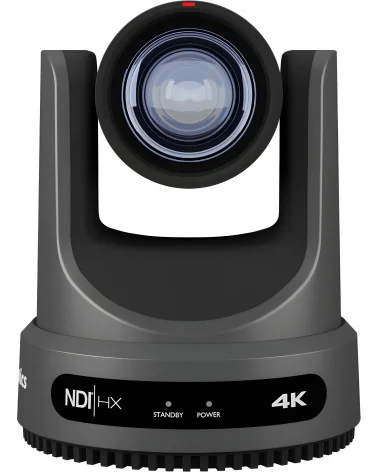

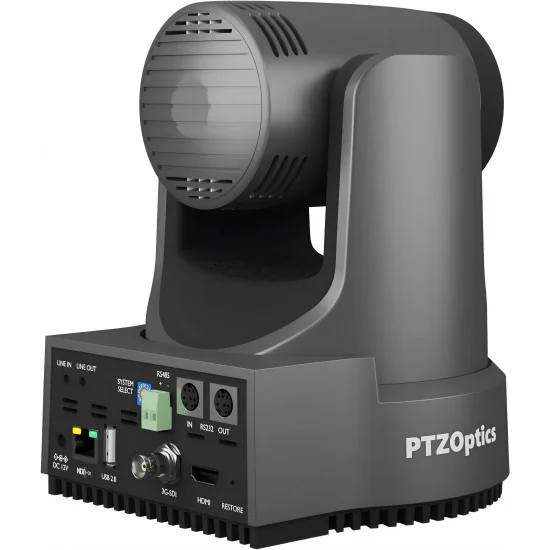

PTZOptics Move 4K PT12X-4K-GY-G3 Specifications :

Video Sensor: 1/2.5 inch, UHD Sony CMOS sensor, effective pixels: 8.51M
Lens: f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6
Lens (35mm Equivalencies): 25mm ~ 299mm, F1.8 ~ F2.6
Resolution and Frame Rate HDMI: 3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94
SDI: 1920x1080p-60/59.94/50/30/29.97/25,1920x1080i-60/59.94/50, 1280x720p-60/59.94
Digital Zoom Off (3840x2160), 2X (1920x1080), 3X (1280x720), 4X (960x540), 8X (480x270), 16X (256x144)
Field of View: Horizontal: 6.9° (tele) ~ 72.5° (wide), Vertical: 3.9° (tele) ~ 44.8° (wide)
Min. Lux 0.5 Lux @ (F1.8, AGC ON)
Shutter 1/30s ~ 1/10000s
Pan Speed 1.7° ~ 100°/s
Tilt Movement +90° to -30
Tilt Speed 1.7° ~ 69.9°
Presets 255 Presets
Video Tracking Supported
Image Flip, Mirror and Freeze Supported
Power Supply DC 12V / PoE+ (802.3at)
Input Power 18W (Max)
Material Aluminum, Plastic
Color Gray
Dimensions (W x D x H) : 5.57 x 5.94 x 7.91 in., 168.4 x 141.5 x 164.5 mm
Weight : 3.25 lbs (1.47 kg)
Working Environment Indoor
Operating Temperature 14°F ~ 104°F (-10°C to 40°C)
Storage Temperature -40°F ~ 140°F (-40°C to 60°C)

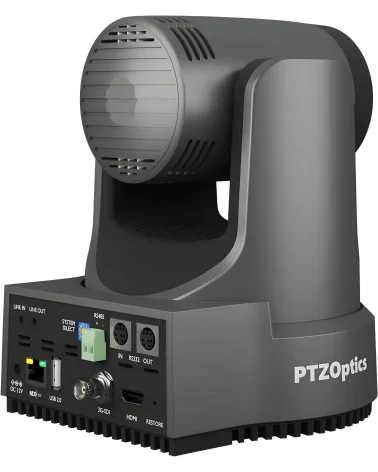

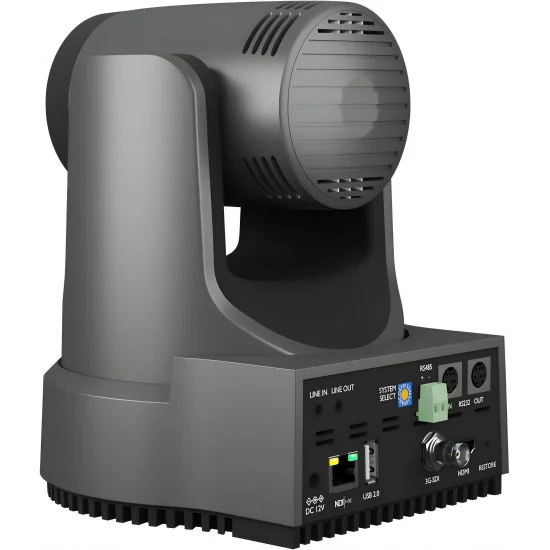

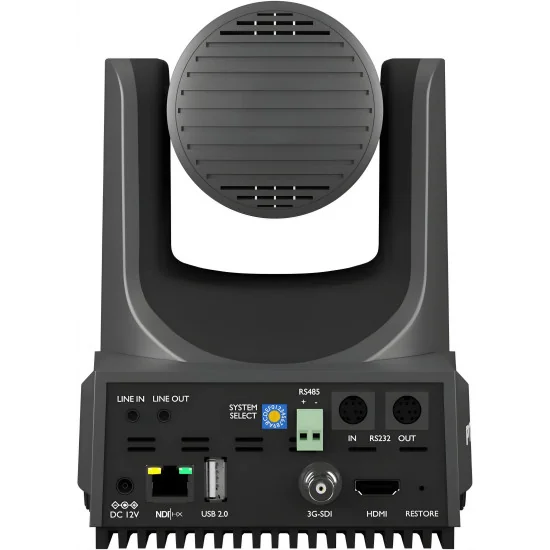

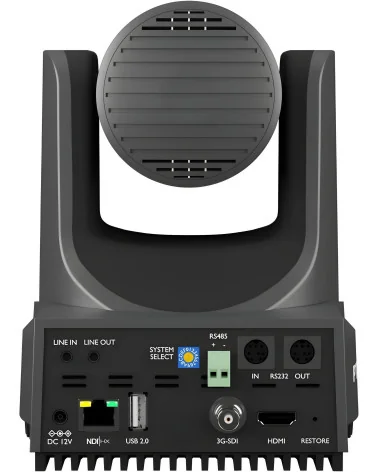

HD Video Output 1x RJ45: 10/100/1000M Adaptive Ethernet Port424M standard
1x HDMI: version 2.0
1x USB 2.0: type A
1x 3G-SDI: BNC type, 800mVP-p, 75Ω, Along to SMPTE 424M standard
Audio Interface 1x 3.5mm Line level Input
Communication Interface 1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
1x 2 pin Phoenix port, RS485 input / output, Max distance 3,937ft / 1200m, protocol: VISCA / Pelco-D / Pelco-P
Network Interface RJ45: 10/100/1000M Adaptive Ethernet Port, supports PoE
Power Jack JEITA type (DC IN 12V)

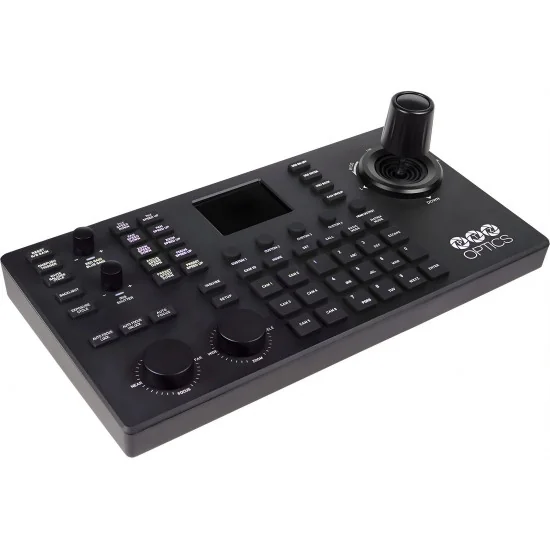

PTZOptics SUPERJOY PTZ Technical Specifications

Connections RS-232, RS-485, RS-422, RJ-45
Control Protocols VISCA, VISCA over IP, PELCO-D, PELCO-P, Sony, & NDI
Max Cameras 253 cameras total (Cam Groups 1-4: 7 channels Cam Group 5: 225 channels)
Recommended Max Distance RS-232 / RS-422: 50 ft | 15m, RS-485: 3,937 ft | 1200m, Ethernet: 328 ft | 100m
Baud rate 1200 ~ 19200 bps
Operation Specifications
Power 6W | 12VDC / PoE (802.3af) (Only use one (1) power source at a time.)
Working Temp 14° F ~ 122° F | -10° C ~ +50° C
Working Humidity 10% ~ 90% (non-condensation)
Weight 3.75 lbs | 1.70 kg
Dimensions (mm.) 370 W x 180 D x 101 H
