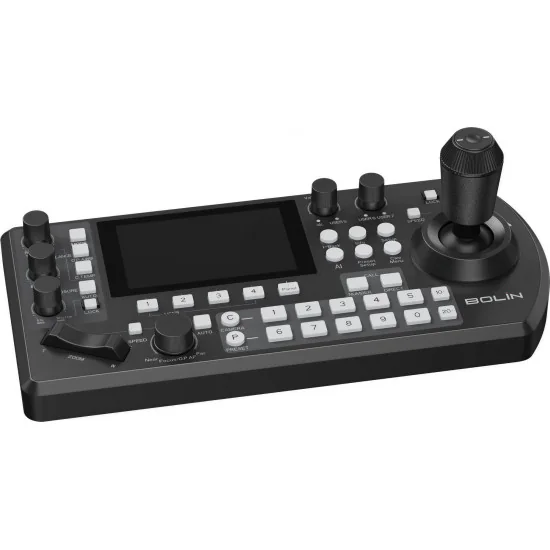

KBD Plus Advanced PTZ Production Controller - Control + View + Produce
Bolin's KBD Plus Advanced Production PTZ Controller is designed to provide precise, responsive control for professional PTZ camera systems used in broadcast, live production, houses of worship, corporate AV, and education environments. Built for modern IP-based production workflows, KBD Plus allows operators to control multiple cameras with accuracy and speed while maintaining clear visibility of video feeds and system status. At the center of the controller is a 4-inch touchscreen display that provides live camera monitoring, multiview capabilities, and quick access to camera control and system settings. The controller also includes a built-in video decoder, allowing operators to view up to 4 camera feeds directly on the controller. In addition, HDMI and USB-C (UVC) video outputs enable the decoded video feed to be sent to external monitors or connected directly to a computer as a webcam source, giving operators flexible monitoring and streaming options. KBD Plus supports a wide range of industry-standard control protocols, including VISCA over IP, NDI control, ONVIF, RS-232, and RS-422, Panasonic UE, and Canonc XC enabling compatibility with Bolin cameras as well as many third-party PTZ cameras used in professional production environments. Operators can manage multiple cameras, quickly recall presets, and make precise adjustments using the high precision joystick, zoom rocker, focus dial, and dedicated image adjustment controls. Additional features such as user-definable buttons, customizable control panels, and programmable presets allow operators to tailor the controller to their specific workflow and production environment. From multi-camera live productions to lecture capture and broadcast control rooms, the Bolin KBD Plus delivers intuitive PTZ control, integrated monitoring, and flexible connectivity, making it a powerful solution for modern PTZ camera operations.

4-Channel Video Decoding
Decode up to four IP video streams simultaneously with low latency for real-time monitoring and control.

Multiview Monitoring
View multiple camera feeds in a single multiview layout for convenient monitoring while controlling cameras.

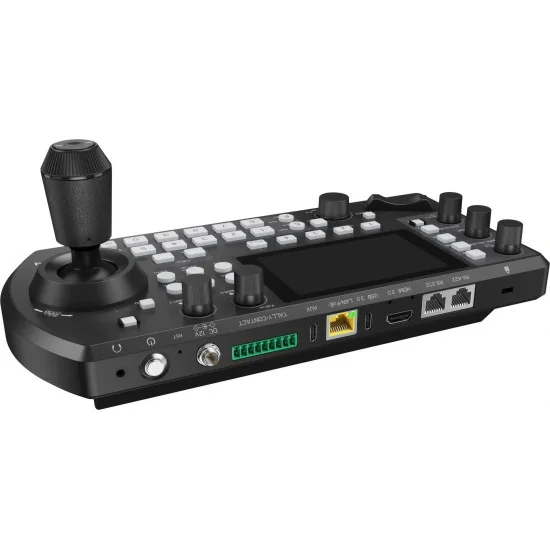

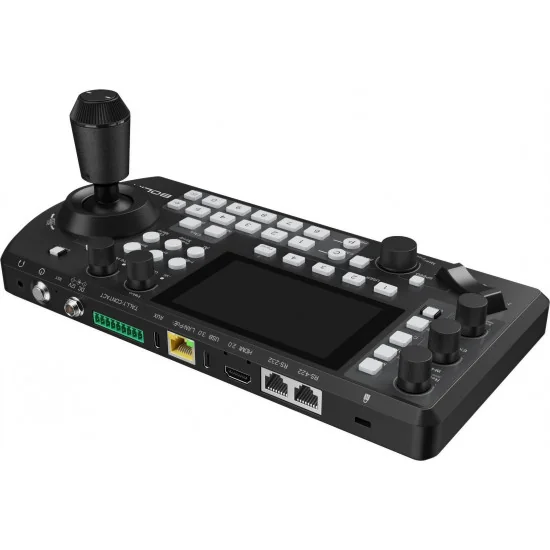

HDMI Output
HDMI 2.0 output displays decoded camera feeds on external monitors in single-view or multiview layouts.

USB-C (UVC) Output
USB-C output supports UVC, allowing decoded video to appear as a webcam in software applications.

Where Control, Visibility, and Intelligence Come Together

Visca Over IP
Supports the standard VISCA over IP protocol, ensuring reliable network control across a wide range of PTZ cameras.

NDI Control
Supports PTZ camera control across the NDI ecosystem, enabling integration with a variety of NDI devices.

Pelco P/D Control
Supports Pelco P and Pelco D protocols for compatibility with a wide range of legacy PTZ camera systems.

VISCA Control
Supports VISCA control over RS-232 and RS-422, enabling camera control without requiring a network connection.

Panasonic
Supports Panasonic AW Protocol for basic pan, tilt, and zoom control of compatible Panasonic cameras.

Canon
Supports Canon XC Protocol for basic pan, tilt, and zoom control of compatible Canon PTZ cameras.

Open API Integration
Program controller buttons to send API commands to external devices for custom control and automation.

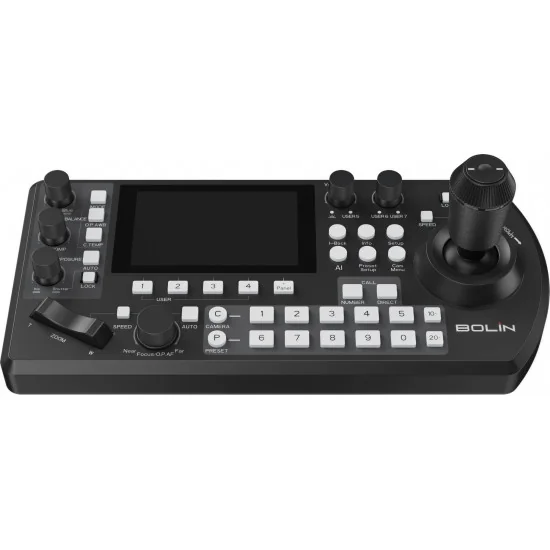

Control

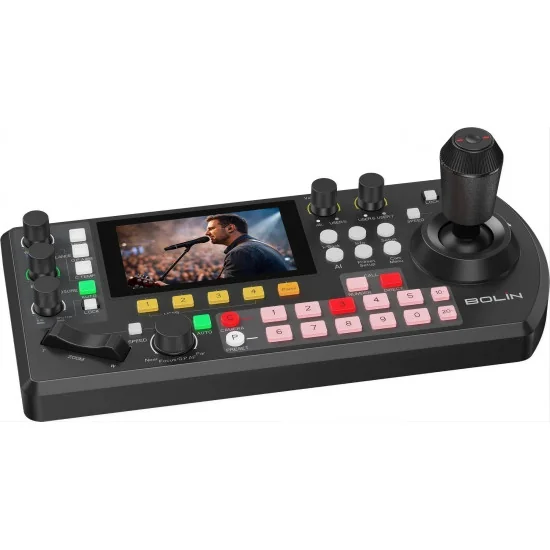

Touch Screen Display
The responsive 4" touch screen provides quick access to camera control, monitoring, and system settings

Visual Camera Selection
Thumbnail previews show what each camera is capturing, making it easier to quickly identify and select the desired camera.

Visual Preset Recall
Thumbnail previews of preset positions of each camera make it easy to quickly identify and recall the desired preset.

Number/Direct Call
Recall cameras or presets instantly using keypad direct call or number entry followed by the call command.

Precision Joystick Control
The precision joystick provides smooth, responsive control for accurate camera positioning over continuous use.

Simultaenous 3-Axis Movement
Control pan, tilt, and zoom simultaneously for smooth, coordinated camera movement on all 3 axis.

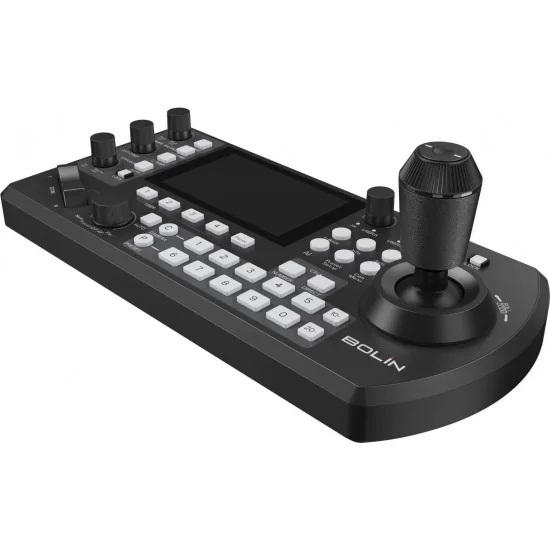

Custom Joystick Built for Precision and Longevity
The KBD Plus joystick is purpose-built for professional PTZ operation, delivering smooth response, precise positioning, and long-term reliability. Unlike generic joystick modules, it is engineered specifically for professional camera operation.
– Tested to over 1 million motion cycles to ensure long-term durability
– Maintains precise control accuracy, with only 0.7% deviation after 500,000 rotations
– Designed for long operational life, supporting 700,000+ real-world control actions

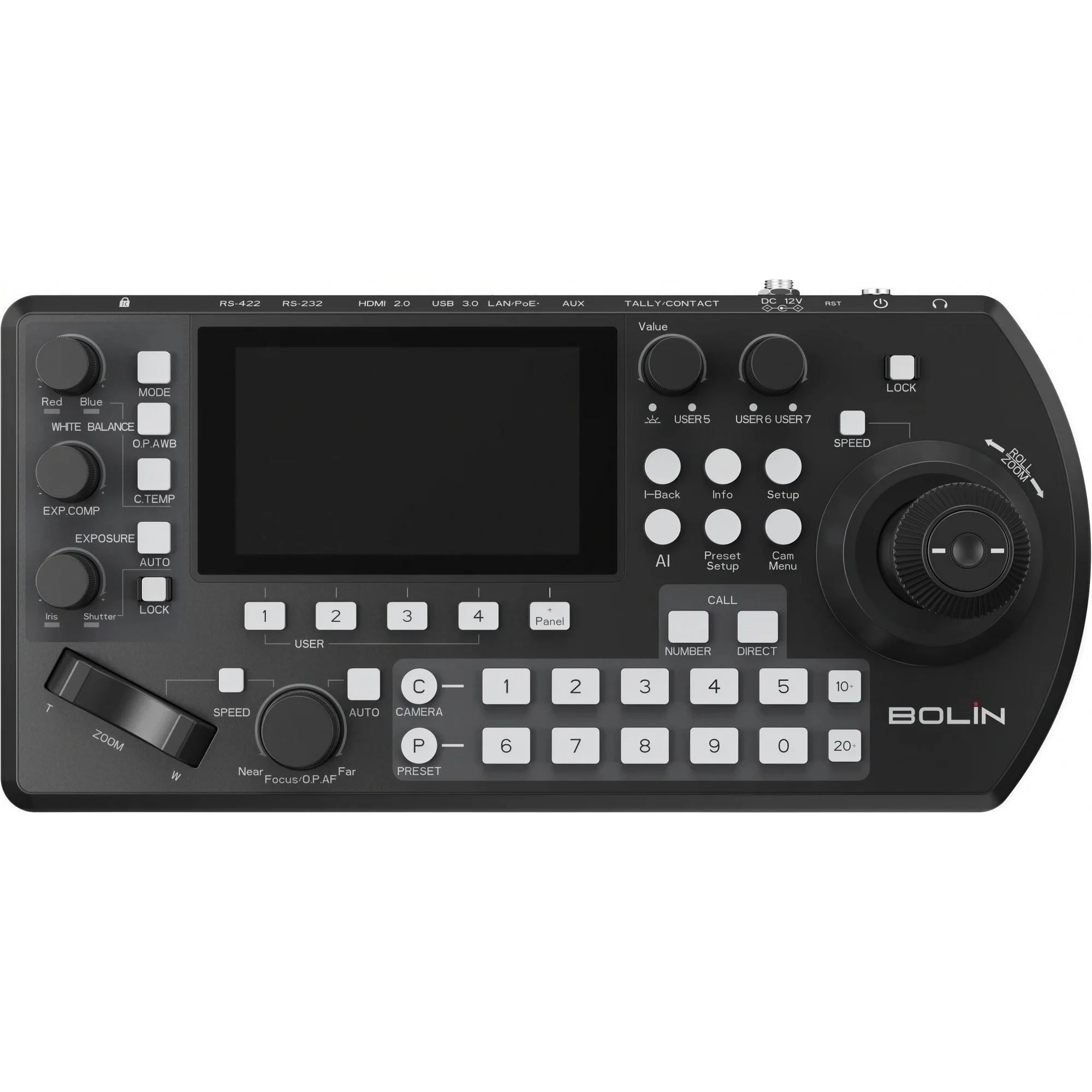

User-Definable Function Buttons
Assignable buttons and knobs allow operators to map commonly used functions for faster control and personalized workflows.

Image Parameter Adjustments
Dedicated knobs and controls allow quick adjustment of image settings such as white balance, exposure, iris, and shutter.

PTZ Speed Control
Adjust pan, tilt, and zoom speeds to match different shooting situations and achieve smoother camera movement.

Roll- Axis Control
Directly control the roll axis on compatible Bolin cameras for horizon correction, vertical video, and creative framing.

Dual-Hand Control
Operate the joystick with one hand while adjusting zoom, focus, or image settings with the other for coordinated control.

Macro Commands
Create custom macro commands to trigger multiple camera actions with a single button press for faster operation.

KBD AI Control
Controller-based AI tracking sends movement commands to the camera, adding subject tracking to cameras without built-in AI. Coming in a future firmware update.

NDAA Compliant
Built without restricted components from banned manufacturers, supporting deployment in security-sensitive environments.
