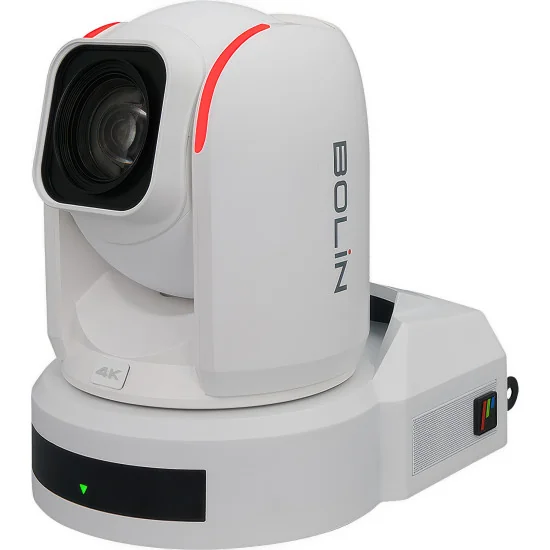

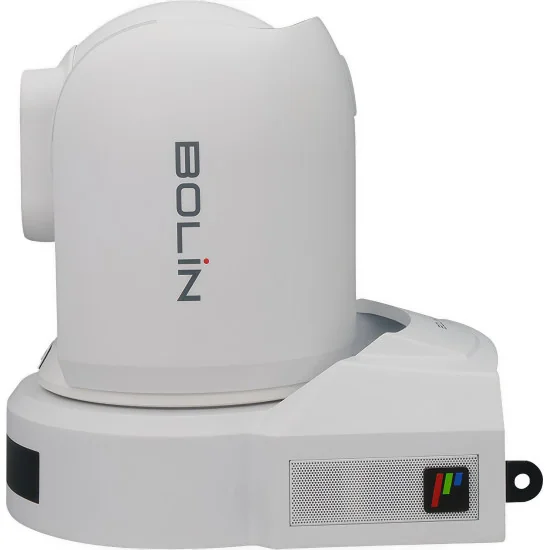

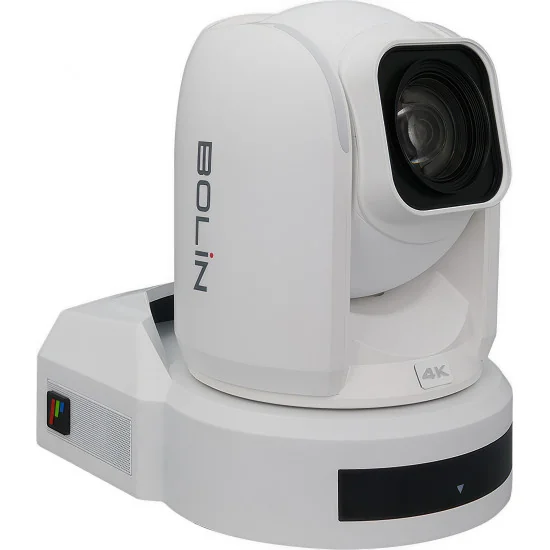

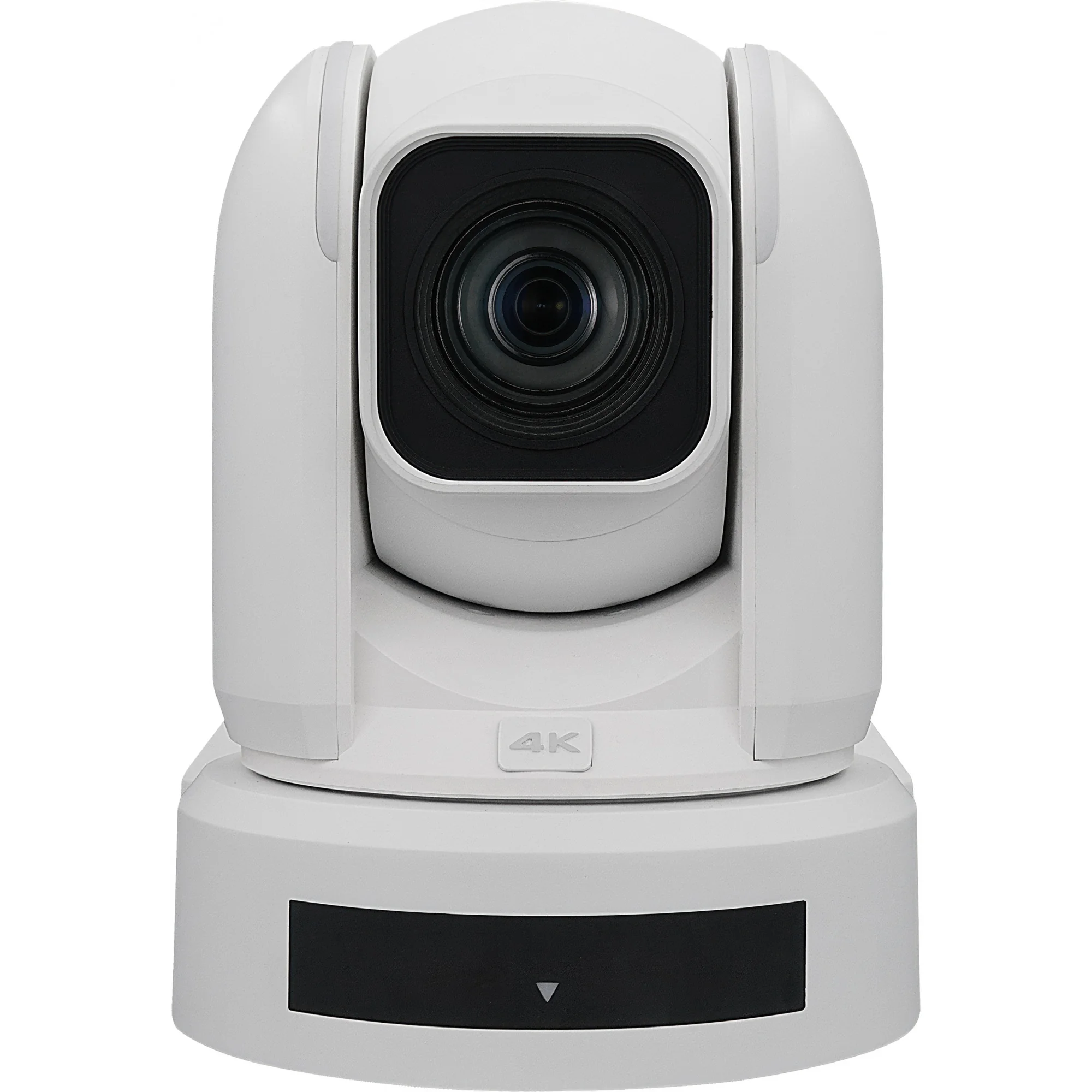

The Bolin R9-418F 1 Inch 4K PTZ camera is engineered for broadcast, live production, and professional AV applications, delivering high-resolution 4K image quality with clarity and depth. Built around a Sony 1-inch CMOS sensor, the R9-418F excels in low-light conditions, ensuring true-to-life colors and exceptional detail even in challenging environments. With 18x zoom and built-in ND filters, it is a perfect fit for broadcast studios, live events, theaters, houses of worship, and corporate productions, where precision and flexibility are essential. Its robust design easily integrates into baseband and AV over IP workflows, with multiple simultaneous outputs, including dual 6G-SDI, HDMI 2.0, Optical SDI, and IP streaming, ensuring professional-grade reliability in any production setting. FPGA hardware FAST HEVC codec provides high-quality, low latency and low bandwidth IP streams include RTSP, RTMP, SRT, ONVIF, and MPEG-TS.

Designed for high-end production environments, the R9-418F features a built-in SFP+ slot for optional 12G-SDI fiber expansion, enabling long-distance, high-bandwidth video transmission. Additionally, FreeD protocol support allows for real-time tracking data output to AR/VR graphics systems, making it a powerful tool for virtual sets and immersive productions. The camera’s industry-leading 255-step precise PTZ movement, optical image stabilization, and flexible mounting options allow for easy installation and operation in studios, auditoriums, and professional live venues.

From studio broadcasts to live productions, the Bolin R9-418F delivers high-quality 4K video, flexible connectivity, and precision PTZ functionality, ensuring every moment is captured with professional-grade quality and reliability.

IEC 60601 certification for use in medical spaces where signal integrity and electromagnetic safety are essential.

1 Inch Large 4K Sensor
Bolin's R9-418F 1-Inch 4K PTZ Camera features a Sony 4K image block with a 1.0-type sensor, offering a large light-receiving area for crisp, noise-free, high-definition imaging. It also includes mechanical optical stabilization for enhanced clarity and stability.

Bolin's R9-418F 1-Inch 4K PTZ Camera features a Sony 4K image block with a 1.0-type sensor, offering a large light-receiving area for crisp, noise-free, high-definition imaging. It also includes mechanical optical stabilization for enhanced clarity and stability.

1 inch type Exmor R CMOS Large Image Sensor

• 14.4 Megapixels
• Best Image Quality in class
• 4K with 18X zoom, FHD with 24X zoom
• Zeiss Lens Constant F2.8 Aperture
• Optical Image Stabilizer
• Black Level
• Color Matrix
• ND Filter
• True WDR

4K Lens 18X Zoom Range
The high-quality lens offers a bright F2.8 maximum aperture and up to 18X zoom range in 4K/29.97/30fps quality, 24x zoom range when FHD(1080p59.94/60fps) resolution is used. Fast zoom operation (from wide end to tele) is ideal for smooth, rapid transitions from wide area coverage to detailed close ups ensuring critical detail is not missed.

SONY IMAGE BLOCK
The new FCB-ES8230 represents a new avenue of high quality and 'best in class' images in stunning 4K clarity thanks to the combination of Sony's 1-type Exmor R CMOS sensor, high quality lens and Sony unique ISP engine.

The FCB-ES8230 offers 4K resolution at 30fps together with an integrated super resolution zoom up to 18x in 4K quality.  Additional 24x zoom in FHD resolution.

Capture high quality, crisp, clear 4K @30fps images
The high-performance 1-type Exmor R CMOS image sensor achieves superb 4K (QFHD) and FHD picture quality. Using the latest Sony sensor technology combined with the best optical zoom lens, the FCB-ES8230 produces high quality images in excellent detail and clarity.

Fast, bright lens with rapid 18x(4K), 24X(FHD) zoom range
The high-quality lens offers a bright F2.8 maximum aperture and 18x/24x zoom range. Fast zoom operation (from wide end to tele) is ideal for smooth, rapid transitions from wide area coverage to detailed close ups ensuring critical detail is not missed.

Get a steadier picture with optical image stabilization
In a first for FCB technology and inherited from our world leading professional camcorder technology; the FCB-ES8230 comes with a built-in optical image stabilization capability, countering the effects of blurred, shaky images caused by low-frequency vibration and movement.

Wide range of features for versatile operation
Versatile operation is ensured by a wide range of functions and adjustments, including: White Balance modes; Picture effects (E-Flip, Black & White, Mirror Image, Color Enhancement, Black Level, Color Matrix, Gamma); Privacy Zone Masking; Picture freeze; Trace Memory, Shutter Priority; Iris Priority; Slow AE response etc.

Low Bandwidth! One 4Kp60 IP stream with Multiple Decoders
This video demonstrates the power of the FPGA imaging processor in Bolin's new Red Line cameras, and the dramatically low bandwidth of FAST HEVC! Here, we are sending 12G-SDI baseband video and three simultaneous IP FAST HEVC streams, all at 4Kp60 and at only 50Mbps per stream!

Video Codec:  FAST HEVC Codec Built-in

• There is a "FAST HEVC" logo on the camera body
• H.264/265 - AVC/HEVC
• Hardware FPGA based encoder built-in
• High Quality, Ultra Low Latency, Low Bandwidth
• Browser, hardware and software  decode-able
• Up to 4K60, Full HD
• Two IP video streaming
• Unicast, Multicast
• RTSP, RTMP, RTMPS., SRT, ONVIF
• IP control: Visca Over IP, Onvif
• Audio encode
• Open platform

FreeD Protocol Integrated for VR/AR Video Production
FreeD (Free Dimensional Video) is a protocol that enables the capture and rendering of immersive, three-dimensional video content. It is especially useful for virtual live video productions with baseband video feeds and, with Bolin PTZ cameras, with ultra-low latency AV Over IP streaming. This capability can be widely used in applications like weather reporting, sports, news, and live events.

FreeD helps provide all the axis data needed for a Bolin PTZ camera to intelligently and smoothly pan, tilt, and zoom while following designated objects and people. Broadcasters can combine Bolin’s FreeD-enabled PTZ cameras with available, sophisticated software to automate complex camera operations with spectacular results.

PTZ Movement-Smooth, Accurate and Quiet

• PAN: 340° (-170° to +170°); Fully proportional, speed 0.05° to 70°/s
• TILT: 120° (-30° to +90°); Fully proportional, speed 0.05° to 60°/s
• Preset: 255 positions, Speed 70°/s, 0~5 Level Adjustable, Accuracy: 0.03°
• Picture Profile Preset
• Motionless Preset
• PTZ Trace Memory
• Quietness less than NC35
• Smooth and Accurate Movement

Various Control Methods

• IP Control
• Serial Control
• IR Remote Control
• Software Control-Rest API
• Control Protocol:
• VISCA Over IP
• ONVIF
• VISCA
• PELCO P/D
• FreeD

SPECIFICATION

IMAGE 4K30/FHD, 18X
Image Maker: Sony Image Block
Image Sensor: 1.0-type back-illuminated Exmor R CMOS sensor
Number of effective pixels: 14.2 MP
Picture elements: 3840 x 2160, 8.29 MP
Lens: Zeiss Vario-Sonnar T lens, Zoom Range 18X(4K)/24X(FHD)
Horizontal Angle of View: 64.6˚ (Wide) - 6.1˚ (Tele),
Vertical Angle of View: 39.2˚ (Wide) - 3.4˚ (Tele),
Focal Length: f=9.3 to 111.6mm, F2.8(Wide) ,F4.5(Tele)
Min. object distance: 80mm (Wide), 1000mm (Tele)
Aperture: F2.8 Constant (W)~F4.5(T), 16 Steps
Min. Illumination: 0.5 lx (1/30 sec, 50%, High Sensitivity On) 2.0 lx (1/30 sec, 50%, High Sensitivity Off)
Shutter Speed: 1/1 sec to 1/10000 sec (28 steps)
Focus: Spot Focus, Auto Focus(Trigger/Interval), Manual Focus(Variable Speed), One Push Trigger, Near Limit,
White Balance: AUTO, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp（Fix/Auto/Outdoor Auto）
Exposure: Full Auto, Gain, Shutter Priority, Iris Priority, Manual, Bright
Features: High Sensitivity, Backlight Compensation, HLC, E-FLIP, Mirror, Day/Night
WDR: YES(130dB), Shown as VISIBILITY ENHANCER in OSD
ND Filter: Yes
Image Stabilizer: YES, Optical Image Stabilizer
Color Gain: Yes (15 step)
Color Hue: Yes (15 step)
Gamma: Standard/Straight/Pattern
Gamma Level: Yes (15 step)
Black Level: Yes (97 step)
Black Gamma: Yes (15 step)
Color Matrix: Off/Standard/High Saturation/FL light
Noise Reduction: On/Off (level 5 to 1 / Off, 6 steps), 2D/3D
S/N Ratio: ≥50db
HLC: Yes
E-Flip: Yes
Defog: Yes, (off, low, mid, high)
High Sensitivity: Yes
Slow AE Response: Yes
Day/Night: Yes
Backlight Compensation: Yes

MECHANICAL
Pan Movement: PAN: 340° (-170° to +170°); Fully proportional 0.05° to 70°/s
Tilt Movement: TILT: 120° (-30° to +90°); Fully proportional 0.05° to 60°/s
Speed Proportional: Pan/Tilt Speed proportional to zoom range
Preset Position: 255 positions, Speed 70°/s, 0~5 Level Adjustable, Accuracy: 0.1°
Preset Memory: Picture Profile Preset-Preset Memory for image parameters: Backlight Compensation, White Balance, Auto Exposure, Bright, Iris, Shutter, Gain, Aperture, Effect, Noise Reduction, Mirror, Gamma, Ex-COMP, Color Hue, Contrast etc.)
Motionless Preset: YES, ON/OFF
PTZ Trace Memory: YES, 4
Cruise: YES, 12
Quietness: NC35 Compliant
Home Position: Yes
FreeD: Yes, FreeD protocol for AR/VR camera tracking, via IP
Environmental: Indoor

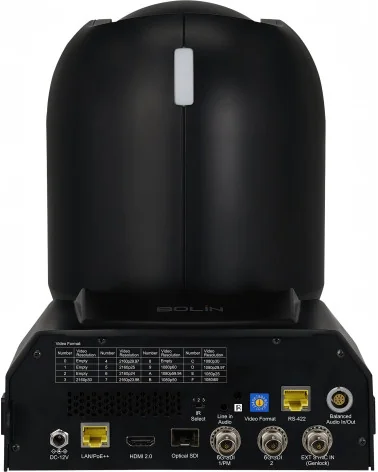

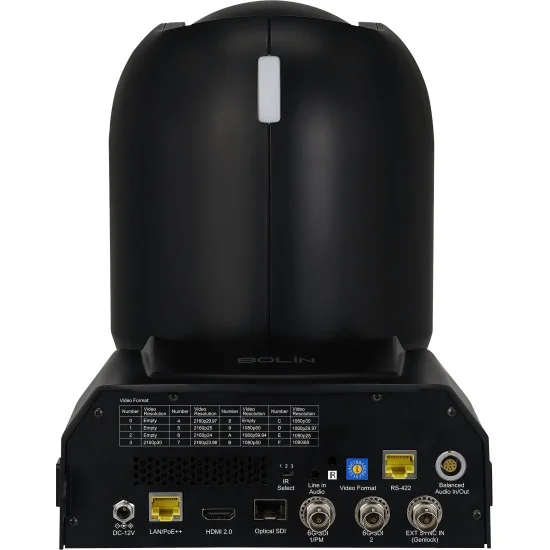

INTERFACE
HDMI Video Output: HDMI 1.4 Type A
SDI Video Output: 6G-SDI, 75Ω BNC x 2，SDI Clean / SDI PM for output having OSD display
SDI Optical Fiber: Output Optical SDI SFP module support up to 12G-SDI (Module Excluded). Detachable slot, Connector: Duplex LC (optional via ST, LC or SMPTE)
Preset Position: Laser Unit: Single-mode 1,310nm DFB-LD transmitter and PIN receiver Complaint with MSA SFP+ Specification SFF-8402.
Network LAN Port: RJ45X1, Standard 10M/100M/1000M Base-TX Ethernet, LAN connector for IP control/video output/audio output/System FW Upgrade
Synchronization System: Internal/External synchronization (BBS/Tri-level sync)
External Sync Input: Genlock, BNC connector, BBS (Black Burst Sync), tri-level sync supported
Audio Input: Balanced XLR (Hirose Connectorvia Atomos 10-Pin LEMO Type to XLR Breakout Cable) with 48V Phantom power, 3.5mm TRRS for bidirection audio intercom (Preserve)
Audio Output: Balanced XLR (via 10-Pin LEMO Type to XLR Breakout Cable)(Preserve), embedded with HDMI, SDI, and IP, 3.5mm TRRS for bidirection audio intercom (Preserve)
Tally Light: Red, Green Color/Front and Rear
Dip Switch: Video Resolution Dip Switch x1
System Firmware Upgrade: Upgrade via IP for camera system MCU, FPGA and Encoder
Power Connector Type: INPUT: DC12V, connect with screw secure (Type - 5.5mm×2.1mm Male DC Power Plug Connector & Screw Lock Female Panel Socket Mount Adapter)
Features: INPUT: RJ45, PoE++ (IEEE802.3bt)
Control Interface: RJ45X1-RS422, RJ45X1-IP Control, IR Remote Control
Control Protocol: Serial: VISCA, PELCO P/D; IP: VISCA Over IP, ONVIF; FreeD, API

HDMI VIDEO SIGNAL SYSTEM
HDMI Video Format: 3840x2160P 30/29.97/25/24/23.98 1920x1080P 60/59.94/50/30/29.97/25/24/23.98 1920x1080i 60/59.94/50 1280x720P 60/59.94/50
Color Precision: 12bit(HDMI), YUV4:2:2
Color Space: YUV、RGB
OSD: Menu Display Yes
On-Screen Title: Yes, video embedded On-Screen title character generator; Image/Logo Insert Screen Display with IP Image Stream

SDI SIGNAL FORMAT
SDI Video Output: 6G-SDI
SDI Video Format: 3840x2160P 30/29.97/25/24/23.98 1920x1080P 60/59.94/50/30/29.97/25/24/23.98 1920x1080i 60/59.94/50 1280x720P 60/59.94/50
Color Precision: 10bit(SDI), YUV 4:2:2
Color Space: YUV
Standard: SMPTE 292M, SMPTE 296M (1.5Gb/s), SMPTE 424M, SMPTE 274M, SMPTE 425-A(3Gb/s) SMPTE 2081(6Gb/s), with SMPTE352 SDI Metadata Supported
True Dual Output: HDMI and SDI signal can be output with different format
OSD Menu Display: Yes
On-Screen Title: Yes, video embedded On-Screen title character generator

NETWORK
Video Compression: AVC-H.264/HEVC-H.265/MJPEG by FPGA
IP Resolution/Frame Rate: 3840x2160P 30/29.97/25/24/23.98 1920x1080P 60/59.94/50/30/29.97/25/24/23.98 1920x1080i 60/59.94/50 1280x720P 60/59.94/50
True Dual Output: IP, HDMI, and SDI signal can be set with different format
IP Protocols: TCP/IP, IGMP, ICMP, ARP, QoS, SNMP, UDP, HTTP, DNS, DHCP, FTP, NTP, UPNP, SRT
Application Protocols: RTMP(S), RTSP, RTSP Encryption, RTP Streaming (Unicast, Multicast), SRT, MPEG-TS over UDP, MPEG-TS over RTP
Color Format: YUV4:2:0 8bit、YUV4:2:2 8bit、YUV4:2:2 10bit
Multi-stream: 2 stream
Audio Compression: 32-128Kbps(AAC-LC) Selectable
OSD: Customized OSD
Compatible Integration: ONVIF2.4 (Profile S), VISCA Over IP
Bandwidth ( results may vary depending on network configuration and management settings.): 128Kbps-60Mbps, 4kp60 12 bit 4:2:2, 10-20Mbps, 1080p60 12 bit 4:2:2
Latency (Overall latency may increase depending on network configurations): 2-3 frame (e.g. 1080p60 latency is < 120ms glass to glass
Browser Support: Cross Browser Compatibility - HTML5 support for Microsoft Edge, Google Chrome, Firefox, and Safari

GENERAL
Operating Temperature: –10 °C to 50 °C（14°F to 122°F)
Operating Humidity: ≤80% Suitable for Use (no condensation)
Power Input: DC12V, POE++ (IEEE802.3 bt Type 4 Calss 7)
Power Consumption: Min: 40W (Static state with no movement) Max: 46W（Fully loaded operation）
Installation Method: Stand-alone (Upright) or suspended (Pendent) or Tripod
Mount: Ceiling mount, Wall mount, Tripod
Handle: Built-in for portable use application
Size of Tripod Screw Hole: 1 x 1/4” safety bond point
Body Color: Black, White
Dimension-Camera: 201*253*249mm(W*D*H), 201*253*256(with feet mats)
Net Weight: 3.8kg (8.36lb)
Accessories Included: IR Remote controller x1, Power adapter and power cord (US, EU, UK), Mounting screws x3, RJ45 to RS422 Extension cable
Certificate: CE, FCC, IC, UKCA, ROHS, WEEE, IEC60601 (Medical Grade)
