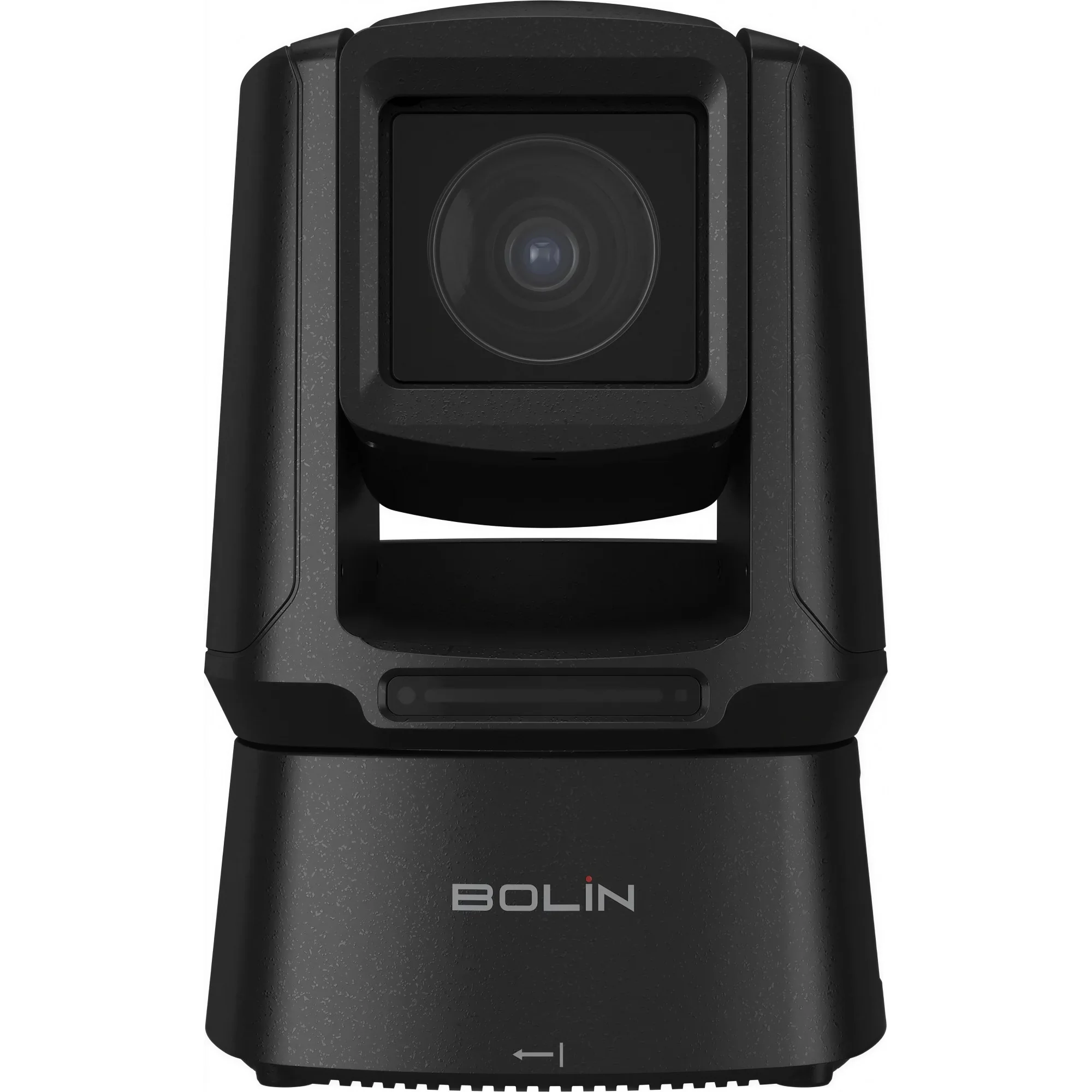

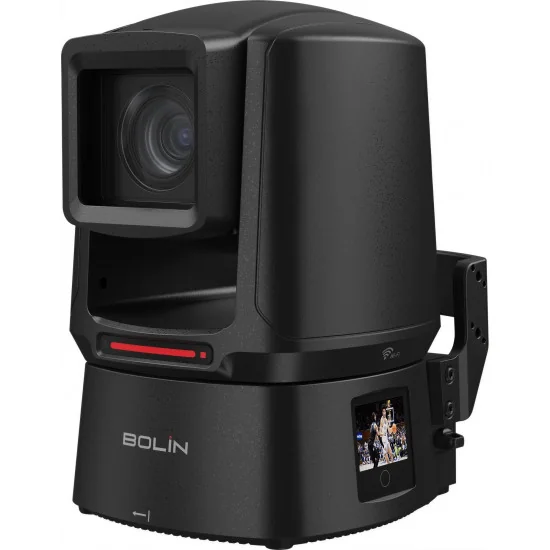

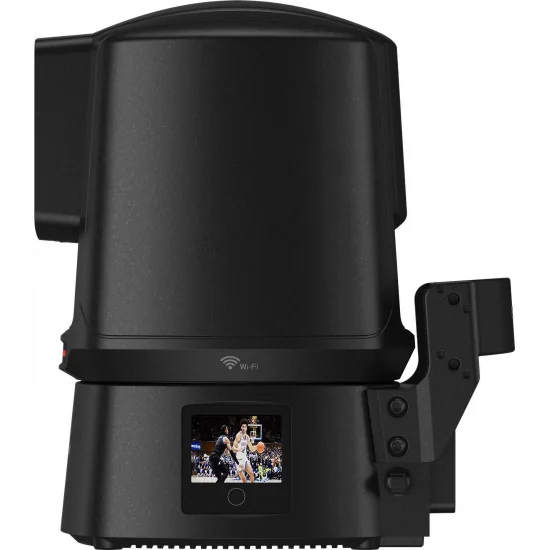

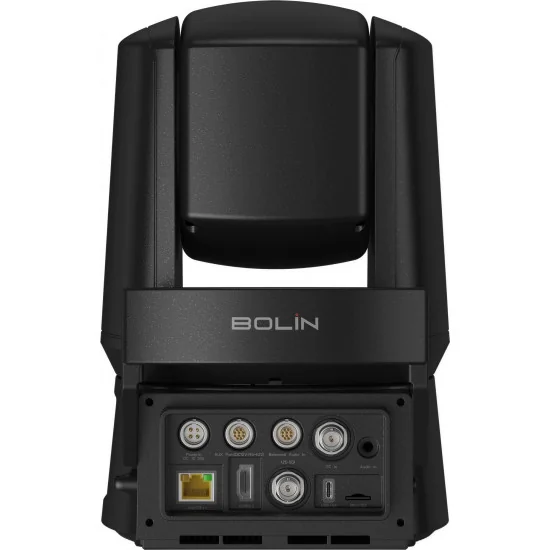

Bolin Range All Weather 4K60 PTZ Camera

Image and Optics - Image Comes First. Speed Follows

4K60 Professional Video
True 4K60 video delivers sharp detail and fluid motion, keeping fast-moving subjects clear in live production environments.

Advanced ISP
Advanced image processing optimizes exposure, focus, and white balance, delivering natural color, balanced images, and consistent quality.

1/1.8” Sony Sensor
A Sony image sensor delivers sharp detail and natural color reproduction, supporting consistent, high-quality video across productions.

25X Zoom
A 25X zoom range allows flexible framing from wide establishing shots to tight close-ups without sacrificing image quality.

Low Light Performance
A sensor optimized for low-light environments helps maintain clear images and natural color even in darker production settings.

Range. Without Limits

• Auditoriums
• Arenas
• Cold Climate Environments
• Corporate Conferences
• Outdoor Concerts
• Education
• High Heat Environments
• Houses of Worship
• Mobile Units
• Performing Arts Centers
• Rentals
• Remote Production
• Sports
• Stadiums
• Studios
• Touring

Connectivity and Outputs - From Studio to Stadium - One Camera Does It All

Simultaneous Multi-Stream
Output video simultaneously through HDMI, SDI, and IP with independently configurable resolutions and support for multiple concurrent IP streams.

NDI Embedded Bridge
NDI Embedded Bridge enables secure NDI connections across different networks, supporting remote production and distributed workflows.

Ultra Low Latency
Ultra low latency video output ensures near real-time response for live production and monitoring workflows.

API
An open API allows developers and integrators to build custom applications, automate control, and integrate the camera into larger systems

Wi-Fi Connectivity
Built-in WiFi enables wireless camera control and video streaming, simplifying setup in temporary or hard-to-wire environments.

Color Matrix
Adjust color properties to better match other cameras and maintain consistent color across multi-camera productions.

Balanced XLR Audio Input
Balanced XLR inputs support mic or line-level audio with optional phantom power, allowing high-quality sound to be embedded with video.

Onboard Recording
Built-in MicroSD storage allows video to be recorded directly in the camera for local capture, backup recording, or simplified workflows.

Live Video and Camera Data Realtime Monitoring

Timecode Synchronization
Built-in timecode support allows the camera to synchronize with other cameras and production equipment. By aligning timecode across devices, operators can maintain accurate timing during multi-camera productions and complex broadcast workflows. This ensures video and audio remain properly aligned while simplifying synchronization across the production system.

Lip Sync Adjustment
The camera is factory calibrated to ensure audio and video remain properly synchronized out of the box. Built-in lip sync adjustment allows operators to fine-tune audio timing when external equipment introduces processing delays. This helps maintain natural alignment between sound and on-screen action, ensuring voices and movements remain properly matched throughout production.

Instant Autofocus with TOF
A Time-of-Flight sensor enables fast, accurate autofocus, helping the camera quickly lock onto subjects and maintain sharp images.

One Cable Solution
A 1Gb Ethernet port with PoE++ support delivers power, control, and network connectivity through a single cable, simplifying installation.

Power External Devices
The camera provides up to 12V, 2A of power output to run external devices such as wireless transmitters or other connected devices.

PTZ - Movement and Intelligence - No Limits. No Missed Moments.

High-Precision Brushless Motors
Brushless motors deliver smooth, precise camera movement with powerful performance, fast acceleration, and responsive speed while maintaining consistent reliability over time.

PTZR 4-Axis Movement
PTZR drive enables pan, tilt, zoom, and roll movement, allowing greater flexibility in framing and camera positioning.

Precise FreeD Production
FreeD output provides precise camera tracking data for AR elements, virtual sets, and XR production environments.

3-Axis Image Stabilization
Gyro-based stabilization helps maintain steady images by automatically adjusting to camera movement and environmental vibration.

Slow and Fast Movement
Pan and tilt speeds range from an ultra-slow 0.05° per second to a fast 70° per second, enabling both precise motion and rapid repositioning.

Ultra Fine Movement Control
UltraFine Movement Control expands PTZ positioning to 255 control steps, far beyond the typical 24-step standard used by most cameras. This increased precision allows operators to achieve smoother, more refined camera movement and more accurate positioning. The result is more controlled motion and subtle adjustments that are especially valuable in broadcast, studio, and live production environments where precise framing matters.

Highest Acceleration, Highest Speed, Quiet Movement
Pan and Tilt, 230°/s,  Preset 300°/s
Acceleration Speed from 0° to 120°/s: 200ms
with 3 Selectable Patterns  (Low/Mid/High)

270° Roll-Axis
A 270° roll axis enables horizon correction, vertical video capture, and creative camera angles without repositioning the camera.

3-Axis Image Stabilization
Gyro sensors detect vibration and environmental movement, allowing the camera to automatically adjust its pan, tilt, zoom, and roll to maintain a stable image. Even if the camera itself moves, Range helps keep the shot steady and usable in real-world production environments.

ZDP - Zero Deviation Positioning
Zero Deviation Positioning keeps the camera precisely aligned so shots remain consistent over time. If the camera head is bumped or physically moved, the system automatically corrects the position and returns the camera to its intended framing.

Silent Movement
Quiet motor operation minimizes mechanical noise, making the camera well suited for studio and noise-sensitive environments.

Trace Memory
Record camera movements and replay them to repeat complex motion paths with smooth, consistent results.

AI Framing
AI framing maintains balanced composition by automatically adjusting the shot to keep subjects properly positioned. To be released in a future firmware update.

AI Tracking
AI tracking automatically follows subjects as they move, helping keep them in the shot without manual camera control. To be released in a future firmware update.

Environmental Capability
From Indoors to Outdoors - Without a Second Thought

Indoor Outdoor Use
Designed for both indoor and outdoor environments, allowing the camera to be deployed across a wide range of production and installation scenarios.

IP65 Weather Protection
IP65-rated protection shields the camera from dust and water, allowing reliable operation in outdoor and challenging environments.

Operation in Extreme Climates
Designed to operate from -40°C to +60°C, allowing reliable performance in extreme cold, heat, and demanding outdoor environments.

Integrated Carry Handle
An integrated handle makes it easier to carry, mount, and reposition the camera during installation.

Accessory Mounting Points
Threaded mounting points integrated into the handle allow microphones, monitors, wireless transmitters, and other accessories to be mounted directly to the camera.

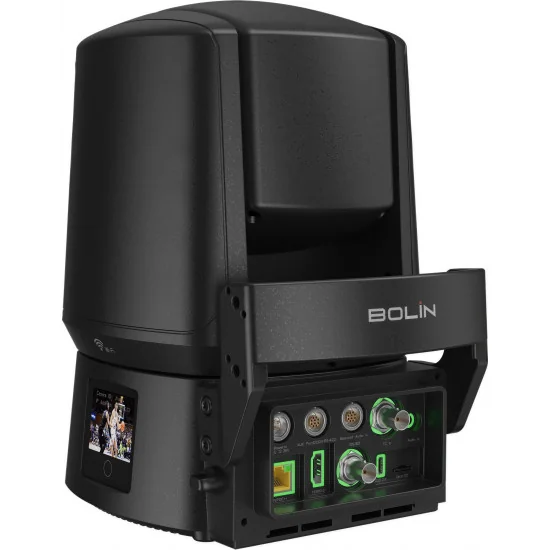

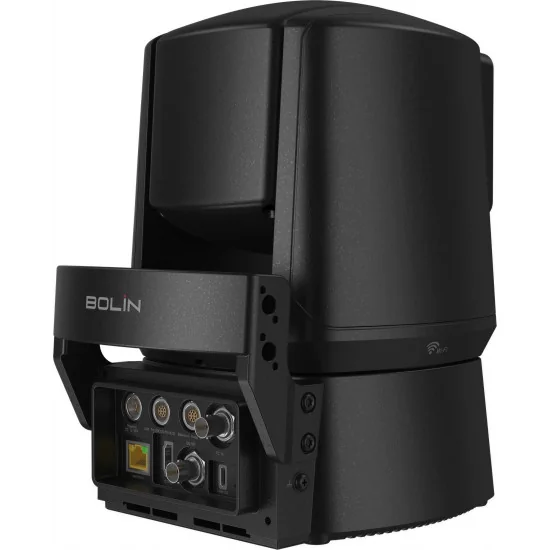

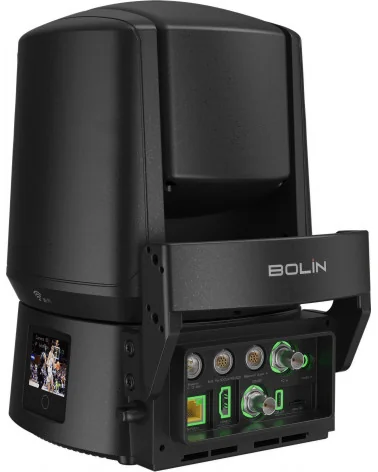

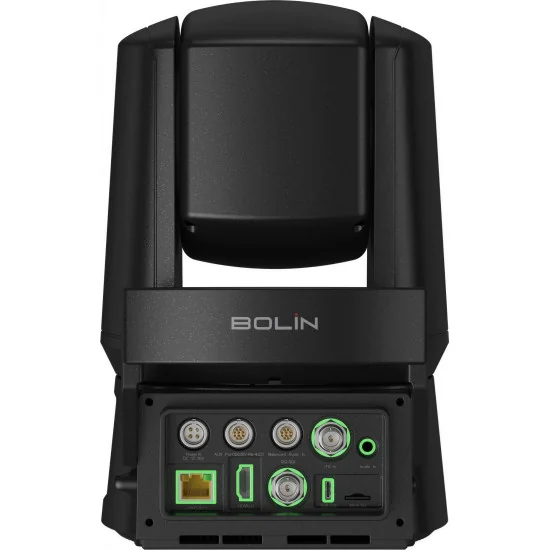

Covered in all Environments
I/O panel covers shield the camera’s connections from rain, dust, and outdoor elements while allowing cables to remain connected.
