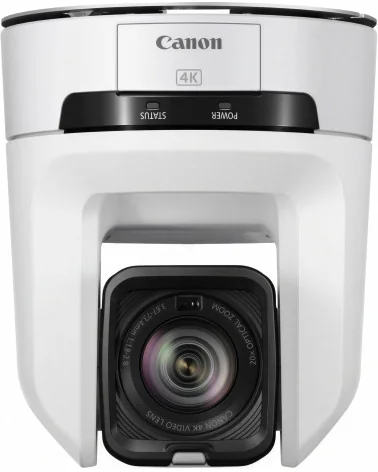

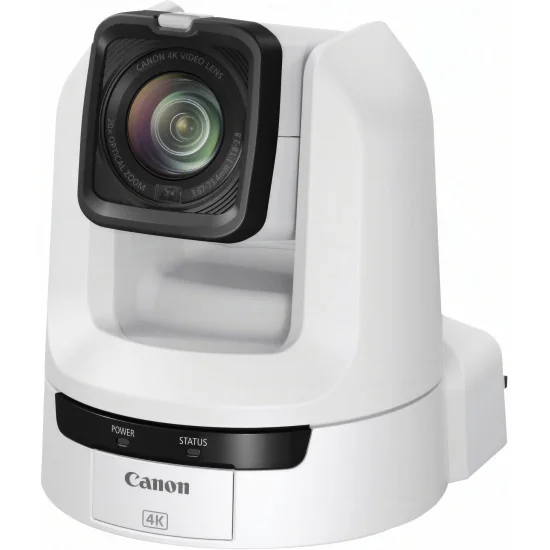

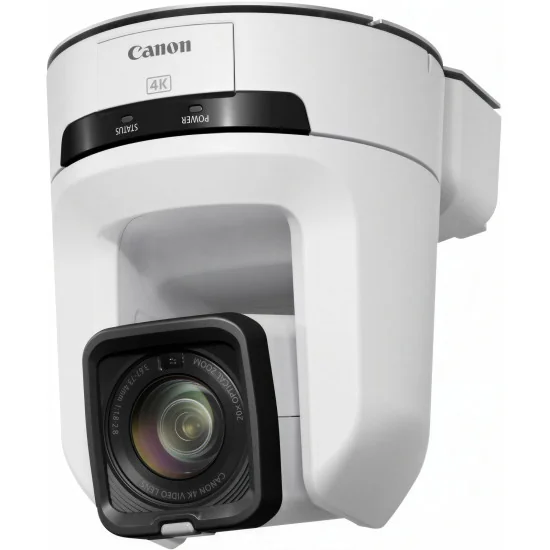

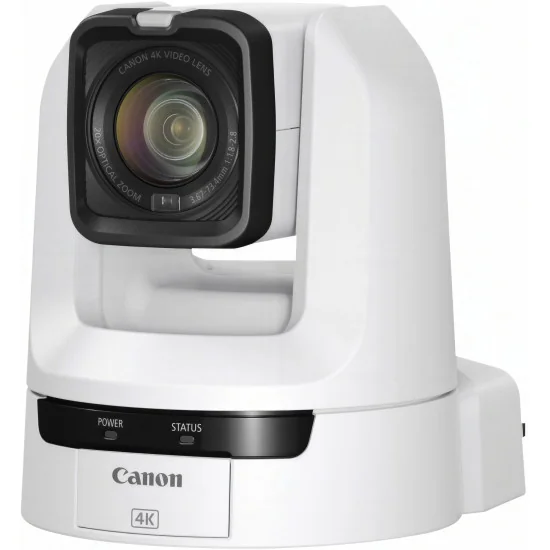

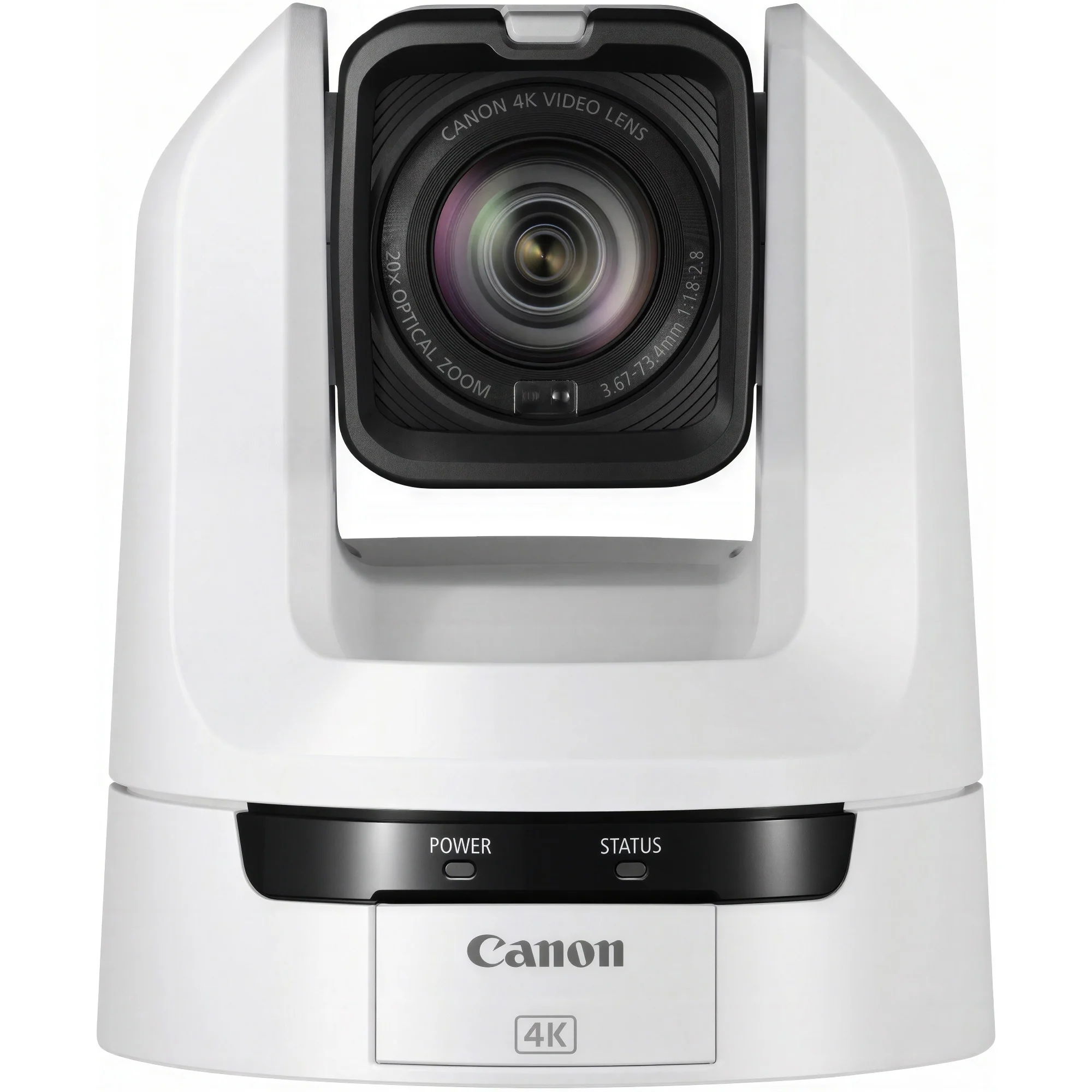

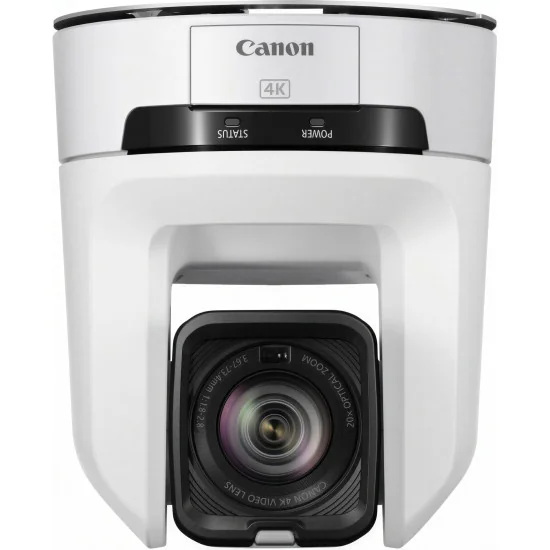

Canon CR-N100 White Auto Tracking Caméra PTZ

Canon CR-N100 White Auto Tracking Caméra PTZ

Name: Canon CR-N100 White Auto Tracking Caméra PTZ
Brand: Canon
SKU: CR-N100 WH auto-tracking
Price: 2299.00 EUR
Availability: InStock

MPN: CR-N100 WH auto-tracking

Prix : 2 299,00 €

Ventes à l'échelle de l'UE, facturation pour livraisons intracommunautaires exonérée de TVA.

Disponible chez le fournisseur (délai de livraison à confirmer)

Pour les exploitants de salles de conférence et de studios, la caméra PTZ Canon CR‑N100 blanche est un atout qui conjugue qualité d’image et efficacité. Elle capture des images 4K 30p ou un Full HD suréchantillonné grâce à son capteur CMOS 1/2,3 " et au processeur DIGIC DV6. Son zoom optique 20× couvre des focales équivalentes à 29,3–601 mm et permet de filmer un amphithéâtre entier comme un intervenant isolé. La mise au point hybride, mêlant détection de contraste et de phase, suit les personnes avec précision, et quatre modes scène (portrait, sport, faible lumière, projecteur) optimisent l’exposition.

Cette caméra motorisée se distingue par une rotation fluide et discrète : elle bascule de −30 à 100 ° et tourne sur ±170 ° à des vitesses de 0,2 à 300 °/s. Le suivi automatique intégré centre l’orateur sans opérateur et peut être enrichi par une licence RA‑AT001. Jusqu’à 100 angles de prise de vue sont mémorisables et se rappellent via les pupitres RC‑IP100 ou RC‑IP1000 et les logiciels gratuits de contrôle distant. Un voyant tally et l’inversion d’image simplifient l’installation au plafond.

La connectique est adaptée aux exigences actuelles : un seul câble PoE+ assure alimentation, commande et flux IP ; la sortie HDMI fournit un signal 10 bits 4:2:2 jusqu’à l’UHD 30p ; un port USB‑C délivre un flux UVC pour la visioconférence, et une entrée mini‑jack accueille un micro. Côté réseau, la CR‑N100 est compatible avec NDI|HX2, SRT, RTMP/RTMPS, Canon XC et RTSP/RTP, ce qui facilite son intégration dans des mélangeurs, encodeurs et plates‑formes cloud. Les filtres neutres intégrés et un gain réglable jusqu’à 36 dB garantissent une image exploitable quel que soit l’éclairage.

Conçue pour un usage quotidien, la CR‑N100 se fait oublier grâce à son châssis silencieux (NC35) et à sa finition blanche qui se fond dans l’architecture. En associant vidéo 4K précise, suivi fiable et streaming IP, elle s’impose auprès des entreprises, universités, lieux de culte, installations sportives et organisateurs d’événements en offrant un investissement durable et la confiance associée à l’optique Canon.

Expédition vers l'UE

Livraison dans toute l’UE pour 20 €, gratuite dès 1 000 €.

Boutique B2B

Boutique B2B réservée aux professionnels, prix HT.

Achats en toute sécurité

Distribution et garantie officielles de l'UE.

Paiement sécurisé

Paiements en ligne sécurisés via Stripe.

Devis individuel

Demande de devis via formulaire ou e-mail: avgear@avgear.shop

This version has a full Canon RA-AT001 Auto Tracking App license.

Experience the flexibility of a 1/2.3-type 4K sensor and DIGIC DV6 processor with Hybrid AF and a 20x image stabilized optical zoom. Compatible with the built-in Auto Tracking app*, IP streaming and control protocols, this camera offers seamless integration for the corporate, education, houses of worship and live event industries.

Smooth and precise control
The CR-N100 has a high-precision drive mechanism for fine Pan and Tilt movement as slow as 0.2°/s. Compatible with the RC-IP100 controller and Remote Camera Control Application controllers, it can also be configured with selected third-party units.

Precise focusing with Hybrid AF
Combining high-precision contrast AF with high-speed phase-detection AF, the CR-N100 delivers rapid and accurate focusing of the subject, even in low light conditions.

The CR-N100 PTZ camera has an external sensor measuring subject distance, and compares the point of focus with that determined by the Contrast AF system. This Auto Focus system delivers faster and more accurate focussing than conventional contrast AF, assisting the camera operator.

Auto Tracking
Auto Tracking Application RA-AT001. Unlock the potential to track one or more speakers with face detection as they move around the stage, automatically. Optimise production efficiency for lectures, corporate events, houses of worship, live performances and broadcast.

Upgrade your content with a new firmware update available August 2025
Download the latest firmware and take advantage of newly added Auto Tracking App RA-AT001* features. Auto Framing features include Multi-Person Framing, that detects and includes multiple people in the frame, while Face Direction Framing and Sit/Stand Framing deliver natural composition for a single person in frame. Additionally, RTMP/SRT auto reconnection and improved camera control from the iOS app is now included.

*Free Auto Tracking App RA-AT001(Lite) available via FW, 1.1.0 or later. A paid license is necessary for full functionality of auto tracking.

Feature	Auto Tracking Application (Lite)	Auto Tracking Application
Tracking subject	Auto-select only	Auto-/manual select possible
Tracking sensitivity	Fixed	Adjustable from 1 to 10 levels
Tracking subject display size	Can be set at two levels	Can be set at five levels
Tracking target display position	Fixed at center	Can be set to any area
Auto Framing	—	Multi-Person Framing, Face Direction Framing, Sit/Stand Framing
Priority display area	—	Can be set
Fixed angle of view	—	Can be set
Save tracking settings	One only	Up to five can be saved/recalled

Specifications

Camera
Image Sensor	Type 1/2.3 (1/2.3 in.) single-plate CMOS sensor
Effective Pixels	approx. 8.29 megapixels (3840 x 2160)
Lens	f=3.67 – 73.4 mm, F/1.8 – 2.8, 20x optical zoom, 8-bladed circular aperture
Optical Zoom	20x optical zoom
Digital Zoom	20x digital zoom
Focal Length	3.67 – 73.4 mm, f/1.8 – 2.8, 35mm equivalent focal length: [4K UHD] approx. 29.3 (W) – 601 mm (T) [Full HD] approx. 30.5 (W) – 627 mm (T)
Angle of View	[4K UHD] Horizontal: 65.6 (W) – 3.6° (T) Vertical: 39.8° (W) – 2.0° (T) [Full HD] Horizontal: 63.5 (W) – 3.4° (T) Vertical: 38.4° (W) – 1.9° (T)
Minimum Subject Illumination	Approx. 1.5 lux (shutter speed 1/30 sec., frame rate 59.947P (P (Programmed AE) shooting mode, auto slow shutter on)
Shutter Speed	1/6 – 1/2000 sec. (specific values depend on the frame frequency and frame rate)
Iris	Manual/Automatic aperture
Gain	0.0 dB – 36 dB
ND Filter	Built-in (1/8 at maximum, gradation ND), motor operated
Night Mode (IR Cut Filter Off)	No
White Balance	AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K¹, tungsten lamp: 3,200 K²), color temperature setting (2,000 K – 15,000 K), Manual
Focus	Focus mode: Manual, Continuous AF, Face AF, Tracking AF type: Hybrid AF, Contrast AF
Gamma	Normal1 (Standard), Normal3 (BT.709)
Pan and Tilt	Pan operation range: Horizontal ±170° Pan operation speed: 0.2° – 300°/sec. Tilt operation range: Vertical -30° – +100° Tilt operation speed: 0.2° – 180°/sec.
Server
Video Output Format: HDMI	3840 x 2160: 29.97P, 25.00P, 23.98P (4:2:2 10 bit) 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit) 1280 x 720: 59.94P, 50.00P (4:2:2 10 bit)
Video Output Format: IP	[Frame frequency 59.94 Hz] 1920 x 1080: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) 1280 x 720: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) 640 x 360: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) [Frame frequency 29.97 Hz] 3840 x 2160: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) 1920 x 1080: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) 1280 x 720: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) 640 x 360: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) [Frame frequency 50.00 Hz] 1920 x 1080: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit) 1280 x 720: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit) 640 x 360: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit) [Frame frequency 25.00 Hz] 3840 x 2160: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit) 1920 x 1080: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit) 1280 x 720: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit) 640 x 360: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit) [Frame frequency 23.98 Hz] 3840 x 2160: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit) 1920 x 1080: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit) 1280 x 720: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit) 640 x 360: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit) – JPEG has one pattern fixed depending on the frame frequency (format is fixed and cannot be selected) Resolution: 1280 x 720 When frame frequency is 59.94/29.97 Hz: 14.99 fps, When frame frequency is 50.00/25.00 Hz: 12.50 fps, When frame frequency is 23.98 Hz: 11.99 fps
Video Output Format: USB	Motion JPEG: 1920 x 1080 59.94 Hz: 30.00 fps, 15.00 fps, 5.00 fps 50.00 Hz: 25.00 fps, 12.50 fps, 5.00 fps 1280 x 720 59.94 Hz: 30.00 fps, 15.00 fps, 5.00 fps 50.00 Hz: 25.00 fps, 12.50 fps, 5.00 fps 640 x 360 59.94 Hz: 30.00 fps, 15.00 fps, 5.00 fps 50.00 Hz: 25.00 fps, 12.50 fps, 5.00 fps YUV: 640 x 360 59.94 Hz: 30.00 fps, 15.00 fps, 5.00 fps 50.00 Hz: 25.00 fps, 12.50 fps, 5.00 fps
Video Transmission Protocol	Protocol: XC (Canon's original), RTSP/RTP, NDI\|HX, RTMP/RTMPS, Standard Communication (Serial), Standard Communication (IP), SRT.
Preset	Number of presets: Max. 100 (including home position)

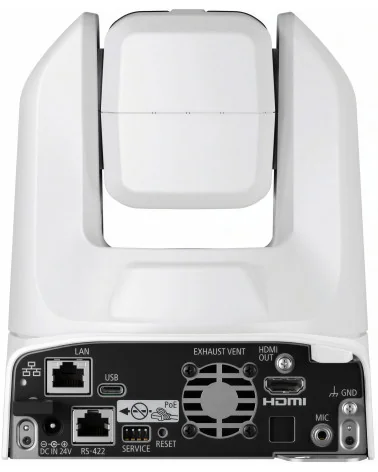

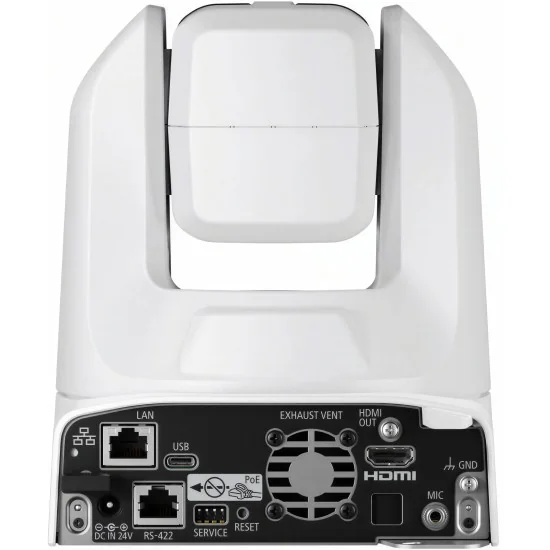

Interface
Communication Control	LAN, Serial, IR
Network Terminal	LAN x 1, RJ45, 1000Base-T
GEN-LOCK Terminal	No
HDMI OUT Terminal	HDMI connector x 1, output only
RS-422 Terminal	RJ45 connector x 1
Audio INPUT 1/INPUT 2 Terminals	No
MIC Terminal	ϕ3.5 mm stereo mini jack (unbalanced, plug-in power supported) Sensitivity (MIC): -72 dBV (Manual volume center, full scale -18 dB)/1 kΩ or more/Att.: 20 dB Sensitivity (LINE): -10 dBV (Manual volume center, full scale -18 dB)/1 kΩ or more Supply Voltage: 2.4 V DC (Bias resistance: 2.2 kΩ)
USB Terminal	Type-C (USB 3.1) x 1
Physical Features
Operating Environment	Temperature 0°C – +40°C (+32°F – +104°F) Humidity 10% – 90% (without condensation)
Power Supply	PoE: PoE+ power supply via LAN connector (IEEE802.3at compliant) – PoE cannot be used External power source: 24 V DC (using included AC adaptor)
Power Consumption	PoE+ Input: Approx. 16.2 W³ max. (body only) DC Input: Approx. 15.0 W max. (body only)
Dimensions (W x H x D)	Approx. 154 x 178 x 164 mm (excluding protrusions)
Weight	Approx. 2.2 kg (4.86 lb.) (body only)
Noise	NC35 or less
