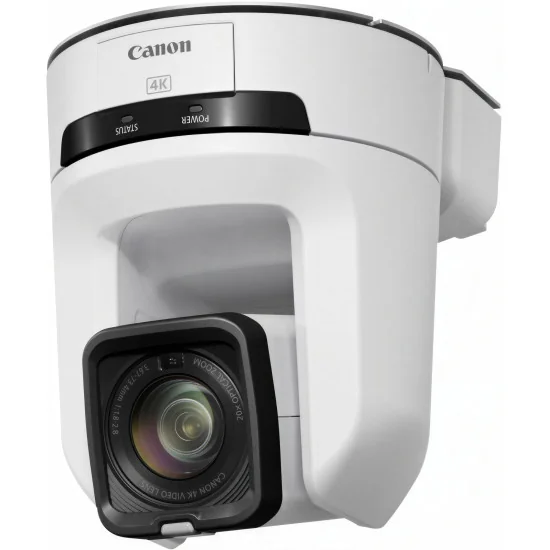

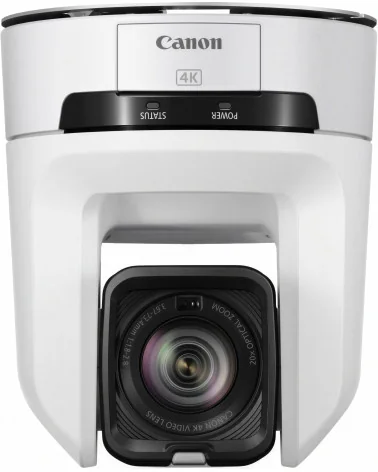

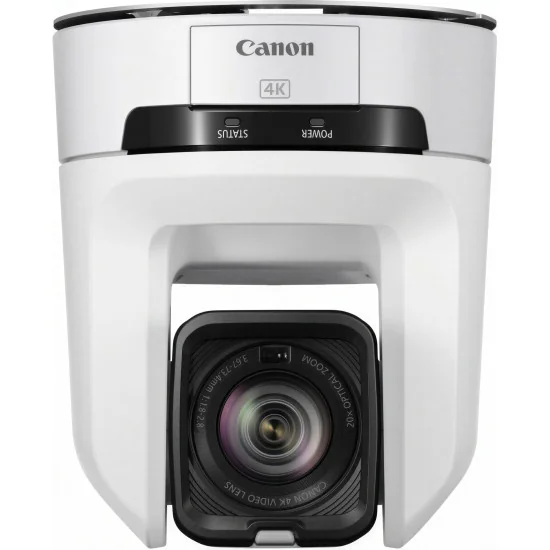

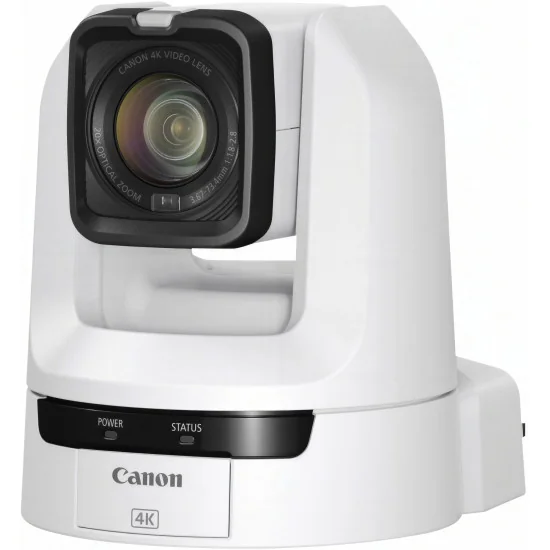

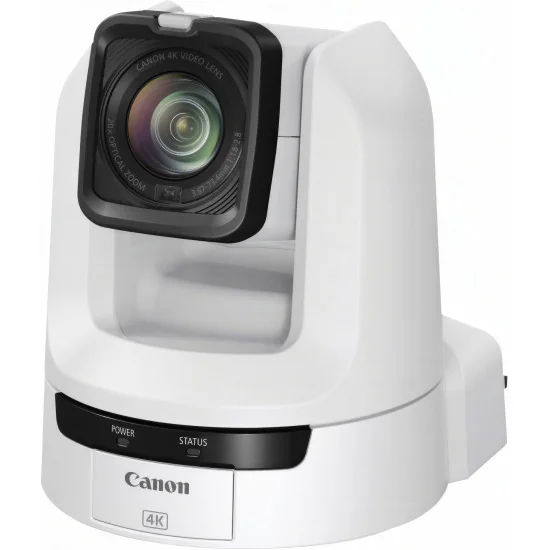

Canon CR-N100 White Auto Tracking PTZ Camera

Canon CR-N100 White Auto Tracking PTZ Camera

Name: Canon CR-N100 White Auto Tracking PTZ Camera
Brand: Canon
SKU: CR-N100 WH auto-tracking
Price: 2299.00 EUR
Availability: InStock

MPN: CR-N100 WH auto-tracking

Price: €2,299.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

Available from supplier (Delivery time to be confirmed.)

Few cameras combine optical precision with remote control like the Canon CR‑N100 White Auto Tracking PTZ Camera. Delivering 4K UHD pictures at up to 30 fps with oversampled HD, it uses a 1/2.3‑inch CMOS sensor and DIGIC DV6 processor. The 20× optical zoom lens sweeps from a 65.6° wide view down to a tight 3.6° angle (29.3–601 mm equivalent) so you can cover an entire meeting room or stage from one discreet mount. A Hybrid AF system combines contrast and phase detection to lock focus, and four scene modes (Portrait, Sport, Low‑light and Spotlight) simplify exposure in challenging venues.

Smooth, silent movement is delivered via a drive that pans 0.2–300°/s and tilts 0.2–170°/s across ±170° and –30 to 100°. Built‑in auto‑tracking firmware keeps presenters centred; it recognises faces, adjusts framing and tracks multiple people, with advanced functions available via the RA‑AT001 licence. Up to 100 preset positions can be recalled through RC‑IP100 or RC‑IP1000 controllers or the free software that manages and monitors up to 200 cameras. A tally lamp and image‑flip setting support ceiling mounting.

Power, control and IP video travel over a single PoE+ cable; HDMI outputs 10‑bit 4:2:2 up to UHD 30p; the USB‑C port offers a UVC stream for web conferencing, and a 3.5 mm input accepts microphones. On the network side the CR‑N100 works with NDI|HX, SRT, RTMP/RTMPS, Canon XC and standard RTSP/RTP protocols, integrating into production switchers, encoders and cloud platforms. Built‑in neutral‑density filtering and gain control from 0–36 dB preserve image quality across changing light.

A low‑noise NC35 chassis and white finish blend into modern interiors. By delivering crisp 4K video, reliable tracking and versatile IP streaming, the Canon CR‑N100 White Auto Tracking supports corporate communications, education, worship services, sports and live events with the trustworthiness that professional clients demand.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

This version has a full Canon RA-AT001 Auto Tracking App license.

Experience the flexibility of a 1/2.3-type 4K sensor and DIGIC DV6 processor with Hybrid AF and a 20x image stabilized optical zoom. Compatible with the built-in Auto Tracking app*, IP streaming and control protocols, this camera offers seamless integration for the corporate, education, houses of worship and live event industries.

Smooth and precise control
The CR-N100 has a high-precision drive mechanism for fine Pan and Tilt movement as slow as 0.2°/s. Compatible with the RC-IP100 controller and Remote Camera Control Application controllers, it can also be configured with selected third-party units.

Precise focusing with Hybrid AF
Combining high-precision contrast AF with high-speed phase-detection AF, the CR-N100 delivers rapid and accurate focusing of the subject, even in low light conditions.

The CR-N100 PTZ camera has an external sensor measuring subject distance, and compares the point of focus with that determined by the Contrast AF system. This Auto Focus system delivers faster and more accurate focussing than conventional contrast AF, assisting the camera operator.

Auto Tracking
Auto Tracking Application RA-AT001. Unlock the potential to track one or more speakers with face detection as they move around the stage, automatically. Optimise production efficiency for lectures, corporate events, houses of worship, live performances and broadcast.

Upgrade your content with a new firmware update available August 2025
Download the latest firmware and take advantage of newly added Auto Tracking App RA-AT001* features. Auto Framing features include Multi-Person Framing, that detects and includes multiple people in the frame, while Face Direction Framing and Sit/Stand Framing deliver natural composition for a single person in frame. Additionally, RTMP/SRT auto reconnection and improved camera control from the iOS app is now included.

*Free Auto Tracking App RA-AT001(Lite) available via FW, 1.1.0 or later. A paid license is necessary for full functionality of auto tracking.

Feature	Auto Tracking Application (Lite)	Auto Tracking Application
Tracking subject	Auto-select only	Auto-/manual select possible
Tracking sensitivity	Fixed	Adjustable from 1 to 10 levels
Tracking subject display size	Can be set at two levels	Can be set at five levels
Tracking target display position	Fixed at center	Can be set to any area
Auto Framing	—	Multi-Person Framing, Face Direction Framing, Sit/Stand Framing
Priority display area	—	Can be set
Fixed angle of view	—	Can be set
Save tracking settings	One only	Up to five can be saved/recalled

Specifications

Camera
Image Sensor	Type 1/2.3 (1/2.3 in.) single-plate CMOS sensor
Effective Pixels	approx. 8.29 megapixels (3840 x 2160)
Lens	f=3.67 – 73.4 mm, F/1.8 – 2.8, 20x optical zoom, 8-bladed circular aperture
Optical Zoom	20x optical zoom
Digital Zoom	20x digital zoom
Focal Length	3.67 – 73.4 mm, f/1.8 – 2.8, 35mm equivalent focal length: [4K UHD] approx. 29.3 (W) – 601 mm (T) [Full HD] approx. 30.5 (W) – 627 mm (T)
Angle of View	[4K UHD] Horizontal: 65.6 (W) – 3.6° (T) Vertical: 39.8° (W) – 2.0° (T) [Full HD] Horizontal: 63.5 (W) – 3.4° (T) Vertical: 38.4° (W) – 1.9° (T)
Minimum Subject Illumination	Approx. 1.5 lux (shutter speed 1/30 sec., frame rate 59.947P (P (Programmed AE) shooting mode, auto slow shutter on)
Shutter Speed	1/6 – 1/2000 sec. (specific values depend on the frame frequency and frame rate)
Iris	Manual/Automatic aperture
Gain	0.0 dB – 36 dB
ND Filter	Built-in (1/8 at maximum, gradation ND), motor operated
Night Mode (IR Cut Filter Off)	No
White Balance	AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K¹, tungsten lamp: 3,200 K²), color temperature setting (2,000 K – 15,000 K), Manual
Focus	Focus mode: Manual, Continuous AF, Face AF, Tracking AF type: Hybrid AF, Contrast AF
Gamma	Normal1 (Standard), Normal3 (BT.709)
Pan and Tilt	Pan operation range: Horizontal ±170° Pan operation speed: 0.2° – 300°/sec. Tilt operation range: Vertical -30° – +100° Tilt operation speed: 0.2° – 180°/sec.
Server
Video Output Format: HDMI	3840 x 2160: 29.97P, 25.00P, 23.98P (4:2:2 10 bit) 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit) 1280 x 720: 59.94P, 50.00P (4:2:2 10 bit)
Video Output Format: IP	[Frame frequency 59.94 Hz] 1920 x 1080: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) 1280 x 720: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) 640 x 360: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) [Frame frequency 29.97 Hz] 3840 x 2160: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) 1920 x 1080: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) 1280 x 720: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) 640 x 360: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) [Frame frequency 50.00 Hz] 1920 x 1080: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit) 1280 x 720: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit) 640 x 360: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit) [Frame frequency 25.00 Hz] 3840 x 2160: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit) 1920 x 1080: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit) 1280 x 720: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit) 640 x 360: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit) [Frame frequency 23.98 Hz] 3840 x 2160: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit) 1920 x 1080: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit) 1280 x 720: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit) 640 x 360: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit) – JPEG has one pattern fixed depending on the frame frequency (format is fixed and cannot be selected) Resolution: 1280 x 720 When frame frequency is 59.94/29.97 Hz: 14.99 fps, When frame frequency is 50.00/25.00 Hz: 12.50 fps, When frame frequency is 23.98 Hz: 11.99 fps
Video Output Format: USB	Motion JPEG: 1920 x 1080 59.94 Hz: 30.00 fps, 15.00 fps, 5.00 fps 50.00 Hz: 25.00 fps, 12.50 fps, 5.00 fps 1280 x 720 59.94 Hz: 30.00 fps, 15.00 fps, 5.00 fps 50.00 Hz: 25.00 fps, 12.50 fps, 5.00 fps 640 x 360 59.94 Hz: 30.00 fps, 15.00 fps, 5.00 fps 50.00 Hz: 25.00 fps, 12.50 fps, 5.00 fps YUV: 640 x 360 59.94 Hz: 30.00 fps, 15.00 fps, 5.00 fps 50.00 Hz: 25.00 fps, 12.50 fps, 5.00 fps
Video Transmission Protocol	Protocol: XC (Canon's original), RTSP/RTP, NDI\|HX, RTMP/RTMPS, Standard Communication (Serial), Standard Communication (IP), SRT.
Preset	Number of presets: Max. 100 (including home position)

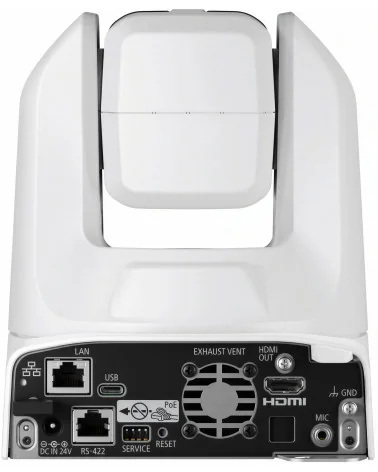

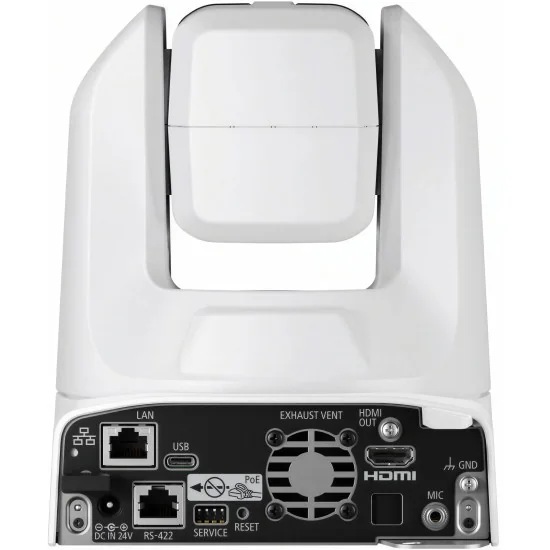

Interface
Communication Control	LAN, Serial, IR
Network Terminal	LAN x 1, RJ45, 1000Base-T
GEN-LOCK Terminal	No
HDMI OUT Terminal	HDMI connector x 1, output only
RS-422 Terminal	RJ45 connector x 1
Audio INPUT 1/INPUT 2 Terminals	No
MIC Terminal	ϕ3.5 mm stereo mini jack (unbalanced, plug-in power supported) Sensitivity (MIC): -72 dBV (Manual volume center, full scale -18 dB)/1 kΩ or more/Att.: 20 dB Sensitivity (LINE): -10 dBV (Manual volume center, full scale -18 dB)/1 kΩ or more Supply Voltage: 2.4 V DC (Bias resistance: 2.2 kΩ)
USB Terminal	Type-C (USB 3.1) x 1
Physical Features
Operating Environment	Temperature 0°C – +40°C (+32°F – +104°F) Humidity 10% – 90% (without condensation)
Power Supply	PoE: PoE+ power supply via LAN connector (IEEE802.3at compliant) – PoE cannot be used External power source: 24 V DC (using included AC adaptor)
Power Consumption	PoE+ Input: Approx. 16.2 W³ max. (body only) DC Input: Approx. 15.0 W max. (body only)
Dimensions (W x H x D)	Approx. 154 x 178 x 164 mm (excluding protrusions)
Weight	Approx. 2.2 kg (4.86 lb.) (body only)
Noise	NC35 or less
