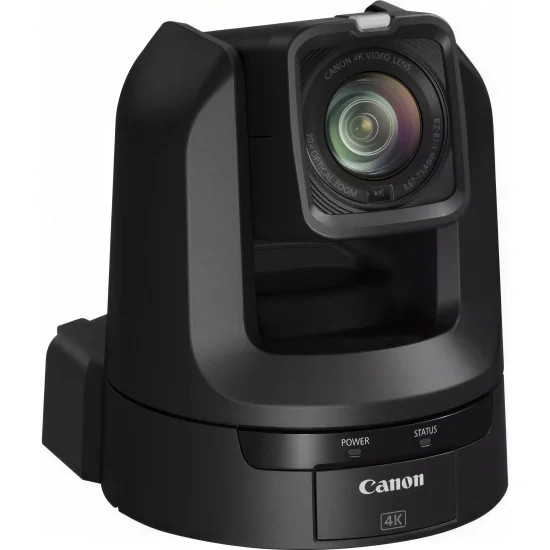

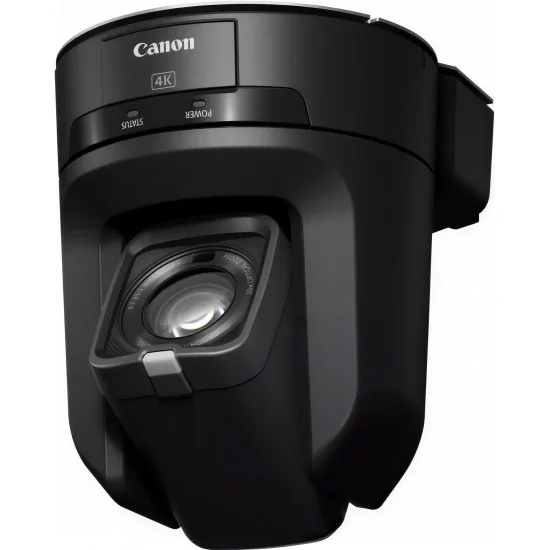

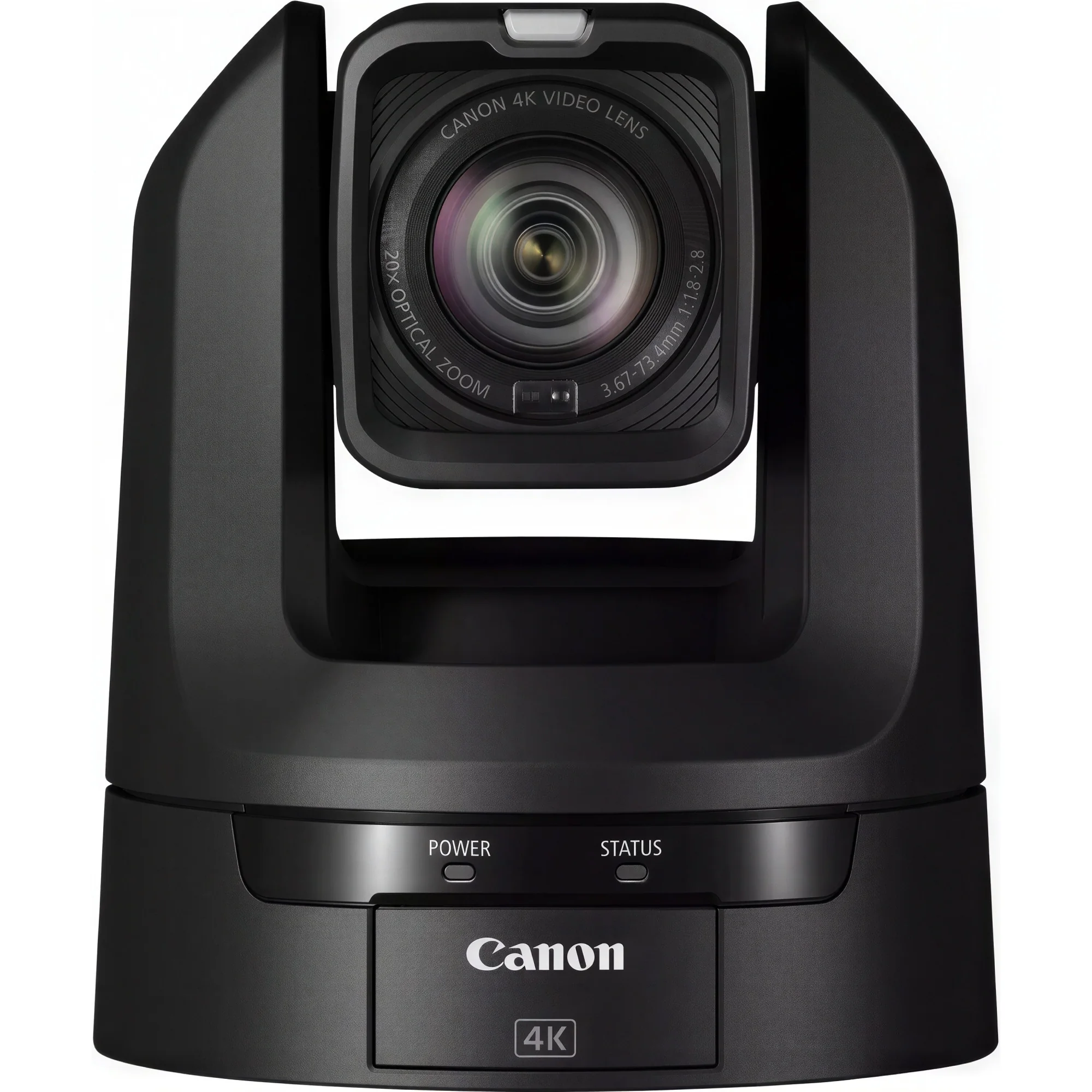

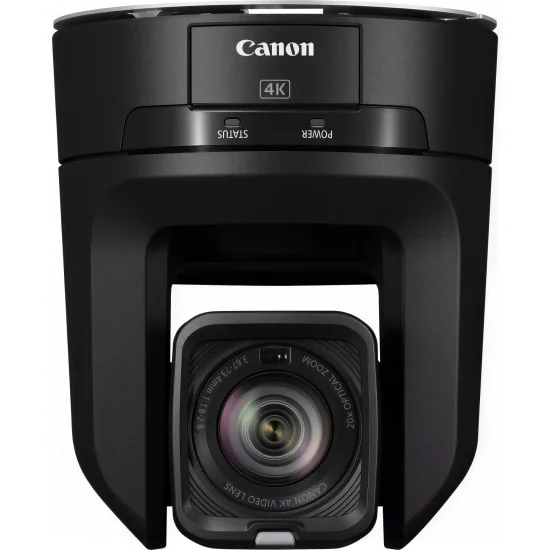

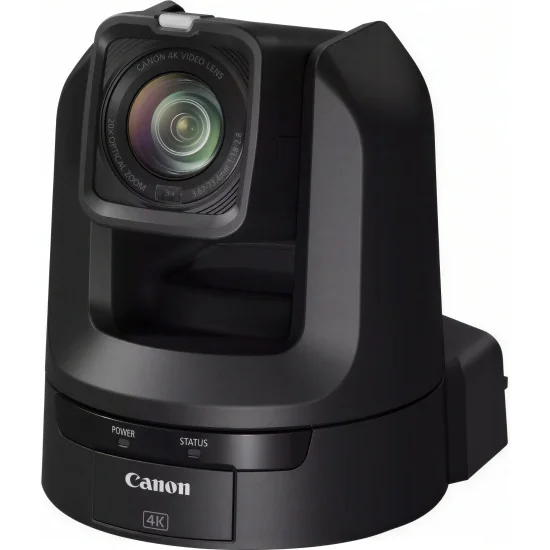

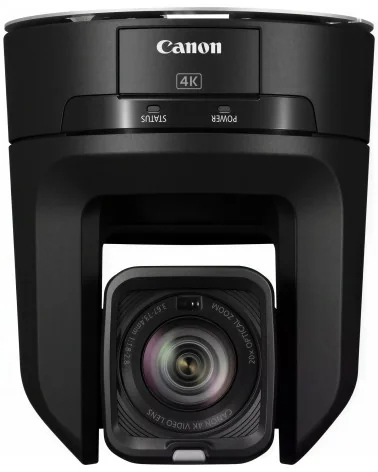

Canon CR-N300 Black Caméra PTZ

Name: Canon CR-N300 Black Caméra PTZ
Brand: Canon
SKU: CR-N300 BK
Price: 2349.00 EUR
Availability: InStock

MPN: CR-N300 BK

Prix : 2 349,00 €

Ventes à l'échelle de l'UE, facturation pour livraisons intracommunautaires exonérée de TVA.

In stock (Shipping 3-7 working days.)

Compacte et taillée pour la diffusion en direct, la Canon CR-N300 Black équipe les régies qui jonglent avec plusieurs axes de prise de vue tout en gardant un rendu d'image cohérent. Son capteur CMOS 1/2,3 pouce couplé au processeur DIGIC DV6 délivre de la vidéo 4K UHD jusqu'à 29,97p et de la Full HD jusqu'à 59,94p, en préservant la finesse des carnations et la dynamique des éclairages scéniques là où les têtes motorisées d'entrée de gamme aplatissent souvent l'image.

Le zoom optique 20x intégré (f=3,67–73,4 mm, F/1,8–2,8) couvre l'équivalent d'un téléobjectif d'environ 601 mm en 4K, et la stabilisation optique reste exploitable sur fixation truss ou suspension plafond. Le système Hybrid AF combine détection de contraste et autofocus à corrélation de phase, verrouillant la mise au point sur un orateur ou un musicien jusqu'à F/1,8 et autour de 1,5 lux. Le panoramique balaie ±170° à 300°/s, la bascule couvre -30° à +100°, avec jusqu'à 100 préréglages rappelables pour les captations récurrentes en entreprise, en compétition sportive ou en salle de cours.

La connectique répond aux exigences réelles des prestataires événementiels : sortie HDMI 4:2:2 10 bits, BNC 3G-SDI pour les longs câblages, USB Type-C UVC pour la visioconférence, plus un RJ45 Gigabit avec PoE+ (IEEE 802.3at) qui transporte vidéo, contrôle, tally et alimentation sur un seul lien. Les régies streaming basculent entre NDI|HX, RTMP/RTMPS, RTP/RTSP, SRT, le protocole XC de Canon et FreeD sans recourir à des convertisseurs externes.

Le pilotage de la CR-N300 passe par LAN, Wi-Fi, infrarouge ou RS-422, et le pilote Webcam gratuit de Canon agrège jusqu'à cinq unités vers une même sortie Ethernet compatible UVC. L'option Auto Tracking RA-AT001(Lite) incluse au micrologiciel suit un intervenant par détection de visage ; seule la licence Lite est fournie avec la caméra, la version complète RA-AT001 restant accessible via une licence logicielle payante vendue séparément. Associée à un pupitre Canon RC-IP100, une captation multi-axes redevient un poste à un seul opérateur.

Expédition vers l'UE

Livraison dans toute l’UE pour 20 €, gratuite dès 1 000 €.

Boutique B2B

Boutique B2B réservée aux professionnels, prix HT.

Achats en toute sécurité

Distribution et garantie officielles de l'UE.

Paiement sécurisé

Paiements en ligne sécurisés via Stripe.

Devis individuel

Demande de devis via formulaire ou e-mail: avgear@avgear.shop

The CR-N300 makes content creation and streaming simple. Equipped with a 1/2.3-inch CMOS sensor with 4K UHD resolution, 20x image stabilised optical zoom and a wide range of streaming and control protocols, as well as the ability to automate your productions using Auto Tracking App RA-AT001(Lite), it’s the ideal choice for a variety of productions.

20x Optical zoom for incredible flexibility

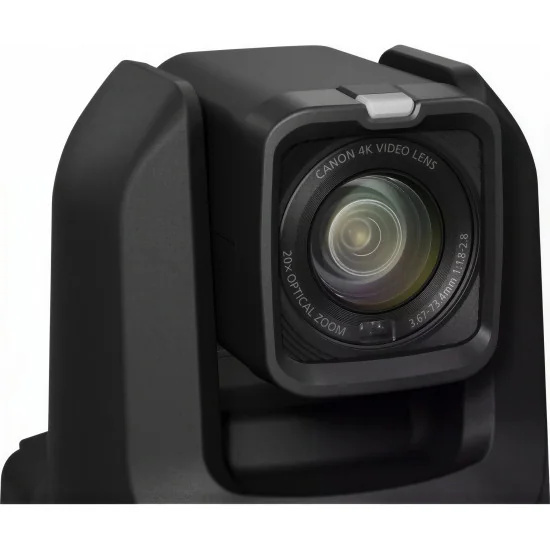

Capture all the detail you need, thanks to Canon’s advanced 4K optics which feature a flexible 20x optical zoom covering a broad focal range of 29.3-601mm (35mm equivalent), ensuring great flexibility. Equipped with image stabilisation, for minimal image disruption when moving.

IP Streaming and Control to transform your productions
The CR-N300 boasts a comprehensive range of IP control and streaming protocols up to 4K UHD 30p allowing for greater control for your production needs. Featuring major protocols such as NDI|HX, RTMP, RTP/RTSP, RTMPS, SRT, FreeD and Canon’s XC Protocol, it will fit into most new or most existing systems, making it an extremely flexible option.

Hybrid AF for precise focus
The CR-N300 combines high-precision contrast AF with high-speed phase-detection AF, ensuring rapid and accurate focusing of the subject, even in low light conditions. Equipped with a bespoke external sensor which measures the distance to the subject and compares the point of focus with that determined by the Contrast AF system. This Hybrid AF system is particularly effective in low light situations and provides fast, accurate and reliable Autofocus with greater accuracy than Contrast AF alone.

Flexible connectivity for your workflow

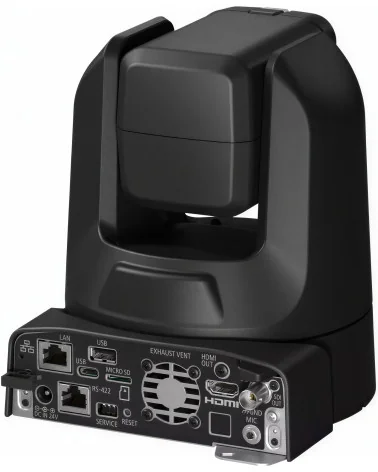

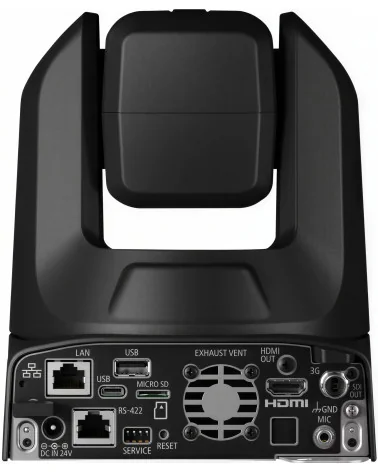

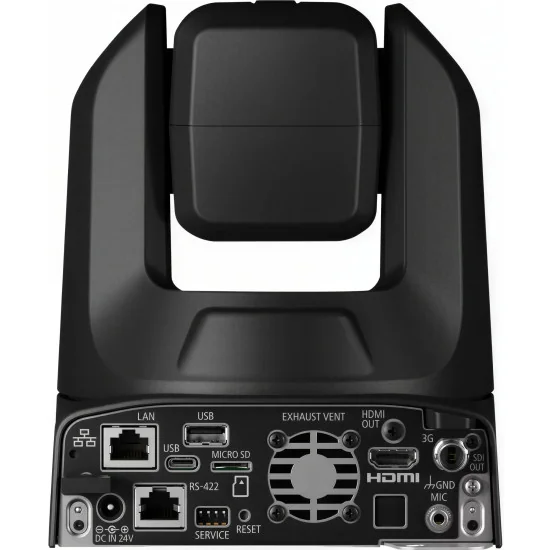

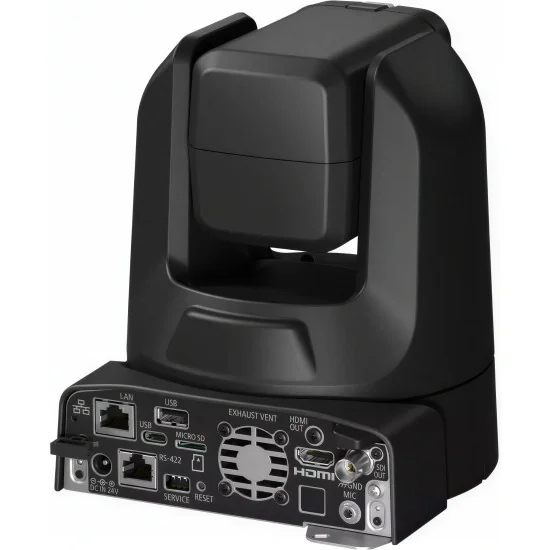

The CR-N300 features a whole host of connections to ensure the ultimate flexibility in workflows. Featuring a HDMI port which can achieve 4K UHD, 4:2:2 10-bit. The camera also boasts a 3G-SDI port, USB Port, 3.5mm Audio Input and a PoE+ LAN port.

Smooth, precise control
The CR-N300 is equipped with a high-precision drive mechanism, enabling the Pan and Tilt movement to be finely adjusted at variable speeds using controllers such as RC-IP100, Canon Remote Camera Control Application or a tablet via Wi-Fi, to capture the perfect shot.

Upgrade your content with a new firmware update available August 2025
Download the latest firmware and take advantage of newly added Auto Tracking App RA-AT001* features. Auto Framing features include Multi-Person Framing, that detects and includes multiple people in the frame, while Face Direction Framing and Sit/Stand Framing deliver natural composition for a single person in frame. Additionally, RTMP/SRT auto reconnection and improved camera control from the iOS app is now included.

*Free Auto Tracking App RA-AT001(Lite) available via FW, 1.1.0 or later. A paid license is necessary for full functionality of auto tracking.

Feature	Auto Tracking Application (Lite)	Auto Tracking Application
Tracking subject	Auto-select only	Auto-/manual select possible
Tracking sensitivity	Fixed	Adjustable from 1 to 10 levels
Tracking subject display size	Can be set at two levels	Can be set at five levels
Tracking target display position	Fixed at center	Can be set to any area
Auto Framing	—	Multi-Person Framing, Face Direction Framing, Sit/Stand Framing
Priority display area	—	Can be set
Fixed angle of view	—	Can be set
Save tracking settings	One only	Up to five can be saved/recalled

Specifications

Camera
Image Sensor	Type 1/2.3 (1/2.3 in.) single-plate CMOS sensor
Effective Pixels	approx. 8.29 megapixels (3840 x 2160)
Lens	f=3.67 – 73.4 mm, F/1.8 – 2.8, 20x optical zoom, 8-bladed circular aperture
Optical Zoom	20x optical zoom
Digital Zoom	20x digital zoom
Focal Length	f=3.67 – 73.4 mm, F/1.8 – 2.8, 35mm equivalent focal length: [4K UHD] approx. 29.3 (W) – 601 mm (T) [Full HD] approx. 30.5 (W) – 627 mm (T) Digital
Angle of View	[4K UHD] Horizontal: 65.6 (W) – 3.6° (T) Vertical: 39.8° (W) – 2.0° (T) [Full HD] Horizontal: 63.5 (W) – 3.4° (T) Vertical: 38.4° (W) – 1.9° (T)
Minimum Subject Illumination	Approx. 1.5 lux (shutter speed 1/30 sec., frame rate 59.947P (Programmed AE) shooting mode, auto slow shutter on)
Shutter Speed	1/6 – 1/2000 sec. (specific values depend on the frame frequency and frame rate)
Iris	Manual/Automatic aperture
Gain	0.0 dB – 36 dB
ND Filter	Built-in (1/8 at maximum, gradation ND), motor operate
White Balance	AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K, tungsten lamp: 3,200 K), color temperature setting (2,000 K – 15,000 K), Manual * Color temperatures are given for reference purposes only.
Focus	Focus mode: Manual, Continuous AF, Face AF, Tracking AF type: Hybrid AF, Contrast AF
Gamma	Normal1 (Standard), Normal3 (BT.709)
Pan and Tilt	Pan operation range: Horizontal ±170° Pan operation speed: 0.2° – 300°/sec. Tilt operation range: Vertical -30° – +100° Tilt operation speed: 0.2° – 180°/sec.
Pan and Tilt Operation
Protocol	XC (Canon's original), RTSP/RTP, NDI\|HX, RTMP/RTMPS, Standard Communication (Serial), Standard Communication (IP), SRT, FreeD
Server
Video Output Format: SDI	1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit) 1280 x 720: 59.94P, 50.00P (4:2:2 10 bit) – Same video format required for SDI and HDMI (cannot select different formats for SDI and HDMI) – When 3840 x 2160 is selected for HDMI, video will not be outputted to SDI.
Video Output Format: HDMI	HDMI 3840 x 2160: 29.97P, 25.00P, 23.98P (4:2:2 10 bit) 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit) 1280 x 720: 59.94P, 50.00P (4:2:2 10 bit) – Same video format required for SDI and HDMI (cannot select different formats for SDI and HDMI) – When 3840 x 2160 is selected for HDMI, video will not be outputted to SDI.
Video Output Format: IP	3840 x 2160: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) 1920 x 1080: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) 1280 x 720: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) 640 x 360: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) – If 59.94/50.00 Hz is selected for the frame frequency, the 3840 x 2160 format cannot be selected. – A frame rate that exceeds the frame frequency cannot be selected. – JPEG has one pattern fixed depending on the frame frequency (format is fixed and cannot be selected) Resolution: 1280 x 720 When frame frequency is 59.94/50.00 Hz: 14.99 fps, when frame frequency is 23.98 Hz: 11.99 fps, when frame frequency is 29.97/25.00 Hz: 12.50 fps
Video Output Format: USB	Motion JPEG: 1920 x 1080 59.94 Hz: 30.00 fps, 15.00 fps, 5.00 fps 50.00 Hz: 25.00 fps, 12.50 fps, 5.00 fps 1280 x 720 59.94 Hz: 30.00 fps, 15.00 fps, 5.00 fps 50.00 Hz: 25.00 fps, 12.50 fps, 5.00 fps 640 x 360 59.94 Hz: 30.00 fps, 15.00 fps, 5.00 fps 50.00 Hz: 25.00 fps, 12.50 fps, 5.00 fps YUV: 640 x 360 59.94 Hz: 30.00 fps, 15.00 fps, 5.00 fps 50.00 Hz: 25.00 fps, 12.50 fps, 5.00 fps
Preset	Number of presets: Max. 100 (including home position)
Interface
Communication Control	LAN, Wi-Fi, Serial, IR
Network Terminal	LAN x 1, RJ45, 1000Base-T
SDI OUT Terminal	BNC jack (output only) x 1, 0.8 Vp-p/75 Ω, unbalanced SMPTE 424, SMPTE 425, SMPTE ST 299-2 compliant Embedded audio, Time code (VITC/LTC)
GEN-LOCK Terminal	-
HDMI OUT Terminal	HDMI connector x 1, output only
RS-422 Terminal	RJ45 connector x 1
Audio INPUT 1/INPUT 2 Terminals	-
MIC Terminal	ϕ3.5 mm stereo mini jack (unbalanced, plug-in power supported) Sensitivity (MIC): -72 dBV (Manual volume center, full scale -18 dB)/1 kΩ or more/Att.: 20 dB Sensitivity (LINE): -10 dBV (Manual volume center, full scale -18 dB)/1 kΩ or more Supply Voltage: 2.4 V DC (Bias resistance: 2.2 kΩ)
USB Terminal	Type-A (USB 2.0) x 1 (future expansion) Type-C (USB 3.0) x 1
Physical Features
Operating Environment	Temperature 0°C – +40°C (+32°F – +104°F) Humidity 10% – 90% (without condensation)
Power Supply	PoE: PoE+ power supply via LAN connector (IEEE802.3at compliant) – PoE cannot be used External power source: 24 V DC (using included AC adaptor)
Power Consumption	PoE+ Input: Approx. 16.2 W* max. (body only) DC Input: Approx. 15.0 W max. (body only) * Class 4 (25.5 W required) for power supply devices
Dimensions (W x H x D)	Approx. 154 x 178 x 164 mm (6.06 x 7.01 x 6.46 in.) (excluding protrusions)
Weight	Approx. 2.2 kg (4.86 lb.) (body only)
IP Rating	-
