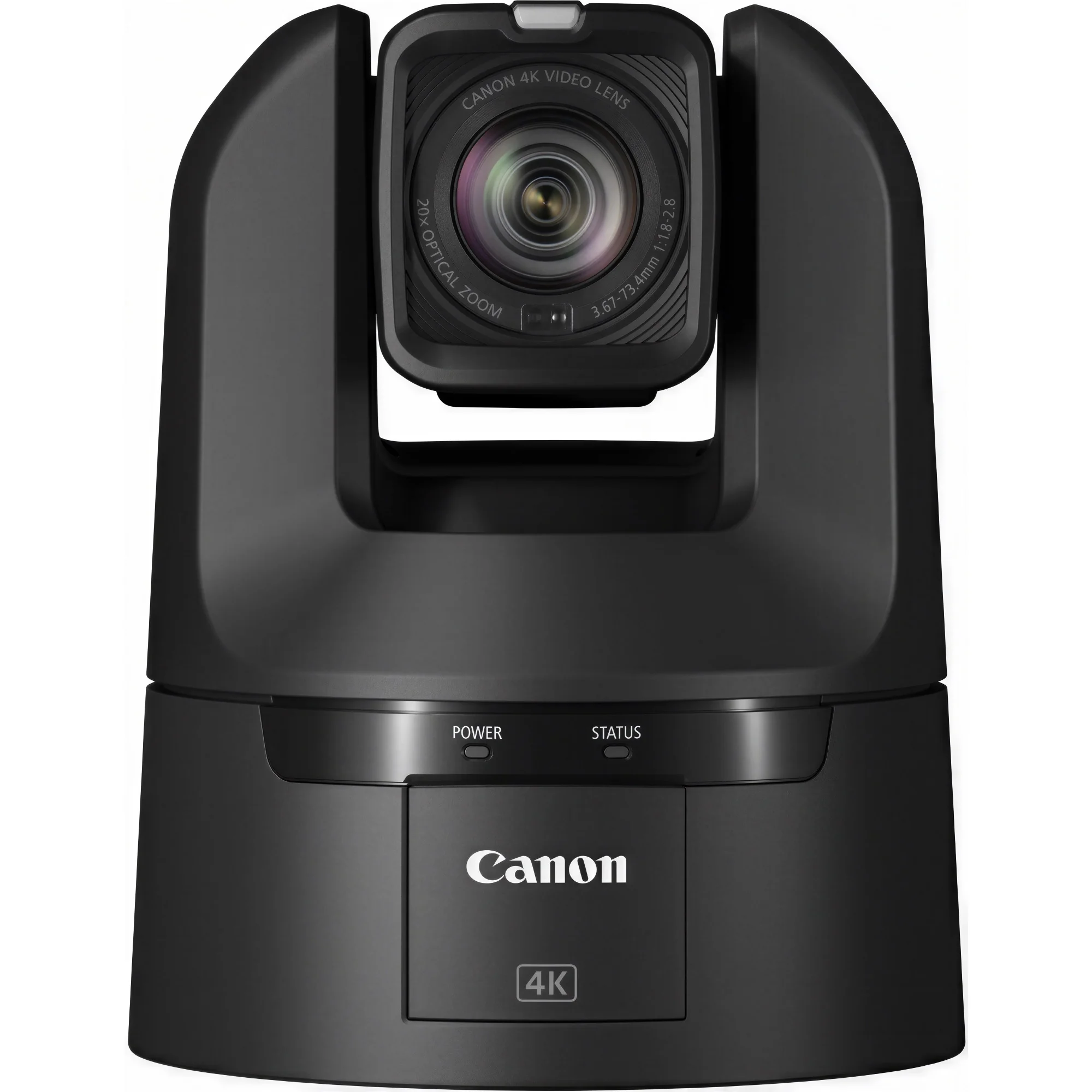

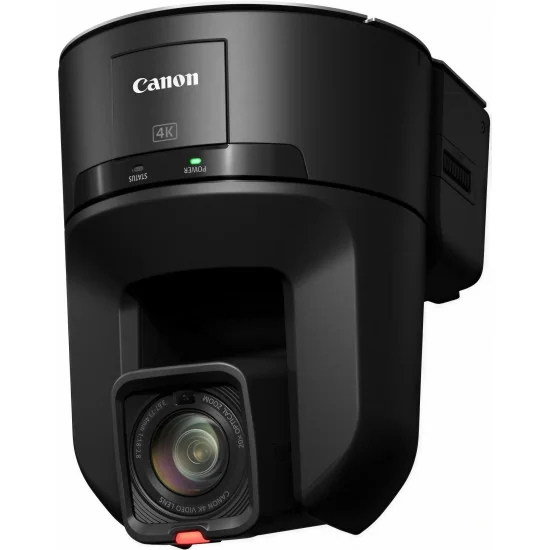

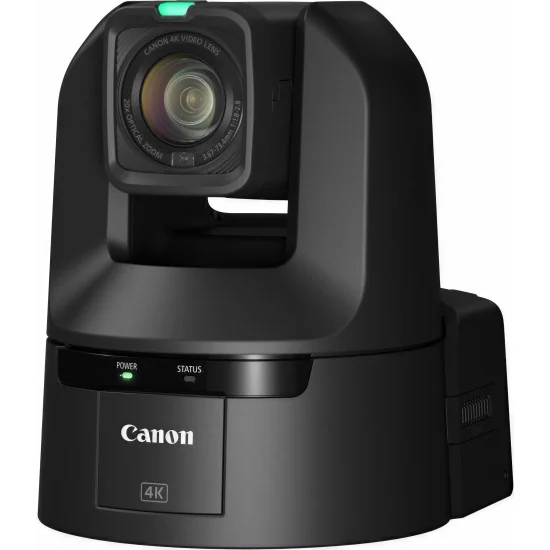

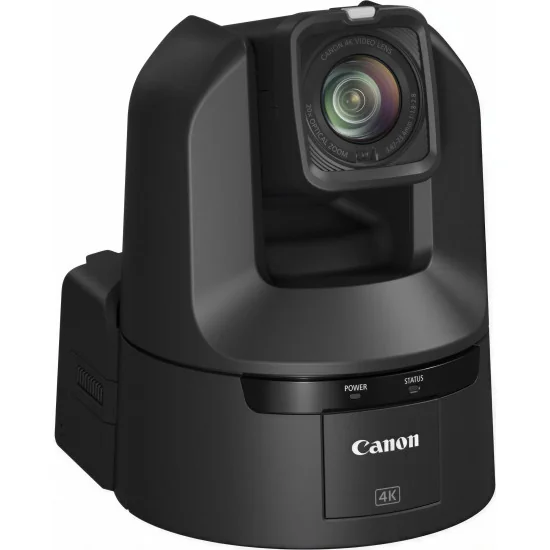

Canon CR-N400 Black Auto Tracking Caméra PTZ

Canon CR-N400 Black Auto Tracking Caméra PTZ

Name: Canon CR-N400 Black Auto Tracking Caméra PTZ
Brand: Canon
SKU: CR-N400 BK auto-tracking
Price: 5299.00 EUR
Availability: InStock

MPN: CR-N400 BK auto-tracking

Prix : 5 299,00 €

Ventes à l'échelle de l'UE, facturation pour livraisons intracommunautaires exonérée de TVA.

Disponible chez le fournisseur (délai de livraison à confirmer)

Livrée avec la licence complète de l'application Auto Tracking RA-AT001, la caméra PTZ Canon CR-N400 Black dépasse le simple suivi de visage : elle prend en charge le Multi-Person Framing, le Face Direction Framing et le cadrage assis/debout pour préserver une composition propre pendant les talk-shows, débats en plateau, conférences hybrides et podcasts vidéo d'entreprise où plusieurs intervenants alternent entre fauteuils, pupitres et tables rondes.

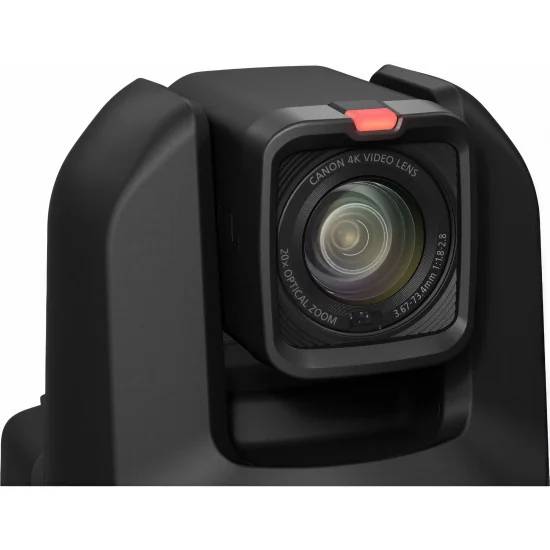

L'image reste taillée pour la diffusion professionnelle. Un capteur CMOS 1/2,3 pouce associé au processeur DIGIC DV7 enregistre du 4K UHD jusqu'à 59,94p en 4:2:2 10 bits, avec gammas Canon Log 3, BT.709 Wide DR, HLG et PQ pour les pipelines HDR en direct ou en post-production. L'optique 20x f/1,8–2,8 (3,67–73,4 mm) atteint environ 616 mm en équivalent 35 mm, et la portée 40x en Full HD permet d'isoler un orateur au fond d'une salle de conférence ou d'un plateau e-sport sans réinstaller la machine.

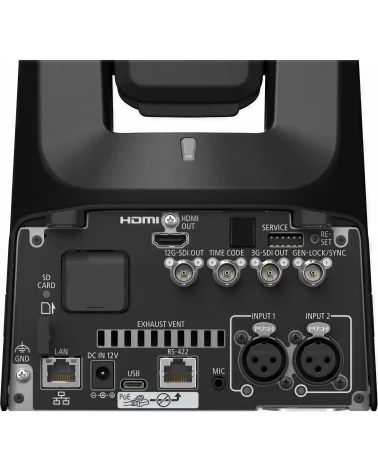

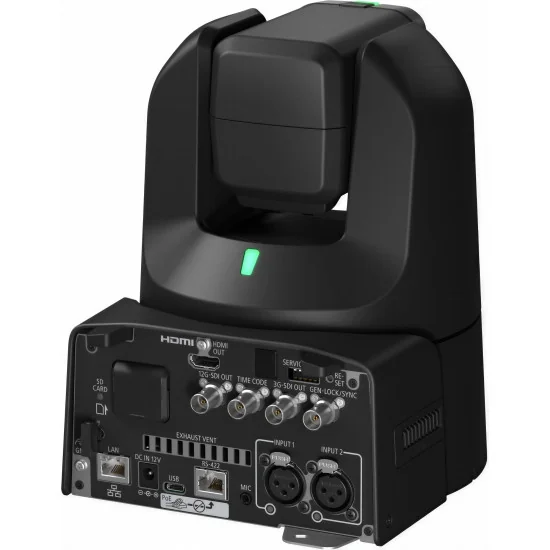

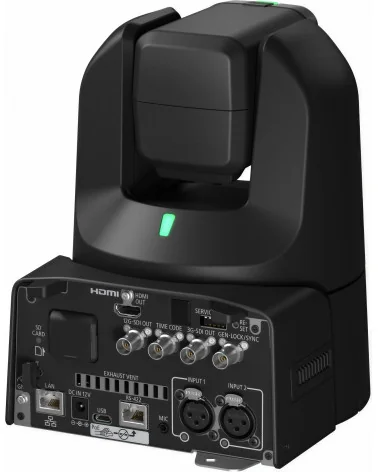

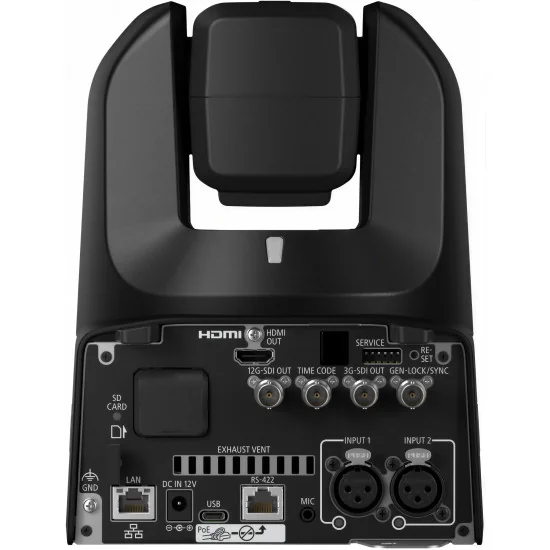

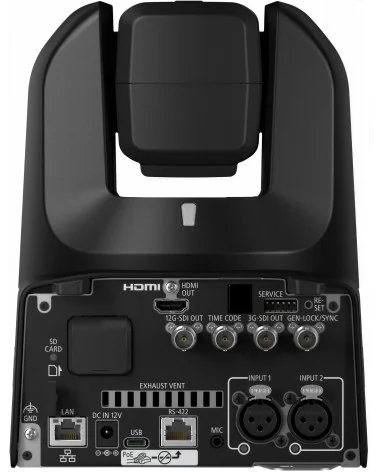

Côté régie, la CR-N400 Black Auto Tracking offre une connectique d'exploitation complète : 12G-SDI sur BNC, HDMI type A, USB-C 3.0 et un port LAN 1000Base-T capable de transporter NDI|HX2, SRT, RTMP/RTMPS, RTSP/RTP et le protocole Canon XC. Les BNC Genlock et Time Code garantissent la synchronisation entre plusieurs angles sur un même mélangeur, tandis que la compatibilité PoE++ (IEEE 802.3bt) regroupe l'alimentation, le contrôle IP, le tally et le flux sur un seul câble Cat-6.

Côté pilotage, l'opérateur dispose d'une sensibilité de suivi réglable sur 10 niveaux, de cinq tailles d'affichage du sujet, d'un cadre cible positionnable librement et de cinq réglages de tracking mémorisables — un confort apprécié dans les studios d'information, les salles de classe hybrides, les retransmissions e-sport et les town halls corporate. Double entrée XLR, RS-422 sur RJ45, point d'accès Wi-Fi, filtre ND motorisé, diaphragme à huit lamelles et application Camera Colour Matching complètent un outil PTZ que les maisons de production B2B peuvent intégrer à un parc Canon, Sony ou BirdDog sans friction d'exploitation.

Expédition vers l'UE

Livraison dans toute l’UE pour 20 €, gratuite dès 1 000 €.

Boutique B2B

Boutique B2B réservée aux professionnels, prix HT.

Achats en toute sécurité

Distribution et garantie officielles de l'UE.

Paiement sécurisé

Paiements en ligne sécurisés via Stripe.

Devis individuel

Demande de devis via formulaire ou e-mail: avgear@avgear.shop

Zoom Further. Track Smarter. Perform Better
Capture live productions with stunning 4K60P HDR imagery and zoom in up to 20x optical – or 40x Advanced Zoom in Full HD – plus auto track subjects smoothly and integrate seamlessly with 12G-SDI, Time Code, Genlock and Dual XLR.

Track every move automatically
Rely on advanced Auto tracking with face and head detection, precision motion tracking, and smooth pan/tilt movements and enhanced pan/tilt drive unit to keep every subject framed and in focus – without a camera operator.

Capture every detail with HDR imagery
Reveal every highlight and shadow with HDR imaging thanks to the DIGIC DV7 processor that ensures sharp clarity, vivid contrast, and lifelike colour, no matter how challenging the lighting conditions.

Connect like a pro
Integrate seamlessly with 12G-SDI, Time Code, Genlock, and Dual XLR inputs. Built for professional workflows, it ensures fast setup, reliable performance, and total studio compatibility.

Zoom further than ever
Bring the action closer with the lineup’s longest 40x Advanced Zoom in Full HD. Perfect for arenas, stadiums, and auditoriums, it captures crystal-clear shots even from the furthest seats.

Match colours instantly
Achieve consistent, broadcast-ready colours with ease. The enhanced Camera Colour Matching Application quickly aligns the CR-N400 with your existing cameras for consistent, professional results.

Upgrade your content with a new firmware update available August 2025
Download the latest firmware and take advantage of newly added Auto Tracking App RA-AT001* features. Auto Framing features include Multi-Person Framing, that detects and includes multiple people in the frame, while Face Direction Framing and Sit/Stand Framing deliver natural composition for a single person in frame. Additionally, RTMP/SRT auto reconnection and improved camera control from the iOS app is now included.

*Free Auto Tracking App RA-AT001(Lite) available via FW, 1.1.0 or later. A paid license is necessary for full functionality of auto tracking.

Feature	Auto Tracking Application (Lite)	Auto Tracking Application
Tracking subject	Auto-select only	Auto-/manual select possible
Tracking sensitivity	Fixed	Adjustable from 1 to 10 levels
Tracking subject display size	Can be set at two levels	Can be set at five levels
Tracking target display position	Fixed at center	Can be set to any area
Auto Framing	—	Multi-Person Framing, Face Direction Framing, Sit/Stand Framing
Priority display area	—	Can be set
Fixed angle of view	—	Can be set
Save tracking settings	One only	Up to five can be saved/recalled

Specifications

Camera
Image Sensor	Type 1/2.3 (1/2.3 in.) single-plate CMOS sensor
Effective Pixels	approx. 8.29 megapixels (3840 x 2160 at 23.98 / 25 / 29.97Hz) approx. 7.88 megapixels (3744 x 2104 at 50 / 59.94Hz)
Lens	f=3.67 – 73.4 mm, F/1.8 – 2.8, 20x optical zoom, 8-bladed iris diaphragm
Optical Zoom	20x optical zoom (40x with advanced zoom)
Digital Zoom	20x digital zoom
Focal Length	3.67 – 73.4 mm, f/1.8 – 2.8, 35mm equivalent focal length: Approx. 30.0 (W) - 616 mm (T) (50 / 59.94Hz) Approx. 29.3 (W) - 601 mm (T) (23.98 / 25 / 29.97Hz)
Angle of View	59.94/50.00 Hz frame frequency: Horizontal: 63.3° (W) – 3.5° (T) Vertical: 38.9° (W) – 2.0° (T) 29.97/25.00/23.98 Hz frame frequency: Horizontal: 65.6° (W) – 3.6° (T) Vertical: 39.8° (W) – 2.0° (T)
Minimum Subject Illumination	・59.94/29.97 Hz frame frequency: -Approx. 3 lux (with 1/60 sec. shutter speed, 59.94P frame rate, and 30.0 dB gain) -Approx. 1.5 lux (with 1/30 sec. shutter speed, 59.94P frame rate, and 30.0 dB gain) ・50.00/25.00 Hz frame frequency: -Approx. 2.5 lux (with 1/50 sec. shutter speed, 50.00P frame rate, and 30.0 dB gain) -Approx. 1.3 lux (with 1/25 sec. shutter speed, 50.00P frame rate, and 30.0 dB gain)
Shutter Speed	1/3 – 1/2000 sec. (specific values depend on the frame frequency and frame rate)
Iris	Manual/Automatic aperture
Gain	0.0 dB – 36 dB
ND Filter	Built-in (Off, 1/2, 1/4, 1/8), motor operated
Night Mode (IR Cut Filter Off)	No
Optical Low-Pass Filter	No
White Balance	AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K, tungsten lamp: 3,200 K), color temperature setting (2,000 K – 15,000 K), Manual
Focus	Focus mode: Manual, Continuous AF, Face / Eye AF, Tracking AF type: Hybrid AF, Contrast AF
Minimum Focusing Distance	1 cm at wide end, 60 cm across entire zooming range
Gamma	BT.709 Wide DR, BT.709 Standard, Canon Log 3, Canon 709, PQ, HLG
Pan and Tilt	Pan operation range: Horizontal ±170° Pan operation speed: 0.1° – 100°/sec. (Maximum speed at preset: 200.00°/sec.) Tilt operation range: Vertical -30° – +100° Tilt operation speed: 0.1° – 100°/sec. (Maximum speed at preset: 180.00°/sec.)
Server
Video Output Format: SDI	[12G-SDI] / 4:2:2 10-bit 3840 x 2160: 59.94P, 50.00P, 29.97P, 25.00P, 23.98P 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P, 29.97PsF/25.00PsF 1280 x 720: 59.94P, 50.00P 720 x 576: 50.00i 720 x 480: 59.94i [3G-SDI] / 4:2:2 10-bit 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P, 29.97PsF/25.00PsF 1280 x 720: 59.94P, 50.00P 720 x 576: 50.00i 720 x 480: 59.94i
Video Output Format: HDMI	[HDMI] / 4:2:2 10-bit 3840 x 2160: 59.94P, 50.00P, 29.97P, 25.00P, 23.98P 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P, 29.97PsF/25.00PsF 1280 x 720: 59.94P, 50.00P 720 x 576: 50.00i 720 x 480: 59.94i
Video Output Format: IP	[Frame frequency 59.94 Hz] 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) [Frame frequency 29.97 Hz] 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) [Frame frequency 50.00 Hz] 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360: 50.00 fps, 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit) [Frame frequency 25.00 Hz] 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360: 25.00 fps, 12.50 fps, 5.00 fps (4:2:0 8 bit) [Frame frequency 23.98 Hz] 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360: 23.98 fps, 11.99 fps, 5.99 fps (4:2:0 8 bit) *59.94 fps/50.00 fps is only when H.265. – JPEG has one pattern fixed depending on the frame frequency (format is fixed and cannot be selected) Resolution: 1280 x 720 59.94/29.97 Hz: 14.99 fps, 50.00/25.00 Hz: 12.50 fps, 23.98 Hz: 11.99 fps
Video Output Format: USB	Motion JPEG: 1920 x 1080 59.94 Hz: 30.00 fps, 15.00 fps, 5.00 fps 50.00 Hz: 25.00 fps, 12.50 fps, 5.00 fps 1280 x 720 59.94 Hz: 30.00 fps, 15.00 fps, 5.00 fps 50.00 Hz: 25.00 fps, 12.50 fps, 5.00 fps 640 x 360 59.94 Hz: 30.00 fps, 15.00 fps, 5.00 fps 50.00 Hz: 25.00 fps, 12.50 fps, 5.00 fps YUV: 640 x 360 59.94 Hz: 30.00 fps, 15.00 fps, 5.00 fps 50.00 Hz: 25.00 fps, 12.50 fps, 5.00 fps
Video Transmission Protocol	Canon XC, RTSP/RTP, NDI\|HX, RTMP/RTMPS, Standard Communication (Serial), Standard Communication (IP), SRT, FreeD
Preset	Number of presets: Max. 100 (including home position)

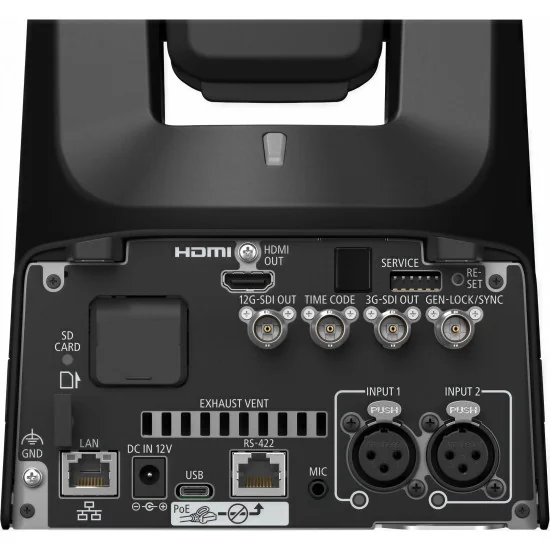

Interface
Communication Control	LAN, Wi-Fi, Serial, IR
Network Terminal	LAN x 1, RJ45, 1000Base-T
SDI OUT Terminal	12G-SDI OUT Terminal BNC jack (output only) x 1, 0.8 Vp-p/75 Ω, SMPTE ST 2082, 2081, 424, 425, 292, 259, 299, 272 compliant Embedded audio, Time code (VITC/LTC) 3G-SDI OUT Terminal BNC jack (output only) x 1, 0.8 Vp-p/75 Ω, unbalanced SMPTE 424, SMPTE 425, SMPTE ST 299-2 compliant Embedded audio, Time code (VITC/LTC)
GEN-LOCK Terminal	BNC jack (also serves as the SYNC OUT terminal)
TIME CODE Terminal	BNC jack (for both input/output)
HDMI OUT Terminal	HDMI connector (Type A), both video and audio are output only
RS-422 Terminal	RJ45 connector x 1
Audio INPUT 1/INPUT 2 Terminals	XLR 3-pin jack (balanced) ((1) shield, (2) hot, (3) cold), two lines Sensitivity (MIC): -60 dBu (manual volume center, -18 dB full scale) Sensitivity (LINE): +4 dBu (manual volume center, -18 dB full scale) Supply Voltage: 48 V DC (bias resistance: 6.8 kΩ)
MIC Terminal	ϕ 3.5 mm stereo mini-jack (unbalanced; supports plug-in power) Sensitivity (MIC): -72 dBu (manual volume center, -18 dB full scale) Sensitivity (LINE): -12 dBV (manual volume center, -18 dB full scale) Supply Voltage: 2.4 V DC (bias resistance: 2.2 kΩ)
USB Terminal	Type-C (USB 3.0) x 1
Physical Features
Operating Environment	Temperature 0°C – +40°C (+32°F – +104°F) Humidity 10% – 90% (without condensation)
Power Supply	PoE: PoE++ power supply via LAN connector (IEEE802.3bt compliant) – PoE and PoE+ cannot be used External power source: 12 V DC (using included AC adaptor)
Power Consumption	PoE++ Input: Approx. 34.4 W/0.8 A max. (body only) DC Input: Approx. 33.8 W/2.9 A max. (body only) Class 5 (40.0 W required) for power supply devices
Dimensions (W x H x D)	Approx. 176 x 220 x 194 mm (excluding protrusions)
Weight	Approx. 3.1 kg (6.8 lb.) (body only)
Noise	NC35 or less
