Canon CR-N500 White Auto Tracking Caméra PTZ

Canon CR-N500 White Auto Tracking Caméra PTZ

Name: Canon CR-N500 White Auto Tracking Caméra PTZ
Brand: Canon
SKU: CR-N500 WH auto-tracking
Price: 5299.00 EUR
Availability: InStock

MPN: CR-N500 WH auto-tracking

Prix : 5 299,00 €

Ventes à l'échelle de l'UE, facturation pour livraisons intracommunautaires exonérée de TVA.

Disponible chez le fournisseur (délai de livraison à confirmer)

Dans les salles de conférence aux plafonds clairs, les amphithéâtres universitaires ou les studios à décor neutre, une caméra noire attire immédiatement le regard. La Canon CR-N500 White Auto Tracking résout cette question avec un boîtier blanc titane qui s'intègre visuellement aux environnements lumineux, tout en embarquant la licence complète de l'application Canon RA-AT001. Ce suivi automatique offre dix niveaux de sensibilité de tracking, la sélection manuelle ou automatique du sujet, un positionnement libre de la cible dans le cadre, et jusqu'à cinq profils sauvegardables. Les modes d'Auto Framing — cadrage multi-personnes, orientation du visage, ajustement assis/debout — maintiennent une composition soignée sans intervention humaine, que ce soit pour une table ronde filmée ou une présentation corporate diffusée en direct.

Le capteur CMOS de type 1.0 associé au processeur DIGIC DV6 produit des images en 4K UHD 30p et Full HD 60p avec un bruit contenu jusqu'à 1,5 lux. Le zoom optique 15x (équivalent 35 mm : 25,5–382,5 mm, f/2.8–4.5) ouvre un champ horizontal de 73° en grand-angle, et le filtre ND intégré motorisé à trois densités gère l'exposition lors de captations en lumière naturelle. L'autofocus CMOS Dual Pixel accroche les visages avec rapidité, tandis que Canon Log 3 et le gamma Wide Dynamic Range offrent 13 stops de latitude — suffisant pour raccorder la colorimétrie avec des caméras Cinema EOS sur un tournage multi-caméras.

La Canon CR-N500 White Auto Tracking fournit trois flux simultanés via 3G-SDI, HDMI plein format (4K 4:2:2 10 bits) et IP, avec prise en charge native de NDI|HX2, SRT, RTSP/RTP et RTMP/RTMPS. Le câblage se réduit à un seul lien PoE+ Gigabit Ethernet qui transporte vidéo, audio, commande, tally et alimentation — un atout majeur pour les montages au plafond où chaque câble supplémentaire complique l'installation. Deux entrées XLR symétriques avec alimentation fantôme 48V, l'entrée genlock, le port RS-422 et le Wi-Fi assurent la synchronisation et le pilotage au sein de systèmes AV pilotés par les contrôleurs Canon RC-IP100 ou RC-IP1000.

Expédition vers l'UE

Livraison dans toute l’UE pour 20 €, gratuite dès 1 000 €.

Boutique B2B

Boutique B2B réservée aux professionnels, prix HT.

Achats en toute sécurité

Distribution et garantie officielles de l'UE.

Paiement sécurisé

Paiements en ligne sécurisés via Stripe.

Devis individuel

Demande de devis via formulaire ou e-mail: avgear@avgear.shop

Powerful 4K imagery
The 1.0-type CMOS Sensor and DIGIC DV6 processor work in unison to deliver exceptional 4K UHD/30p image quality as well as upscaled Full HD/60p images thanks to over sampled HD processing.

Smooth and precise control
The CR-N500 is equipped with a high-precision drive mechanism enabling fine adjustments of the Pan and Tilt movement and speed ensuring the perfect shot. Compatible with the RC-IP1000, the RC-SK5, the RC-IP100 controller and Remote Camera Control Application controllers, the CR-N500 is also compatible with selected third-party controllers.

Stabilised 15x Optical Zoom to get closer
Canon’s advanced 4K optics make sure greater detail is captured, and flexibility assured, with a 15x optical zoom (25.5-382.5mm 35mm equivalent), providing a wide angle to telephoto field of view. Canon’s advanced four-axis image stabilisation ensures high quality image capture.

IP Streaming and Control to transform your production
A comprehensive range of IP control and streaming protocols up to 4K UHD 30p (such as NDI|HX, RTMP, RTP/RTSP, RTMPS, SRT, FreeD and Canon’s XC Protocol) are included, making the CR-N500 an ideal solution for new or existing systems.

Excellent imagery in low light
The CR-N500 produces high quality imagery with low noise, even with a minimum illumination of 1.5 lux. The large 1.0-type CMOS sensor and the DIGIC DV6 processor ensure the image quality retains its integrity even in the most challenging of lighting conditions.

Dual Pixel CMOS AF keeps it sharp
The CR-N500 features Canon’s renowned Dual Pixel CMOS Auto Focus system which provides extremely quick and accurate focus via multiple modes.

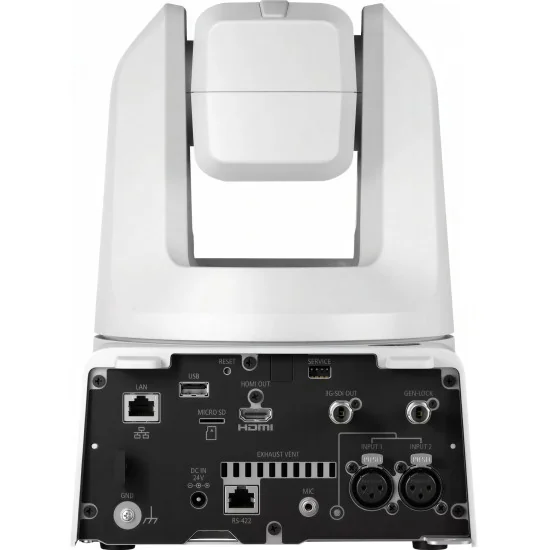

Extensive Connectors for ease of use
The CR-N500 features a host of connections to ensure the ultimate flexibility, including a 3G-SDI video output, full-sized HDMI port (supporting 4K UHD 30p at 4:2:2 10-bit), professional XLR audio inputs, as well as a PoE+ LAN port to allow for easy system integration.

HDR Imagery, with versatile image quality adjustments
Achieve stunning HDR imagery with Canon Log 3 and Wide Dynamic Range Support. Both technologies ensure the best HDR imagery can be achieved for applications where postproduction or a quick turnaround is required. The in-built image adjustment settings also ensure flexible and bespoke imagery to colour match with other cameras.

Upgrade your content with a new firmware update available August 2025
Download the latest firmware and take advantage of newly added Auto Tracking App RA-AT001* features. Auto Framing features include Multi-Person Framing, that detects and includes multiple people in the frame, while Face Direction Framing and Sit/Stand Framing deliver natural composition for a single person in frame. Additionally, RTMP/SRT auto reconnection and improved camera control from the iOS app is now included.

*Free Auto Tracking App RA-AT001(Lite) available via FW, 1.1.0 or later. A paid license is necessary for full functionality of auto tracking.

Feature	Auto Tracking Application (Lite)	Auto Tracking Application
Tracking subject	Auto-select only	Auto-/manual select possible
Tracking sensitivity	Fixed	Adjustable from 1 to 10 levels
Tracking subject display size	Can be set at two levels	Can be set at five levels
Tracking target display position	Fixed at center	Can be set to any area
Auto Framing	—	Multi-Person Framing, Face Direction Framing, Sit/Stand Framing
Priority display area	—	Can be set
Fixed angle of view	—	Can be set
Save tracking settings	One only	Up to five can be saved/recalled

Specifications

Camera
Image Sensor	Type 1.0 (1.0 in.) single-plate CMOS sensor
Effective Pixels	approx. 8.29 megapixels (3840 x 2160)
Lens	f=8.3 – 124.5 mm, F/2.8 – 4.5, 15x optical zoom, 9-bladed iris diaphragm
Optical Zoom	15x optical zoom
Digital Zoom	20x digital zoom
Focal Length	f=8.3 – 124.5 mm, F/2.8 – 4.5, 35mm equivalent focal length: approx. 25.5 (W) – 382.5 mm (T)
Angle of View	Horizontal: 73.0 (W) – 5.7° (T) Vertical: 45.2° (W) – 3.2° (T)
Minimum Subject Illumination	3840 x 2160: Approx. 1.5 lux (shutter speed 1/30 sec., Frame Rate 29.97P, Gain 33.0 dB) 1920 x 1080: Approx. 3 lux (shutter speed 1/60 sec., Frame Rate 59.94P, Gain 33.0 dB)
Shutter Speed	1/3 – 1/2000 sec. (specific values depend on the frame frequency and frame rate)
Iris	Manual/Automatic aperture
Gain	-6.0 dB – 33.0 dB
ND Filter	Built-in (Off, 1/4, 1/16, 1/64), motor operated
Optical Low-Pass Filter	Yes
White Balance	AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K, tungsten lamp: 3,200 K), color temperature setting (2,000 K – 15,000 K), Manual * Color temperatures are given for reference purposes only.
Focus	Focus mode: Manual, AF-boosted MF, Continuous AF, Face AF, Tracking AF type: Dual Pixel CMOS AF, Contrast AF
Gamma	Normal1 (Standard), Normal2 (x4.0), Normal3 (BT.709), Normal4 (x5.0), Wide DR, Canon Log 3
Pan and Tilt	Pan operation range: Horizontal ±170° Pan operation speed: 0.1° – 100°/sec. Tilt operation range: Vertical -30° – +90° Tilt operation speed: 0.1° – 100°/sec.
Pan and Tilt Operation
Protocol	XC (Canon's original), RTSP/RTP, NDI\|HX, RTMP/RTMPS, Standard Communication (Serial), Standard Communication (IP), SRT, FreeD
Server
Video Output Format: SDI	1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit) 1280 x 720: 59.94P, 50.00P (4:2:2 10 bit) – Same video format required for SDI and HDMI (cannot select different formats for SDI and HDMI) – When 3840 x 2160 is selected for HDMI, video will not be outputted to SDI.
Video Output Format: HDMI	3840 x 2160: 29.97P, 25.00P, 23.98P (4:2:2 10 bit) 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit) 1280 x 720: 59.94P, 50.00P (4:2:2 10 bit) – Same video format required for SDI and HDMI (cannot select different formats for SDI and HDMI) – When 3840 x 2160 is selected for HDMI, video will not be outputted to SDI.
Video Output Format: IP	3840 x 2160: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) 1920 x 1080: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) 1280 x 720: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) 640 x 360: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit) – If 59.94/50.00 Hz is selected for the frame frequency, the 3840 x 2160 format cannot be selected. – A frame rate that exceeds the frame frequency cannot be selected. – JPEG has one pattern fixed depending on the frame frequency (format is fixed and cannot be selected) Resolution: 1280 x 720 When frame frequency is 59.94/50.00 Hz: 14.99 fps, when frame frequency is 23.98 Hz: 11.99 fps, when frame frequency is 29.97/25.00 Hz: 12.50 fps
Video Output Format: USB	-
Preset	Number of presets: Max. 100 (including home position)
Interface
Communication Control	LAN, Wi-Fi, Serial, IR
Network Terminal	LAN x 1, RJ45, 1000Base-T
SDI OUT Terminal	BNC jack (output only) x 1, 0.8 Vp-p/75 Ω, unbalanced SMPTE 424, SMPTE 425, SMPTE ST 299-2 compliant Embedded audio, Time code (VITC/LTC)
GEN-LOCK Terminal	BNC jack x 1, 1.0 Vp-p/75 Ω, input only
HDMI OUT Terminal	HDMI connector x 1, output only
RS-422 Terminal	RJ45 connector x 1
Audio INPUT 1/INPUT 2 Terminals	XLR/Audio Input (3-pin jack) (pin1: shield, pin2: hot, pin3: cold), 2 sets, balanced Sensitivity (MIC): -60 dBu (Manual volume center, full scale -18 dB)/600 Ω/Att.: 20 dB Sensitivity (LINE): +4 dBu (Manual volume center, full scale -18 dB)/1 kΩ or more Supply Voltage: 48 V DC (Bias resistance: 6.8 kΩ)
MIC Terminal	ϕ3.5 mm stereo mini jack (unbalanced, plug-in power supported) Sensitivity (MIC): -72 dBV (Manual volume center, full scale -18 dB)/1 kΩ or more/Att.: 20 dB Sensitivity (LINE): -10 dBV (Manual volume center, full scale -18 dB)/1 kΩ or more Supply Voltage: 2.4 V DC (Bias resistance: 2.2 kΩ)
USB Terminal	Type-A (USB 2.0) x 1 (future expansion)
Physical Features
Operating Environment	Temperature 0°C – +40°C (+32°F – +104°F) Humidity 10% – 90% (without condensation)
Power Supply	PoE: PoE+ power supply via LAN connector (IEEE802.3at compliant) – PoE cannot be used External power source: 24 V DC (using included AC adaptor)
Power Consumption	PoE+ Input: Approx. 19.6 W* max. (body only) DC Input: Approx. 18.6 W max. (body only) * Class 4 (25.5 W required) for power supply devices
Dimensions (W x H x D)	Approx. 200 x 269 x 208 mm (7.87 x 10.59 x 8.19 in.) (excluding protrusions)
Weight	Approx. 4.1 kg (9.04 lb.) (body only)
IP Rating	-
