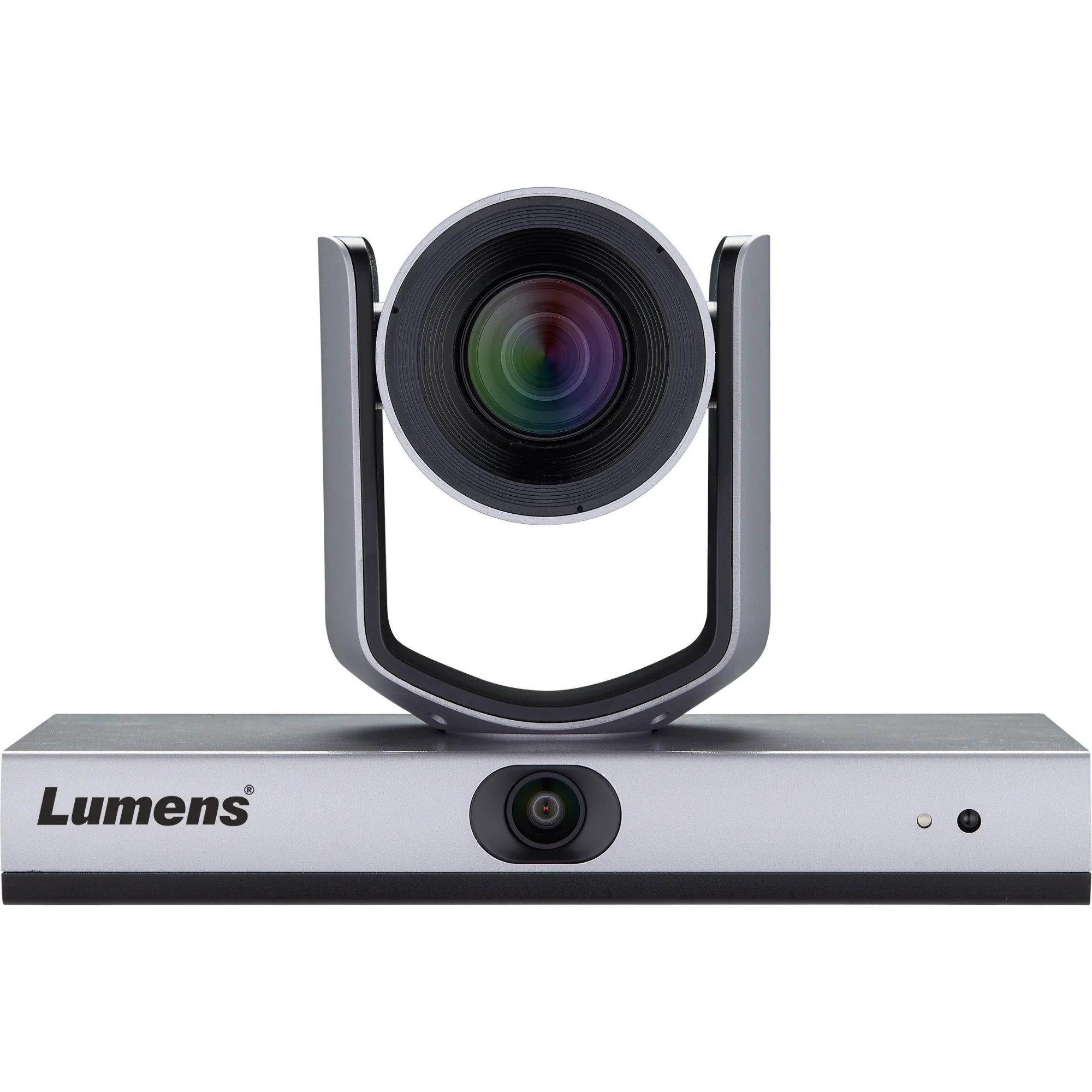

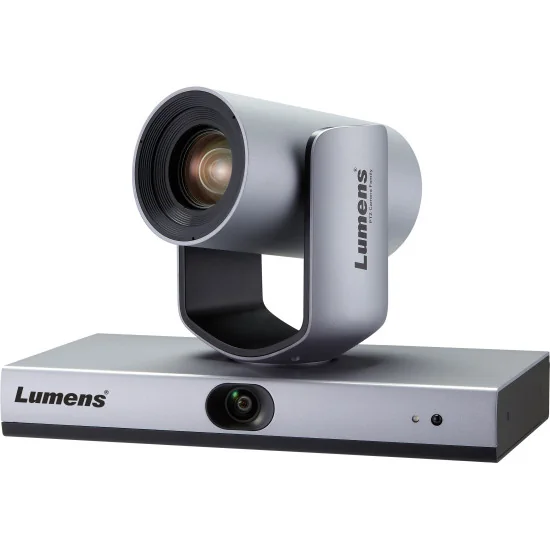

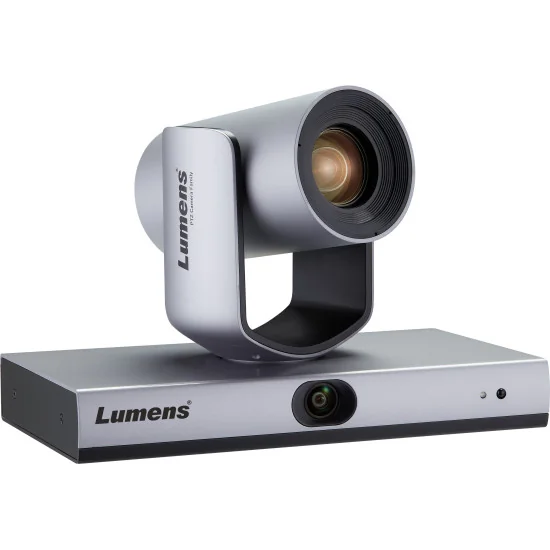

Auto-Tracking Camera, 20x Zoom PTZ Camera for automated production and live streaming

Key features:
• Automatic subject tracking with smart switching
• Full HD 1080p 60fps with 20x optical zoom
• HDMI, 3G-SDI, IP, and USB video outputs
• Supports Power over Ethernet (PoE+)
• RTSP / RTMP / RTMPS and HEVC (H.265) / H.264 / MJPEG video streaming
• Compatible with Barco ClickShare Conference
• 5 Year Warranty

Advanced Tracking
VC-TR1 represents a major advance in facial detection and camera tracking technology. With Lumens' technology, the presenter does not need to wear a dongle, nor is there any need to run a separate PC-based application. VC-TR1 does all the tracking within the system itself. Tracking is smooth and natural and can be finely tuned to adjust for speed and sensitivity to suit your needs.

Stage Tracking
Focuses on a presenter standing on a stage or behind a lectern and tracks the speaker's movement across the stage area.

Partition Tracking
Creates up to four preset zones to allow a presenter to move in a specific area. The camera will capture both the content on the display and the presenter.

Intelligent Tracking
Incorporating dual cameras, VC-TR1 monitors the full width of the stage and the presenter simultaneously, so it's always one step ahead. The user can select settings such as super tracking or partition tracking to establish accurate tracking areas and exclusion zones. This ensures that the presenter is the center of attention at all times. The operator can also add presets to zoom in when the speaker is at the lectern, for example, or zoom out to film a panel discussion. It's very easy to set up and requires no user input once the session has started.

Smart Switching Images between Dual Lens Design
The VC-TR1 integrates PTZ camera and 112° FOV panoramic camera. Thanks to the dual lens design, it can capture the entire view and track a speaker simultaneously. While in the process of tracking, the VC-TR1 automatically switches the video frame. Audiences see not only a presenter but also the content on a whiteboard or presentation material.

Simple Integration
VC-TR1 can be used in multiple roles within your organization. With UVC-compliant USB, the camera connects directly with video conferencing software such as Zoom, WebEx, Teams or Skype. Featuring IP streaming, VC-TR1 delivers live video directly to platforms such as YouTube or Facebook Live. Its HDMI and SDI connectivity enables fast integration with video switchers for native video quality production.

Broadcast Quality
VC-TR1 combines excellent auto-tracking with camera technology which is developed to television standards. The sensor, lens, and video output options are all professional-grade, giving you the high-resolution output, faithful colors, and excellent performance in low light settings.

Applications
•   Conference Production: Suitable for use in the main auditoria or breakout rooms, offering automated event production of keynote addresses and discussion panels.
•   Telemedicine: Being able to move around a lab, a demonstrator can present to remote audiences without being restricted to a static VC position.
•   E-learning: Teachers can engage more effectively with remote students by moving naturally around a classroom or lecture hall.

Specification:
Sensor: PTZ Camera: 1/2.8” 2.13MP CMOS , Panoramic Camera: 1/2.5” 8.57MP CMOS
Video Format: Resolution: 1080p / 720p
Frame Rate : 60 / 50 / 30 / 25
Video Output (HD) Interface: HDMI / SDI / Ethernet or USB2.0
Optical Zoom: 20x
Digital Zoom: 12x
PTZ Camera Viewing Angle: 58.7° (H) 45° (V) 71° (D)
Panoramic Camera Viewing Angle: 100° (H) 80° (V) 112° (D)
Panning Angle: +90 ~ -90°
Panning Speed: 100°/sec
Tilting Angle: +90 ~ -30°
Tilting Speed: 0.1°~80°/sec
Auto-Tracking: Yes
Auto-Switching: Yes
Auto-Framing: Yes
Aperture: F1.6 ~ F3.5
Focal Length: 4.9mm ~ 94mm
Shutter Speed: 1/60 ~ 1/10,000
Minimum Object Distance: 500mm
Video S/N Ratio: > 40dB
Minimum Illumination: 1.0Lux @ (F1.6, AGC ON)
Focus System: Auto / Manual
Gain Control: Auto / Manual
White Balance: Auto / Manual
Exposure Control: Auto / Manual
WDR: Yes
3D NR: Yes
Preset Positions: 256
Multiple Video Stream: 1 x PTZ Camera Main Stream , 1 x Panoramic Camera Main Stream , 1 x PTZ Camera Sub Stream
Control Interface: RS-232 / Ethernet
Control Protocol: VISCA / VISCA over IP
PoE: PoE+ (IEEE802.3at)
Video Stream: RTSP / RTMP / RTMPS
Video Compression: HEVC(H.265) / H.264 / MJPEG
Audio Input: Line In, Phone Jack 3.5mm x1
Audio Output: Ethernet / USB
IR Receiver: Yes
IR Remote Control: Yes
DC In: 12V
Power Consumption: PoE: 17W , DC In: 16W
Weight: 3.1lbs (1.4 kg)
Dimensions: 9.6” x 5.7” x 6.5” (245 ×145 ×165 mm)
