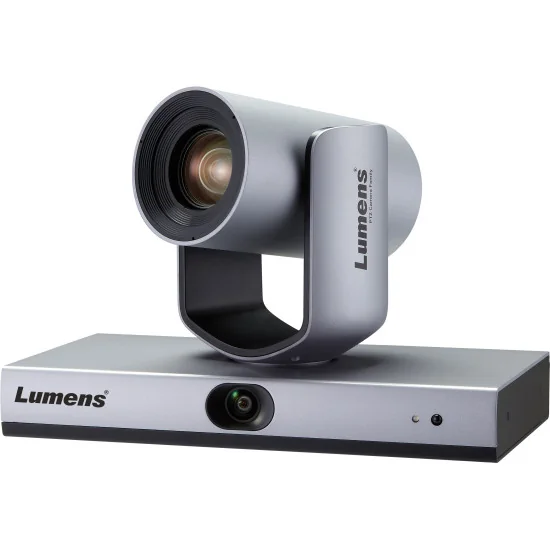

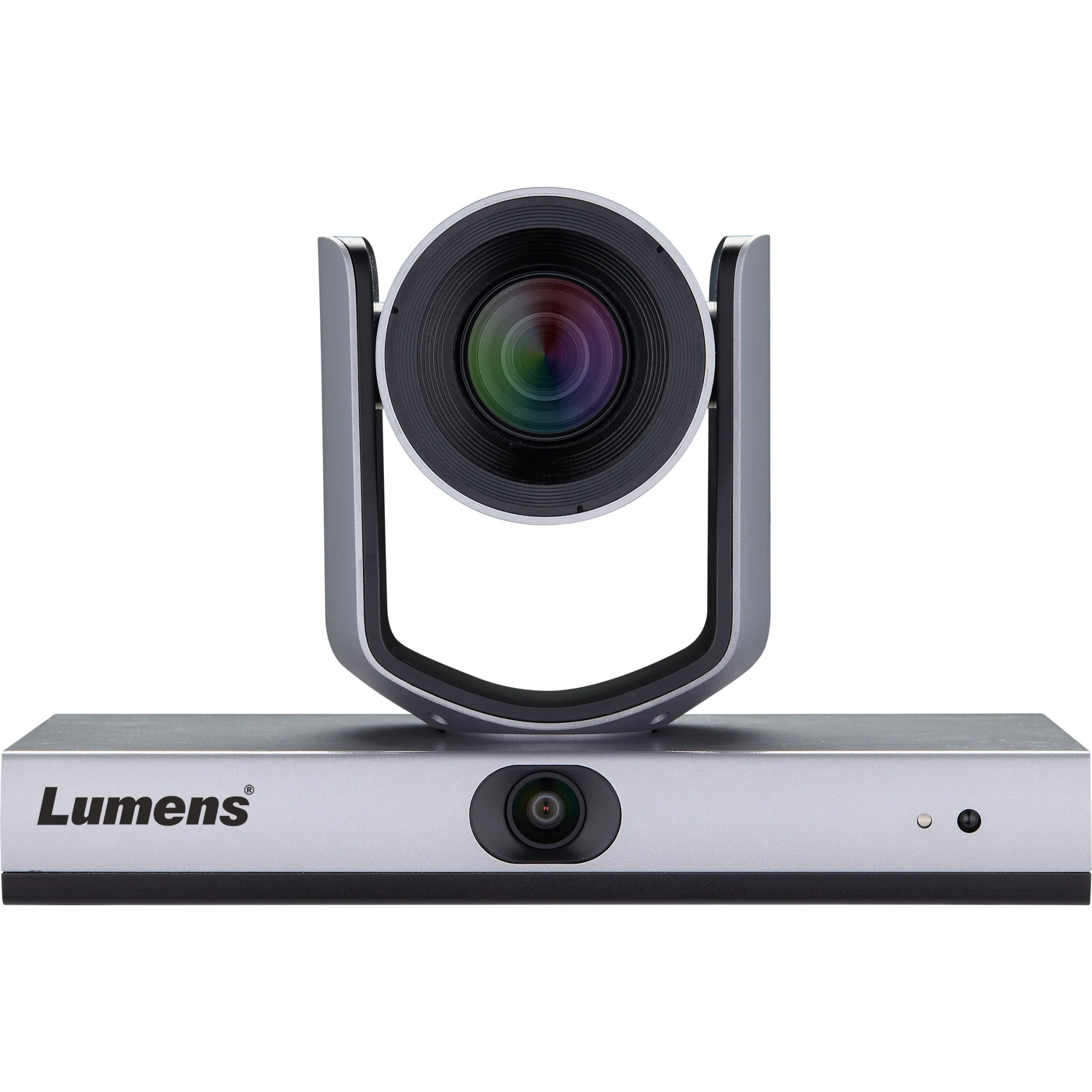

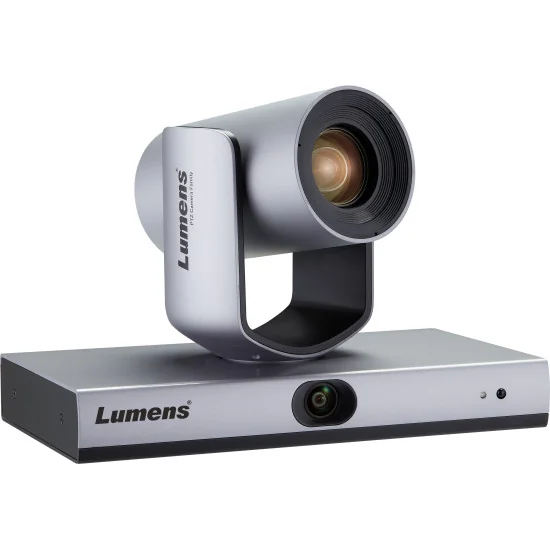

Lumens VC-TR1 Auto-Tracking PTZ Camera

Name: Lumens VC-TR1 Auto-Tracking PTZ Camera
Brand: Lumens
SKU: VC-TR1
Price: 849.00 EUR
Availability: InStock

MPN: VC-TR1

Price: €849.00

No tax

We offer EU-wide sales, invoicing for VAT-free intra-community delivery.

External stock. (Shipping 3-14 working days.)

Two sensors in a single housing set the Lumens VC-TR1 apart from conventional PTZ cameras. A 1/2.8-inch 2.13 MP CMOS module handles pan-tilt-zoom duties with a 20x optical zoom lens (focal range 4.9–94 mm, aperture F1.6–F3.5), while a secondary 1/2.5-inch 8.57 MP CMOS sensor delivers a 112° diagonal panoramic overview. This dual-lens architecture lets the camera observe the full stage and follow a single subject simultaneously — a capability that production teams typically achieve only with two separate cameras and a switcher.

The Lumens VC-TR1 processes subject detection internally through AI-based facial recognition; presenters do not carry a transmitter or rely on an external tracking server. Three tracking modes cover distinct scenarios. Stage Tracking locks onto a speaker at a lectern or moving across a platform. Partition Tracking divides the space into up to four preset zones, capturing both the presenter and on-screen content such as slides. Intelligent Tracking merges both sensors, monitoring the panoramic field and PTZ close-up at once, with automatic view switching whenever the subject moves or pauses — no operator input required once the session begins.

Connectivity spans every major signal path in professional environments. 3G-SDI and HDMI outputs feed broadcast switchers for native-quality multi-camera productions, while USB 2.0 (UVC-compliant) turns the unit into a plug-and-play source for Zoom, Teams, or WebEx. For remote distribution, the VC-TR1 streams via RTSP, RTMP, and RTMPS using H.265, H.264, or MJPEG compression — publishing directly to YouTube Live or Facebook Live without an intermediary encoder. PoE+ (IEEE 802.3at) consolidates power and data into one cable, simplifying ceiling installations.

From corporate conferences and lecture captures to telemedicine demonstrations, the VC-TR1 reduces crew needs behind the camera. Minimum illumination of 1.0 lux, WDR, and 3D noise reduction maintain clarity under dim or mixed lighting. With 256 stored presets, control via VISCA / VISCA over IP, and Barco ClickShare Conference compatibility, it fits into existing AV ecosystems.

UE Shipping

We ship across the EU for €20, free over €1,000.

B2B Shop

B2B sales only, prices excl. VAT.

Safe Shopping

Official EU distribution and warranty.

Secure checkout

Secure online payments via Stripe.

Individual quotation

Send your enquiry via the form or email avgear@avgear.shop

Auto-Tracking Camera, 20x Zoom PTZ Camera for automated production and live streaming

Key features:
• Automatic subject tracking with smart switching
• Full HD 1080p 60fps with 20x optical zoom
• HDMI, 3G-SDI, IP, and USB video outputs
• Supports Power over Ethernet (PoE+)
• RTSP / RTMP / RTMPS and HEVC (H.265) / H.264 / MJPEG video streaming
• Compatible with Barco ClickShare Conference
• 5 Year Warranty

Advanced Tracking
VC-TR1 represents a major advance in facial detection and camera tracking technology. With Lumens' technology, the presenter does not need to wear a dongle, nor is there any need to run a separate PC-based application. VC-TR1 does all the tracking within the system itself. Tracking is smooth and natural and can be finely tuned to adjust for speed and sensitivity to suit your needs.

Stage Tracking
Focuses on a presenter standing on a stage or behind a lectern and tracks the speaker's movement across the stage area.

Partition Tracking
Creates up to four preset zones to allow a presenter to move in a specific area. The camera will capture both the content on the display and the presenter.

Intelligent Tracking
Incorporating dual cameras, VC-TR1 monitors the full width of the stage and the presenter simultaneously, so it's always one step ahead. The user can select settings such as super tracking or partition tracking to establish accurate tracking areas and exclusion zones. This ensures that the presenter is the center of attention at all times. The operator can also add presets to zoom in when the speaker is at the lectern, for example, or zoom out to film a panel discussion. It's very easy to set up and requires no user input once the session has started.

Smart Switching Images between Dual Lens Design
The VC-TR1 integrates PTZ camera and 112° FOV panoramic camera. Thanks to the dual lens design, it can capture the entire view and track a speaker simultaneously. While in the process of tracking, the VC-TR1 automatically switches the video frame. Audiences see not only a presenter but also the content on a whiteboard or presentation material.

Simple Integration
VC-TR1 can be used in multiple roles within your organization. With UVC-compliant USB, the camera connects directly with video conferencing software such as Zoom, WebEx, Teams or Skype. Featuring IP streaming, VC-TR1 delivers live video directly to platforms such as YouTube or Facebook Live. Its HDMI and SDI connectivity enables fast integration with video switchers for native video quality production.

Broadcast Quality
VC-TR1 combines excellent auto-tracking with camera technology which is developed to television standards. The sensor, lens, and video output options are all professional-grade, giving you the high-resolution output, faithful colors, and excellent performance in low light settings.

Applications
• Conference Production: Suitable for use in the main auditoria or breakout rooms, offering automated event production of keynote addresses and discussion panels.
• Telemedicine: Being able to move around a lab, a demonstrator can present to remote audiences without being restricted to a static VC position.
• E-learning: Teachers can engage more effectively with remote students by moving naturally around a classroom or lecture hall.

Specification:
Sensor: PTZ Camera: 1/2.8” 2.13MP CMOS , Panoramic Camera: 1/2.5” 8.57MP CMOS
Video Format: Resolution: 1080p / 720p
Frame Rate : 60 / 50 / 30 / 25
Video Output (HD) Interface: HDMI / SDI / Ethernet or USB2.0
Optical Zoom: 20x
Digital Zoom: 12x
PTZ Camera Viewing Angle: 58.7° (H) 45° (V) 71° (D)
Panoramic Camera Viewing Angle: 100° (H) 80° (V) 112° (D)
Panning Angle: +90 ~ -90°
Panning Speed: 100°/sec
Tilting Angle: +90 ~ -30°
Tilting Speed: 0.1°~80°/sec
Auto-Tracking: Yes
Auto-Switching: Yes
Auto-Framing: Yes
Aperture: F1.6 ~ F3.5
Focal Length: 4.9mm ~ 94mm
Shutter Speed: 1/60 ~ 1/10,000
Minimum Object Distance: 500mm
Video S/N Ratio: > 40dB
Minimum Illumination: 1.0Lux @ (F1.6, AGC ON)
Focus System: Auto / Manual
Gain Control: Auto / Manual
White Balance: Auto / Manual
Exposure Control: Auto / Manual
WDR: Yes
3D NR: Yes
Preset Positions: 256
Multiple Video Stream: 1 x PTZ Camera Main Stream , 1 x Panoramic Camera Main Stream , 1 x PTZ Camera Sub Stream
Control Interface: RS-232 / Ethernet
Control Protocol: VISCA / VISCA over IP
PoE: PoE+ (IEEE802.3at)
Video Stream: RTSP / RTMP / RTMPS
Video Compression: HEVC(H.265) / H.264 / MJPEG
Audio Input: Line In, Phone Jack 3.5mm x1
Audio Output: Ethernet / USB
IR Receiver: Yes
IR Remote Control: Yes
DC In: 12V
Power Consumption: PoE: 17W , DC In: 16W
Weight: 3.1lbs (1.4 kg)
Dimensions: 9.6” x 5.7” x 6.5” (245 ×145 ×165 mm)
