NDI Technology
VC-TR61N supports the latest version of the NDI protocol, NDI HX3. It delivers very high-quality video with ultra-low latency and connects directly to NDI networks.

4K Dual Video Outputs

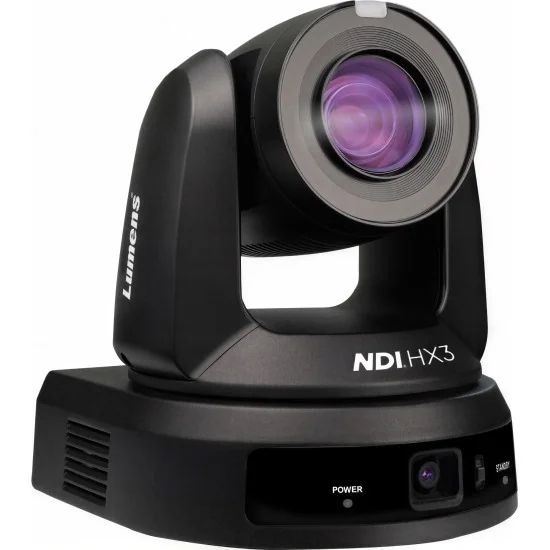

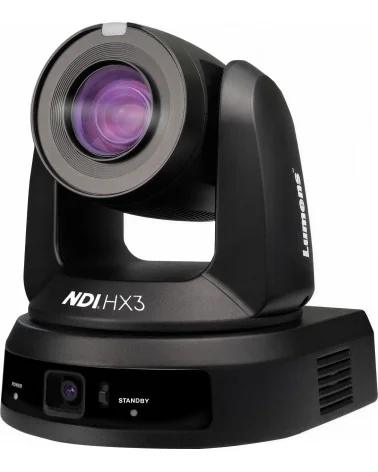

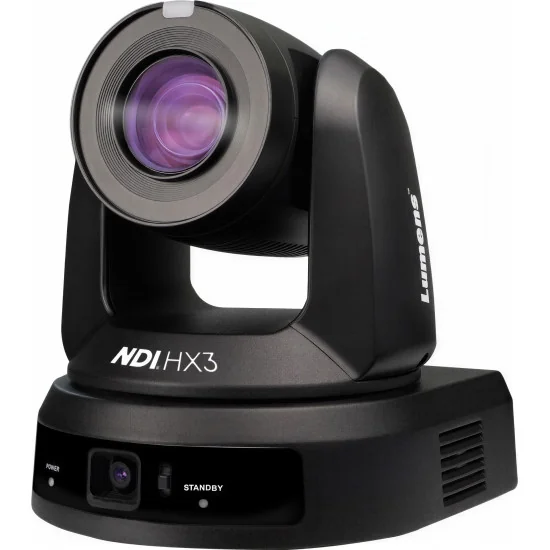

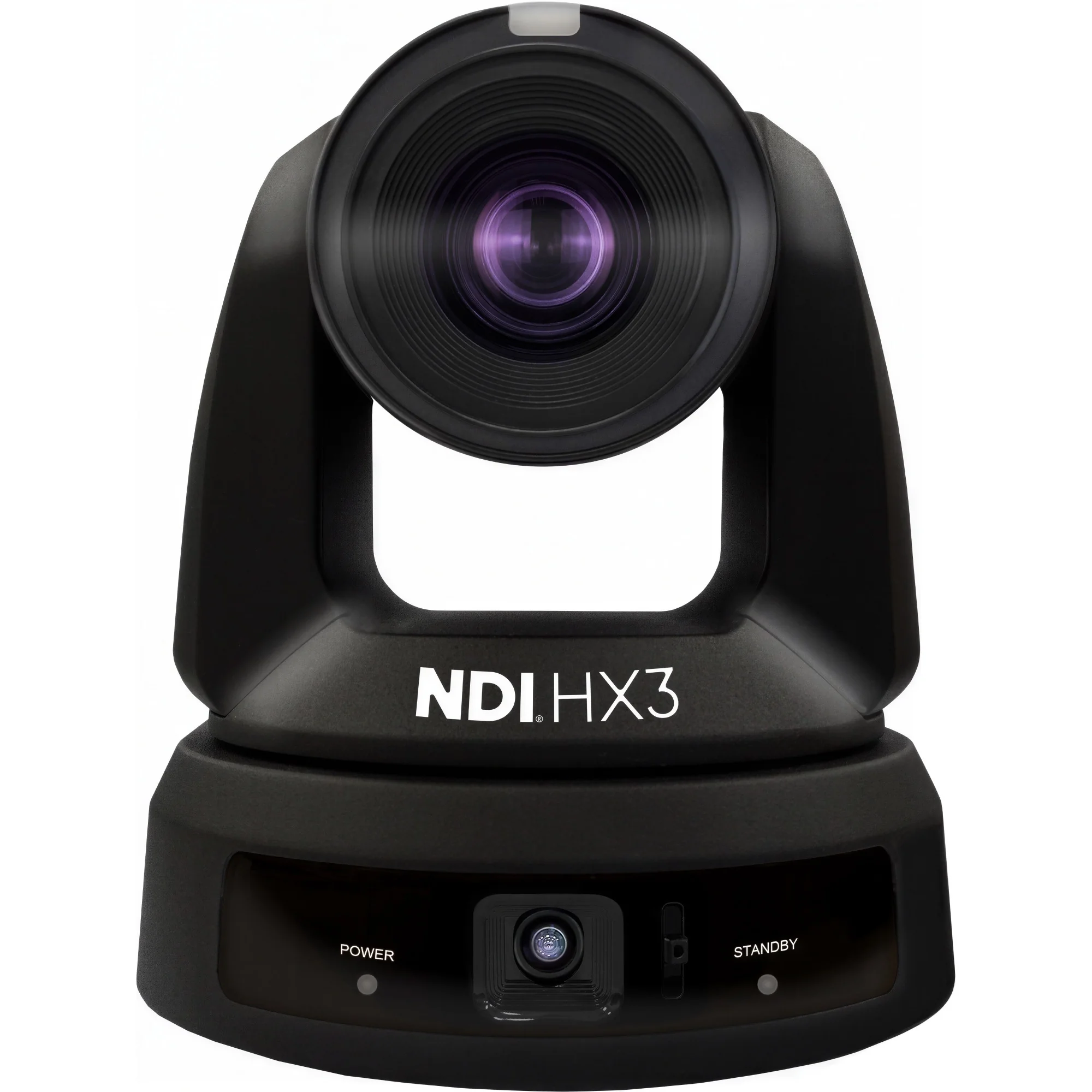

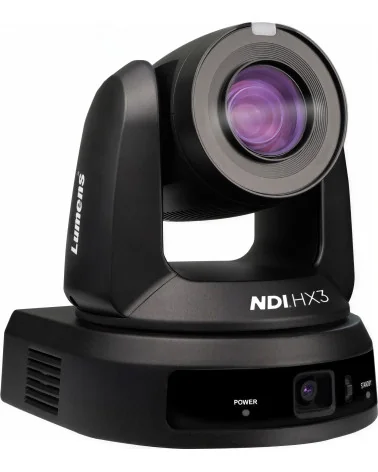

For accurate tracking, VC-TR61N features dual UltraHD cameras – a main robotic head with optical zoom and a panoramic camera with an ultra-wide viewing angle. Each camera generates an independent 4K IP output for live streaming, AV transmission or multi-channel video production.

Stage Tracking and Everywhere Tracking Modes
Lumens advanced tracking algorithms make the VC-TR61N suitable for use in presentations, conferences, houses of worship and education. Delivering reliable and smooth results, the camera includes mode selection to set tracking areas, exclusion zones and camera movement.

Partition Tracking Mode
In Partition Tracking Mode, the operator can program camera actions depending on the location of the subject within the tracking area. This can include triggering a particular zoom angle to focus the audience’s attention on the presenter or a wider shot to frame both the speaker and a whiteboard.

Picture-in-Picture (PIP) Output
As a 2-camera unit, VC-TR61N outputs dual independent IP streams. A simple menu setting also enables it to create a composite picture-in-picture output (via HDMI and USB). The user can easily define the position and size of the inset picture via the web interface.

Specification

Sensor: 1/1.8" 8.48M
Video Format:
2160p : 60 / 50
2160p : 30 / 25
1080p : 60 / 50 / 30 / 25
720p : 60 / 50 / 30 / 25
1080i : 60 / 50
Video Output (HD) Interface: HDMI / Ethernet / 3G-SDI / USB
Zoom: 30x
Digital Zoom: 8x *
*Digital Zoom only works with HDMI/SDI at 1080p/720p resolution
Horizontal Viewing Angle: 59.2°
Vertical Viewing Angle: 33.3°
Diagonal Viewing Angle: 67.9°
Aperture: F1.6 ~ F5.4
Focal Length: 7.1 ~ 213 mm
Shutter Speed: 1/25 ~ 1/10,000 sec
Minimum Object Distance: Tele:1.5m Wide:1m
Video S/N Ratio: > 50dB
Minimum Illumination: 0.5Lux (F1.6, AGC ON)
Focus System: Auto, manual
Gain Control: Auto, manual
White Balance: Auto, manual
Exposure Control: Auto, manual
WDR: Yes
3D NR: Yes
Image Flip: Yes
PIP: Yes
Auto Tracking: Yes
Auto Framing: Yes

Sensor: 1/2.8" 8.6M
Video Format:
2160p : 60 / 50
2160p : 30 / 25
1080p : 60 / 50 / 30 / 25
Horizontal Viewing Angle: 85.1°
Aperture: F2.0
Focal Length: 3mm
Panning Angle: +170 ~ -170°
Panning Speed: 0.1°~100°/sec
Tilting Angle: +90 ~ -30°
Tilting Speed: 0.1°~ 60°/sec
Preset Positions: 256

HDMI/3G-SDI:
HDMI
PTZ Camera : 2160p60
Panoramic : 2160p60
3G-SDI
PTZ Camera : 1080p 60
IP Stream: RTSP / RTMP / RTMPS / SRT
PTZ Camera:
Stream 1 : 2160p 60 fps
Stream 2 : 720p 30 fps
Panoramic Camera : 2160p 60fps
NDI HX:
PTZ Camera
Main : 2160p 60fps
Sub : 640x360p 30fps
Panoramic Camera : 2160p 60fps

IP Compression: H.264 / HEVC(H.265)
USB Output: 2160p30
USB Compression: H.265(HEVC) / H.264 / MJPEG / YUV2 / NV12
IP Protocol: NDI HX3 / NDI HX2 / RTSP / RTMP / RTMPS / SRT
PoE: PoE+ (IEEE802.3at)
Audio Input: Line In
Audio Output: Ethernet / USB / HDMI / SDI
Audio Compression Format: AAC / PCM

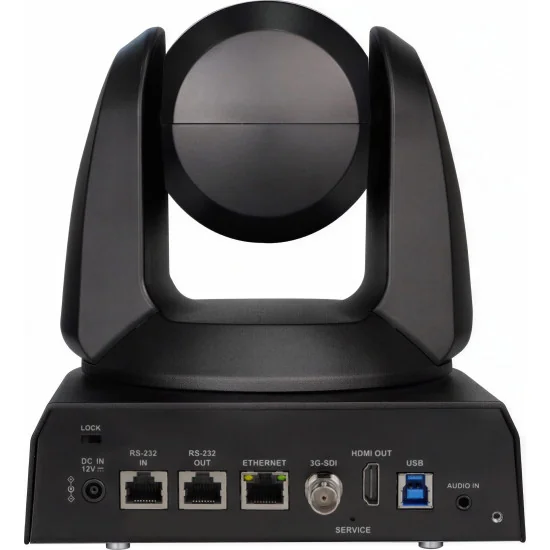

Interface: RS-232 / Ethernet / USB / Remote
Protocol: VISCA / ONVIF / NDI
UVC: Yes
UAC: Yes
DC In: 12V +/- 20%
Power consumption: PoE: 26W, DC In: 25W
Weight: 4.4 lbs (2 kg)
Dimension: 6.9" x 7.8" x 7.3" (174 x 197 x 187 mm)
