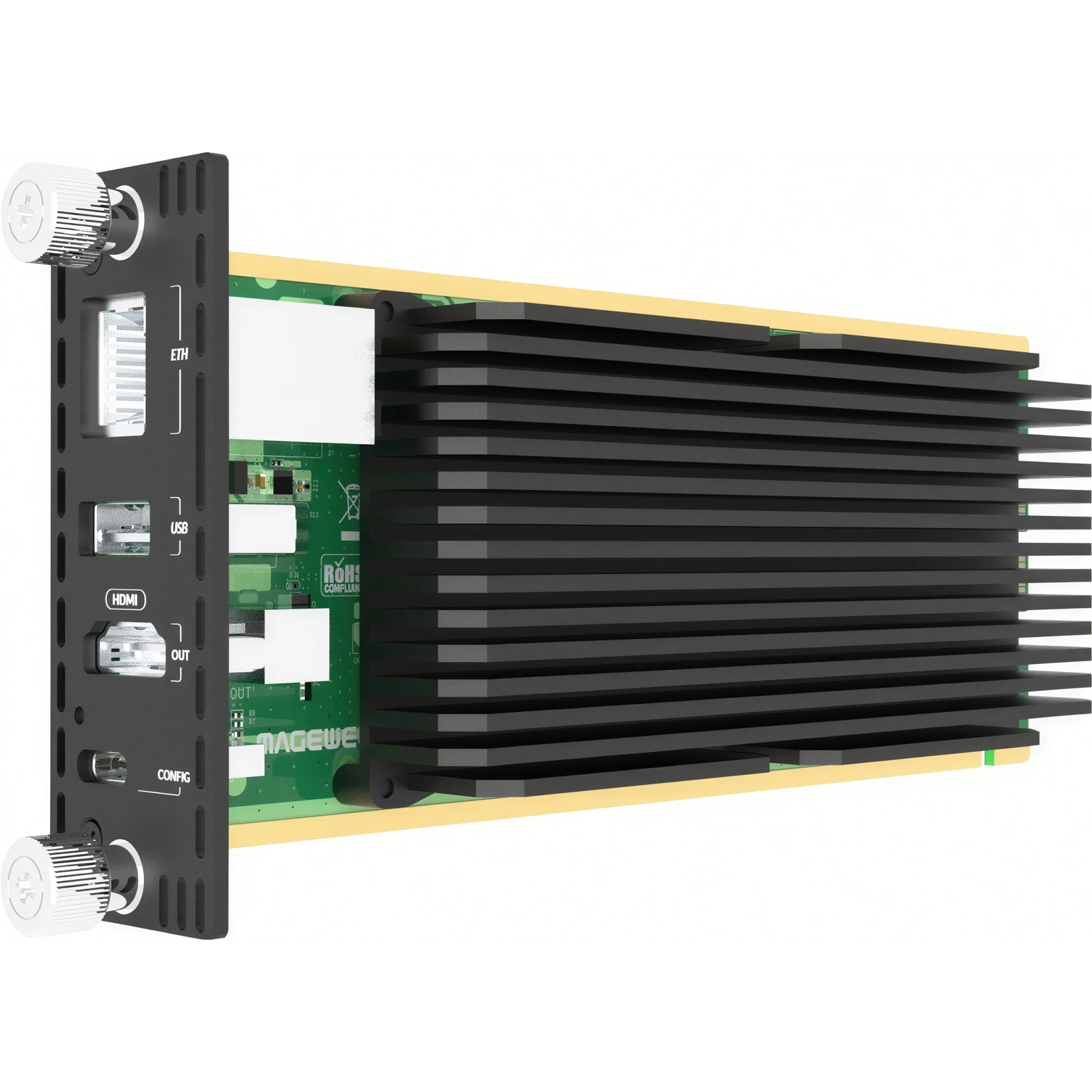

The Pro Convert for NDI to HDMI Module is a hot-swappable module designed for installation in the Magewell Modator chassis. It enables the conversion of high-bandwidth NDI and NDI|HX streams into HD HDMI signals, supporting up to 4096x2160 60fps output with integrated up-conversion from HD sources. This module is easily manageable via the Modator chassis, Web GUI, or Magewell Control Hub, offering centralized control and monitoring for seamless integration into existing workflows. It supports both high-bandwidth NDI and NDI|HX formats, making it ideal for live production environments that rely on high-quality video signals.

With low-latency performance, this module ensures real-time video conversion, crucial for broadcast and live event productions. In addition to its NDI capabilities, it supports a range of streaming protocols including H.264/H.265, RTSP, RTMP, SRT, and MPEG-TS, providing flexibility for various media environments. Whether deployed as part of a high-density Modator setup or in a standalone configuration, the Pro Convert for NDI to HDMI Module ensures efficient, high-quality video and audio output for a variety of applications.

Pro Convert for NDI to HDMI Module Specifications

Interfaces
1* RJ45 1000Mbps Ethernet port
1* USB Type-C port for configuration
1* USB Type-A 3.0 port for connecting peripherals
1* HDMI 2.0 output port
1* Modator interface for connecting to Modator 2U (hot-swappable)

Decoding Features
Decode up to 2Kp60 streams of NDI High Bandwidth , NDI® |HX, NDI® |HX2, NDI® |HX3, RTSP, HTTP, HLS, RTMP Pull/Push, MPEG-TS over UDP/SRT/RTP, TVU protocols
Decode SpeedHQ/H.264/H.265 video
Decode AAC/MP3 audio
Supports NDI® 6.3

Output Features
Max. output: 4096x2160 60fps 4:4:4 8-bit
Deliver video at the preferred video format according to the EDID of the connected monitor. Supported output formats include:
4096x2160p/3840x2160p 23.98/24/25/29.97/30/50/59.94/60
2560x1440p 60/100
2560x1080p 23.98/24/25/29.97/30/50/59.94/60
1920x1080p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
1920x1080i 50/59.94/60
1280x720p 23.98/24/25/29.97/30/50/59.94/60
720x576p50
720x576i50
720x480p59.94/60
720x480i59.94/60
Supports RGB, YUV444, and YUV422 signals
Supports 48KHz 8-channel audio output

Web UI
Register with Magewell Control Hub for remote centralized management
Supports configuring and managing via Web UI
Provides comprehensive information regarding the device and decoded signals in real-time
Allow to configure how a signal is decoded and output, including OSD settings, deinterlacing, resolutions, audio gain, sample rate, and channel mapping, as well as the network connection
Supports updating firmware
Supports USB RNDIS/ECM
Supports IE/Edge/Firefox/Chrome/Safari/Opera web browsers
Provides HTTP APIs

LED Indicators
Decode status indicator
On: decoding
Blinks: decoding error
Off: source unselected

Physical Specifications
Form factor: 184.4mm (L) x 30.0mm (W) x 81.5mm (H)
Weight: ≈290g

Power Consumption
Max power consumption: 4.3W

Working Environment
Operating temperature: 0 to 50 deg C
Storage temperature: –20 to 70 deg C
Relative humidity: 5% to 90% non-condensing
