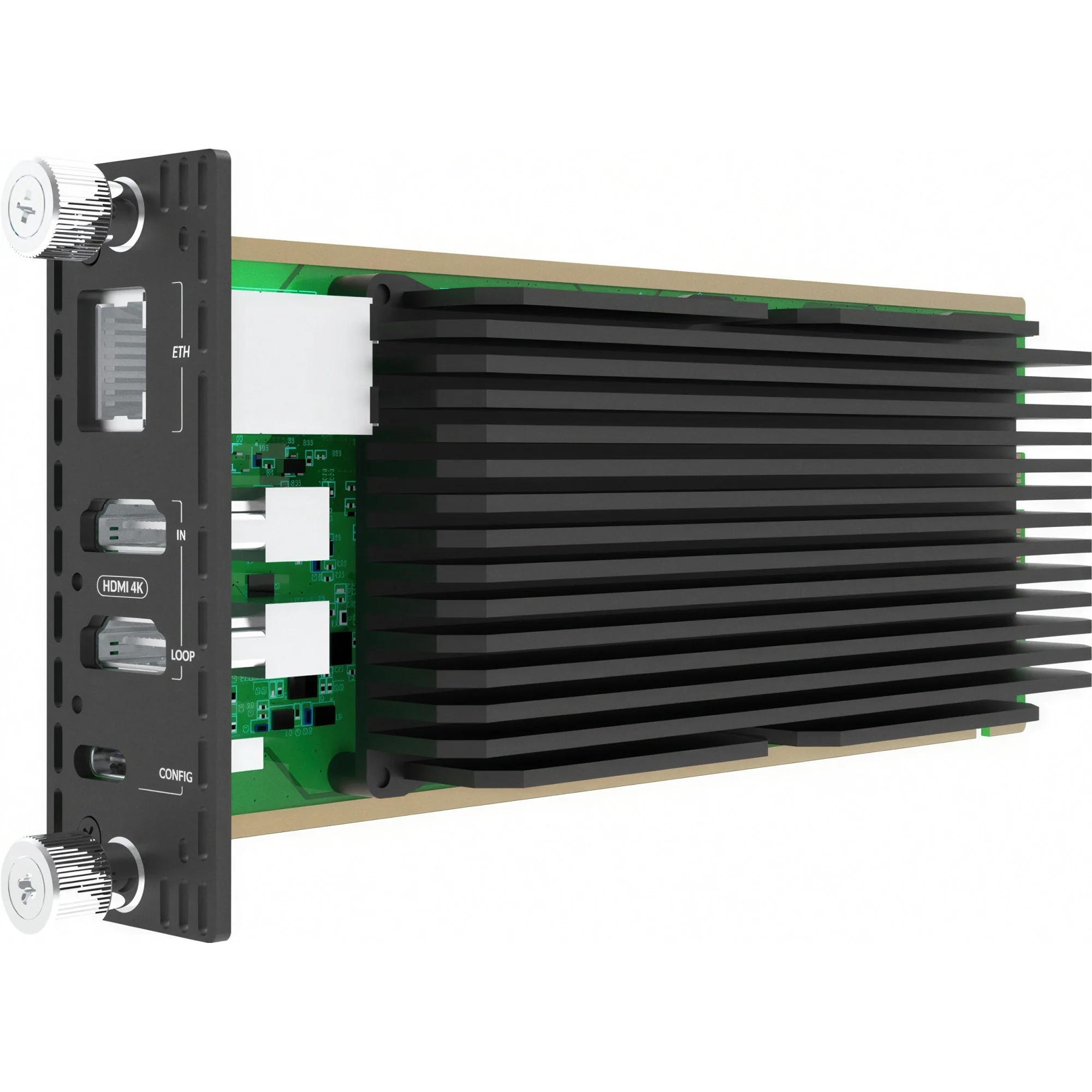

The Pro Convert HDMI 4K Plus Module is a hot-swappable module designed for installation in the Magewell Modator chassis. It allows users to convert 4K HDMI input signals into high-bandwidth NDI streams, with support for resolutions up to 4096x2160 at 60fps in 4:4:4 color space. The module also supports loop-through, providing flexibility in signal routing. This module is easily manageable via the Modator chassis, Web GUI, or Magewell Control Hub, making it a great addition to any high-density production environment. It is also available as a standalone device for those who prefer a separate solution.

With its high-performance NDI encoding capabilities, the Pro Convert HDMI 4K Plus Module ensures very low latency, making it ideal for live production applications. It supports a range of HDMI input features including 8-channel embedded audio, as well as NDI encoding in both 4:2:2 8-bit at up to 4096x2160 60fps or 1920x1080 240fps resolutions. Additionally, the module supports NDI 5.x, ensuring compatibility with the latest NDI standards. This combination of high-quality video encoding and flexible configuration options makes the Pro Convert HDMI 4K Plus Module an essential tool for seamless, high-quality video production.

Features & Advantages:
Very low latency ensures real-time conversion, making it suitable for live broadcast and production environments.
Configuration and management can be performed through the touch screen of the Modator chassis, Web GUI, or Magewell Control Hub for intuitive operation.
HTTP-based APIs provide flexibility for custom integrations, enabling tailored control and monitoring for specific workflows.

Pro Convert HDMI 4K Plus Module Specifications

Interfaces
1* RJ45 1000Mbps Ethernet port
1* USB Type-C port for configuration
1* HDMI 2.0 input port
1* HDMI 2.0 output port
1* Modator interface for connecting to Modator 2U (hot-swappable)

Input & Loop-Through Features
Max. input & loop-through signal: 4096x2160 60fps 4:4:4 8-bit
Input videos at any format by customizing the EDID of input port
Supports RGB and YUV BT.601/709/2020 signals
Supports 8-channel HDMI-embedded audio

NDI® Encoding Features
Encode and output real-time streams of NDI High Bandwidth at up to:
4096x2160 60fps 4:2:2 8-bit
1920x1080 240fps 4:2:2 8-bit
Output the same resolution as input or any custom resolution. Typical outputs include:
4096x2160p/3840x2160p/2048x1080p 23.98/24/25/29.97/30/50/59.94/60
1920x1080p/1280x720p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
1920x1080i 25/29.97/30/50/59.94/60
720x480p/720x480i 59.94/60/119.88/120
720x576p/720x576i 50/100
Output frame rate same as the original, 1/2, 1/3 or 1/4 of input frame rate
Encode 8-channel NDI-embedded audio
Supports NDI® 6.2

Web UI
Register with Magewell Control Hub for remote centralized management
Supports configuring and managing via Web UI
Provides comprehensive information regarding the device and signals in real-time
Allow to configure how a signal is encoded and output, including deinterlacing, EDID settings, up/down scale, frame rate, aspect ratio, as well as the network connection
Supports updating firmware
Supports USB RNDIS/ECM
Supports IE/Edge/Firefox/Chrome/Safari/Opera web browsers
Provides HTTP APIs

LED Indicators
Input signal:
On: locked
Off: unlocked
Loop through signal:
On: device connected and signal detected
Off: undetected

Physical Specifications
Form factor: 184.4mm (L) x 30.0mm (W) x 81.5mm (H)
Weight: ≈295g

Power Consumption
Max power consumption: 7W

Working Environment
Operating temperature: 0 to 50 deg C
Storage temperature: –20 to 70 deg C
Relative humidity: 5% to 90% non-condensing
