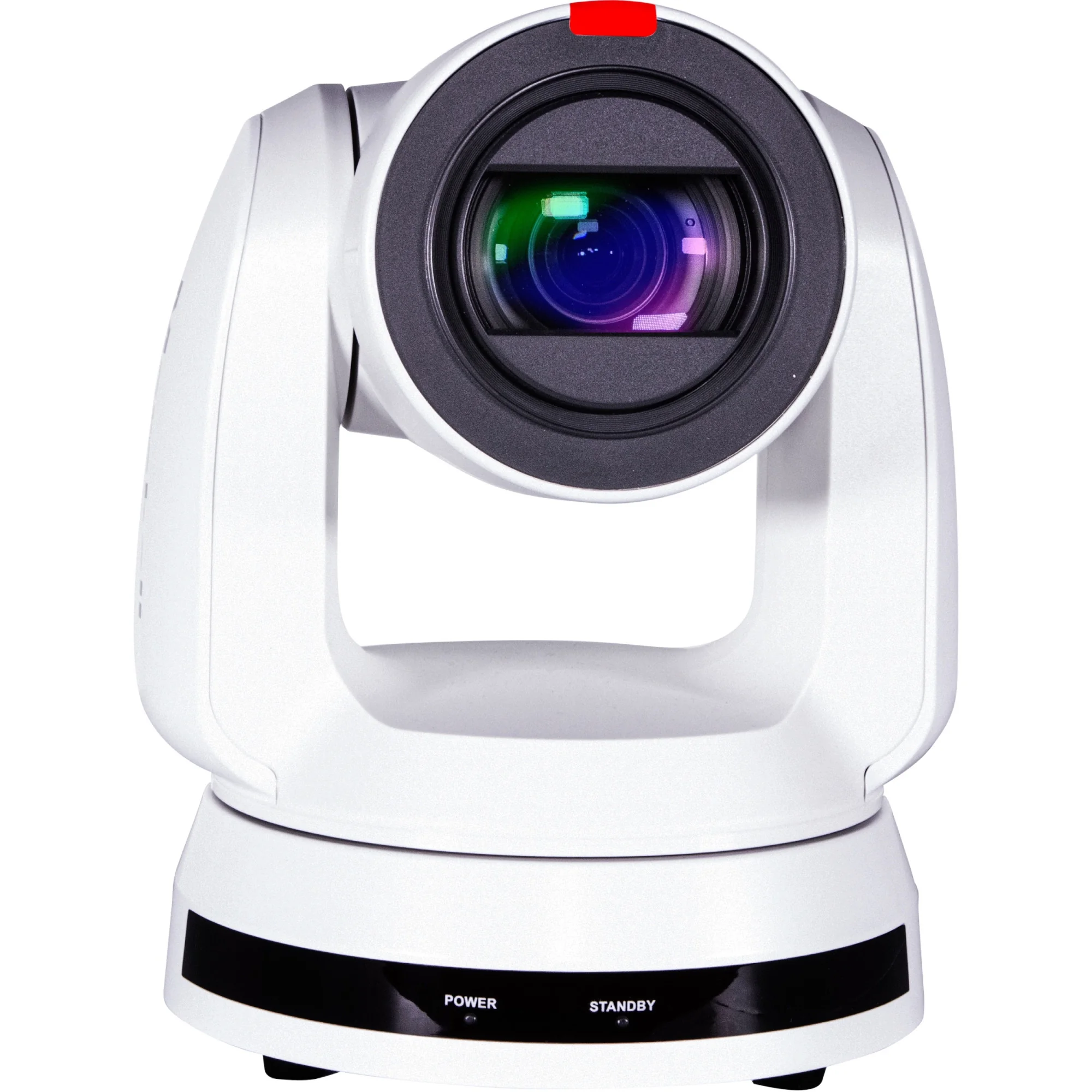

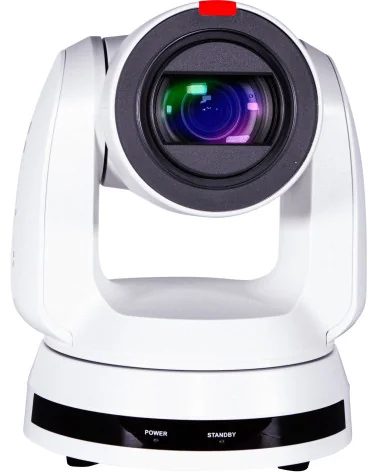

Marshall CV730 features a 30x optical zoom block and flexible 12GSDI/HDMI/IP simultaneous outputs with crystal clear UHD images up to 3840x2160p at 60fps. Remote adjust and match settings include Iris, Zoom, Pan/Tilt, White Balance, Exposure, Pedestal, and many more over long distances or during setup with capable Auto settings that track environmental fluctuations.

Key features

• 9.2 Megapixel Sony UHD sensor (1/1.8")
• 30x optical zoom (6.5mm~202mm) starting at 65° H.AOV
• Smart Auto-Focus System; AI-enabled focus ensures faces stay in focus
• 340° pan & 120° tilt range with select-able transition speeds (5~300° per second)
• 12G/6G/3G-SDI, HDMI2.0, USB3.0 and IP (SRT/HEVC) simultaneous outputs
• 3840x2160p (UHD), 1920x1080p (HD), 1920x1080i (HD) & 1280x720p
• 59.94, 50, 29.97, 25fps options up to 4K60 and HD60
• IP formats: SRT, UDP, DHCP, MPEG-TS, RTSP, RTP, RTMP, RTMPS, DNS, HTTP, HTTPS, IPv4, NTP, TCP, 802.1X
• 3.5mm TRS Stereo Audio over I/O cable (Mic/Line)
• 12V Power Supply included and PoE++ (IEEE802.3bt)
• Free-D protocol support and CGI protocol commands
• Min. Illumination - 0.05 lux (F1.6, 50IRE, 30fps)

Best of Class
Featuring 12GSDI, HDMI2.0, and IP simultaneous outputs from a professional level 9.2MP 1/1.8" UHD sensor and smooth synchronous movements. CV730 delivers crystal-clear UHD images up to 3840x2160p at 60fps and remote broadcast-style adjust & match setting control through RS232, RS422 or IP using universal protocols.

Flexible Zoom Range
Constructed with a precision 30x optical zoom range starting at just under 65° horizontal angle-of-view at 6.5mm all the way out to 202mm which captures a crystal clear head & shoulder shot at very long distances.

Ease of Use
Install one-cable to camera for all functions (power, control, audio, video), or use Ethernet for PoE++/Preview and other outputs (12GSDI/HDMI) for simultaneous workflows for streaming, production, or archiving.

Professional Broadcast Performance
Marshall Camera Division continues to develop cutting edge camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners.

CV730-BK / CV730-WH Specifications
Sensor: 1/1.8" 8MP CMOS
Lens: 30x optical zoom
Angle of view (H): 63~3.3°
Minimum working distance: 1.5m (Tele/Wide)

Motor
Pan: +/-170° (Max speed: 100°/sec.)
Tilt: -30 °～+90° (Max speed: 100°/sec.)
Minimum °/step: 0.062° ±5%

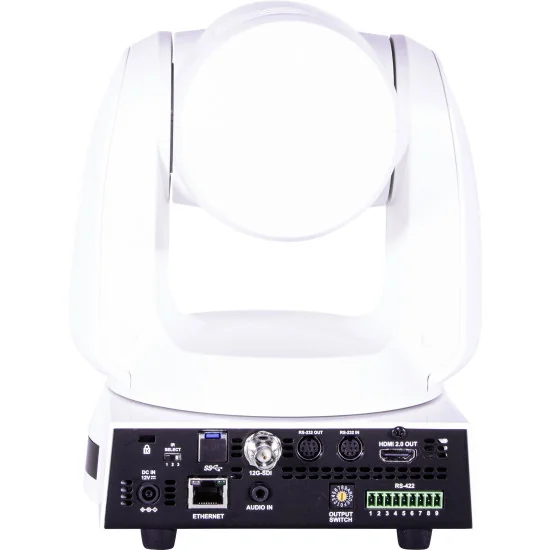

Interface
Power:
1. Connector: EIAJ-04 12 V (10.8 to 13.0 V DC)
2. POE ++ (802.3bt)
Output: HDMI/12G-SDI/Ethernet/USB3.0
Control: RS-232/RS-422/Ethernet/USB
OSD: English/Chinese

Ouput resolution:
2160p59.94
2160p50
2160p29.97
2160p25
1080p59.94
1080p50
1080p29.97
1080p25
1080i/59.94 (SDI & HDMI only)
1080i/50 (SDI & HDMI only)
720p59.94
720p50

Video Compression: HEVC/H.264
Multiple Video Stream:
Stream 1 :HEVC 4K 60fps
Stream 2 :H.264 1080p 60fps
Stream 3 : H.264 640x360 30fps
Audio in: x1
Audio Compression Format: AAC/G.711
IR Select Switch: x1
Output Switch: x1
Infrared signal output: Yes
Preset groups: 256

Function
Electronic shutter: 1/1 to 1/10,000 s
Flip / Mirror: Yes
White balance: Auto / Manual
Gain: Auto / Manual
AE control: Auto / Manual
Brightness control: Yes
Backlight compensation: On / Off
Flicker cancel: Sync with output mode
Focusing system: Auto, One-push AF, Manual
Noise Reduction: Yes
Protocols: VISCA, PELCO D, VISCAIP, ONVIF
Storage temperature: –20°C to +60°C (-4°F to 140°F)
Operating temperature: 0°C to 40°C (32°F to 104°F)
Power consumption: PoE: 23.5 W, DC In: 23 W

Form Factor
Color: Black/White
Dimension(WxHxD): 232 x 188 x 189 mm
Weight: 3.0Kg
