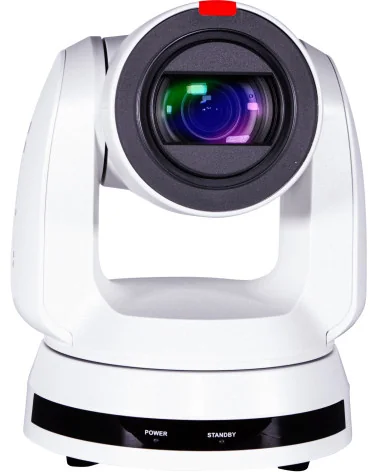

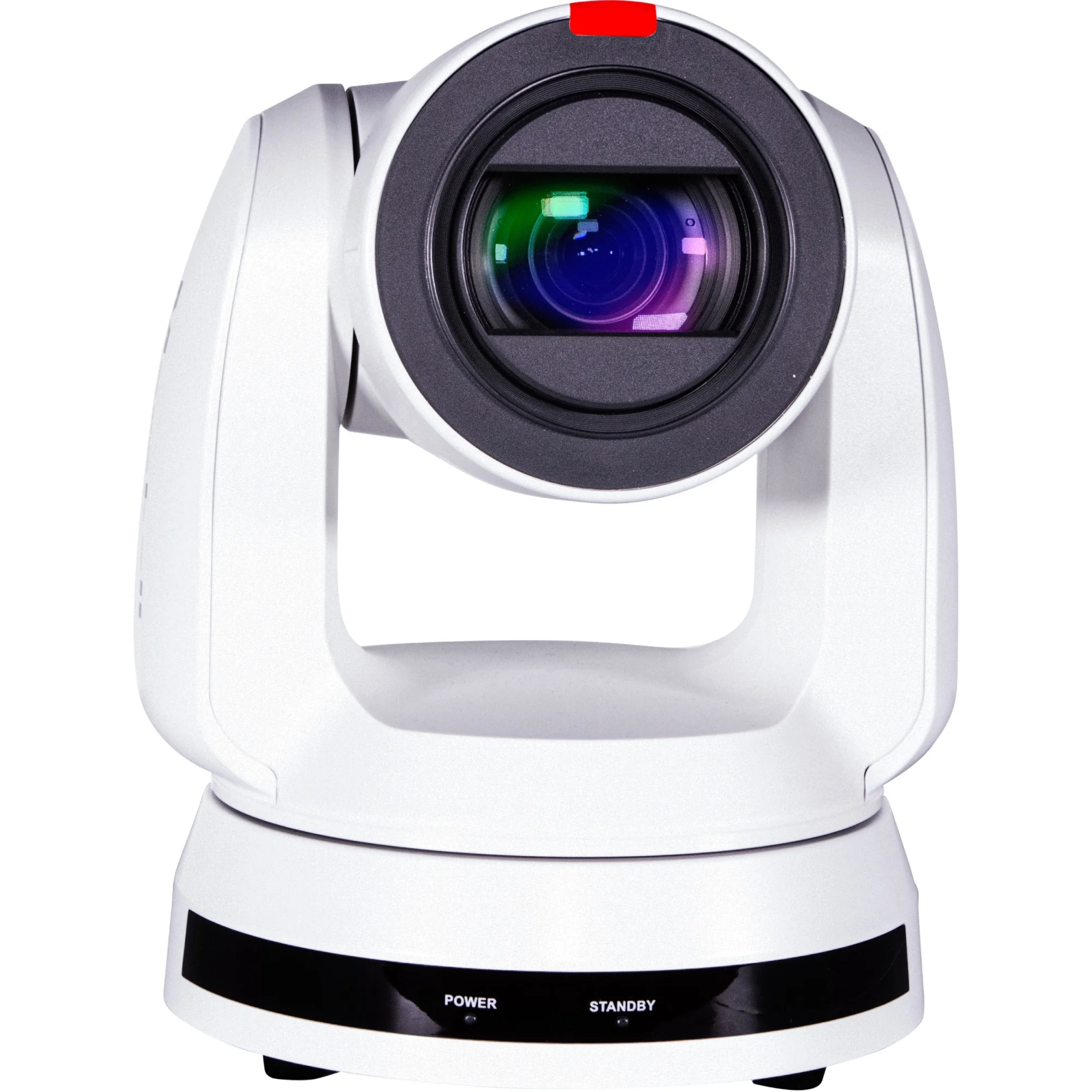

Marshall CV730-WH PTZ Camera

    CV730-WH
    Price: €2,459.00
    No tax
    We offer EU-wide sales, invoicing for VAT-free intra-community delivery.
    Available from supplier (Delivery time to be confirmed.)

    Marshall CV730-WH is a white 4K PTZ camera intended for broadcast studios, lecture theatres, houses of worship, courtrooms, conference spaces and live streaming rooms where remote camera movement must stay accurate from shot to shot. It uses a 1/1.8" Sony UHD sensor (listed by sources in the 8.5MP-9.2MP class) and supports 3840x2160 at 60 fps. The camera delivers simultaneous 12G-SDI, HDMI 2.0, USB 3.0 and IP outputs, so one unit can serve a vision mixer, monitoring path, recording system and network feed at the same time.

    The integrated 30x optical zoom covers 6.5-202 mm, starting around a 65° horizontal angle of view and reaching tight framing for presenters, panel speakers or stage talent from long distances. Marshall specifies AI-assisted autofocus with face-priority behavior, with manual and one-push AF also available when operators need stricter focus control under stage lighting. PTZ movement is broad, with up to 340° pan and 120° tilt plus selectable transition speeds, which is practical for preset recalls during live productions, education capture and council or courtroom sessions.

    For installation, PoE++ (IEEE 802.3bt) can power the camera through Ethernet, while 12 V DC is also supported. IP transport support includes SRT, RTSP, RTP, RTMP and RTMPS, and control compatibility includes VISCA, VISCA over IP, Pelco-D and ONVIF. A 3.5 mm TRS mic/line input allows audio embedding, and Marshall also lists Free-D and CGI command support for tracking-aware graphics and virtual production setups. The white housing is especially useful in bright interiors or ceiling-mounted installations where the camera should remain visually discreet.

    For professional buyers searching for a Marshall CV730-WH PTZ camera, 4K60 PTZ camera with 12G-SDI, or a PTZ camera for broadcast and streaming, this model fits systems that need long zoom reach, serial or IP control, low-light performance (manufacturer spec 0.05 lux), and simultaneous outputs for live switching, archive capture and remote operation from a control room.

    Quantity
    Add to Wishlist
    Add to Compare

    UE Shipping

    We ship across the EU for €20, free over €1,000.

    B2B Shop

    B2B sales only, prices excl. VAT.

    Safe Shopping

    Official EU distribution and warranty.

    Secure checkout

    Secure online payments via Stripe.

    Individual quotation

    Send your enquiry via the form or email avgear@avgear.shop

    Marshall CV730 features a 30x optical zoom block and flexible 12GSDI/HDMI/IP simultaneous outputs with crystal clear UHD images up to 3840x2160p at 60fps. Remote adjust and match settings include Iris, Zoom, Pan/Tilt, White Balance, Exposure, Pedestal, and many more over long distances or during setup with capable Auto settings that track environmental fluctuations.

    Key features

    • 9.2 Megapixel Sony UHD sensor (1/1.8")
    • 30x optical zoom (6.5mm~202mm) starting at 65° H.AOV
    • Smart Auto-Focus System; AI-enabled focus ensures faces stay in focus
    • 340° pan & 120° tilt range with select-able transition speeds (5~300° per second)
    • 12G/6G/3G-SDI, HDMI2.0, USB3.0 and IP (SRT/HEVC) simultaneous outputs
    • 3840x2160p (UHD), 1920x1080p (HD), 1920x1080i (HD) & 1280x720p
    • 59.94, 50, 29.97, 25fps options up to 4K60 and HD60
    • IP formats: SRT, UDP, DHCP, MPEG-TS, RTSP, RTP, RTMP, RTMPS, DNS, HTTP, HTTPS, IPv4, NTP, TCP, 802.1X
    • 3.5mm TRS Stereo Audio over I/O cable (Mic/Line)
    • 12V Power Supply included and PoE++ (IEEE802.3bt)
    • Free-D protocol support and CGI protocol commands
    • Min. Illumination - 0.05 lux (F1.6, 50IRE, 30fps)

    Best of Class
    Featuring 12GSDI, HDMI2.0, and IP simultaneous outputs from a professional level 9.2MP 1/1.8" UHD sensor and smooth synchronous movements. CV730 delivers crystal-clear UHD images up to 3840x2160p at 60fps and remote broadcast-style adjust & match setting control through RS232, RS422 or IP using universal protocols.

    Flexible Zoom Range
    Constructed with a precision 30x optical zoom range starting at just under 65° horizontal angle-of-view at 6.5mm all the way out to 202mm which captures a crystal clear head & shoulder shot at very long distances.

    Ease of Use
    Install one-cable to camera for all functions (power, control, audio, video), or use Ethernet for PoE++/Preview and other outputs (12GSDI/HDMI) for simultaneous workflows for streaming, production, or archiving.

    Professional Broadcast Performance
    Marshall Camera Division continues to develop cutting edge camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners.

    CV730-BK / CV730-WH Specifications
    Sensor: 1/1.8" 8MP CMOS
    Lens: 30x optical zoom
    Angle of view (H): 63~3.3°
    Minimum working distance: 1.5m (Tele/Wide)

    Motor
    Pan: +/-170° (Max speed: 100°/sec.)
    Tilt: -30 °～+90° (Max speed: 100°/sec.)
    Minimum °/step: 0.062° ±5%

    Interface
    Power:
    1. Connector: EIAJ-04 12 V (10.8 to 13.0 V DC)
    2. POE ++ (802.3bt)

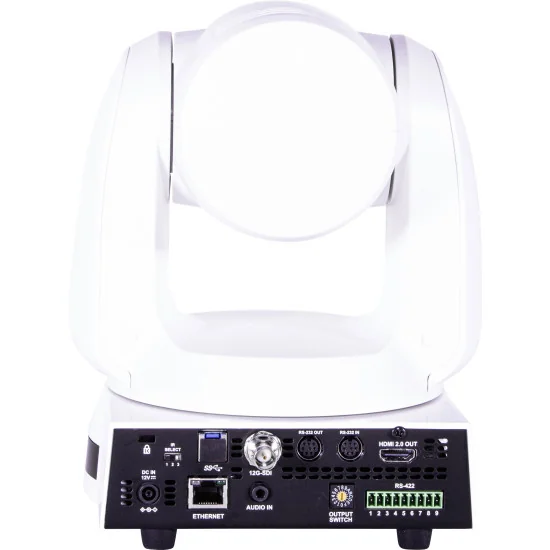

    Output: HDMI/12G-SDI/Ethernet/USB3.0
    Control: RS-232/RS-422/Ethernet/USB
    OSD: English/Chinese

    Ouput resolution:
    2160p59.94
    2160p50
    2160p29.97
    2160p25
    1080p59.94
    1080p50
    1080p29.97
    1080p25
    1080i/59.94 (SDI & HDMI only)
    1080i/50 (SDI & HDMI only)
    720p59.94
    720p50

    Video Compression: HEVC/H.264
    Multiple Video Stream:
    Stream 1 :HEVC 4K 60fps
    Stream 2 :H.264 1080p 60fps
    Stream 3 : H.264 640x360 30fps
    Audio in: x1
    Audio Compression Format: AAC/G.711
    IR Select Switch: x1
    Output Switch: x1
    Infrared signal output: Yes
    Preset groups: 256

    Function
    Electronic shutter: 1/1 to 1/10,000 s
    Flip / Mirror: Yes
    White balance: Auto / Manual
    Gain: Auto / Manual
    AE control: Auto / Manual
    Brightness control: Yes
    Backlight compensation: On / Off
    Flicker cancel: Sync with output mode
    Focusing system: Auto, One-push AF, Manual
    Noise Reduction: Yes
    Protocols: VISCA, PELCO D, VISCAIP, ONVIF
    Storage temperature: –20°C to +60°C (-4°F to 140°F)
    Operating temperature: 0°C to 40°C (32°F to 104°F)
    Power consumption: PoE: 23.5 W, DC In: 23 W

    Form Factor
    Color: Black/White
    Dimension(WxHxD): 232 x 188 x 189 mm
    Weight: 3.0Kg

    CV730-WH

    Data sheet

    Video Output
    HDMI
    RJ-45 (IP)
    SDI
    USB
    Audio Input
    Mini Jack 3.5mm
    Audio Output
    HDMI Embedded
    RJ-45
    SDI Embedded
    USB
    Max Output Resolution
    4K UltraHD (3840 x 2160) 50/60 fps
    Control protocol for PTZ cameras
    ONVIF
    PELCO-D
    RS-232
    RS-422
    VISCA
    VISCA IP
    Network Connection
    Ethernet
    Sensor Size
    1/1.8"
    Optical Zoom
    30x
    PoE Technology
    Yes
    Auto-Tracking
    No
    Tally Light
    Yes

    Specific References

    ean13
    801813226157
    mpn
    CV730-WH
