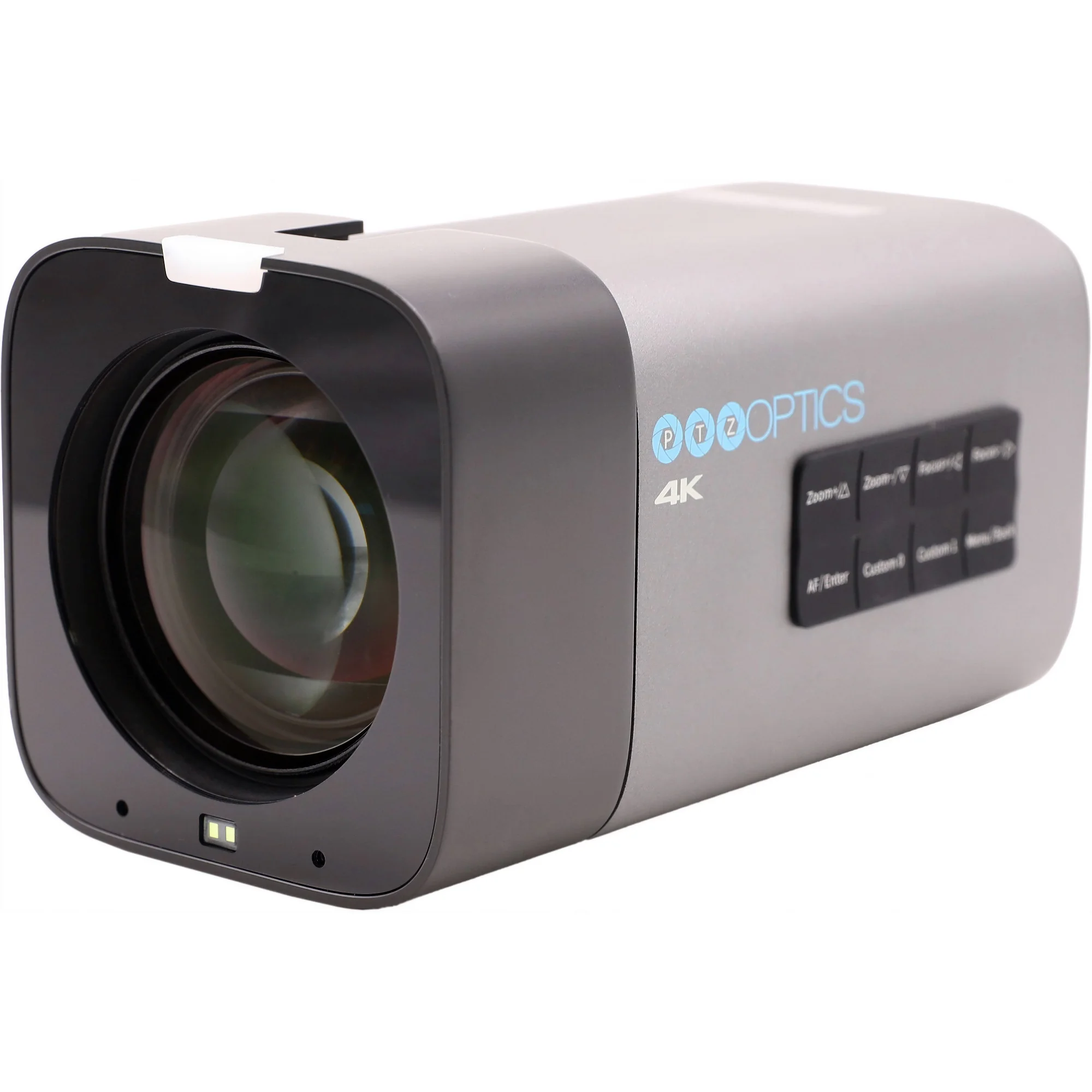

The PTZOptics Studio 4K 12X is a high-quality, fixed camera designed to provide exceptional 4K video resolution for a wide variety of video production needs. With its 12X optical zoom, the Studio 4K is perfect for medium to large spaces, enabling clear, detailed shots from distances of up to 27 meters. Whether used as a standalone camera or integrated into a larger production setup, the Studio 4K offers unmatched video quality, making it an ideal choice for streaming, broadcasting, and other professional applications.

The camera is designed for easy connectivity, featuring SDI, HDMI, USB, and IP outputs, as well as native support for NDI® HX3, ensuring seamless integration into various video production environments. Additionally, the Studio 4K is Hive-Linked, which means it can automatically connect to PTZOptics' Hive Studio platform for simple, web-based camera control and management. This future-proof connectivity allows users to manage multiple cameras from a single interface, making the Studio 4K an excellent choice for multi-camera setups and professional live streaming.

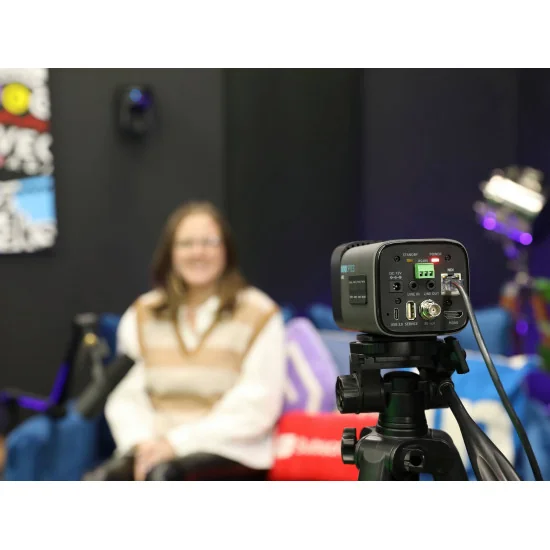

With its discreet design and compact form factor, the Studio 4K is a perfect fit for a wide range of applications, including municipal meetings, worship services, sports, and security. As a fixed camera, it also provides reliable performance in courtroom settings. The camera offers a variety of mounting options, making it versatile and adaptable to any production environment. The Studio 4K also comes with a 5-year limited parts and labor warranty, ensuring long-term reliability and peace of mind.

Features and Benefits:

• 4K resolution at 60fps for stunning video quality
• 12X optical zoom for capturing detailed shots from long distances
• NDI® HX3 support for seamless integration into IP-based video production
• Hive-Linked connectivity for simple web-based camera management
• SDI, HDMI, USB, and IP outputs for versatile connectivity
• Compact and discreet design ideal for a variety of production environments
• 255 preset positions for easy camera configuration

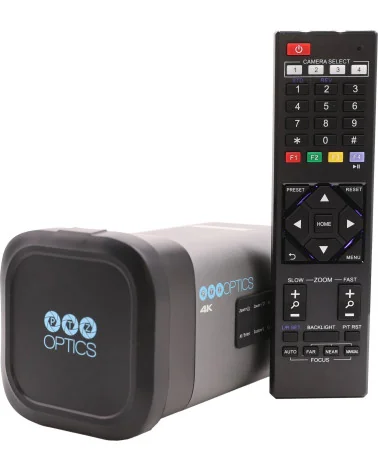

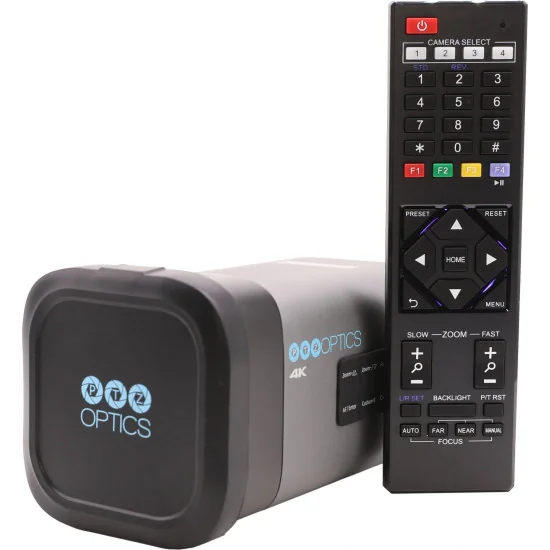

• Built-in IR control with 4x IR addresses for flexible operation
• 5-year parts and labor warranty for added peace of mind

Technical Specifications:

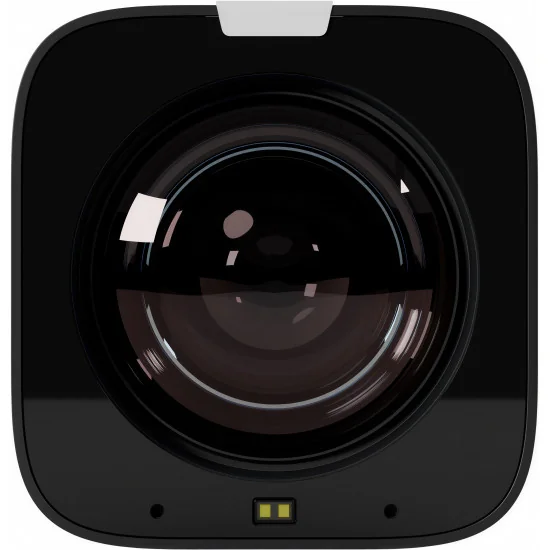

Camera & Lens
Image Sensor & Lens: 1/2.8” CMOS, 8MP (8.4M effective pixels)
Digital Zoom: 16x
Resolution and Frame Rate:
HDMI: 3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p-60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94
SDI: 1920x1080p-60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94/50
Optical Lens Focal Length (Zoom): 12x: f = 4.1mm ~ 49.2mm, F1.8 ~ F2.68
Optical Lens Field of View, Horizontal & Vertical: 12x: H 6.9° ~ 72.5° | V 3.9° ~ 44.8°
Display Field of View: 12x: 80.2°
Min Lux: 0.5 Lux @ (F1.8, AGC ON)
Shutter: 1/30s ~ 1/10000s
Presets: 255 Presets
Presets Accuracy: 0.1°
Image Flip: Supported
Image Mirror: Supported
Image Freeze: Supported

Physical Specifications
Material: Aluminum, Plastic
Color: Gray or White
Dimensions (L x W x H): 5.7" L x 2.99" W x 3.09" H | 145mm L x 76mm W x 78.5mm H
Weight: 12x: 1.5 lbs | 0.68kg
Working Environment: Indoor
Humidity Range: 10% ~ 80%
Operating Temperature: 14°F ~ 104°F (-10°C ~ 40°C)
Storage Temperature: -40°F ~ 140°F (-40 ~ 60°C)

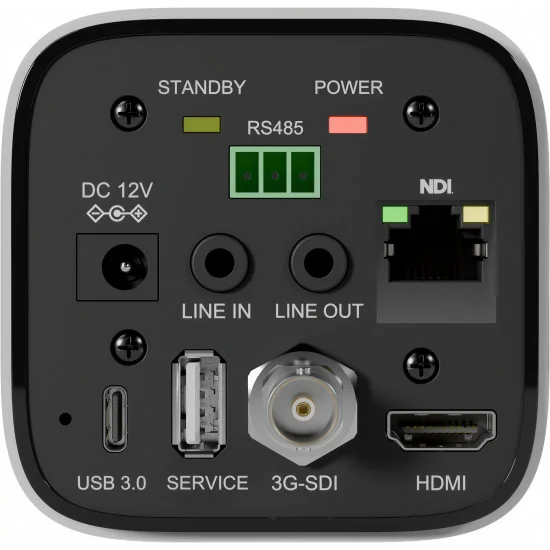

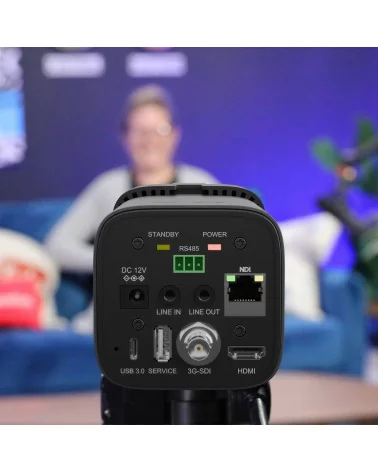

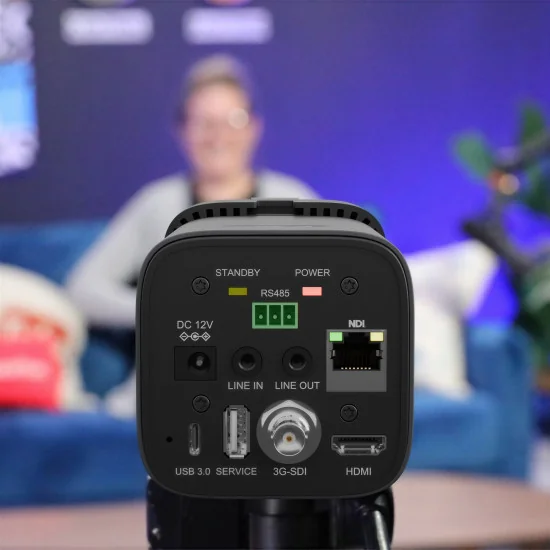

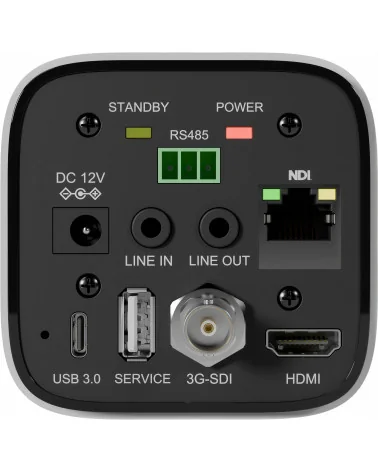

Connections
HD Video Output:
1x RJ45: 10/100/1000M Adaptive Ethernet Port | NDI® HX3 enabled
1x HDMI: Version 2.0
1x USB: 3.0 Type C
1x 3G-SDI: BNC type, 300mVP-p, 75Ω, Along to SMPTE 424M
Audio Interface: 1x 3.5mm Line level input, 1x 3.5mm Line level output
Video Formats:
USB:
YUY2: Max resolution 1920x1080p @ 30fps
MJPEG: Max resolution 3840x2160p @ 30fps
H.264 AVC & SVC: Max resolution 3840x2160p @ 30fps
RTSP/NDI® HX3 only: H.265: Max resolution 3840x2160p @ 60fps
Compression Standards: H.264 / H.265 / MJPEG / YUY2 (H.265 HEVC via RTSP/NDI® HX3 only)
UVC Version Supported: UVC 1.1 ~ 1.5
Supported Protocols: TCP/IP, UDP, HTTP, RTSP, RTMP/RTMPS, ONVIF, NDI® HX3, SRT, Multicast, etc.
IR: 4x IR Addresses, Max distance 30ft / 9m
Power Supply: JEITA type (DC IN 12V) / PoE+ (802.3at)
Current Consumption: Max 2A
Power Consumption: Max 18W
