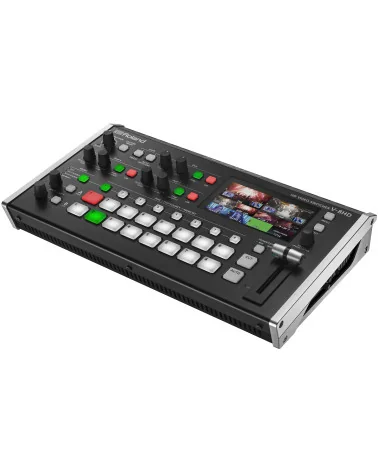

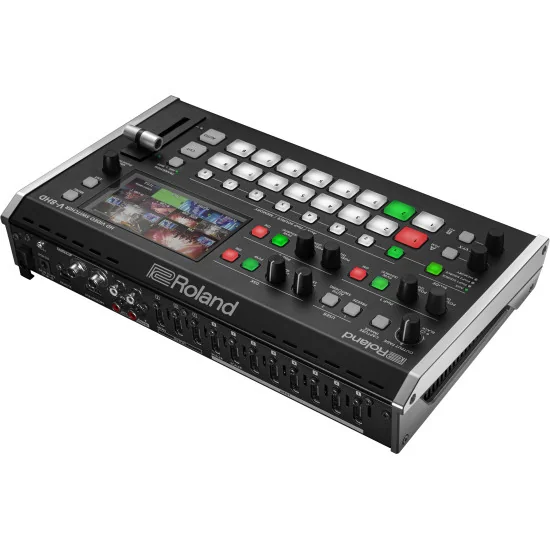

Unlock New Creative Possibilities

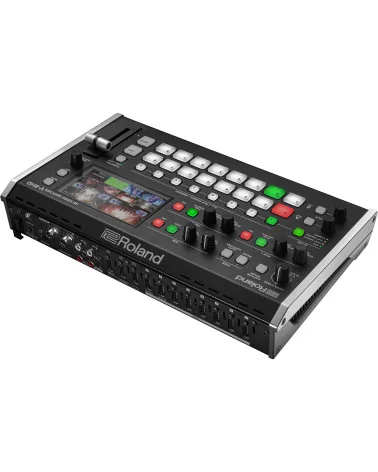

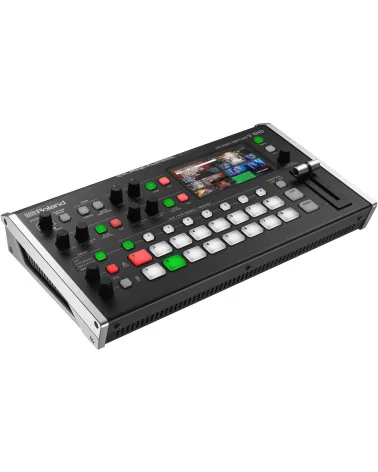

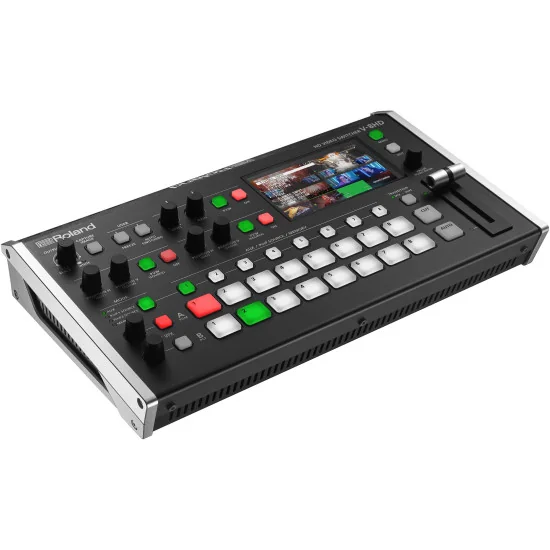

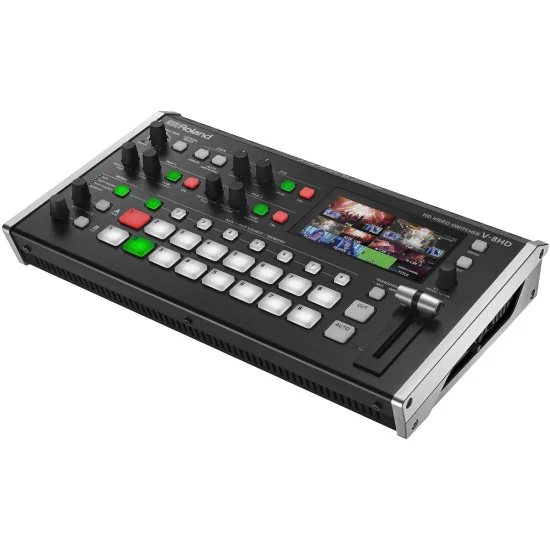

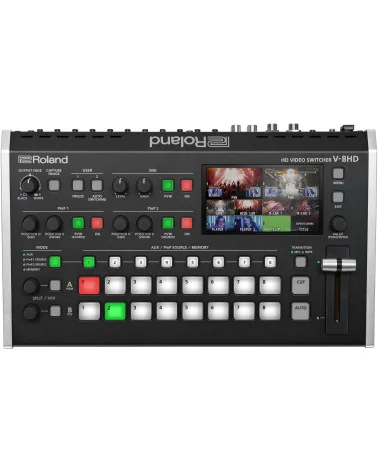

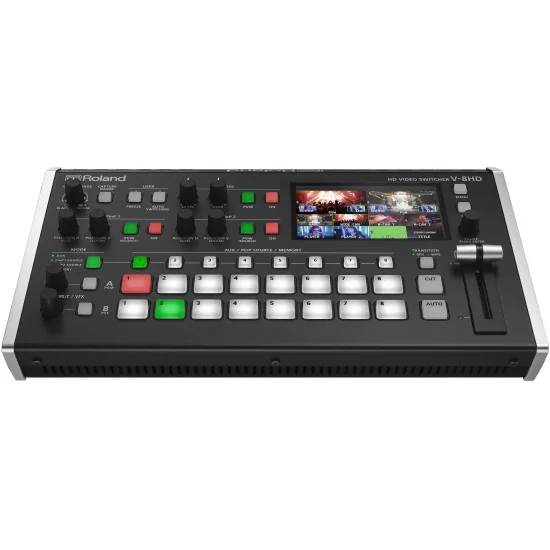

Versatile, portable, and reliable, the Roland V-8HD brings a world of creative options to live event switching. Its all-in-one hardware design eliminates computer setup hassles and software-based crashes, while the HDMI workflow and loaded professional toolset streamline production and reduce stress on the gig.

• All HDMI workflow
• Five-layer effects and keying engine
• Built-in multi-viewer preview monitor
• Aux output for a different video feed
• Execute smooth transitions using the T-bar fader
• Technology-assisted automatic video switching
• Powerful live production automation with sequencing, macros, and preset memories
• Newly supported 23.98Hz, 24Hz, 25Hz, 29.97Hz, 30Hz of output formats
• Eight-slot still store function supports screen capture and import of BMP, JPEG and transparent PNG images to internal non-volatile memory
• 18-channel digital audio mixer with a wide range of effects, including sync delay on each channel
• Remote start and stop of Atomos recorders
• Remote control software available for iPad, macOS, and Windows
• Ultra-mobile, lightweight, and efficient

Version 3 Features

• Graphics Presenter Support—This free, easy-to-use software for Windows computers elevates your live productions with stunning graphics.
• New Chroma Key Engine—Upgraded keyer algorithms allow for more precise composition in real time.
• NEW VenuSet Support—VenuSet is a customizable control panel app that streamlines operation for users of any skill level.

Maximum Connectivity
Nearly all modern cameras and digital video devices use HDMI, the most common AV connector on the planet. The V-8HD seamlessly mixes eight HDMI sources with Full HD support, even when the sources have mismatched frame rates and color spaces. And with the built-in scalers on two of the HDMI inputs, you can easily interface with client-provided sources like computers, tablets, smartphones, gaming consoles, and legacy 4:3 devices.

The Power of More
Creative professionals need more video inputs for layered graphics and visual effects, and business professionals often need multiple backup video sources. The ability to meet all these needs brings satisfied clients and greater audience engagement. With the V-8HD’s generous number of HDMI inputs and outputs, you can offer clients a vast amount of creative freedom—without increasing the budget.

Set Up Layers, Effects, and Keys
Video effects, layers, and graphics add polish and excitement to any production. With the V-8HD’s newly updated chroma key engine and upgraded keyer algorithms, you’ll always keep audiences engaged with visually appealing content. Prepare the content according to client specifications and separate it into layers:
Layer 1 and 2: Start by creating a basic background setup for mixing between two sources.
Layer 3 and 4: Drop in two picture-in-picture layers with chroma and luminance effects.
Layer 5: Add one downstream keyer layer with chroma, luminance, and alpha effects or external fill and key inputs.

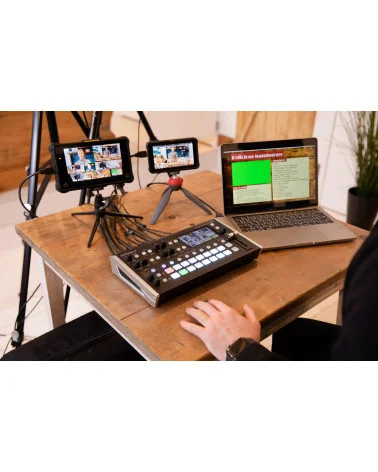

Professional Graphics Made Easy
The Graphics Presenter software for Windows allows you to create stunning titles and graphics without the need for expensive third-party graphic presentation solutions. Setup with the V-8HD is quick and straightforward, requiring only a single HDMI connection to send fill and key signals from the computer to the switcher.

Graphics Presenter offers an intuitive workflow with a wide selection of ready-to-edit templates, including animated title text, sports scores, motion graphics, and more. The software and templates are available free of charge, and additional content is periodically provided for download on Roland Cloud.

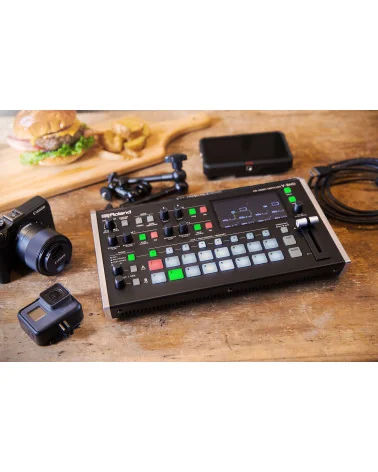

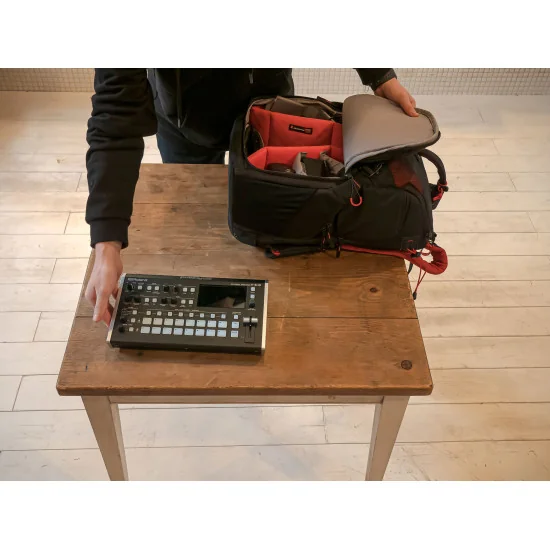

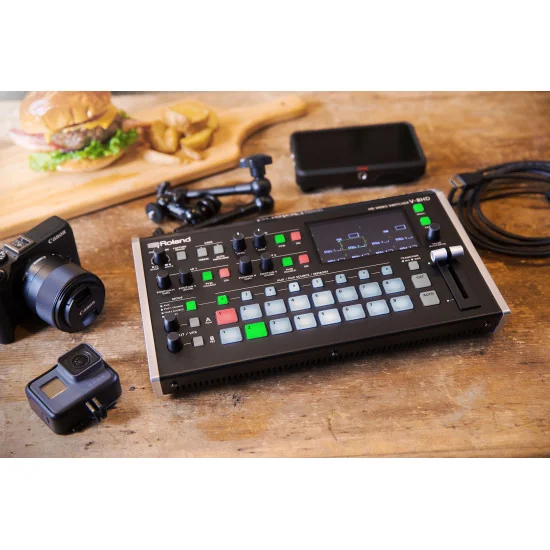

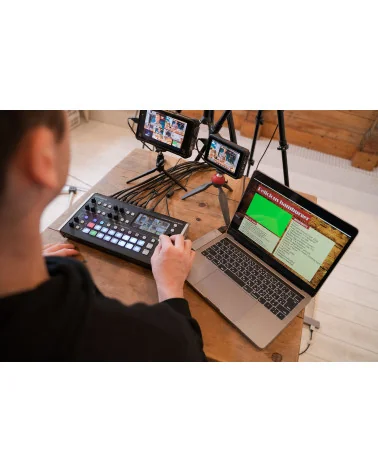

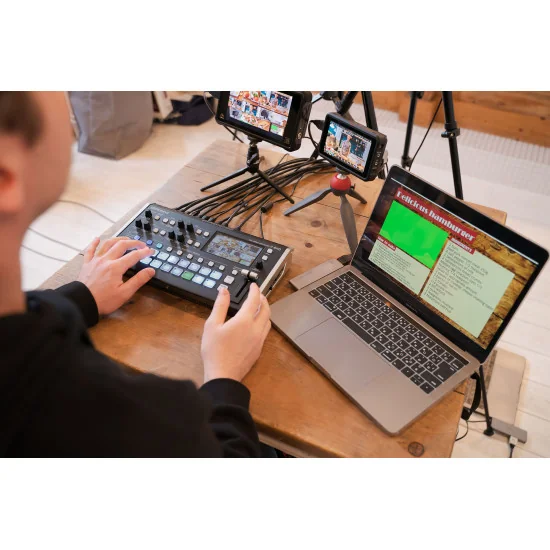

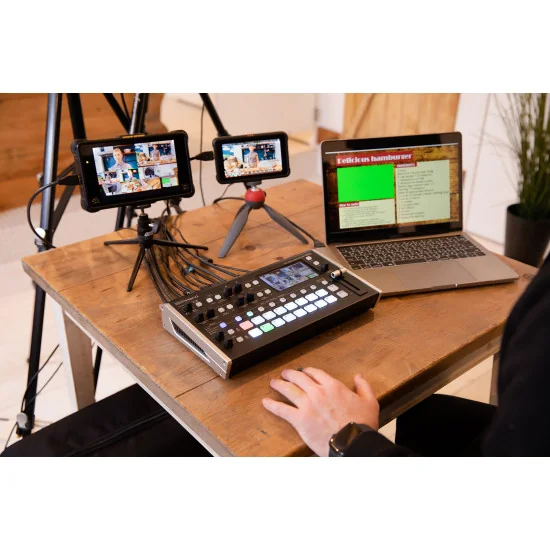

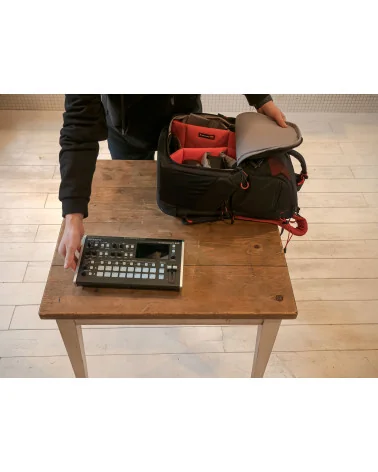

Ultra-Mobile, Lightweight, and Efficient
The AV production table is the last thing on an event organizer’s mind. Thanks to its compact footprint, the V-8HD fits effortlessly into any live production environment, even when dealing with minimal setup space. And it only weighs around 4 lb./2 kg, making it easy to carry in a backpack or luggage. With its solid T-bar fader and robust hands-on controls, eight HDMI inputs, 18-channel audio mixer, and support for external battery power, the streamlined V-8HD is the most versatile and efficient HDMI switcher available.

Instant Recall with Memories and Macros
With the V-8HD, storing and recalling unique looks requires only a few button presses.

The 24 preset memories and powerful composition effects engine work together to provide a completely seamless load between different looks, including synchronizing the transition of all effect layers on and off at the Program output.

The 100 macros go even deeper, allowing you to build and trigger complex action lists that include switching, DSK on/off, audio mixing adjustments, and much more.

Our free remote control software for iPad further enhances this workflow, providing a large graphical interface for setting up and previewing actions before you take them live.

One-Touch Automation
The V-8HD’s newly developed sequencer makes presets and macros even more powerful, allowing a single operator to execute perfectly timed cues with ease. Up to 1000 steps can be recorded in the sequencer, and each step can include both presets and macros. Simply set up your cues ahead of time in the sequence list and trigger them in order by pressing a button on the panel. With the power of the V-8HD’s sequencer, you can tackle the most complex events without ever breaking a sweat.

Separate Feeds for Separate Needs
Presenter confidence monitors, livestreams, and recording feeds often require different visual content from the main program output. The V-8HD has you covered with assignment buttons for sending any of your connected input devices to a dedicated aux output without affecting the main feed. It’s also possible to synchronize the aux output with the program output, giving you a built-in 2x distribution amp. And by adding the UVC-01 USB Video Capture interface, you have a plug-and-play solution for sending video and audio to computer-based streaming platforms, from Facebook Live, YouTube, Twitch, and Zoom to OBS Studio, StreamYard, and other advanced workflows.

Built-In Multi-Viewer Display

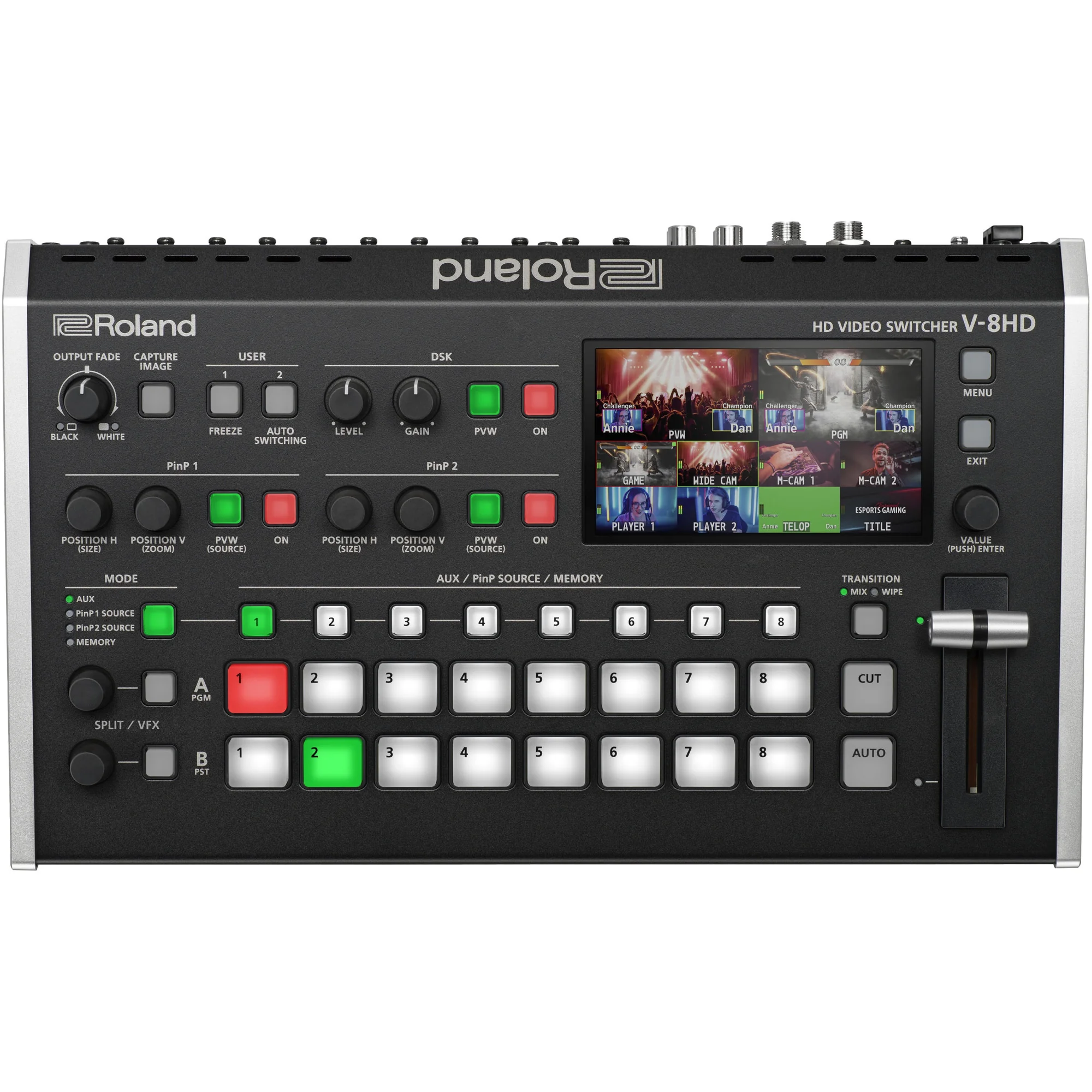

The V-8HD’s bright, 4.3-inch multi-viewer display means less gear to buy and haul to the gig. You can monitor all eight video inputs, PGM, and PVW plus menu overlay from a single screen, and input windows allow you to keep track of camcorder recording status and embedded audio levels. If you prefer, it’s possible to connect a large external display for an immense multi-viewer experience that lets you make menu changes without moving your focus from the action.

Audio and Effects
A crystal-clear sound mix is essential for professional presentations. That’s easy to achieve with the V-8HD, which allows pros and beginners alike to create engaging mixes that sound great. The studio-grade, 18-channel audio mixer blends signals from the eight HDMI inputs and stereo RCA inputs, while a feature-packed preset effects library provides setups for everyday production environments like meetings and interviews, plus challenging situations that require wind noise reduction and microphone de-essing. Delay is also available on every input channel, so your audio and video sources will always be in perfect sync.

Automated Video Switching
The V-8HD makes your job easier with three technology assisted automatic switching modes. Input Scan switches input sources randomly or in sequence, while Preset Memory Scan switches between preset memories. BPM (beats per minute) sync is also available, automatically switching Preview and Program at a specified tempo for tight synchronization with musical cues.

Record Triggering and Confirmation
Many technical elements contribute to a successful recording. But forgetting to hit the record button means the difference between getting paid for the job or not. Via HDMI, the V-8HD operator can trigger Atomos recorders to start and stop recording. Some camcorders even display a recording confirmation icon on the input channel of the V-8HD's multi-viewer screen, letting you keep an eye on the recording status while staying focused on other critical tasks.

V-8HD iPad Remote Control Utility
The dedicated V-8HD remote control app turns an iPad into an efficient touch interface for the V-8HD. Run essential switching functions, mix audio with virtual faders, change settings and effect parameters quickly, and create up to 24 custom scenes for fast, efficient setup changes.

V-8HD RCS for macOS and Windows
With the V-8HD RCS application for macOS and Windows, you can control nearly all V-8HD functions remotely from your computer via a USB connection.

Hands-Free Switching and Control
Stomp on a BOSS single or double footswitch to execute over 100 different switcher commands. Cut to a still image, transition PIP on/off the screen, or drop in a keyed lower third title. It’s also possible to switch the aux output between presenter notes and stage manager messages, turn automatic switching mode on/off, and much more. In addition, connecting a USB numeric keypad to control PTZ cameras, video transitions, and other functions.

NEW VenuSet Customizable Control Panel App
In today’s interconnected world, professional audio and visual communication has become essential in venues where people gather. To meet this moment, AV systems must be simple for anyone to operate, including the most inexperienced users.

The VenuSet app addresses this need, offering a friendly, customizable solution that makes it easier to operate the V-8HD and other Roland video products. This configurable app allows system integrators to create unique panels with essential functions for different applications, enabling fluid remote control of video switching, audio levels, scene memories, Graphics Presenter software, GPO, and more.
VenuSet is available for iPadOS, macOS, and Windows.

Specs

VIDEO
Video Processing: 4:2:2 (Y/Pb/Pr), 8-bit
Number of video channels: 8 channels
Input formats:

INPUT 1--6:
720/59.94p *1, *3
720/50p *1, *4
1080/59.94i, 1080/59.94p, 1080/60p *2, *3
1080/50i, 1080/50p *2, *4
1080/29.97p, 1080/30p *2, *5
1080/25p *2, *6
1080/23.98p, 1080/24p *2
* The input interlaced video signal is converted to progressive video signal by internal processing.
*1 SYSTEM FORMAT = 720p
*2 SYSTEM FORMAT = 1080i or 1080p
*3 FRAME RATE = 59.94 Hz, 60 Hz
*4 FRAME RATE = 50 Hz
*5 FRAME RATE = 29.97Hz, 30Hz, 59.94Hz, 60Hz
*6 FRAME RATE = 25Hz, 50Hz

INPUT 7--8:
480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1
576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2
1080/23.98p, 1080/24p
VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz)
FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz)
UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to CEA-861-E, VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60 Hz: Reduced blanking
* The input interlaced video signal is converted to progressive video signal by internal processing.
* The input refresh rates of SVGA (800 x 600)--SXGA+ (1400 x 1050) are 75 Hz when the unit's frame rate setting is 50 Hz.
* INPUT 8 support Roland FILL+KEY signal
*1 FRAME RATE = 59.94 Hz, 60 Hz
*2 FRAME RATE = 50 Hz

Output formats

OUTPUT 1--2:
720/59.94p *1, *4
720/60p *1, *5
720/50p *1, *8
1080/59.94i *2, *4
1080/60i *2, *5
1080/50i *2, *8
1080/59.94p *3, *4
1080/60p *3, *5
1080/29.97p *3, *6
1080/30p *3, *7
1080/50p *3, *8
1080/25p *3, *9
1080/23.98p *3, *10
1080/24p *3, *11
*1 SYSTEM FORMAT = 720p
*2 SYSTEM FORMAT = 1080i
*3 SYSTEM FORMAT = 1080p
*4 FRAME RATE = 59.94 Hz
*5 FRAME RATE = 60 Hz
*6 FRAME RATE = 29.97 Hz
*7 FRAME RATE = 30 Hz
*8 FRAME RATE = 50 Hz
*9 FRAME RATE = 25 Hz
*10 FRAME RATE = 23.98 Hz
*11 FRAME RATE = 24 Hz

OUTPUT 3:
1080/59.94p *1
1080/60p *2
1080/29.97p *3
1080/30p *4
1080/50p *5
1080/25p *6
1080/23.98p *7
1080/24p *8
*1 FRAME RATE = 59.94 Hz
*2 FRAME RATE = 60 Hz
*3 FRAME RATE = 29.97 Hz
*4 FRAME RATE = 30 Hz
*5 FRAME RATE = 50 Hz
*6 FRAME RATE = 25 Hz
*7 FRAME RATE = 23.98 Hz
*8 FRAME RATE = 24 Hz

Still Image:
Bitmap File (.bmp) Maximum 1920 x 1080 pixels, 24-bit color, uncompressed.
PNG File (.png) Maximum 1920 x 1080 pixels, 24-bit color
JPEG File (.jpg) Maximum 1920 x 1080 pixels, 24-bit color
* It can be stored up to 8 files in the internal memory.
* It can be exported in the USB memory.
* PNG alpha channel supported (Exclusive with alpha bus or AUX bus)

Video Effects:
Transition: CUT, MIX (DISSOLVE/FAM/NAM), WIPE (8 types), SPLIT (2 types)
Composition: PinP x 2 (SQUARE, CIRCLE, DIAMOND), Keyer x 2 (Luminance Key, Chroma Key), DSK (Luminance Key, Chroma Key, Alpha Key *1 , External Key *1 , Roland FILL+KEY Mode)
Others: Multi-View, Flip horizontal, Flip vertical, Still Image Capture, Still Image Playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output
*1 Exclusive with alpha bus or AUX bus

AUDIO
Audio Processing: Sample rate: 24 bits, 48 kHz
Number of audio channels: 18 channels
Audio formats: INPUT: Linear PCM, 24 bits, 48 kHz, 2 ch, OUTPUT: Linear PCM, 24 bits, 48 kHz, 2 ch
Audio Effects: Channel Effects: High pass filter, Noise gate, Compressor, 3-Band equalizer, Delay, Master Effects: Reverb, 3-Band equalizer, Multi-band compressor, Limiter, Others: Output fade, Test tone output

COMMON SECTION
Other Functions:
Preset Memory (24 types)
Macro Control (100 types)
Sequencer Control (1,000 steps)
Panel lock function
EDID Emulator
Auto Switching
Auto Input Detect
External Rec Control

CONNECTORS
Video Input Connectors: INPUT 1--6: HDMI type A x 6
* HDCP Supported
INPUT 7--8: HDMI type A x 2
* HDCP Supported
* Multi-format Supported
Video Output Connectors: OUTPUT 1--3: HDMI type A x 3
* HDCP Supported
Audio Input Connectors: Analog: AUDIO IN: RCA phono type, Digital: INPUT 1--8: HDMI type A x 8
Audio Output Connectors: Analog: AUDIO OUT: RCA phono type, PHONES: Stereo miniature type, Digital: OUTPUT 1--3: HDMI type A x 3
Other Connectors: USB MEMORY: USB A type (for USB flash drive, for remote control from USB Numeric Keypad), REMOTE: USB B Type (for remote control from PC and iPad, Graphics Presenter), CTL/EXP:1/4-inch TRS phone type (for remote control from foot switch and expression pedal)

AUDIO INPUT/OUTPUT CHARACTERISTICS
Input Level: AUDIO IN: -10 dBu (Maximum: +8 dBu)
Input Impedance: AUDIO IN: 38 k ohms
Output Level: AUDIO OUT: -10 dBu (Maximum: +8 dBu), PHONES: 92 mW + 92 mW (32 ohms)
Output Impedance: AUDIO OUT: 1 k ohm, PHONES: 10 ohms

OTHERS
Display: 4.3 inches TFT Color LCD: 480 x 272 dots
Power Supply: AC Adaptor
Current Draw: 3.3 A
Power Consumption: 39.6 W
Operation Temperature: +0 to +40 degrees Celsius
Dimensions: 317 (W) x 193 (D) x 70 (H) mm
Weight (excluding AC adaptor): 2.0 kg
Accessories: Startup Guide, Leaflet "USING THE UNIT SAFELY", AC adaptor

Options (sold separately): Footswitch: BOSS FS-5U, FS-6, FS-7, Expression Pedal: EV-5, EV-30, BOSS FV-500L, FV-500H

* 0 dBu = 0.775 Vrms
