SmallHD Cine 5 Moniteur

Name: SmallHD Cine 5 Moniteur
Brand: SmallHD
SKU: SHD-16-0526
Price: 1599.00 EUR
Availability: InStock

MPN: SHD-16-0526

Prix : 1 599,00 €

Ventes à l'échelle de l'UE, facturation pour livraisons intracommunautaires exonérée de TVA.

In stock (Shipping 3-7 working days.)

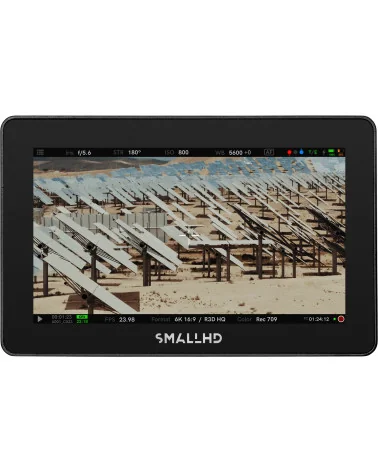

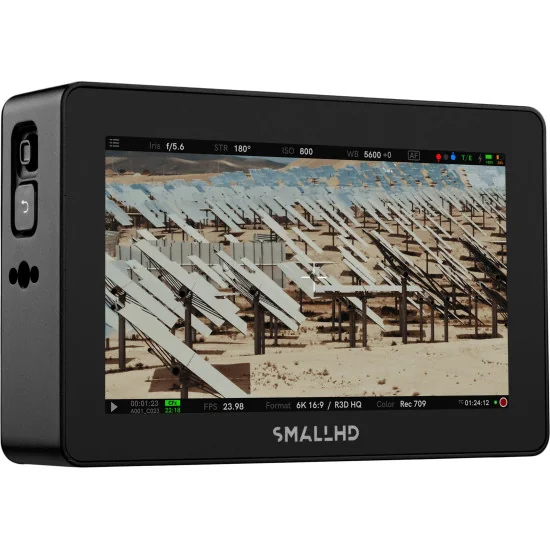

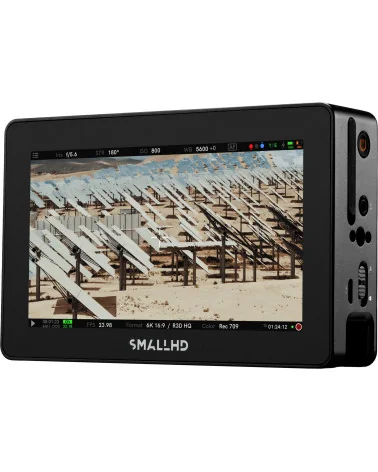

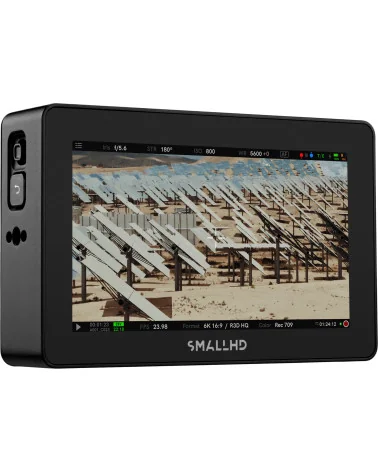

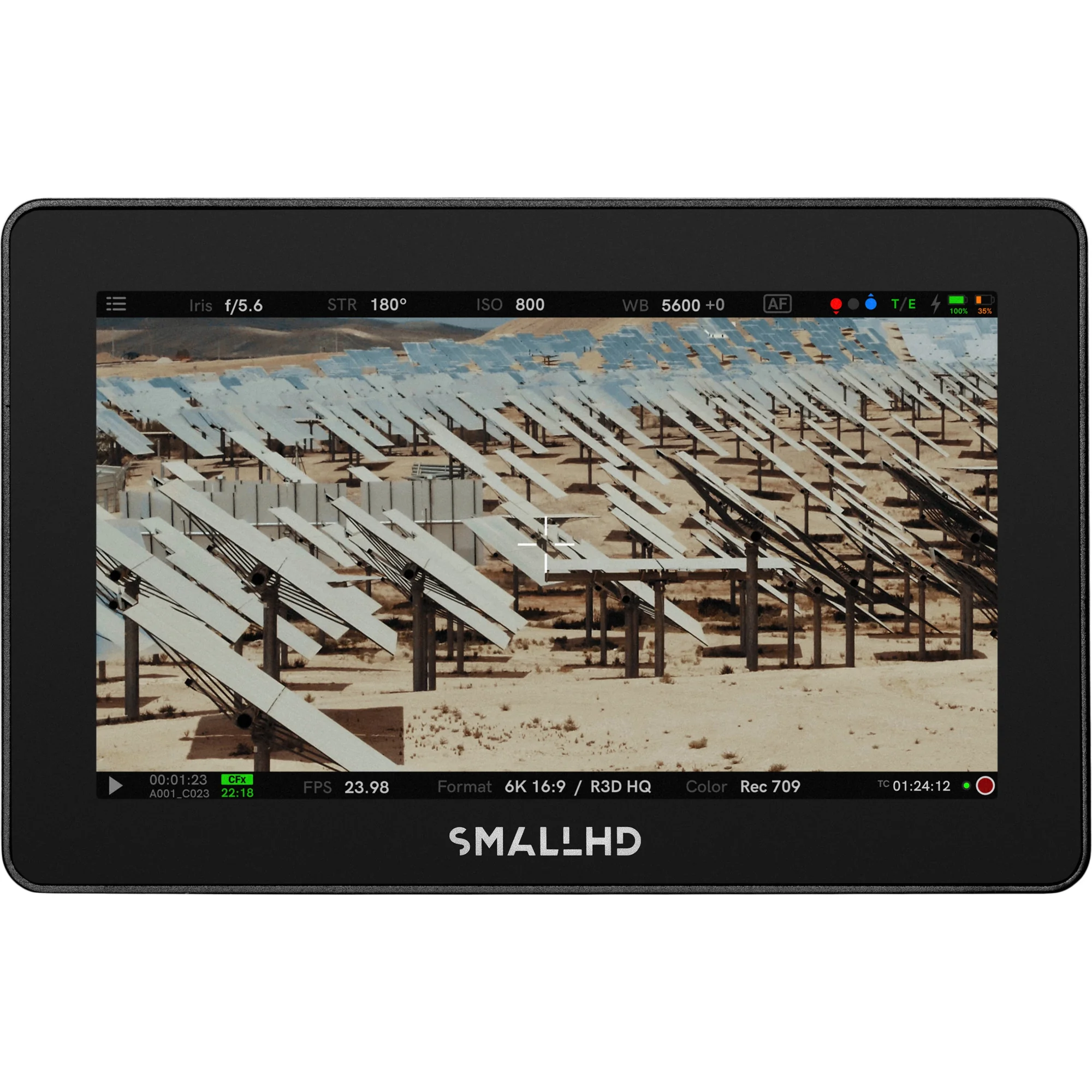

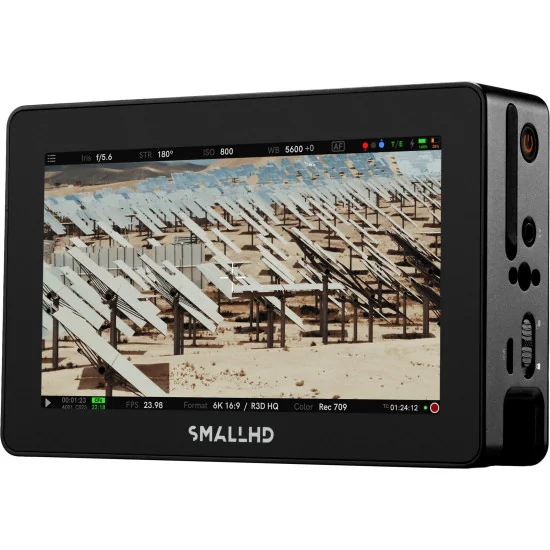

Le SmallHD Cine 5 est un écran tactile 5″ 1920 × 1080 10 bits taillé pour les équipes exigeant une image irréprochable quel que soit l’éclairage. Sa dalle 2000 nits couvre 100 % DCI-P3 avec un contraste de 1000 : 1, restant lisible en plein soleil. Le châssis aluminium de 416 g se fixe sur grue, steadicam ou caméra, tandis que six pas-de-vis ¼-20 anti-torsion sécurisent les accessoires.

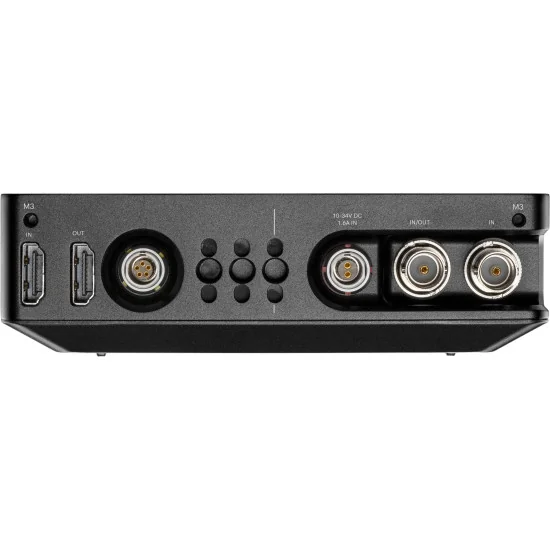

Connectique polyvalente : deux ports HDMI 2.0 bouclent le 4K 30 p, deux ports 3G-SDI gèrent le 1080 60 p et assurent la conversion instantanée SDI ↔ HDMI, idéale pour les plateaux hybrides. L’audio 8 canaux est affiché à l’écran ; un slot SD charge des LUT 3D 33 points, et l’USB 5 broches verrouillable active le contrôle caméra RED, ARRI, Sony, etc.

Propulsé par PageOS 5, le Cine 5 délivre EL Zone (exposition en stop), waveform HD, vectorscope, parade RGB, double Zebra, peaking fin et zoom pixel. Les données d’optique Teradek RT et l’interface Look-Around s’incrustent sur n’importe quelle page, chaque profil restant mémorisé pour accélérer les workflows multi-caméras.

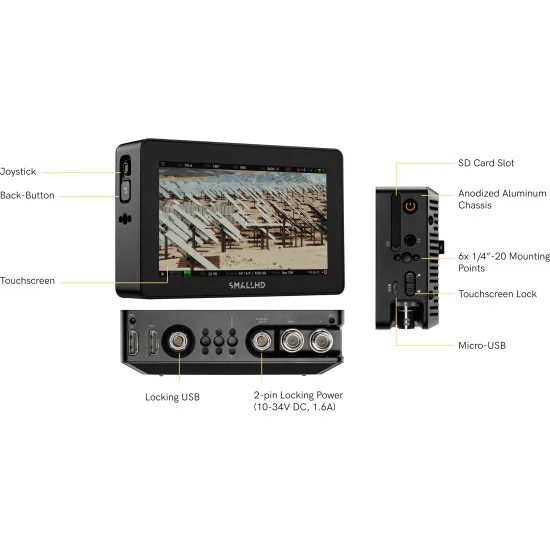

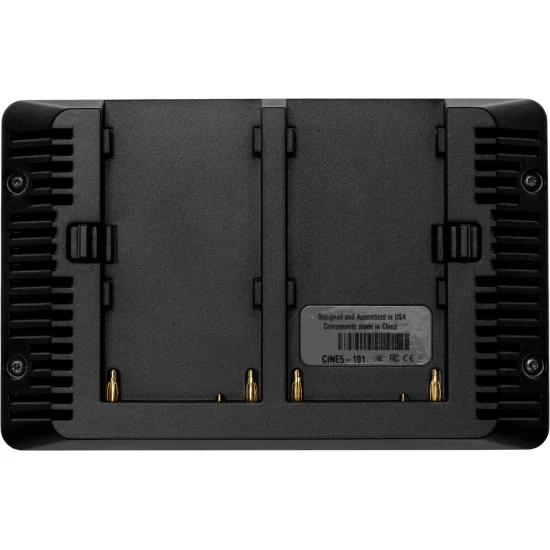

L’alimentation suit : double plateau NP-F à échange à chaud ou entrée 2-broches LEMO 10-34 V CC. Un joystick latéral et un bouton arrière autorisent une exploitation gantée, l’image pivote pour le mode vertical, et le boîtier ne mesure que 134 × 86 × 39 mm. Le SmallHD Cine 5 concentre la précision des moniteurs phares dans un outil de terrain compact pour le cinéma, le broadcast et le streaming professionnel.

Expédition vers l'UE

Livraison dans toute l’UE pour 20 €, gratuite dès 1 000 €.

Boutique B2B

Boutique B2B réservée aux professionnels, prix HT.

Achats en toute sécurité

Distribution et garantie officielles de l'UE.

Paiement sécurisé

Paiements en ligne sécurisés via Stripe.

Devis individuel

Demande de devis via formulaire ou e-mail: avgear@avgear.shop

Cine 5
Bright. Compact. Versatile.
For the professional who demands performance, brightness, and intuitive control options in a touchscreen 5-inch monitor.

Cine 5 is lightweight, compact, and offers 2000nits of daylight-busting brightness – plus a convenient joystick and back button that allow for quick adjustments while wearing gloves. Experience all your favorite PageOS tools, functions, and settings pages on our premium 5-inch touchscreen monitor.

PageOS - Next-Gen Tools, Customizable Workflow, Premium UX
Smarter, more intuitive software tools for at-a-glance adjustments, effortless navigation, and more accurate exposure and color control. Personalized Page Profile, Focus and Exposure Assist, Lookaround Camera Control, Tetrahedral LUT Interpolation, Advanced Teradek RT Overlays, and more.

LOOK-AROUND CAMERA CONTROL
A Camera Interface on Every Page
View and adjust crucial camera-control functions and PageOS tools at the same time on Smart 5 Series Monitors with a camera-control interface anchored to every page.

TERADEK RT OVERLAYS
Lens Control Overlays
View critical lens, focus, iris, and zoom data on your monitor. Quickly create, edit, and delete visual marks on the focus scale, set on-screen limits, and even pinch-zoom the scale for extremely precise focal-change sequences.

EL ZONE
Light Metering Evolved
Developed by legendary cinematographer, Ed Lachman, ASC, EL Zone is a stop-based exposure map tool that works like a virtual spot meter, replacing IRE exposure values with stops. Sensor data from the camera provides a reference point, and a false color represents each stop above and below 18% gray, allowing for easier, more intuitive on-set communication.

HORIZON INDICATOR
Keep Your Frame on the Level
A built-in digital bubble-level overlay you can apply to the image to precisely gauge camera rotation.

TOUCH FUNCTION BUTTONS
Customizable On-Screen Shortcuts
Smart 5 has easily accessible on-screen Touch Function Buttons. Assign workflow shortcuts for software tools, input switching, display brightness, and more.

SPECS

Environmental
Item Weight (oz): 14.7
Height (in): 3.39
Width (in): 5.28
Length/Depth (in): 1.52
Mount Points: 6x 1/4-20 Mounting Points

Display
Panel Type: Touch-Screen
Resolution: 1920 x 1080
Aspect Ratio: 16:9
Max Brightness: 2000nits
Backlight Type: Edgelit

Input Signal
3G-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Input Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50

HDMI Input Types: YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50

Audio Input Types: HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels

Output Signal
3G-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Output Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50

HDMI Output Types: YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50

Audio Output Types: HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

Connector Type
SDI: 1x 3G-SDI (In), 1x 3G-SDI (In/Out)
HDMI: 1x HDMI 2.0 (4Kp30) [In], 1x HDMI 2.0 (4Kp30) [Out]
Audio: 1x 3.5mm Stereo Headphone Jack

Data I/O
Storage Media: 1x SD Card Slot
USB: 1x Micro USB 1x Locking USB

Power
Input: 2-pin Locking Power Input (10-34V DC, 1.6A)

Software
Pixel Zoom: Yes
Focus Assist: Yes
Peaking: Yes
False Color: Customizable False Color Overlays
Waveform: Customizable 4K Waveform w/Region of Interest Highlighting (Coming Soon)
Custom LUTS: 17pt 3D-LUT on Output/Input 33pt 3D-LUT on Output/Input
