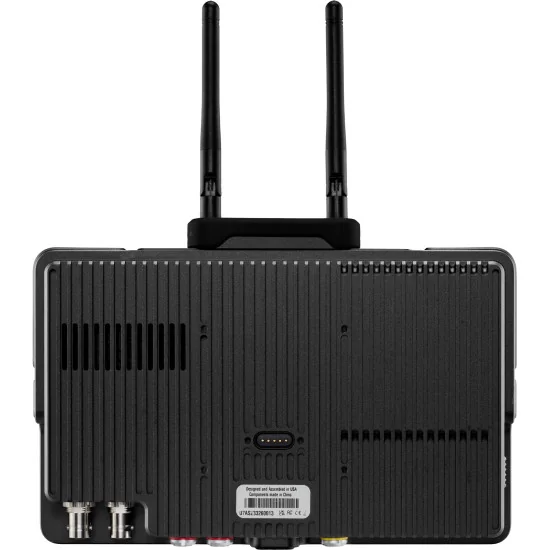

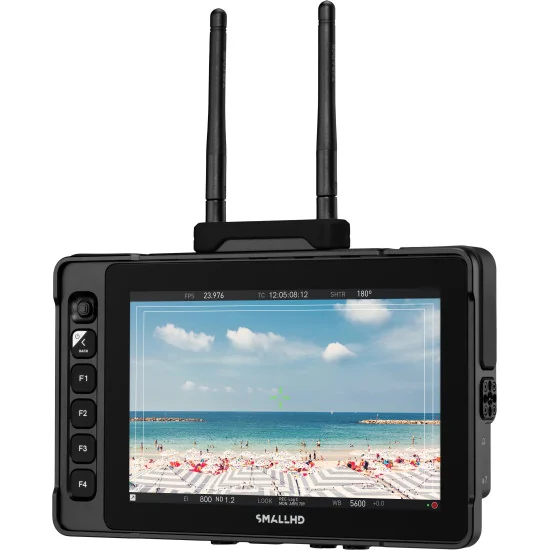

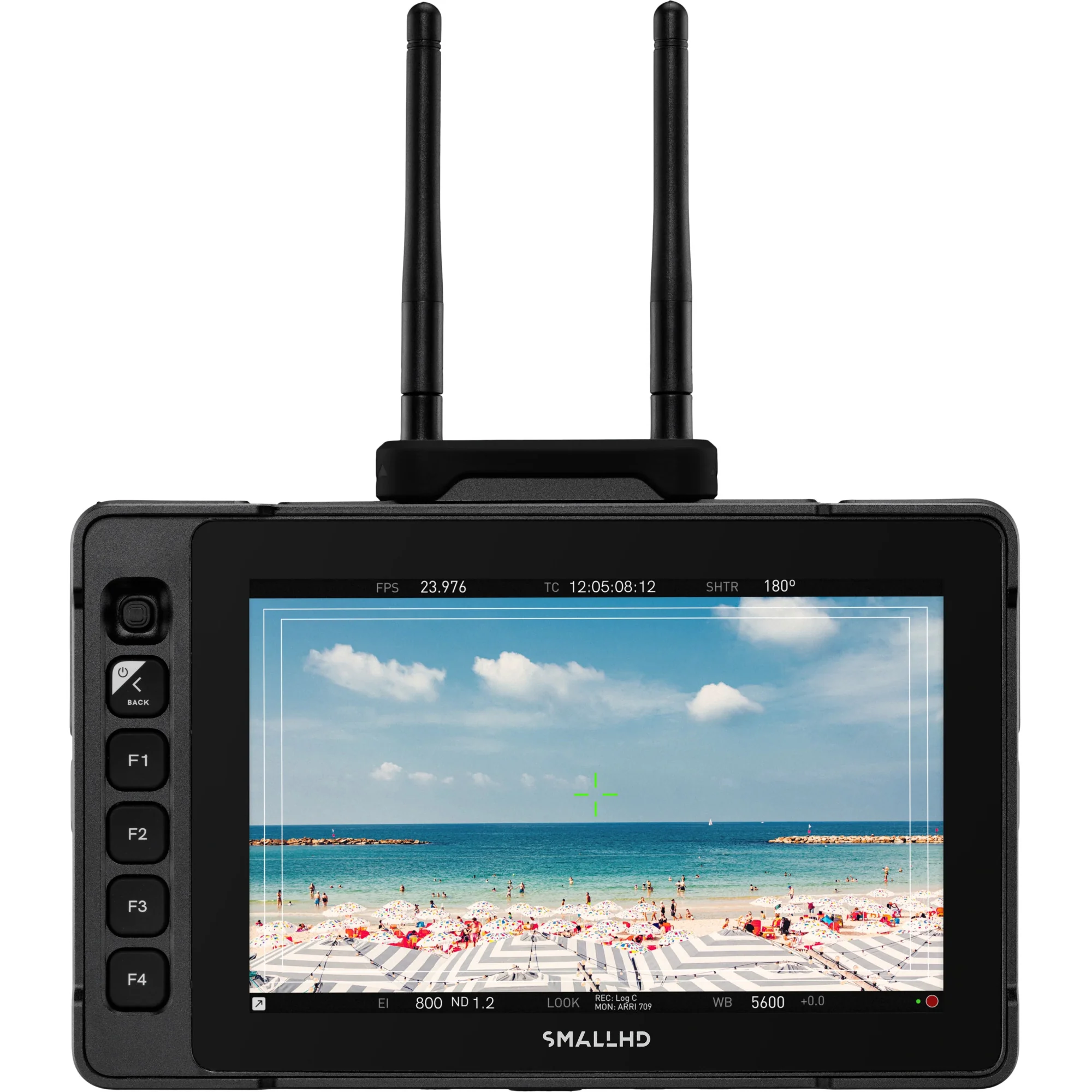

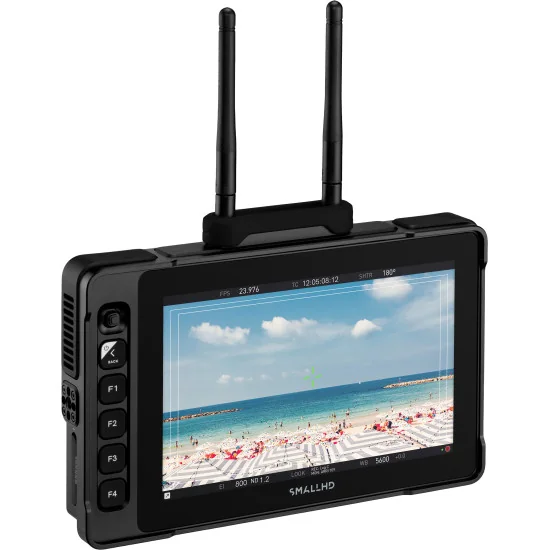

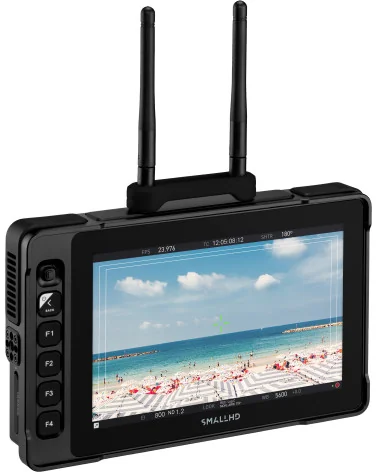

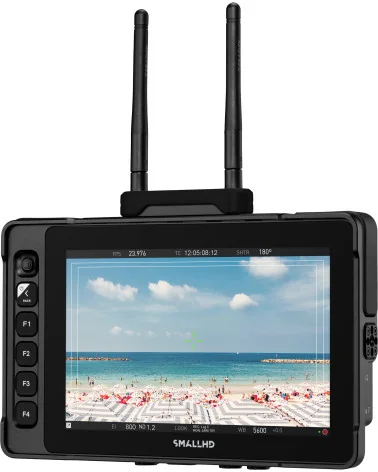

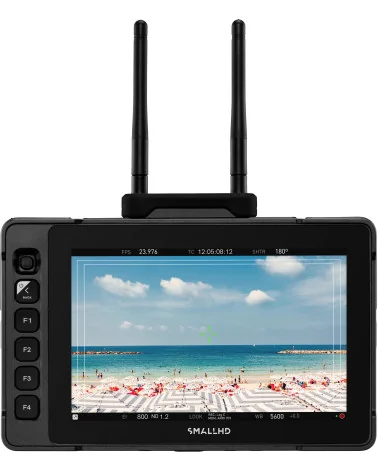

SmallHD Ultra 7 Bolt 6 TX 1500 associe un écran tactile 7 po 10 bits de 2300 cd/m² à un émetteur Teradek Bolt 6 pour proposer aux opérateurs un moniteur lisible en plein soleil capable d’envoyer un signal 4K30 non compressé sur les bandes 6 GHz et 5 GHz jusqu’à 1500 ft / 457 m avec une latence <0,001 s. La dalle 1920 × 1200 restitue 100 % Rec.709 et le HDR, protégée par un verre Gorilla et un châssis IP53 prêt pour le terrain.
Les entrées 6G-SDI et HDMI 2.0 sont bouclées vers des sorties, tandis qu’un port Ethernet de contrôle caméra, un pass-through LEMO 2 broches 12 V et des plaques V-Mount / Gold-Mount ou L-Series interchangeables assurent l’alimentation. PageOS 5 fournit waveform, EL Zone, false color, LUT 3D, superpositions Teradek RT, multi-view et autres outils, pilotables au toucher ou via cinq touches physiques utilisables avec des gants. Un calibrage usine 10 points et des profils Color Pipe importables par SD ou USB garantissent la fidélité chromatique. Vu-mètres huit canaux, media-bin SD et mises à jour PageOS 5.2 prolongent la durabilité de l’ensemble. Ces outils répondent aux exigences pro.
La partie sans-fil Bolt 6 TX 1500 diffuse une vidéo HDR chiffrée AES-128 vers tout récepteur Bolt 6, ou vers les solutions Bolt 4K grâce au down-converter, synchronisant moniteurs script, focus puller et régie sans délai. Saut de fréquence dynamique, conformité DFS et puissance RF ajustable sécurisent la liaison sur les plateaux saturés.
À 0,91 kg pour 21 × 13 × 3,5 cm, l’Ultra 7 s’intègre aux rigs épaule, gimbals ou drones et résiste aux projections d’eau, à la poussière et à 45 °C. Il remplace moniteur, analyseur et émetteur dans un bloc unique, allégeant les configurations et accélérant la prise de décision sur le tournage.
SmallHD Ultra 7 Bolt 6 TX 1500 associe un écran tactile 7 po 10 bits de 2300 cd/m² à un émetteur Teradek Bolt 6 pour proposer aux opérateurs un moniteur lisible en plein soleil capable d’envoyer un signal 4K30 non compressé sur les bandes 6 GHz et 5 GHz jusqu’à 1500 ft / 457 m avec une latence <0,001 s. La dalle 1920 × 1200 restitue 100 % Rec.709 et le HDR, protégée par un verre Gorilla et un châssis IP53 prêt pour le terrain.
Les entrées 6G-SDI et HDMI 2.0 sont bouclées vers des sorties, tandis qu’un port Ethernet de contrôle caméra, un pass-through LEMO 2 broches 12 V et des plaques V-Mount / Gold-Mount ou L-Series interchangeables assurent l’alimentation. PageOS 5 fournit waveform, EL Zone, false color, LUT 3D, superpositions Teradek RT, multi-view et autres outils, pilotables au toucher ou via cinq touches physiques utilisables avec des gants. Un calibrage usine 10 points et des profils Color Pipe importables par SD ou USB garantissent la fidélité chromatique. Vu-mètres huit canaux, media-bin SD et mises à jour PageOS 5.2 prolongent la durabilité de l’ensemble. Ces outils répondent aux exigences pro.
La partie sans-fil Bolt 6 TX 1500 diffuse une vidéo HDR chiffrée AES-128 vers tout récepteur Bolt 6, ou vers les solutions Bolt 4K grâce au down-converter, synchronisant moniteurs script, focus puller et régie sans délai. Saut de fréquence dynamique, conformité DFS et puissance RF ajustable sécurisent la liaison sur les plateaux saturés.
À 0,91 kg pour 21 × 13 × 3,5 cm, l’Ultra 7 s’intègre aux rigs épaule, gimbals ou drones et résiste aux projections d’eau, à la poussière et à 45 °C. Il remplace moniteur, analyseur et émetteur dans un bloc unique, allégeant les configurations et accélérant la prise de décision sur le tournage.
Livraison dans toute l’UE pour 20 €, gratuite dès 1 000 €.
Boutique B2B réservée aux professionnels, prix HT.
Distribution et garantie officielles de l'UE.
Paiements en ligne sécurisés via Stripe.
Demande de devis via formulaire ou e-mail: avgear@avgear.shop
Ultra 7
Ultra Smart. Ultra Bright. Ultra Durable.
Designed to withstand the extremes of any production environment, Ultra 7 has the processing power of our 4K Production monitors, customizable function buttons, and shock absorbing bumpers.
Rugged, powerful, and feature-rich, the Ultra 7 offers 2300nits of brightness, 6G-SDI that allow you to ingest 4K signal, a 2-Pin power passthrough for cleaner builds, an Ethernet port for camera control, plus a joystick and tactile physical buttons for control in any conditions. Utilize all your favorite PageOS tools, functions, and settings pages on a fully-loaded 7-inch touchscreen monitor.
Ultra 7 is adaptable to all situations and conditions, including V-Mount Battery Plate for a compact power solution, an Ethernet port to enable ARRI and Sony VENICE Camera Control, and a 5-Pin USB port for RED® Camera Control (Camera Control license and cable sold separately).
We brought together SmallHD’s Ultra 7 monitor with Teradek’s wireless transmission technology. Ultra 7 Bolt 6 TX integrates a Bolt 6 Transmitter directly inside an Ultra 7 monitor, allowing you to wirelessly send the image from your camera with the new internal V-Antenna.
QD-LED Edge-Lit LCD Panel Technology
SmallHD LEDs for Ultra 7 panels have the highest tolerance for color uniformity. These LEDs are built into an edge-lit panel stack that diffuses and focuses the light through a quantum-dot film, ensuring the purest color accuracy on our panels. The result is an extremely bright monitor with excellent image fidelity.
Rain, Sun or Snow Built to Withstand the Harshest Production Environments
With an IP54 rating and ultra-durable water, dirt, heat, cold, and drop-resistant chassis, Ultra 7 was designed to withstand all the rigors and elements that professional filmmakers endure.
Fully Sealed
All electronic components are sealed with caps to protect against dust and water.
Impact Resistant
Able to withstand most drops, tumbles, and impacts with shock-absorbing bumpers.
Thermal Management
Ultra 7 can operate at freezing as well as scorching temperatures (0º-40ºC).
Strength & Durability
Strong, durable chassis with raised edges to protect the screen.
Water Resistant
Water resistant with protection against damp scenarios.
The Folding Magnetic Sunhood
The reimagined Ultra 7 sunhood connects to the monitor in seconds using a powerful magnetic array. This means no tools for installation or removal. When closed, the sunhood also provides total protection of the panel.
PageOS
Next-Gen Tools, Customizable Workflow, Premium UX
Smarter, more intuitive software tools for at-a-glance adjustments, effortless navigation, and more accurate exposure and color control. Personalized Page Profile, Focus and Exposure Assist, Lookaround Camera Control, Tetrahedral LUT Interpolation, Advanced Teradek RT Overlays, and more.
LOOK-AROUND CAMERA CONTROL
A Camera Interface on Every Page
View and adjust crucial camera-control functions and PageOS tools at the same time on Smart 7 Series Monitors with a camera-control interface anchored to every page.
TERADEK RT OVERLAYS
Lens Control Overlays
View critical lens, focus, iris, and zoom data on your monitor. Quickly create, edit, and delete visual marks on the focus scale, set on-screen limits, and even pinch-zoom the scale for extremely precise focal-change sequences.
EL ZONE
Light Metering Evolved
Developed by legendary cinematographer, Ed Lachman, ASC, EL Zone is a stop-based exposure map tool that works like a virtual spot meter, replacing IRE exposure values with stops. Sensor data from the camera provides a reference point, and a false color represents each stop above and below 18% gray, allowing for easier, more intuitive on-set communication.
CUSTOM FUNCTION BUTTONS
A Tactile Complement to Touchscreen UI
Easily accessible physical buttons give you full control of the monitor, even when you’re wearing gloves. Assign workflow shortcuts for software tools, switch inputs, adjust display brightness, and more.
MULTI-VIEW
Handheld Multi-View
We’ve added the powerful Multi-View* tools from our 4K Production Monitors to Ultra 7. View two camera feeds and use multiple tools pages all on screen at the same time side-by-side.
*Coming Soon
SPECS
Environmental
IP Rating: IP 54
Item Weight (oz): 32
Height (in): 1.36
Width (in): 5.12
Length/Depth (in): 8.23
Display
Panel Type: IPS LCD
Diagonal Size: 7.02"
Resolution: 1920x1200
Max Brightness: 2300nits
Contrast: 1000:1
Color Depth: 10-bit Processing (8-bit panel)
Backlight Type: LED Edgelit
Refresh Rate: Synchronizes with input from 48Hz to 60Hz
Input Signal
3G-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i102
6G-SDI Input Types: YCC 4:2:2 @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95
HD-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.100
SD-SDI Input Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i52
HDMI Input Types: YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 3840x2160 30p, 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i52
Output Signal
3G-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i102
HD-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.100
SD-SDI Output Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i52
HDMI Output Types: YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i51
Audio Output Types: HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection
Data I/O
SDI: 1x BNC 6G input and 1x BNC 6G input/output
HDMI: 1 input and 1 output: HDMI Type-A Receptacles (full size)
Audio: 1x 3.5mm 3-pin Stereo Headphone Jack
Ethernet: RJ45
Power
Connector: 2-Pin Locking Connector
Voltage: DC in - 10V minimum to 34V maximum, Battery terminals - 10V minimum to 34V max
Power Supply: Recommend DC 12~15V at ~2.5 amp or greater
Battery Types: Optional V Mount, Gold Mount Micro Battery Plates
Overload Protection: DC input: Reverse polarity
Software
Pixel Zoom: 1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom
Frame Guides: Preset Aspect Ratios & Customizable
DSLR Scale: Canon 5DMkii & Canon 7D
Custom Scale: Yes (Underscan Only)
Anamorphic De-Squeeze: 0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x
Image Rotate: Automatic or Manual Control
Image Flip: Automatic or Manual Control
Cross Conversion: Yes: HDMI → SDI & SDI → HDMI (Coming Soon)
Focus Assist: User Adjustable Color Style and Intensity
Peaking: User Adjustable Intensity
False Color: Rainbow, Arri Style, Custom with up to 10 nodes
Zebra: Dual - User Configurable
Waveform: Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope: Yes
RGB Parade: Fully User Customizable
Histogram: Luma & RGB Style
Image Capture: Yes
LUTS - 33pt User LUT instead of 17pt - 33pt Cal LUT instead of 17pt - LUT tool continues to work after removable media containing the LUT has been removed
Custom LUTS - Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu - LUT Downstream: Available on SDI or HDMI Out (Coming Soon). Applied on Output Preview Page - LUT Import: via SD Card or USB Storage Device
Color Pipe - Unique Calibrations may be saved to each Color Pipe - Accurate color processing
Overlay: With Opacity Slider and Blink Setting
Audio Meters: HDMI & SDI up to 8 channel
Multi-View: 2 camera feeds simultaneously
